Including Duty & Taxes.
-33%
Price range: $ 259.99 through $ 511.99

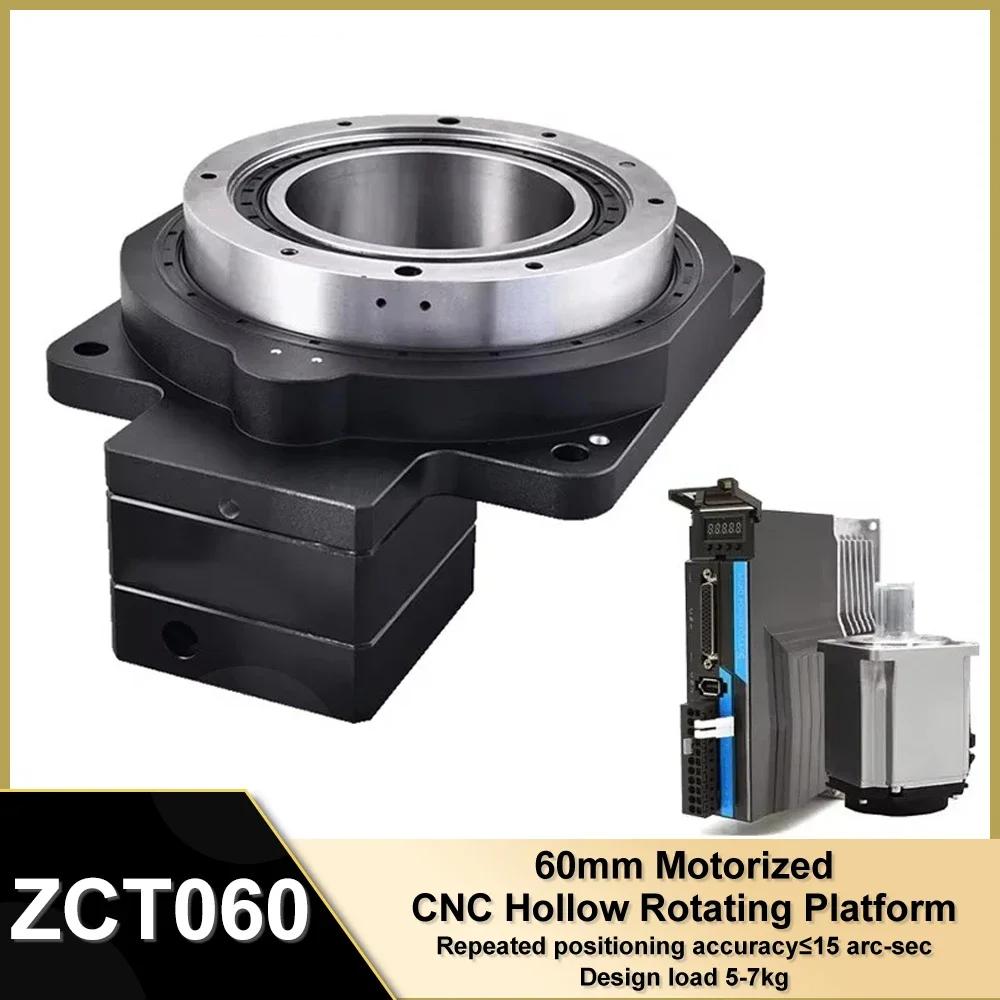

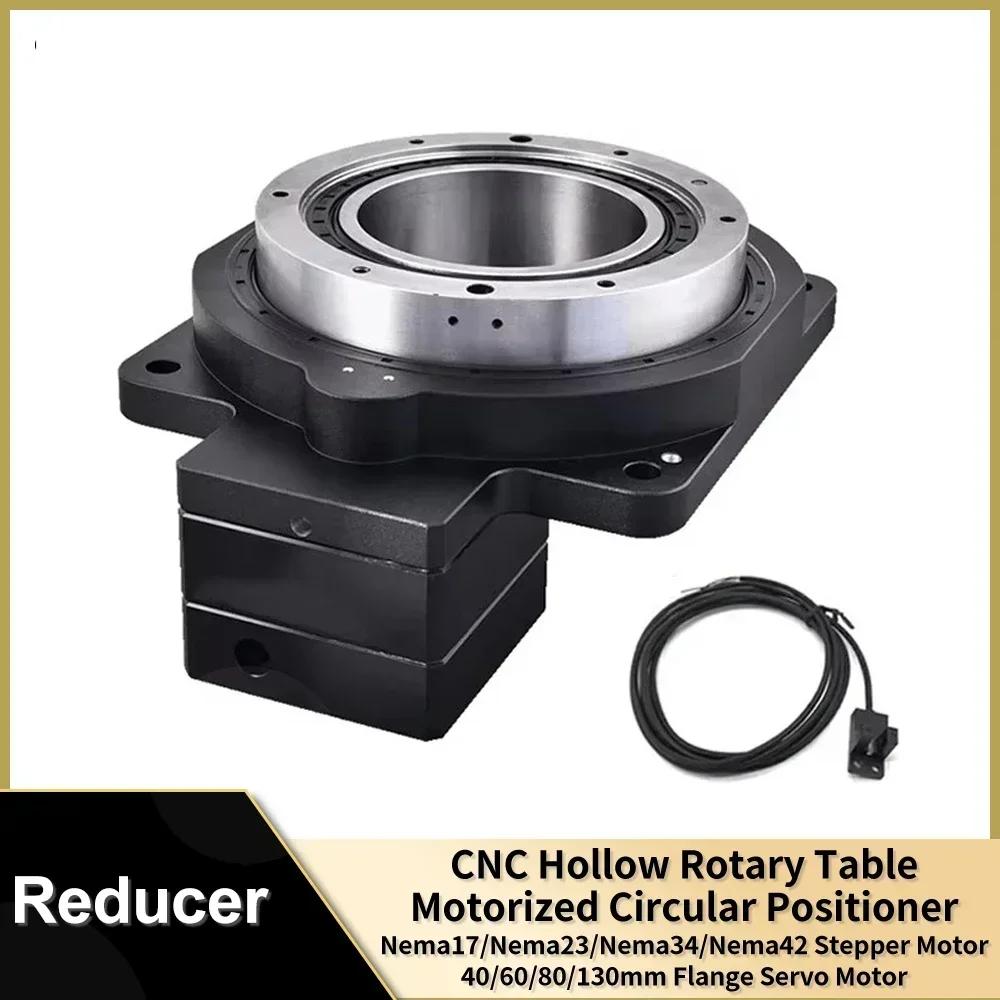

Hollow Rotating Platform 360° CNC Electric Rotary Table – High-Precision Rotary Indexing Plate for Industrial Automation
1312
Items sold in last 12 months
For Bulk Orders & Wholesale Prices OR any other queries, Contact Live Chat Support
12
People watching this product now!
High-precision 360° CNC hollow rotating platform with aluminum alloy housing, cross-roller bearings, and grade 5 gear accuracy. Ideal for automation, robotics, CNC tools, and indexing applications.
| Weight | 10 oz |
|---|---|
| Dimensions | 10 in |
| Hign-concerned Chemical | None |
| Certification | CE |
| Model Number | ZCT060 |
| Speed Ratio | 5:1 / 10 :1 |
| Positioning accuracy | Less than 1 arc-min |
| Repeated positioning accuracy | Less than 15 arc-sec |
| Max disk speed | 200rpm |
| Max axial load | 230N |
| keyword 1 | Laser marking rotary table |
| keyword 2 | motorized Turntable |
| keyword 3 | Carving machine rotary chuck |
| keyword 4 | rotary mechanism |
| keyword 5 | Light load robotic arm joints |
| keyword 6 | Replace DD motor |
| keyword 7 | Replace cam Divider |
| keyword 8 | Cutting table |
| keyword 9 | Electric stepper servo rotating platform |
| keyword 10 | Circular positioning |
| keyword 11 | Fourth Axis |
| keyword 12 | Dividing head |
Price range: $ 259.99 through $ 511.99
Hollow Rotating Platform 360° CNC Electric Rotary Table – High-Precision Rotary Indexing Plate for Industrial Automation
1312
Items sold in last 12 months
20
People watching this product now!
High-precision 360° CNC hollow rotating platform with aluminum alloy housing, cross-roller bearings, and grade 5 gear accuracy. Ideal for automation, robotics, CNC tools, and indexing applications.
| Weight | 10 oz |
|---|---|
| Dimensions | 10 in |
| Hign-concerned Chemical | None |
| Certification | CE |
| Model Number | ZCT060 |
| Speed Ratio | 5:1 / 10 :1 |
| Positioning accuracy | Less than 1 arc-min |
| Repeated positioning accuracy | Less than 15 arc-sec |
| Max disk speed | 200rpm |
| Max axial load | 230N |
| keyword 1 | Laser marking rotary table |
| keyword 2 | motorized Turntable |
| keyword 3 | Carving machine rotary chuck |
| keyword 4 | rotary mechanism |
| keyword 5 | Light load robotic arm joints |
| keyword 6 | Replace DD motor |
| keyword 7 | Replace cam Divider |
| keyword 8 | Cutting table |
| keyword 9 | Electric stepper servo rotating platform |
| keyword 10 | Circular positioning |
| keyword 11 | Fourth Axis |
| keyword 12 | Dividing head |
No one dislikes.
Free Shipping
Enjoy free shipping to your door step on order over $150
Worldwide
Fast Delivery.
Using Major Shipping Services worldwide
Live Chat & Email
After Sales 24/7 Support
Available to Serve 24/7 on live chat & Email Support.
Easy Return
Hassle Free Easy Return
5 Days Easy Return, Shop without worries
Description

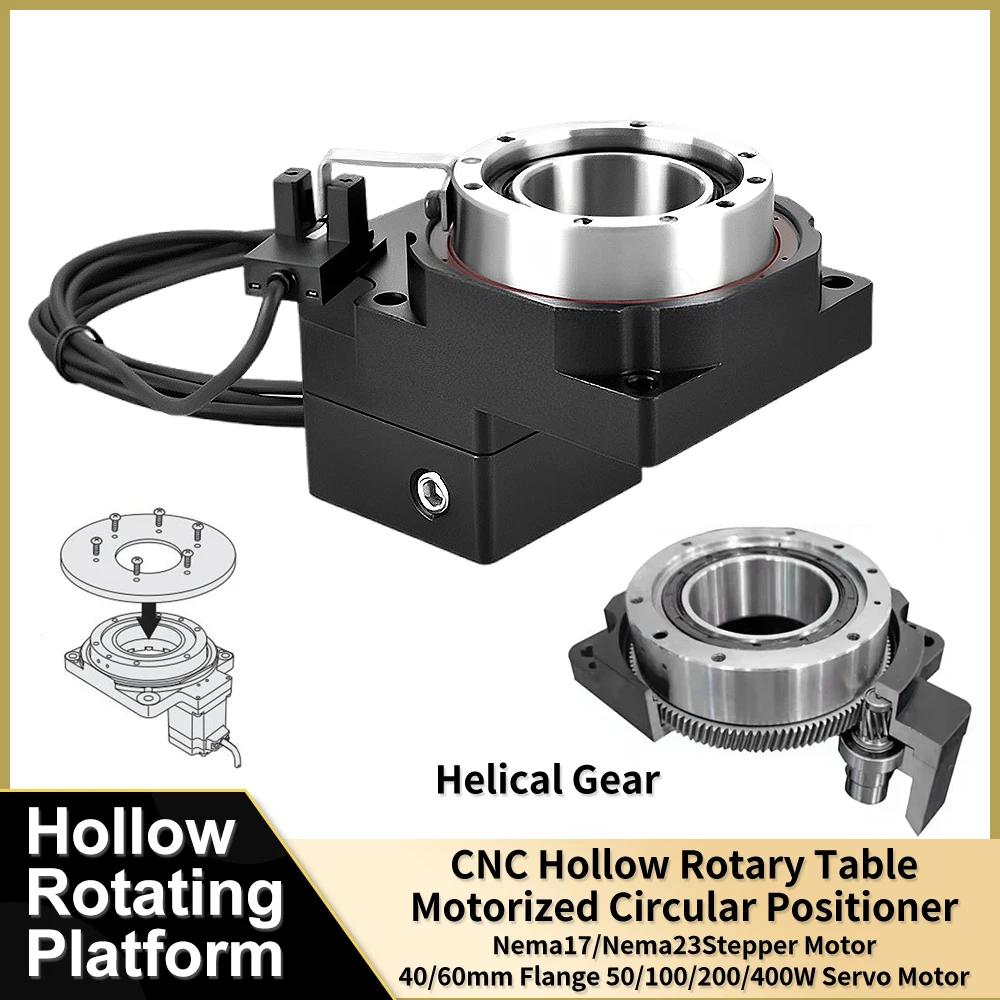

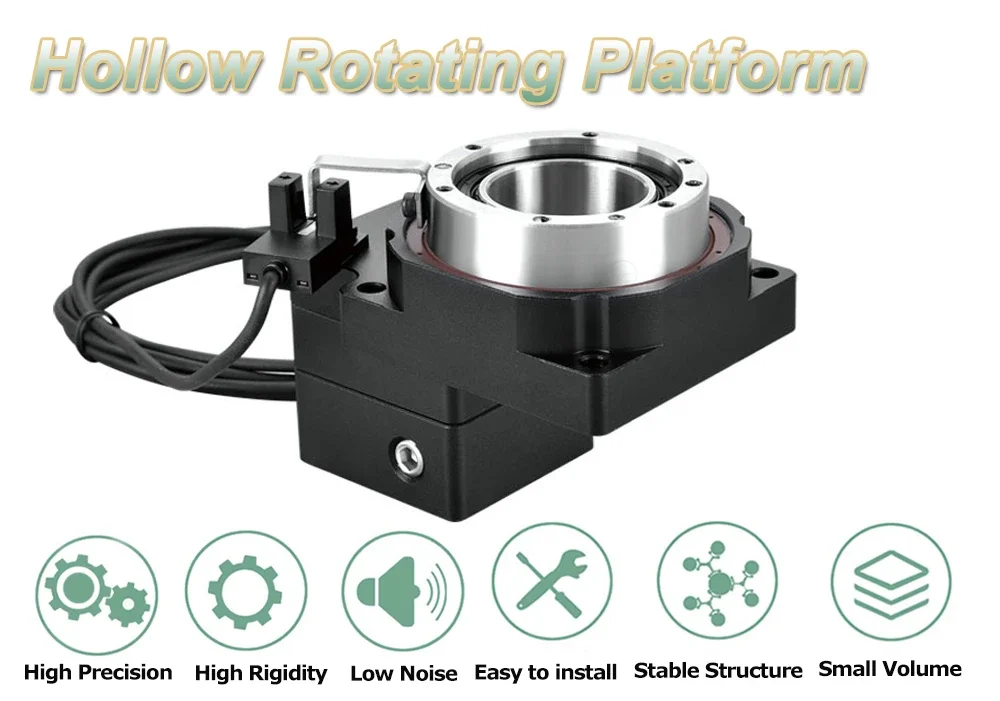

Upgrade your automation system with the Hollow Rotating Platform 360° CNC Electric Rotary Table, a precision-engineered solution designed for accuracy, durability, and seamless motion control. This advanced rotary positioning indexing plate is built to replace DD motors and other rotary mechanisms, offering exceptional torque stability and repeatability for a wide range of industrial applications.

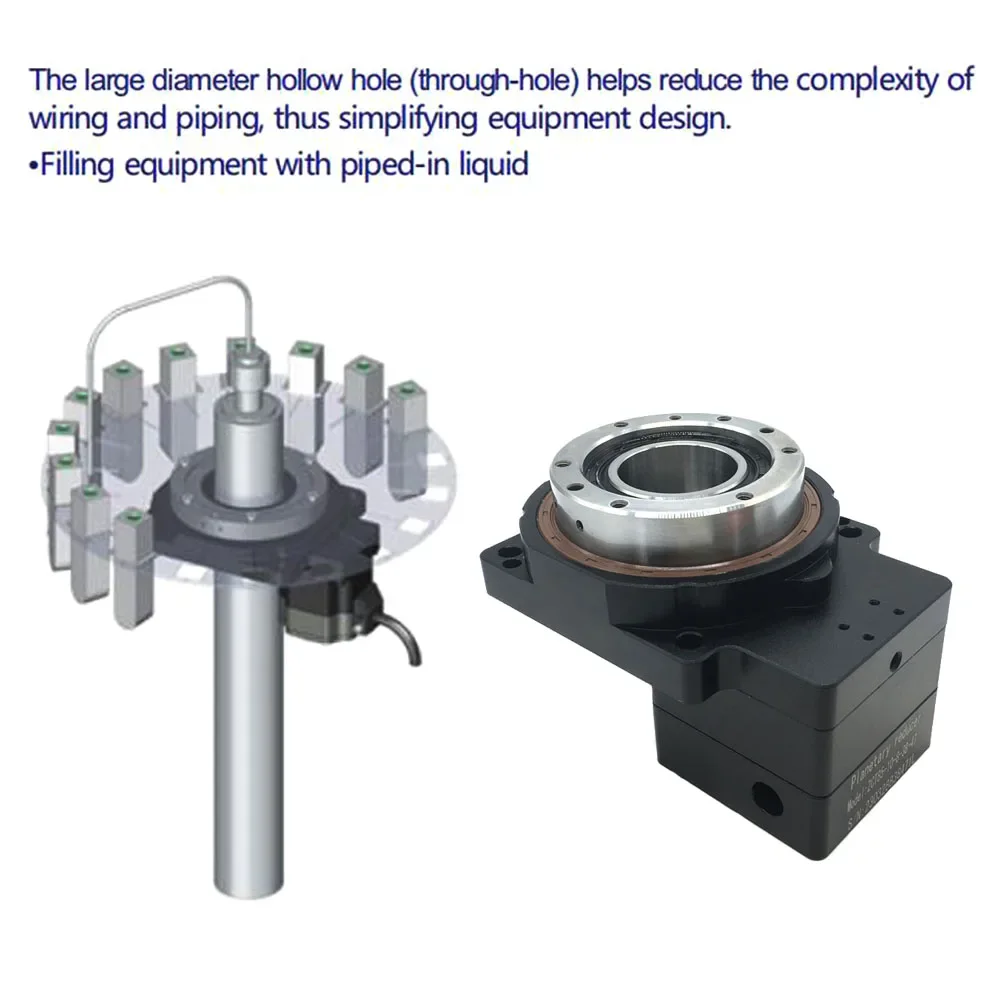

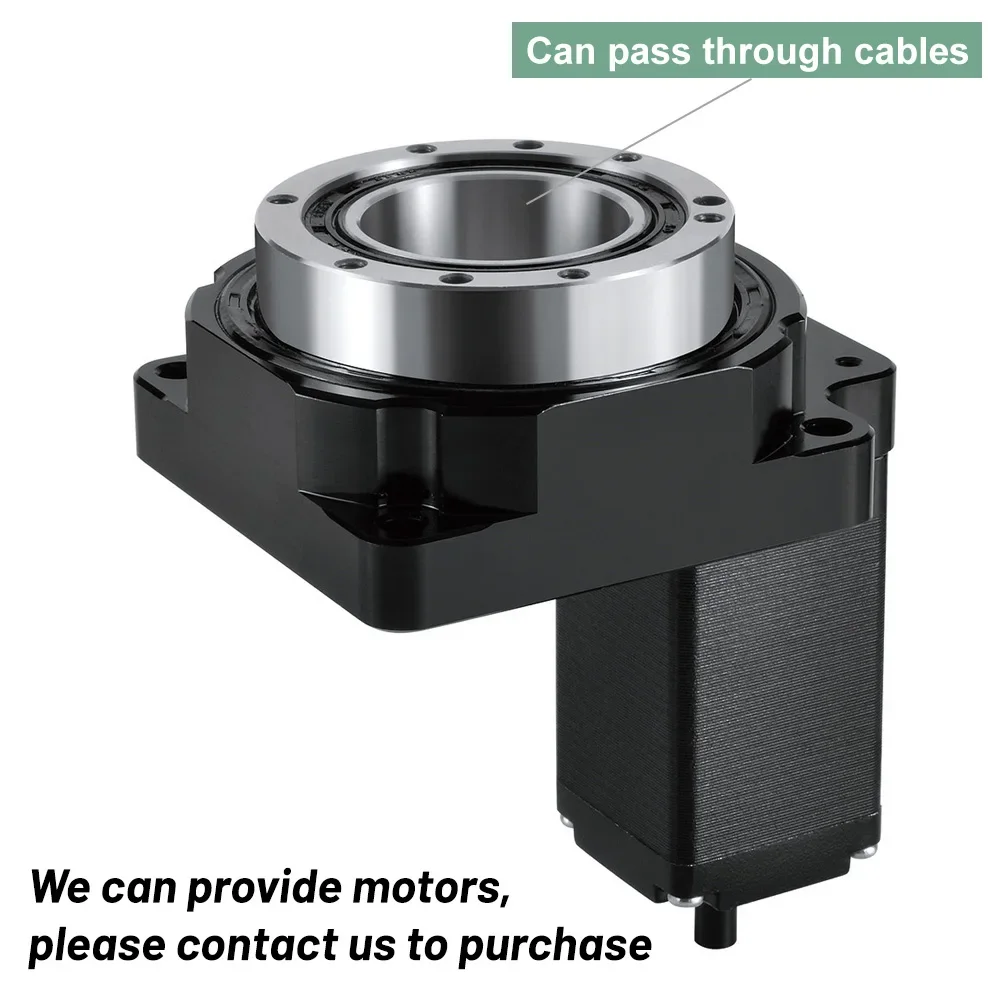

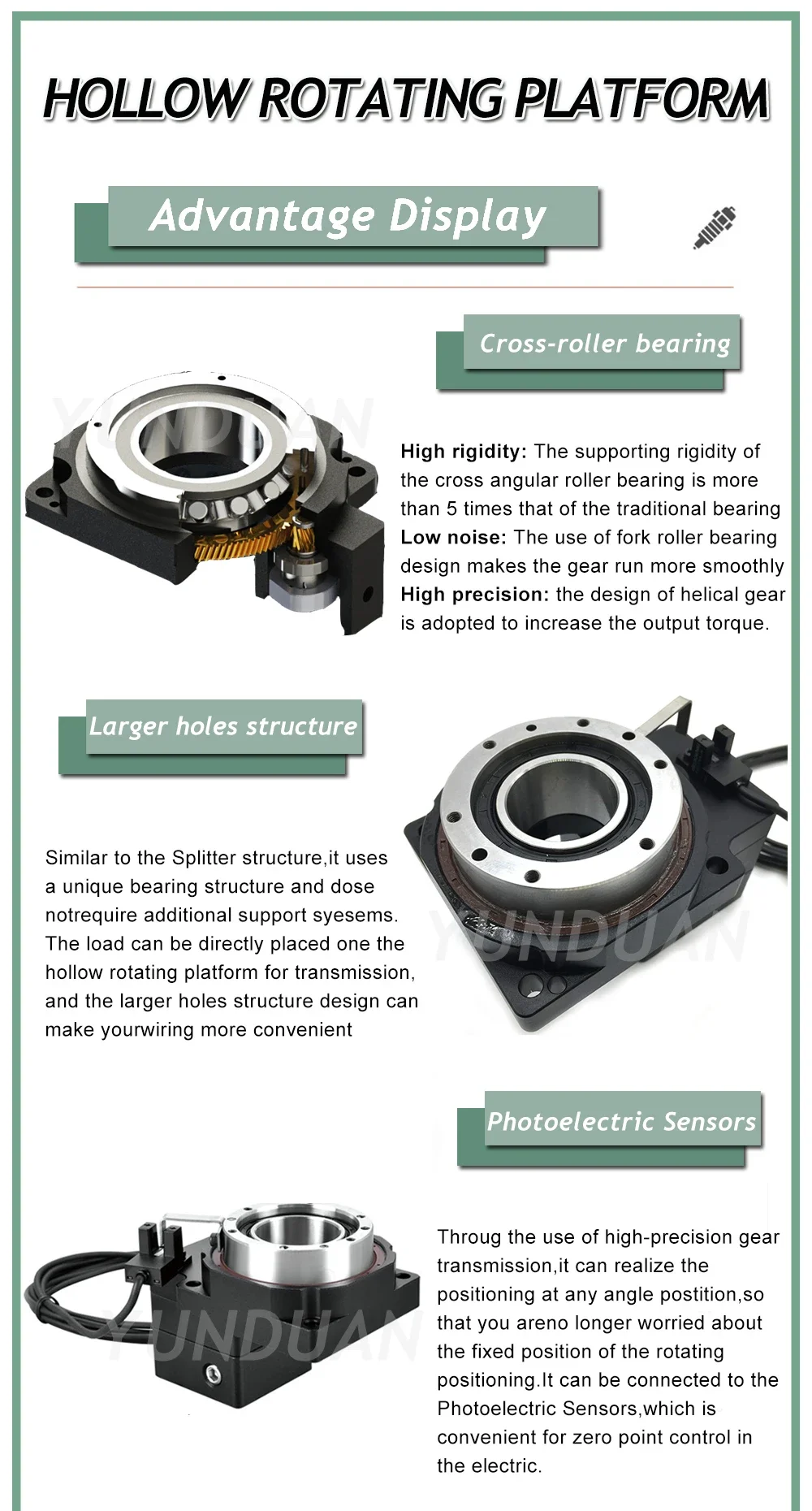

Crafted with a hollow structure, the rotary platform allows convenient cable and air pipe routing through the center, ensuring a clean and efficient installation for smelting tools, robot arms, or machine assemblies. Its side-mounted motor design enhances space efficiency, making it ideal for compact automation setups.

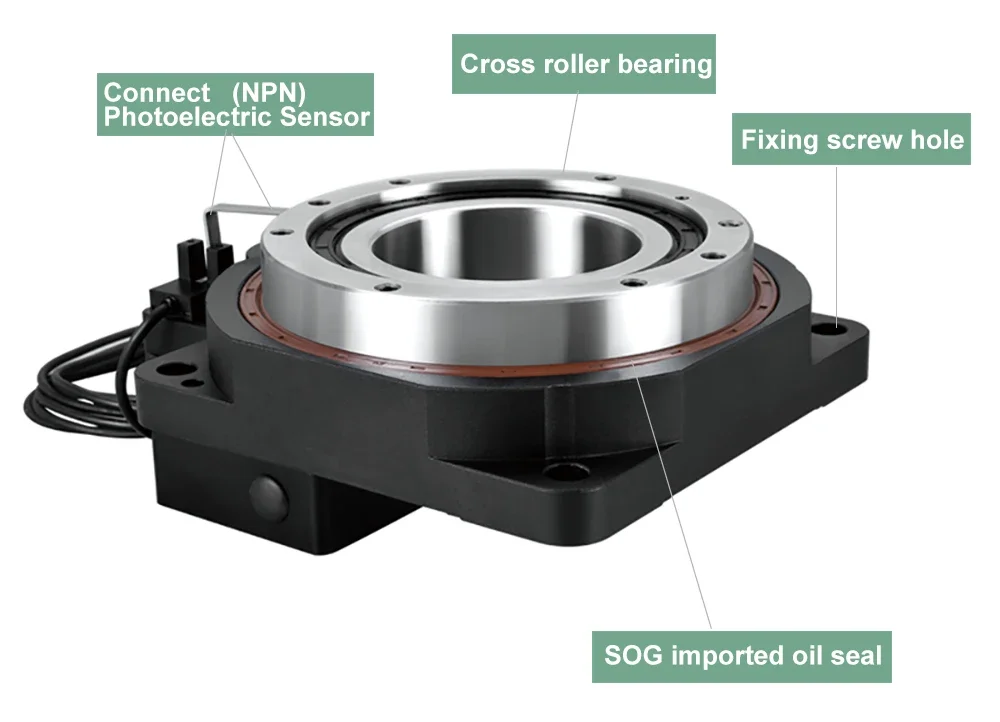

To guarantee maximum stability and load support, the platform utilizes a cross roller bearing system reinforced with an anti-overturning ring, providing superior resistance to lateral forces and vibrations during operation. The body is precision-milled from high-strength aluminum alloy using advanced CNC machining, delivering outstanding rigidity with minimal runout.
Every gear undergoes carburizing heat treatment and precision grinding, achieving grade 5 accuracy and surface hardness between 58–62 HRC. A final lapping process ensures exceptional parallelism and perpendicularity, maintaining performance consistency even under heavy-duty workloads.
With some gear accuracy levels reaching grade 4, this hollow rotary table minimizes backlash and air return errors, achieving a repeated positioning accuracy of less than 10 arc seconds. The adjustable gear center distance allows fine calibration during assembly, enabling unparalleled precision and smooth operation.

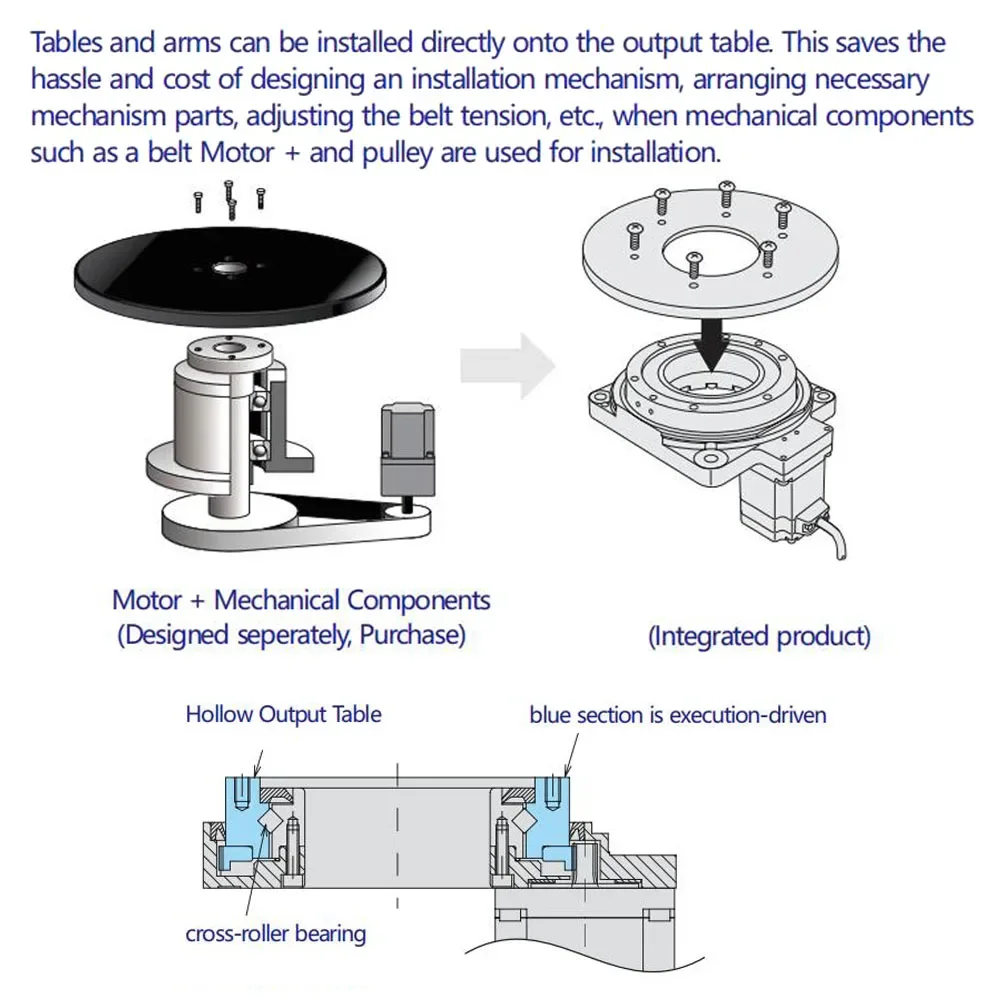

Engineers can directly install robotic arms, worktables, or tool fixtures on the turntable without additional pulleys or belts, reducing mechanical design time, cost, and maintenance.

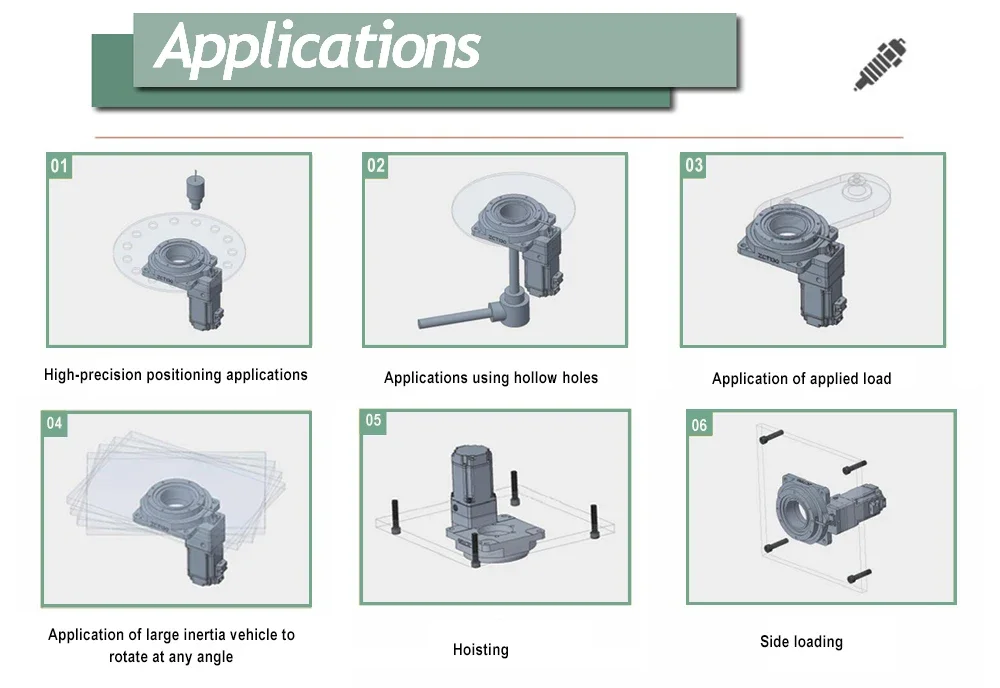

Perfectly suited for:
-
Industrial automation systems
-
Robotic joints and assembly lines
-
Dispensing and packaging machines
-
Optical, laser, and visual inspection equipment
-
Sorting and indexing systems
-
Semiconductor and laser printing machines
Whether you’re upgrading your CNC workstation or building a new robotic platform, this 360-degree hollow rotary table delivers high-precision motion, long-term durability, and effortless integration into complex automation systems.
Hollow rotating platfo

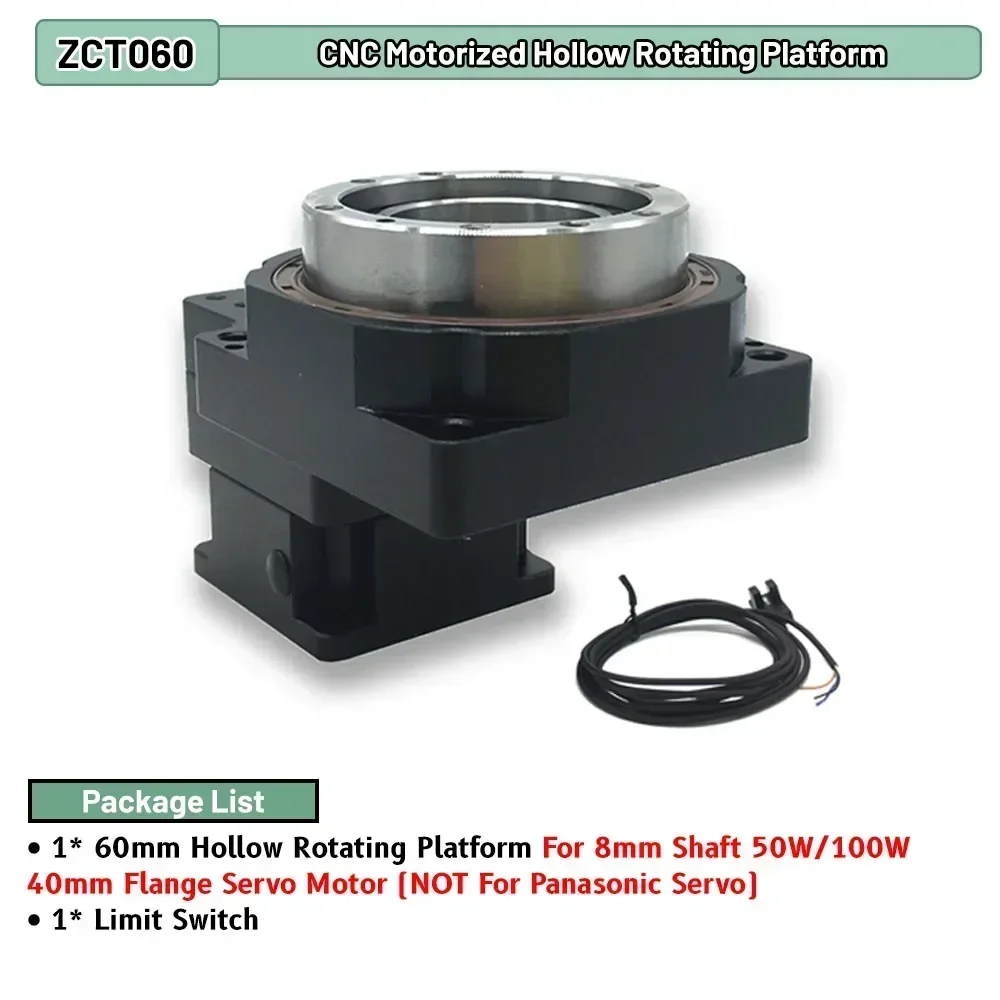

We will ship according to your selection :)If you choose “F or 42 Stepper Motor/40 Servo Motor“
1* 60mm Hollow rotating platform

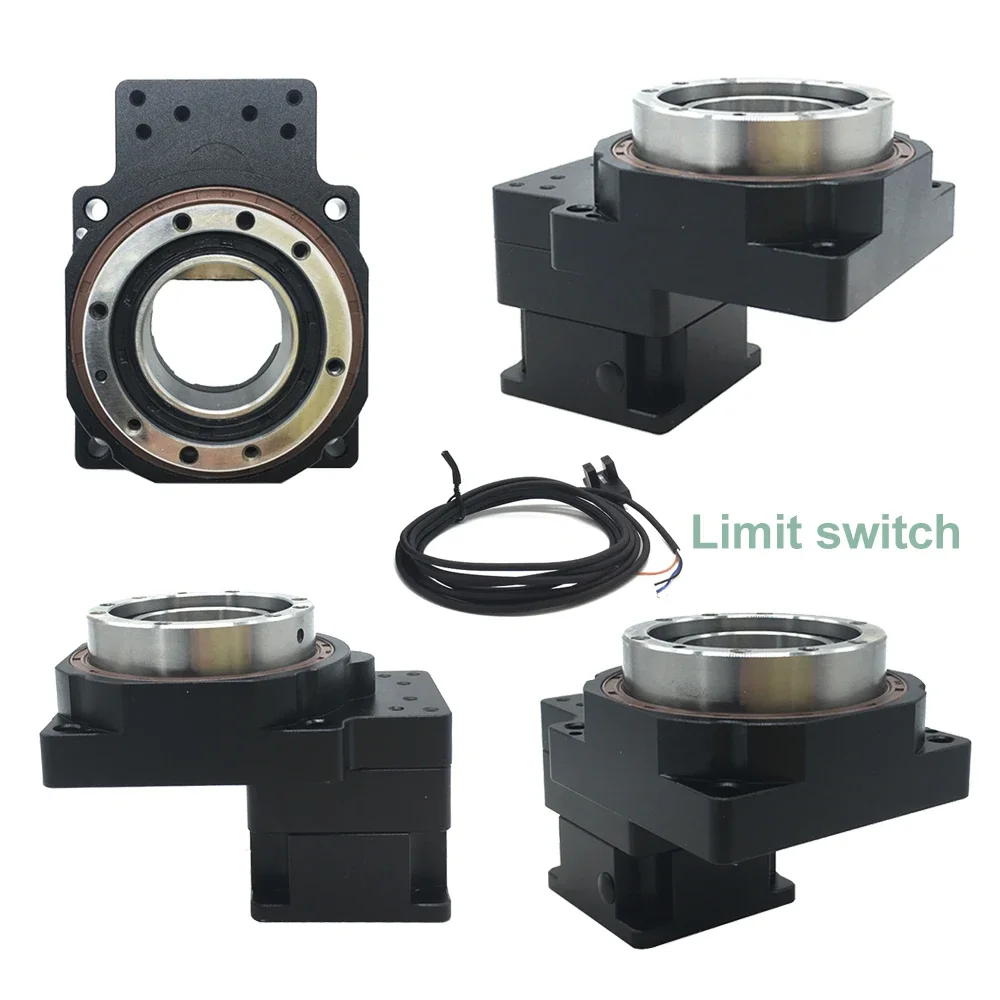

1* Limit switch
If you choose “0.4Nm Motor Driver”
1* 60mm Hollow rotating platform
1* Limit switch
1* Integrated closed-loop stepper motor and driver

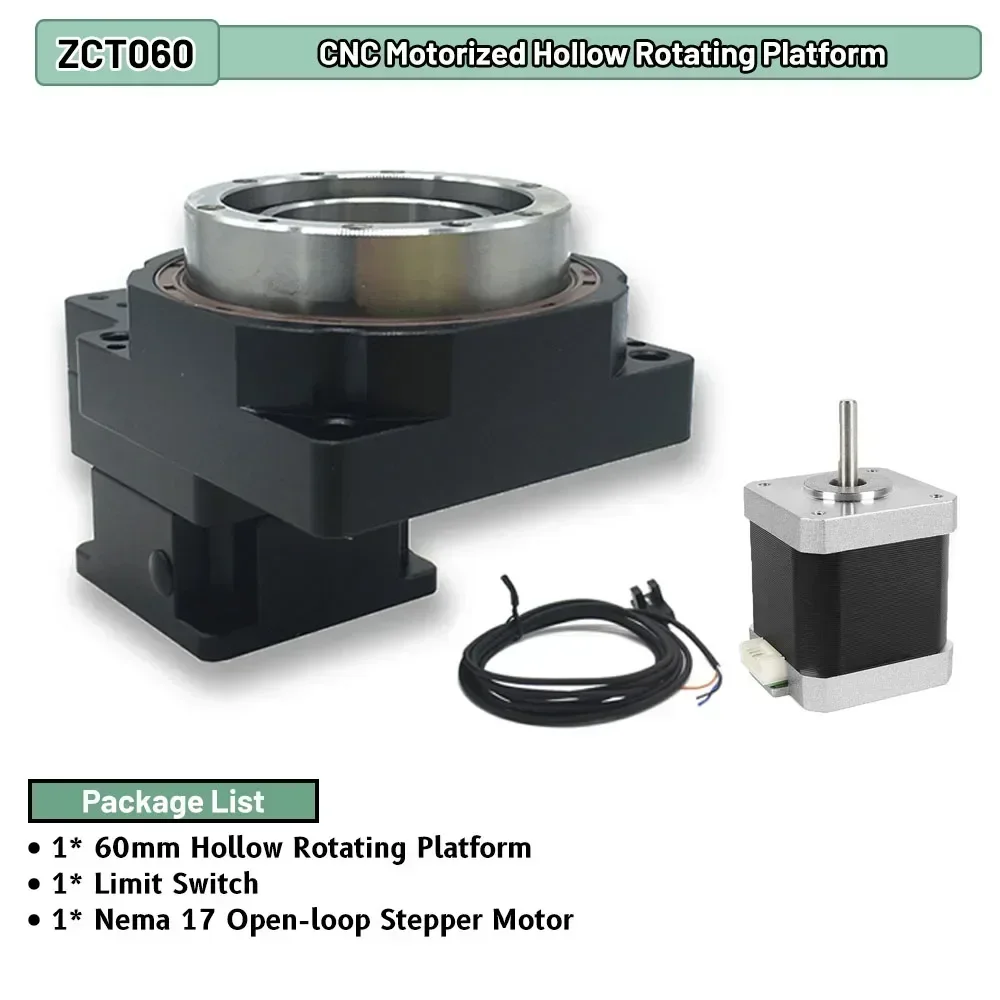

If you choose “With 0.42Nm/0.7Nm Motor“
1* 60mm Hollow rotating platform
1* Limit switch
1* Open-loop stepper motor

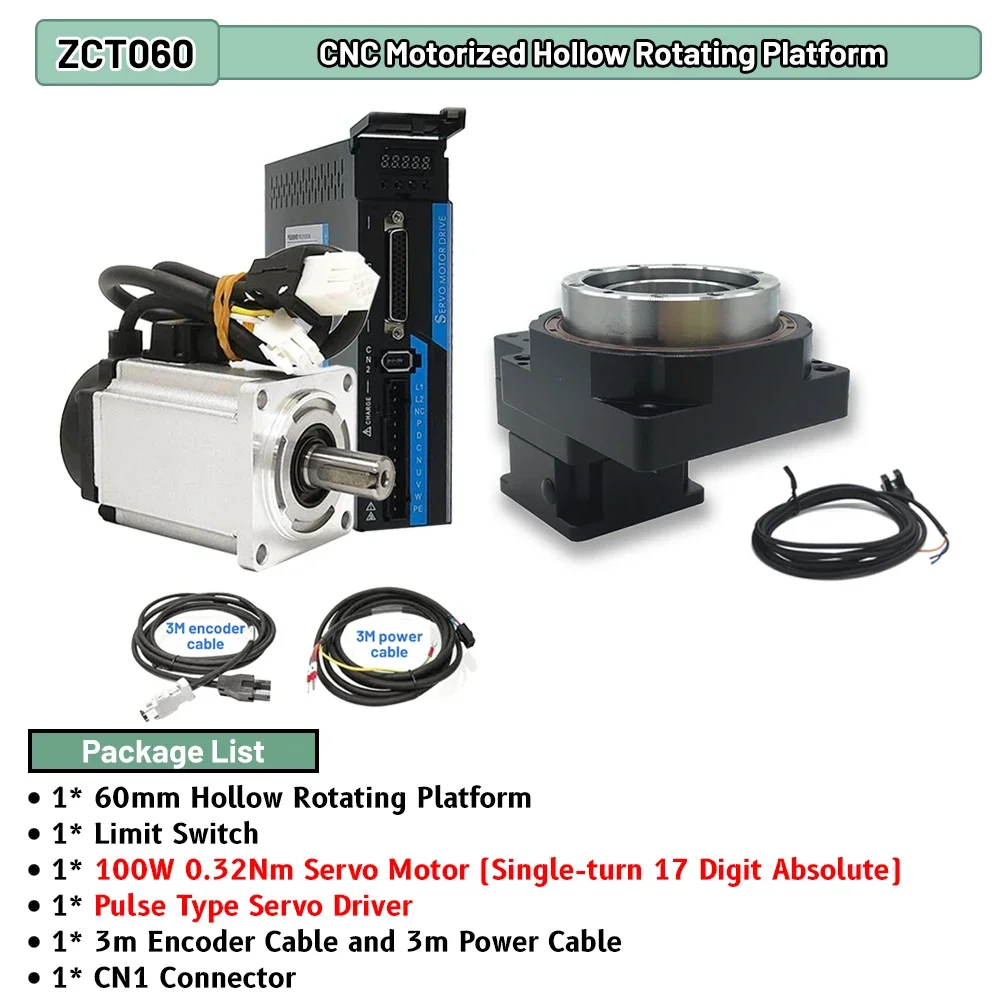

If you choose “With 100W Servo Kit”
1* 60mm Hollow rotating platform
1* Limit switch

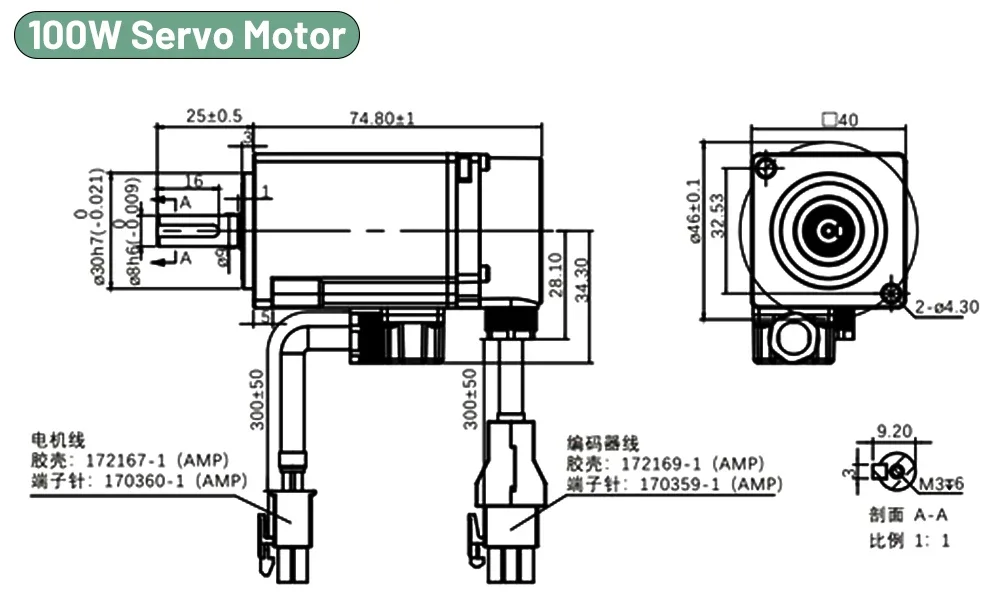

1* 100W 0.32Nm servo motor single-turn 17-bit absolute

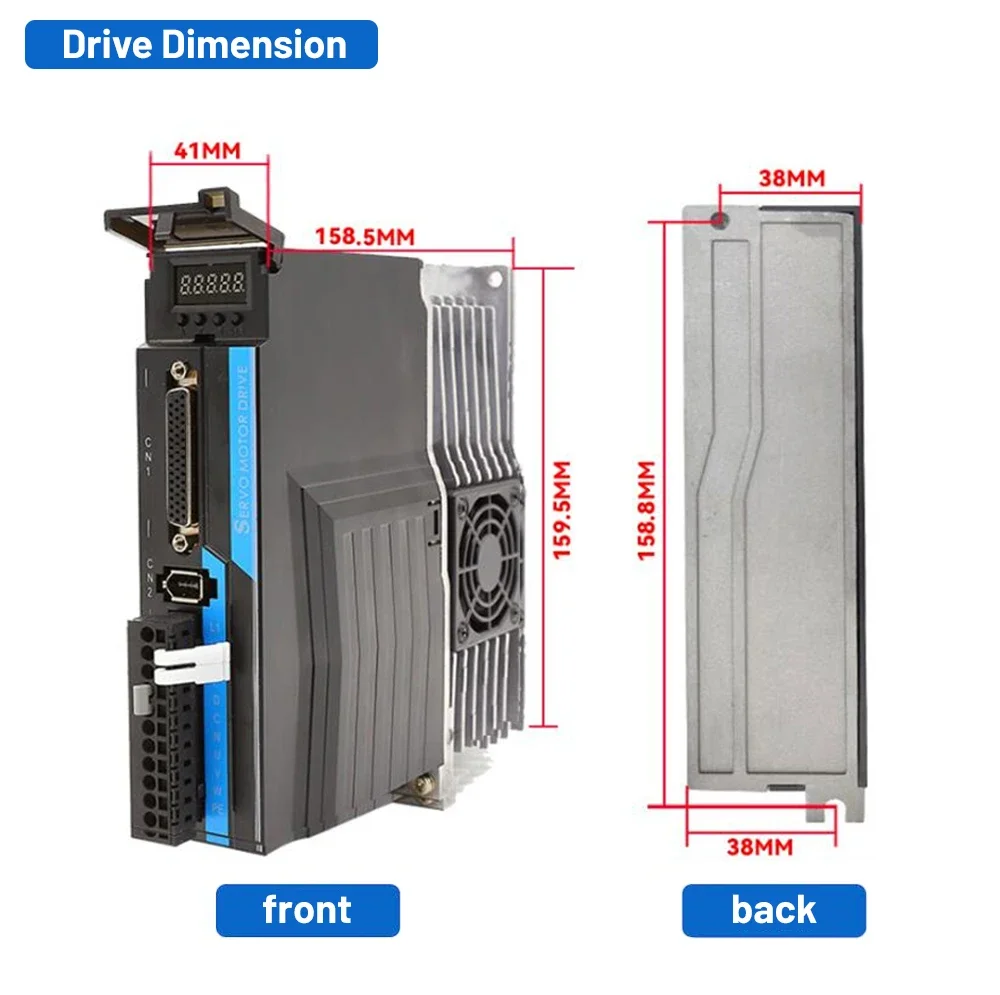

1* Pulse type servo driver
1* 3m encoder cable and 3m power cable
1* CN1 connector

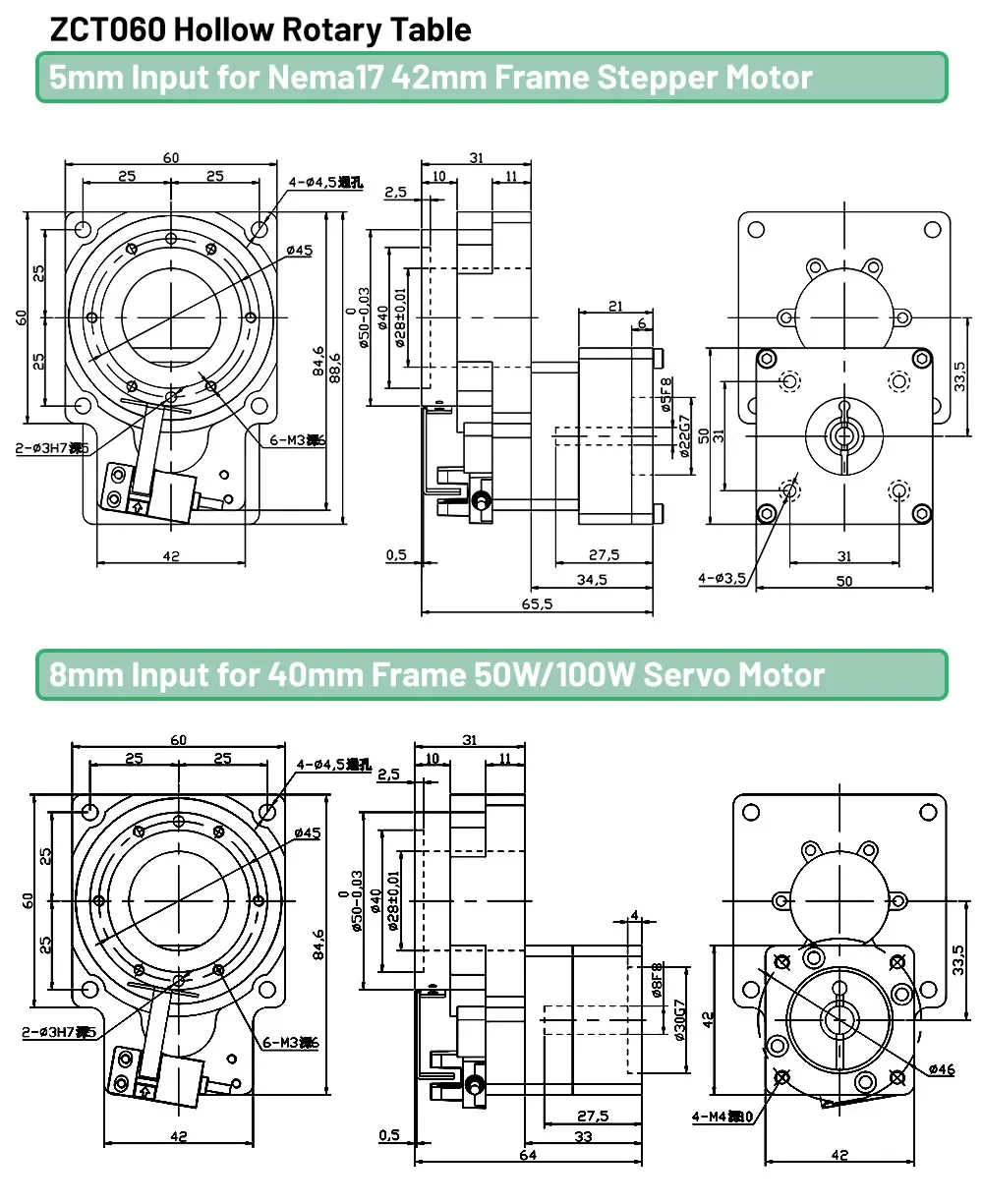

| Hollow Rotating Platform Technical Parameters | |||||||||
| Model | ZCT060 | ZCT085 | ZCT130 | ZCT200 | ZCT280 | ||||
| Reduction ratio | 5:1 | 10:1 | 5:1 | 10:1 | 10:1 | 18:1 | 10:1 | 18:1 | 10:1 |
| Design load | 7kg | 5kg | 28kg | 28kg | 45kg | 45kg | 75kg | 75kg | 130kg |
| Reted output torque | 5N.m | 4N.m | 28N.m | 18N.m | 40N.m | 28N.m | 70N.m | 55N.m | 130N.m |
| Max output torque | 15N.m | 12N.m | 84N.m | 54N.m | 120N.m | 84N.m | 210N.m | 165N.m | 390N.m |
| Max axial load | 230N | 500N | 2000N | 4000N | 8000N | ||||
| Max moment of inertia | 5N.m | 10N.m | 50N.m | 100N.m | 200N.m | ||||
| Table Size | 60*84.6mm | 85*118mm | 130*160.1mm | 200*240.5mm | 280*345mm | ||||
| Through-hole Dia. | 28mm | 33mm | 62mm | 100mm | 150mm | ||||
| Positioning accuracy | ≤2 arc-min | ≤1 arc-min | ≤1 arc-min | ≤1 arc-min | ≤1 arc-min | ||||
| Torsional rigidity | 2.5N.m/arcmin | 6N.m/arcmin | 19N.m/arcmin | 32N.m/arcmin | 58N.m/arcmin | ||||
| Parellelism | ≤0.01mm | ≤0.01mm | ≤0.013mm | ≤0.02mm | ≤0.03mm | ||||
| Concentricity | ≤0.01mm | ≤0.01mm | ≤0.013mm | ≤0.02mm | ≤0.015mm | ||||
| Allowable disk speed (Intermittent operration) | 200rpm | 200rpm | 200rpm | 200rpm | 150rpm | ||||
| Noise | ≤55dB | ≤55dB | ≤60dB | ≤63dB | ≤67dB | ||||
| Weight | 0.6kg | 1.4kg | 2.6kg | 8.1kg | 20kg | ||||
| Adapt to stepper motor | 5mm shaft Nema17 stepper motor | 6.35/8/9.525mm shaft Nema23 stepper motor | 6.35/8/9.525mm shaft Nema23 stepper; 12.7/14mm shaft Nema34 stepper motor | 12.7/14mm shaft Nema34 stepper motor | 19mm shaft 3PH Nema42 stepper motor | ||||
| Adapt to servo motor | 8mm shaft 50W/100W 40mm servo motor | 11/14mm shaft 200W/400W/ 600W 60mm servo motor | 11/14mm shaft 200W/400W/600W 60mm servo motor | 19mm shaft 750W/1KW 80mm servo motor | 22/24mm shaft 1KW-3KW 130mm servo motor | ||||
| Backlash | No backlash (Adjustable structure) |
Accuracy life | 30000h (Intermittent operration) |
||||||
| Bearing structure | Cross roller bearing | Lubrication method | Long-term lubrication | ||||||
| Transmission efficiency | 95% | Protection level | IP50 | ||||||
| Installation method | Arbitrary | Lubrication method | Long-term lubrication | ||||||
| Limit switch voltage | 5-24VDC | Repeated positioning accuracy | ≤15 arc-sec | ||||||

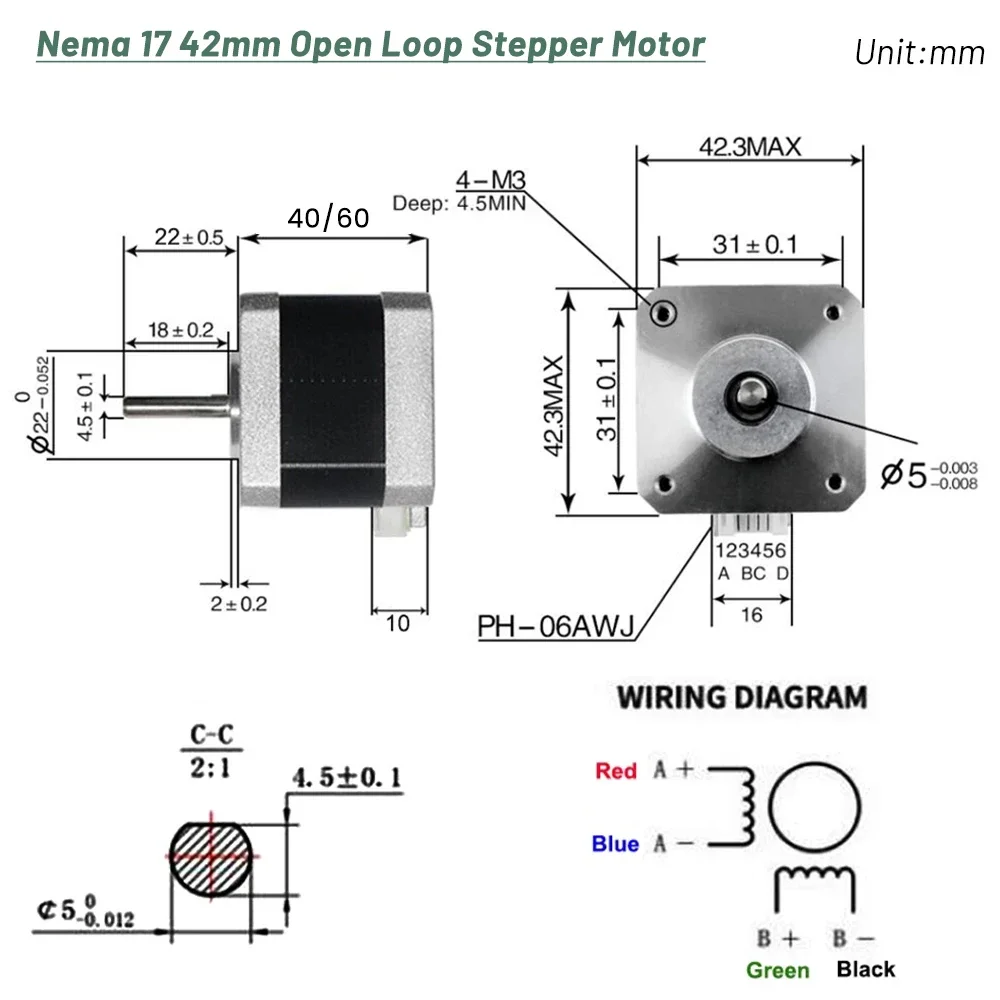

| Stepper Motor Technical Parameters | |||||||||
| Model | Motor type | MAX. speed (rpm) | With/ without encoder | Flange Size (mm) | Holding torque (N.m) |
Body length (mm) |
Current (A) |
Moment of inertia (g.cm²) |
Output diameter (mm) |
| 42HS4015A4 | open-loop stepper motor | 1000 | without | Nema 17 42mm | 0.42 | 40 | 1.51 | 57 | 5 |
| 42HS6017A4 | 0.7 | 60 | 1.71 | 102 | 5 | ||||

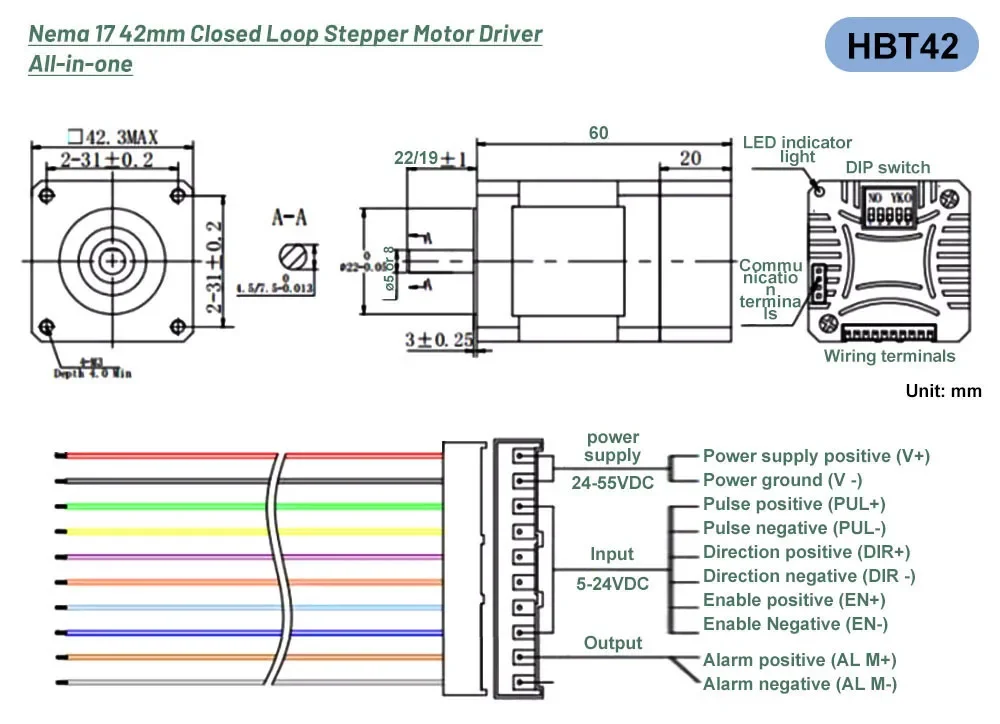

| HBT4240C | Integrated closed-loop stepper motor driver | 1000 | with | 0.4 | 60 | 1.5 | 57 | 5 | |

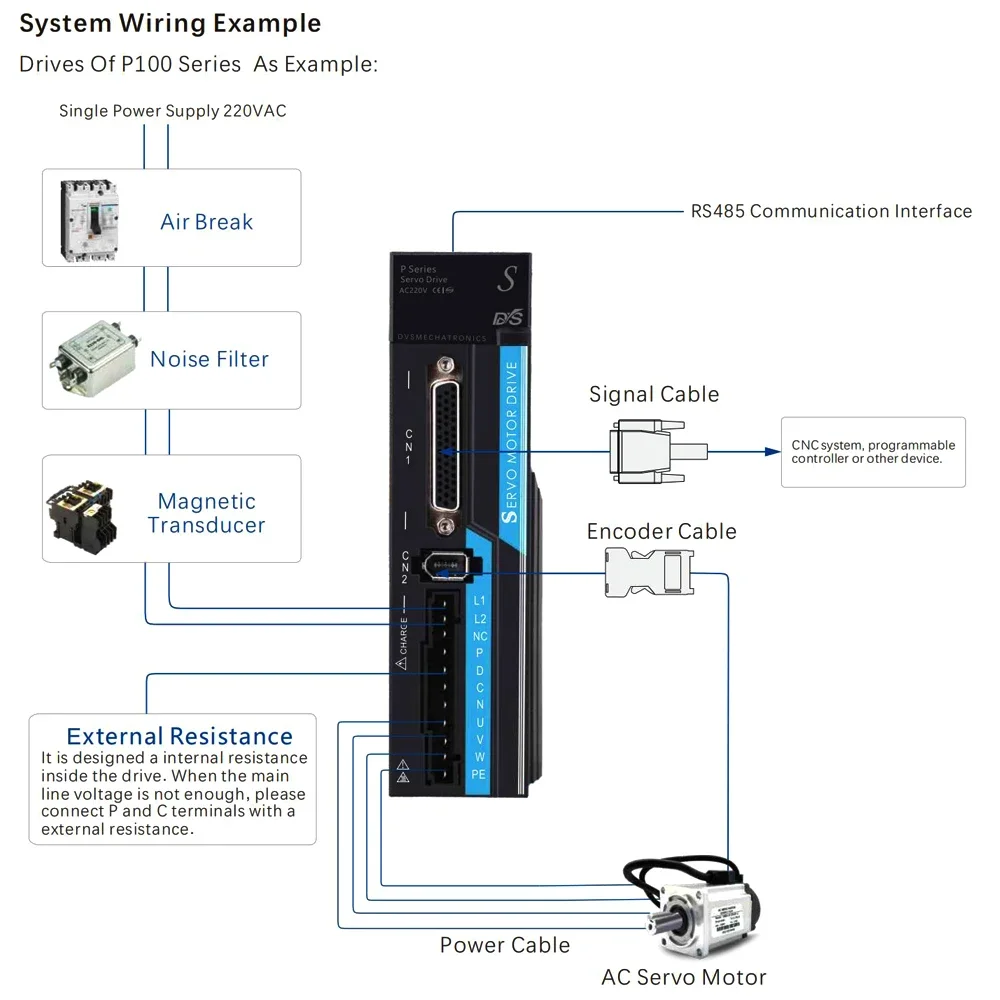

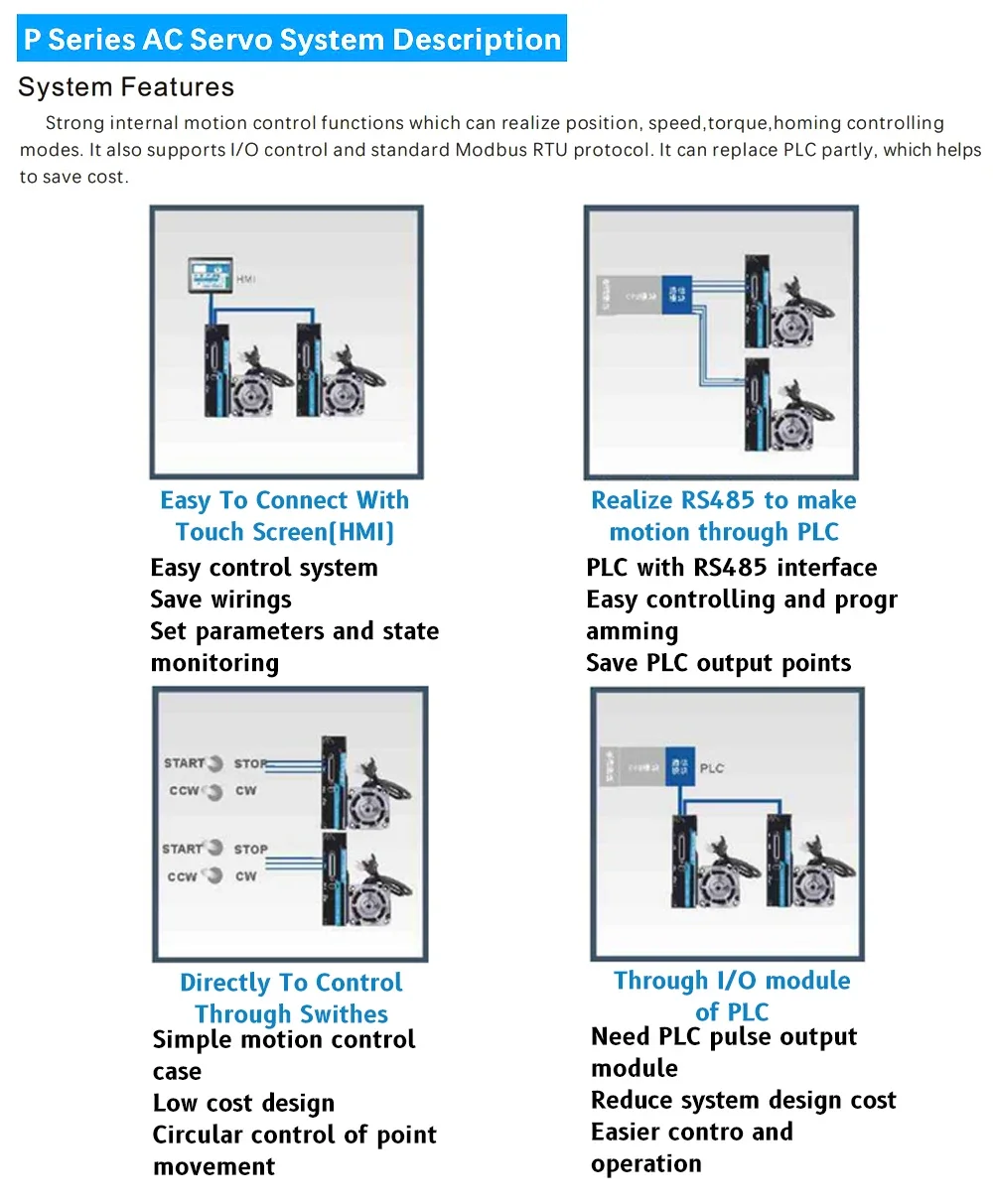

| Pulse Type Servo Technical Parameters | |||
| Motor Rated Power | 0.1KW | Driver Model | P100S-40 |
| Rated Voltage | 220V | Drive type | Pulse |
| Rated Current | 1.1A | Control Mode | 1: speed control
2: torque control |
| Peak Current (A) | 3.5A | ||
| Rated Torque () | 0.318N.m | ||
| Peak Torque (N.m) | 0.954N.m | ||
| Rated Speed (rpm) | 3000rpm | ||
| Max speed(rpm) | 6000rpm | ||
| Constant Voltage | 23V/1000r.min | ||
| Encoder resolution | Single coil 17 bit absolute | Input Voltage | 1 phase AC220V-15%~+10% 50/60HZ |
| Line-line inductance | 10.3mH | Protection | overspeed/under voltage/over current/over load/encoder error/over position etc. |
| Rotor Inertia | 0.066×10﹣4Kg.m² | ||
| Pole Pairs | 5 | Communication | RS485 |
| Insulation Class | F(155℃) | Driver Manual | Please click here |
