Are you battling with inconsistent stitch quality, sluggish machine movements, or excessive noise from your industrial embroidery or CNC equipment? Subpar power transmission components can severely limit your machine‘s potential, leading to costly errors, slower production, and premature wear. The PLF060 NEMA23 Planetary Gearbox Reducer is engineered to eliminate these frustrations, providing the precision, power, and reliability your operations demand.

Unleash Precision and Power

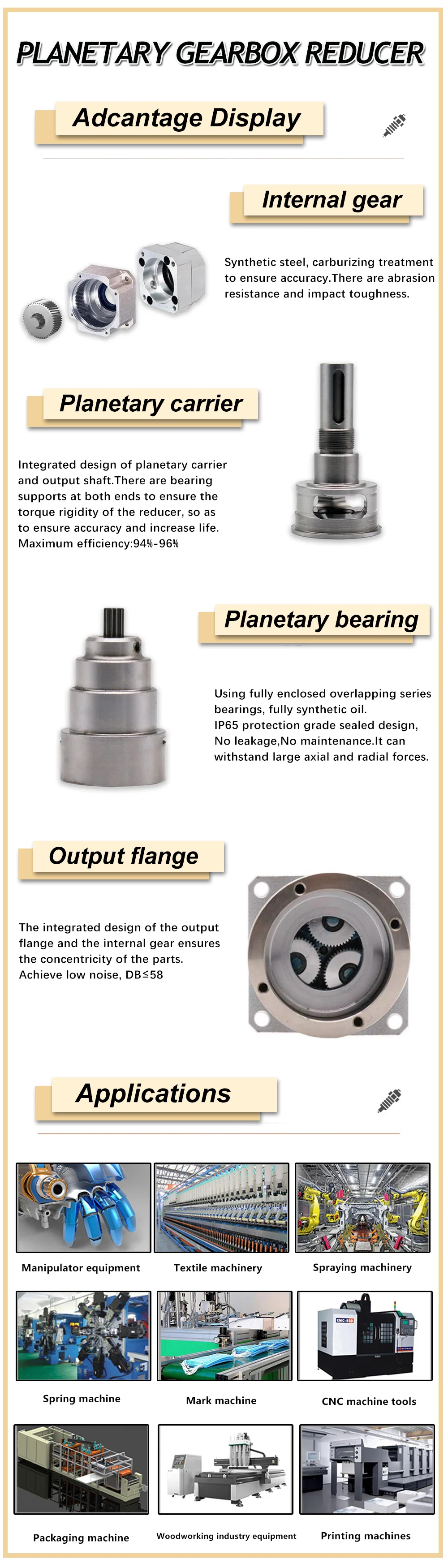

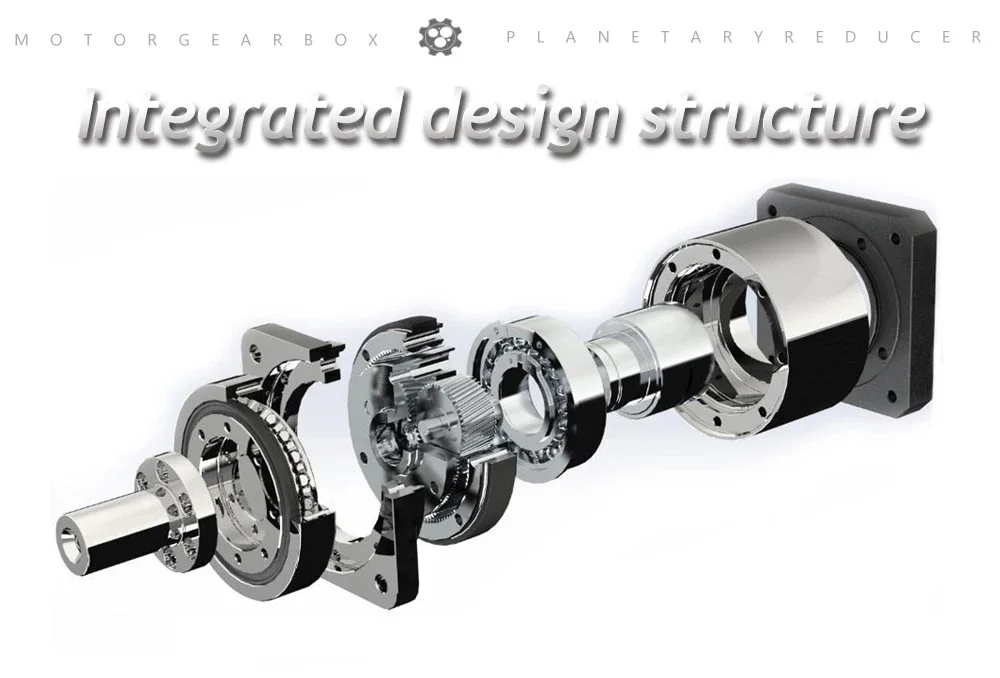

This high-precision PLF060 planetary gearbox acts as a crucial intermediary between your NEMA23 servo motor and the driven mechanism, effectively multiplying torque while reducing speed. Its planetary gear arrangement ensures an even distribution of load, leading to exceptional rigidity, minimal backlash (≤7 arcmin for L1, ≤12 arcmin for L2), and superior transmission efficiency (≥95%). The hardened steel gears and robust aluminum alloy housing are precision-machined to deliver smooth, quiet operation (≤58 dB for PLF060) and a long service life, even under continuous industrial use. By converting high motor RPM into usable, controlled power, it enables your machine to execute intricate movements with unparalleled accuracy and force.

Engineered for Demanding Environments

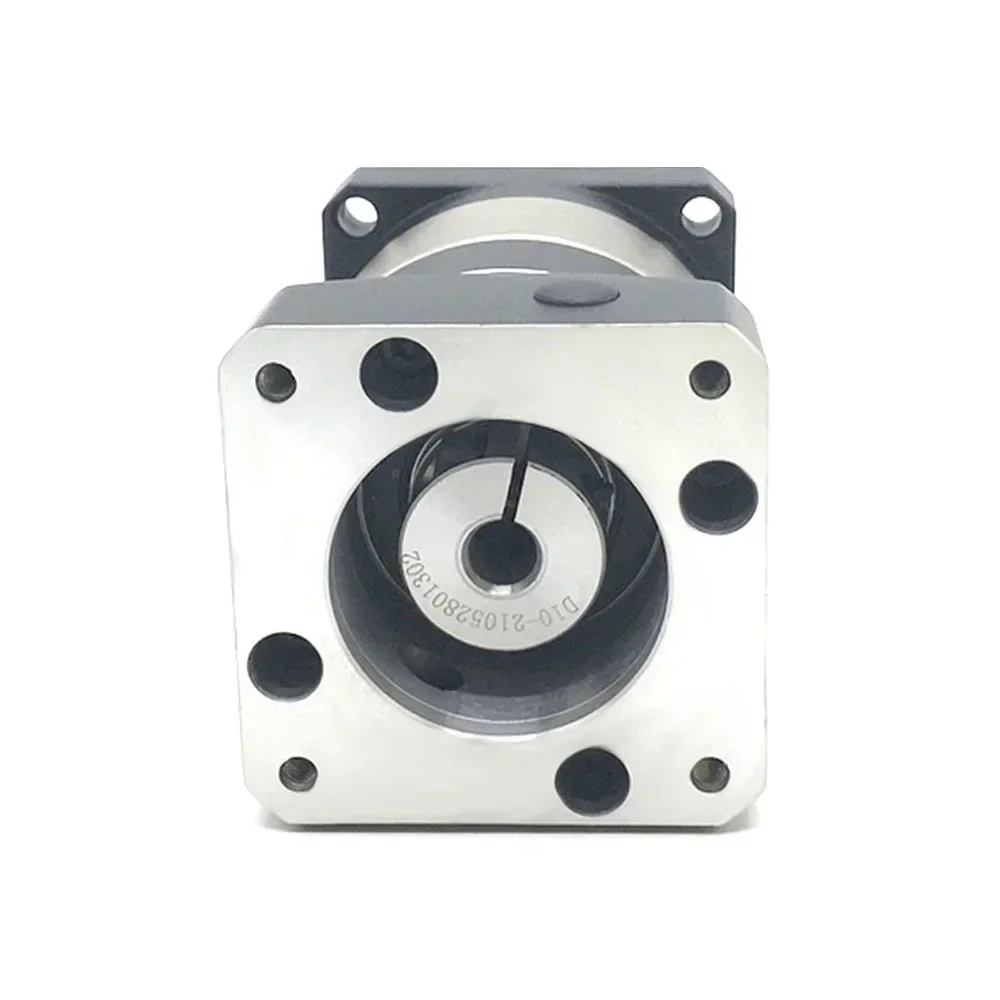

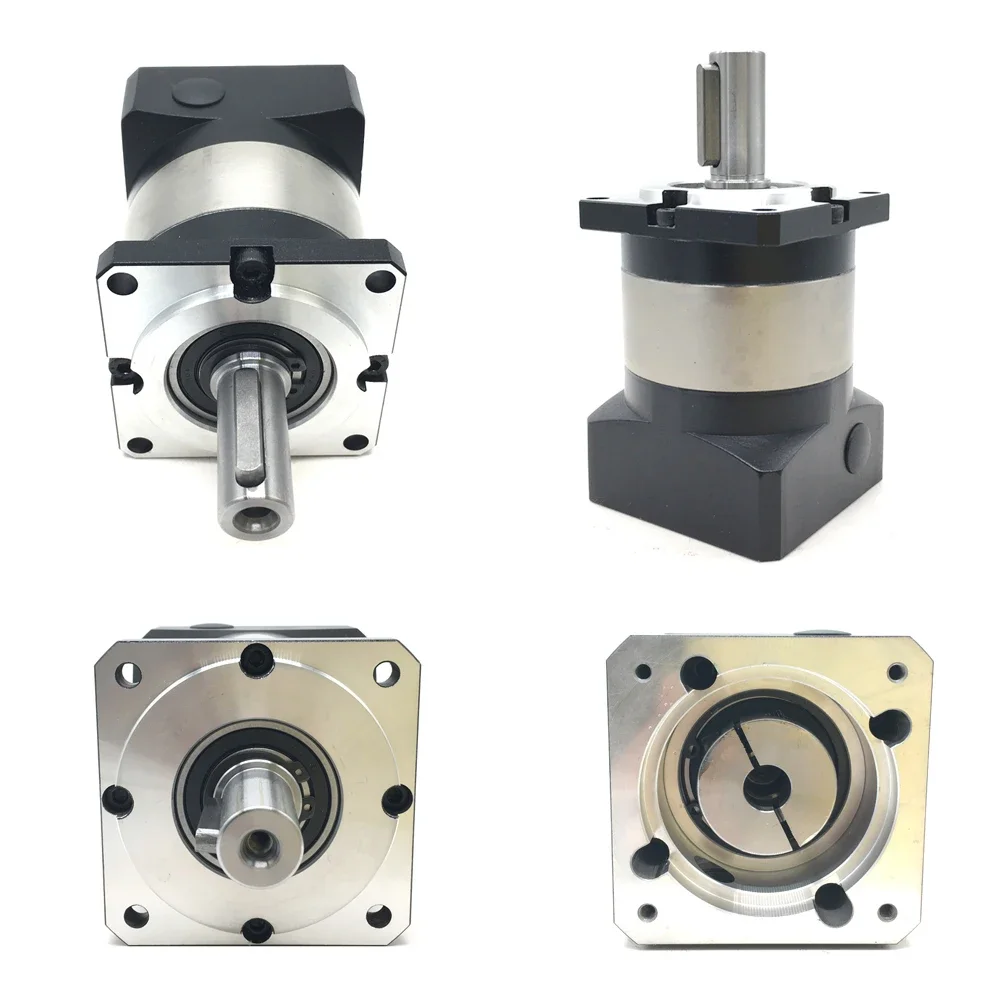

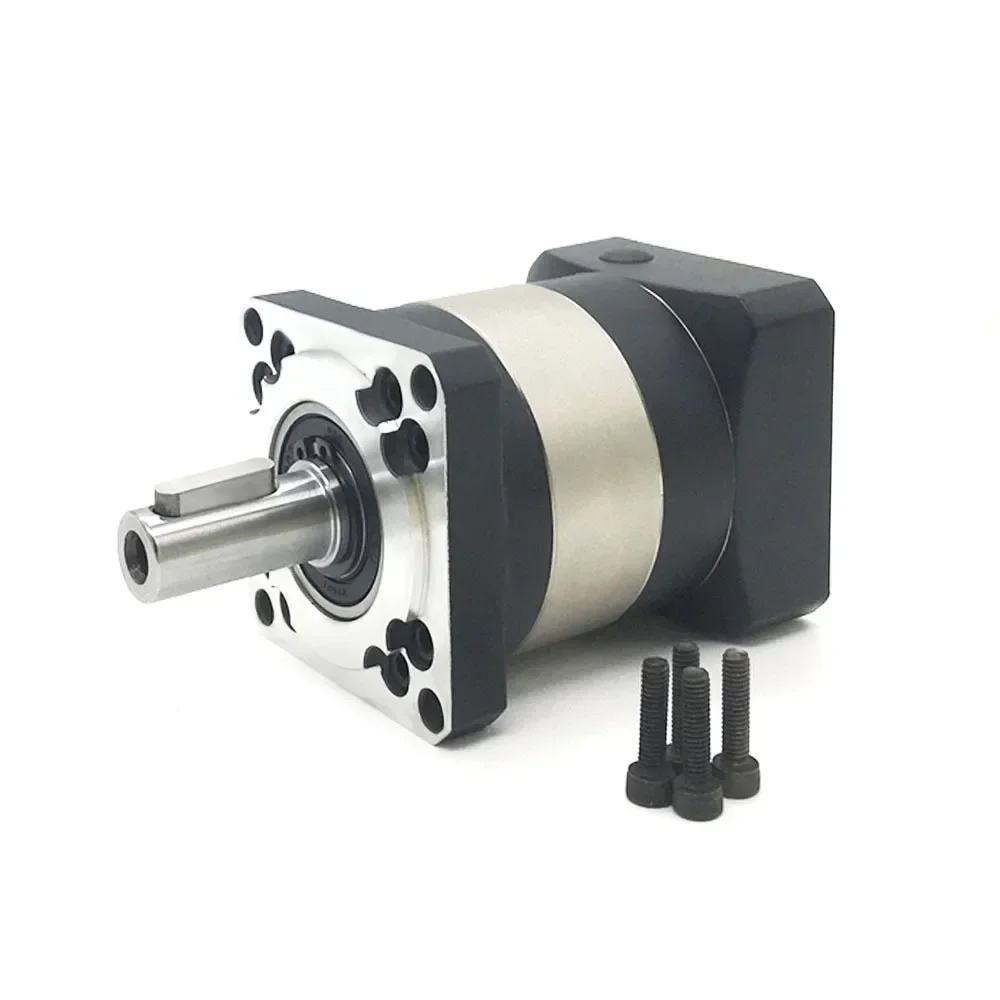

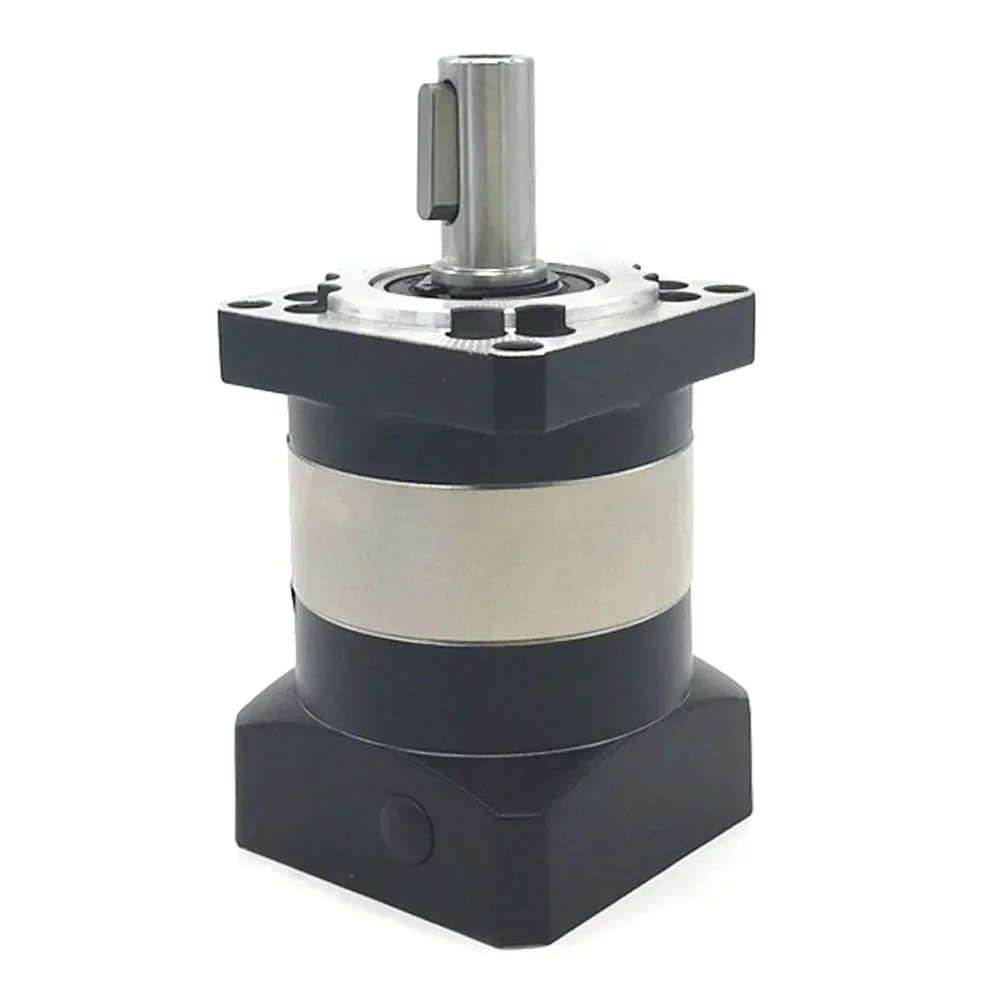

The compact, flange-mount design ensures easy integration into existing NEMA23 standard (60mm frame size) setups, reducing installation time and complexity. Its waterproof protect feature (IP65 rated) adds an extra layer of durability, safeguarding your investment in demanding workshop environments. With a maximum input speed of 5000rpm and rated input speed of 3000rpm, this reducer is built to handle the rigorous demands of high-speed automation, ensuring consistent performance day in and day out.

Unlock Peak Performance For:

• Tajima Embroidery Machines
• Barudan Embroidery Machines
• Brother PR Series Embroidery Machines
• Happy & SWF Embroidery Machines
• CNC Routers and Milling Machines
• 3D Printers requiring enhanced torque
• DIY Automation and Robotics Systems

Technical Specifications:

• Model Number: PLF060
• Product Type: NEMA23 Planetary Gearbox Reducer, Step-down gearbox
• Motor Compatibility: 200W-400W Servo Motors, NEMA23 Standard (60mm frame size), specifically 60ST-M00630, 60ST-M01330, 60ST-M01930 servo motors

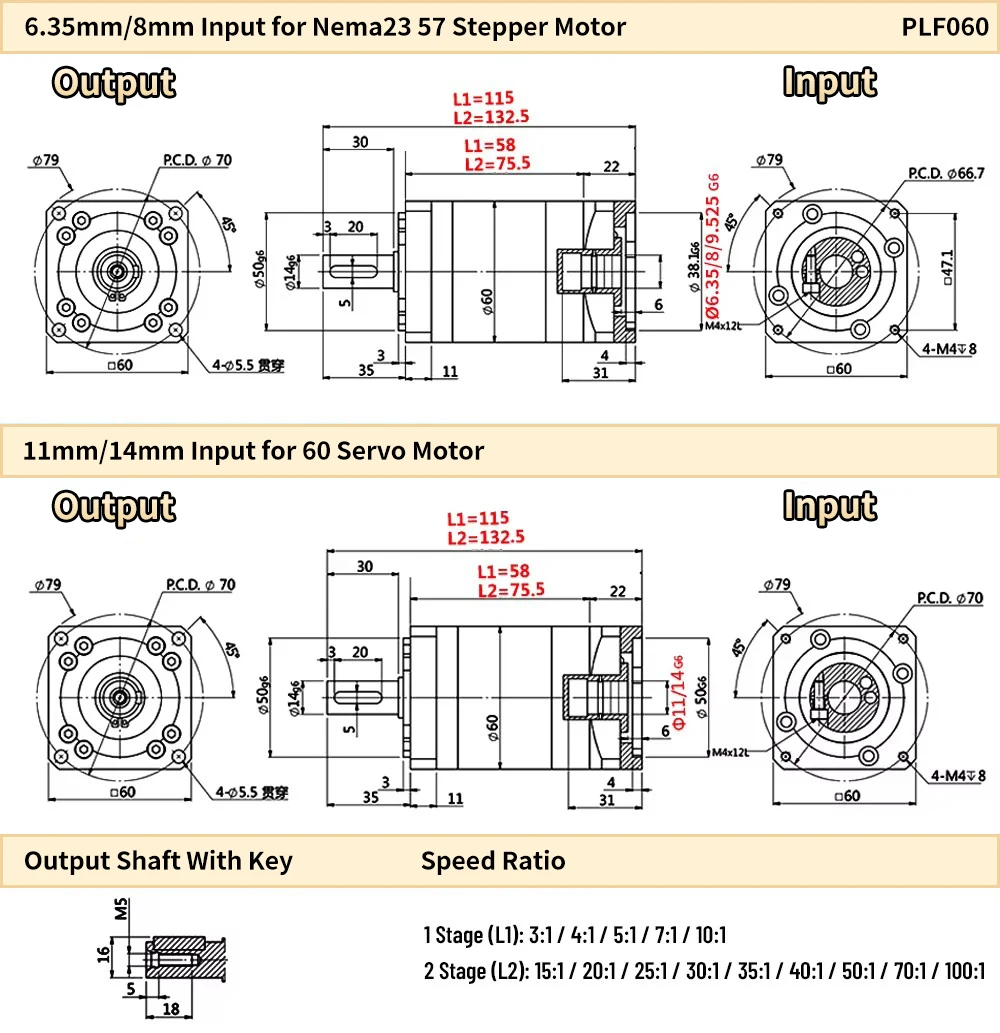

• Input Shaft Diameter Options: 6.35mm, 8mm, 9.525mm, 11mm, 14mm
• Output Shaft Diameter: 14mm
• Available Reduction Ratios: 3:1, 4:1, 5:1, 7:1, 10:1, 15:1, 20:1, 25:1, 30:1, 35:1, 40:1, 50:1, 70:1, 100:1 (Please select your required ratio)
• Rated Output Torque: 16Nm-40Nm (varies by ratio)
• Max Input Speed: 5000rpm
• Rated Input Speed: 3000rpm
• Efficiency: ≥95% (Full Load Efficiency L1≥96%, L2≥94%)
• Backlash: ≤7 arcmin (L1), ≤12 arcmin (L2)
• Noise Level: ≤58 dB
• Protection Feature: Waterproof (IP65)
• Construction: Planetary Gearbox
• Housing Material: Aluminum Alloy
• Gear Material: Hardened Steel
• Certification: CCC

Compatible with: Tajima Embroidery Machines, Barudan Embroidery Machines, Brother PR Series Embroidery Machines, Happy & SWF Embroidery Machines, CNC Routers and Milling Machines, DIY Automation and Robotics Systems. Please note that while this gearbox is designed for NEMA23 standard 60mm frame servo motors, we strongly recommend confirming your specific machine model and required input shaft size before ordering. Not sure? Contact us with your machine model and we will confirm compatibility for you.

Confidence in Every Purchase:

At 360 Digitizing Shop, your peace of mind is our priority. Every PLF060 NEMA23 Planetary Gearbox Reducer undergoes rigorous function-testing before shipping, ensuring that only perfectly operating units leave our facility. This commitment means defective items are never sent. In the rare event a defective item arrives, rest assured that your purchase is protected: a full refund will be processed within 4 days under our buyer protection policy, allowing you to buy with complete confidence.

Frequently Asked Questions

What is the primary function of the PLF060 NEMA23 Planetary Gearbox Reducer?
Its primary function is to multiply torque and reduce the speed of a NEMA23 servo motor, allowing for precise, powerful, and controlled motion in applications like embroidery machines, CNC routers, and automation systems.

What motor types and sizes is this gearbox compatible with?
This gearbox is designed for 200W-400W NEMA23 standard (60mm frame size) servo motors, specifically compatible with 60ST-M00630, 60ST-M01330, and 60ST-M01930 servo motors.

How do I ensure I order the correct input shaft size and reduction ratio?
The PLF060 offers multiple input shaft sizes (6.35mm, 8mm, 9.525mm, 11mm, 14mm) and various reduction ratios. You must select the size and ratio that matches your motor‘s shaft and application requirements. If you are unsure, please contact us with your motor model for assistance.

What are the benefits of using a planetary gearbox like the PLF060?
Planetary gearboxes offer high efficiency (≥95%), low backlash (≤7 arcmin L1), compact design, high torque density, and quiet operation (≤58 dB), leading to improved precision, smoother machine performance, and extended service life.

What is your quality assurance and return policy for this gearbox?
Every PLF060 gearbox is function-tested before shipping to prevent defective units. If a defective item is received, a full refund will be processed within 4 days under our buyer protection policy.
