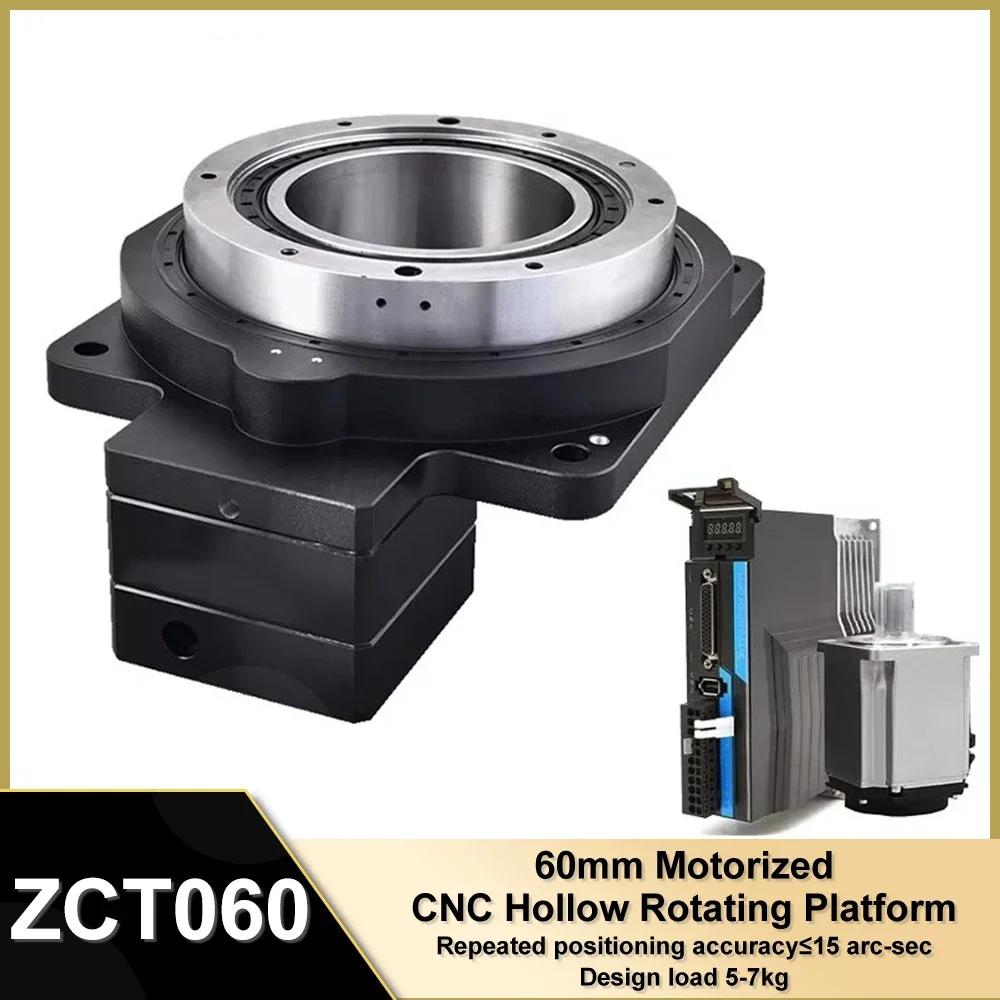

Are you struggling with imprecise positioning, cable clutter, or complex integration in your automation setups? The ZCT060 Hollow Rotating Platform CNC Electric Rotary Table is engineered to solve these critical challenges, empowering your business with reliable, high-accuracy motion control.

This advanced rotary indexing plate allows you to replace traditional DD motors and cam dividers, significantly reducing mechanical design time and maintenance while boosting operational efficiency. Imagine seamless, high-speed indexing and precise angular positioning that enhances the quality and output of your projects.

Unmatched Precision & Durability for Demanding Applications

The ZCT060 platform features a robust aluminum alloy housing, precision-milled using advanced CNC machining to deliver exceptional rigidity and minimal runout. Its hollow structure is a game-changer, allowing for convenient routing of cables and air pipes directly through the center. This eliminates tangles, reduces installation footprint, and creates a cleaner, more efficient workspace for smelting tools, robotic arms, or machine assemblies.

Stability is paramount. This rotary table incorporates a sophisticated cross-roller bearing system, reinforced with an anti-overturning ring. This design provides superior resistance to axial and radial loads, ensuring maximum stability and vibration dampening during high-speed operation. Every gear undergoes carburizing heat treatment and precision grinding to achieve Grade 5 accuracy, with some levels reaching Grade 4. A final lapping process ensures exceptional parallelism and perpendicularity, minimizing backlash and air return errors to deliver a repeated positioning accuracy of less than 15 arc-seconds.

Designed For:

• CNC machine tools (as 4th or 5th axis)
• Industrial automation systems
• Robotic joints and assembly lines
• Dispensing and packaging machines
• Optical, laser, and visual inspection equipment
• Sorting and indexing systems
• Semiconductor and laser printing machines
• Laser marking rotary tables
• Motorized turntables
• Carving machine rotary chucks
• Light load robotic arm joints
• Cutting tables
• Circular positioning systems
• Dividing heads

Technical Specifications (Model ZCT060):

• Model Number: ZCT060
• Speed Ratio Options: 5:1 or 10:1
• Design Load: 7kg (with 5:1 ratio) / 5kg (with 10:1 ratio)
• Positioning Accuracy: Less than 1 arc-min
• Repeated Positioning Accuracy: Less than 15 arc-sec
• Max Disk Speed: 200rpm
• Max Axial Load: 230N

Every ZCT060 Hollow Rotating Platform is function-tested before shipping, ensuring that defective units are never sent. We stand by our quality; if a defective item arrives, the buyer is refunded within 4 days under our buyer protection policy.

Compatible with: ZCT060 is designed for various industrial automation applications. Please confirm your machine model or required dimensions before ordering. Not sure? Contact us with your machine model, and we will confirm compatibility.

Frequently Asked Questions

What is the ZCT060 Hollow Rotating Platform used for?
The ZCT060 Hollow Rotating Platform is a high-precision CNC electric rotary table used for accurate 360° positioning, indexing, and motion control in industrial automation, robotics, CNC machine tools (as a 4th or 5th axis), laser marking, carving, and assembly lines.

What are the key precision specifications of the ZCT060 platform?
The ZCT060 offers a positioning accuracy of less than 1 arc-min and a repeated positioning accuracy of less than 15 arc-seconds, ensuring highly precise and consistent angular movements for critical applications.

What is included with the ZCT060 platform?
The base package includes one 60mm Hollow Rotating Platform and one Limit Switch. Additional components like motors, drivers, or servo kits are included depending on the specific option chosen (e.g., ‘With 0.4Nm Motor Driver’, ‘With 100W Servo Kit’).

How does the hollow design benefit my automation setup?
The hollow structure allows for convenient routing of cables and air pipes directly through the center of the platform. This helps eliminate cable clutter, saves space, and simplifies the overall integration and maintenance of your automation systems, especially for robotic arms or complex machine assemblies.

How can I ensure this platform fits my specific machine or application?
To ensure the ZCT060 fits your needs, please review the technical specifications provided, including dimensions and load capacities. If you are unsure, contact us with your machine model or application details, and our experts will help confirm compatibility.

What is your quality assurance and refund policy for this product?
Every ZCT060 Hollow Rotating Platform is function-tested before shipping to prevent defective units. In the rare event a defective item arrives, you are protected by our buyer protection policy, ensuring a full refund within 4 days.
