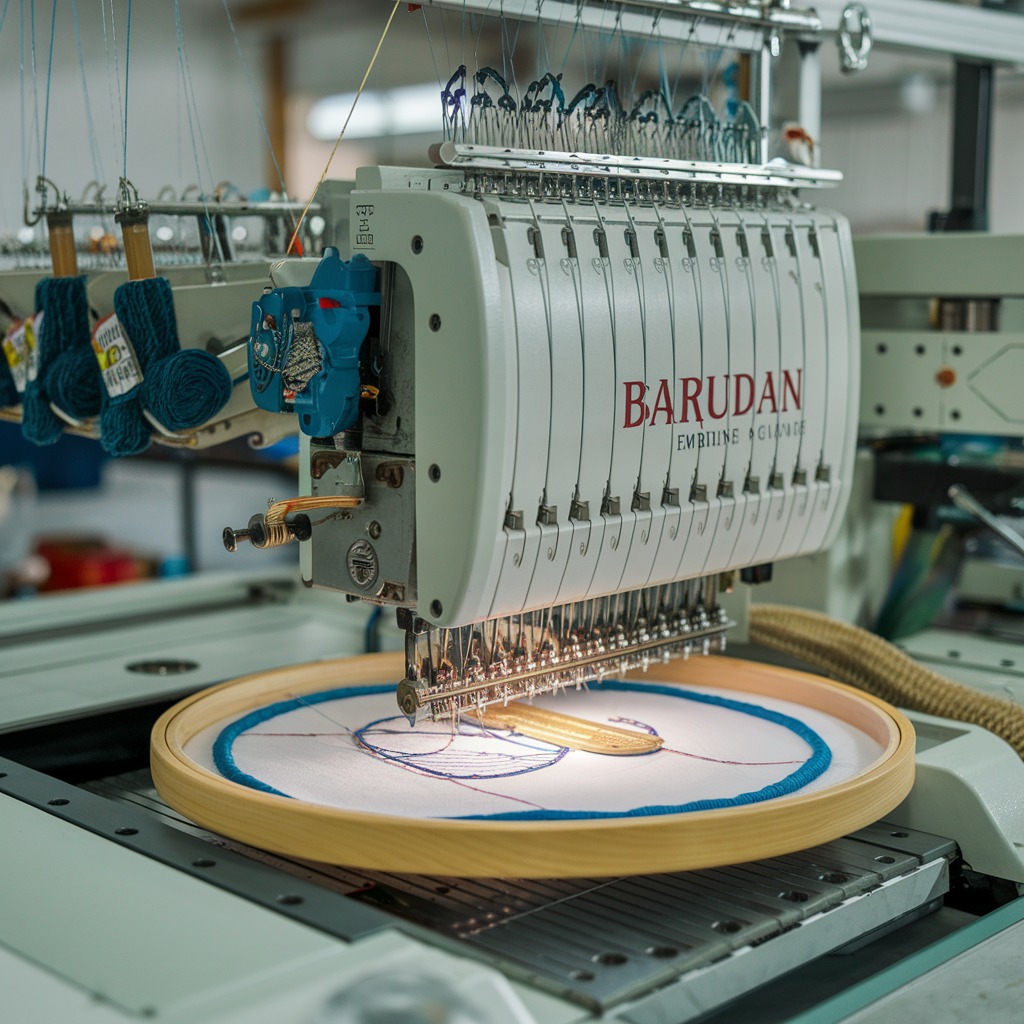

Barudan Embroidery Machine Freezing or Slowing Down Troubleshooting

1. Incorrect Threading or Thread Path Obstruction high likelihood

How to tell

The machine may slow, stop, or produce poor stitches. You might observe thread breaks, bird's nesting, or increased resistance when the machine tries to form stitches.

Fix

1. Power off the machine.
2. Remove the upper thread completely from the spool to the needle.
3. Inspect the entire upper thread path (thread guides, tension discs, take-up lever, thread tree) for any lint, burrs, or obstructions. Clean as needed.
4. Re-thread the upper thread carefully, ensuring it passes through all guides and tension discs correctly. Verify the thread is seated properly in the take-up lever.
5. Remove the bobbin case and bobbin. Inspect the bobbin case for any lint, thread fragments, or damage. Clean thoroughly.
6. Ensure the bobbin is wound correctly and inserted into the bobbin case with the thread feeding in the correct direction (refer to your machine's manual).
7. Reinsert the bobbin case firmly into the rotary hook assembly.
8. Test with a sample stitch-out.

Parts involved: Thread path & tension → Rotary hooks & bobbin cases → Threads & supplies →

2. Lack of Regular Cleaning and Lubrication high likelihood

How to tell

The machine may sound sluggish, produce grinding noises, or feel stiff. Visible lint, dust, or dried oil may be present in moving parts, especially around the rotary hook and needle bar areas.

Fix

1. Power off the machine and unplug it.
2. Using compressed air and a small brush, thoroughly clean the bobbin area, under the needle plate, and around the rotary hook assembly. Remove all lint and thread debris.
3. Clean the upper tension discs and thread guides to remove any lint buildup.
4. Apply lubrication to all specified points as per your Barudan machine's maintenance schedule in the operator's manual. Pay close attention to the rotary hook, needle bar drive, and other moving mechanical components.
5. Wipe away any excess oil.
6. Power on and test the machine.

Refer to sections like 01A Head Bed A, 01B Head Bed B, 04A-1 Needle bar A(Z12), 04B Needle bar B, and the rotary hook area within the Head Bed assemblies for lubrication points.

Parts involved: Lubrication & maintenance → Rotary hooks & bobbin cases → Thread path & tension → Head & mechanical parts →

3. Damaged or Incorrectly Installed Needle/Bobbin Case medium likelihood

How to tell

The machine may slow down, skip stitches, break needles, or produce unusual noises. The needle might appear bent, dull, or have a burr. The bobbin case might have visible damage or feel loose.

Fix

1. Power off the machine.
2. Carefully remove the needle. Inspect it closely for any bends, burrs, or a dull point. If any damage is found, replace it with a new, correct size and type of needle for your application.
3. Insert the new needle correctly, ensuring the scarf is facing the proper direction (usually towards the back) and it is pushed all the way up into the needle bar clamp before tightening the needle set screw.
4. Remove the bobbin case. Inspect it for any nicks, burrs, or damage, especially around the tension spring and thread exit point. If damaged, replace the bobbin case.
5. Clean any debris from the bobbin case and the rotary hook area where it seats.
6. Reinsert the bobbin case, ensuring it clicks securely into place.
7. Test with a sample stitch-out.

Needle bar components are found in sections like 04A-1 Needle bar A(Z12), 04B Needle bar B.

Parts involved: Needles & needle bars → Rotary hooks & bobbin cases →

4. Memory Overload or Corrupted Design Files medium likelihood

How to tell

The machine may freeze or slow down specifically when loading or running large, complex designs. It might display a 'memory full' or 'file error' message. The issue might be intermittent or specific to certain design files.

Fix

1. Access the machine's memory management menu (refer to your Barudan operator's manual).
2. Delete any old, unused, or unnecessary design files stored directly on the machine.
3. If using a USB drive, ensure it is formatted correctly for your Barudan machine and is not corrupted. Try a different USB drive.
4. For large designs, try breaking them into smaller, manageable segments using your embroidery software.
5. If a specific design causes issues, try opening it in your embroidery software to check for errors or corruption. Re-save the design or re-digitize if necessary.
6. Ensure the design file format (e.g., DST, DSB) is correct and compatible with your Barudan model.

Parts involved: Floppy, USB & memory → Control panels & displays →

5. Software Glitches or Outdated Firmware low likelihood

How to tell

The machine may exhibit erratic behavior, freeze randomly, or slow down without an apparent mechanical cause. This can sometimes occur after loading new designs or if the machine has not been updated in a long time.

Fix

1. Check your Barudan machine's current firmware version (usually found in the system information menu).
2. Consult the Barudan manufacturer's website or your dealer for the latest firmware updates for your specific machine model.
3. Follow the manufacturer's instructions precisely for updating the firmware. This often involves loading a file via USB.
4. If using external embroidery software, ensure it is also updated to the latest version to maintain compatibility.
5. If the issue persists, perform a factory reset if available (consult your manual, as this will erase settings and designs).

Parts involved: Circuit boards & electronics → Control panels & displays → Floppy, USB & memory →

6. Overheating of Machine Components low likelihood

How to tell

The machine slows down or freezes after extended periods of operation. The motor or other components may feel hot to the touch. Error messages related to temperature might appear.

Fix

1. Power off the machine and allow it to cool down completely (at least 30-60 minutes).
2. Inspect all ventilation grilles and openings on the machine. Clear any lint, dust, or obstructions that might be blocking airflow.
3. Ensure the machine is operating in a well-ventilated area with adequate ambient temperature.
4. If the machine has a cooling fan, check if it is operating correctly and free of dust buildup. Clean the fan blades if accessible.
5. Reduce the machine's operating speed, especially for dense designs or long runs, to lessen the load and heat generation.
6. Implement short breaks during long embroidery sessions to allow components to cool.

Parts involved: Motors & drivers → Circuit boards & electronics → Lubrication & maintenance →

7. Mechanical Wear and Tear low likelihood

How to tell

The machine may exhibit consistent slowing, grinding noises, or jerky movements. This often develops gradually over time. Inspect belts for fraying, gears for worn teeth, or pulleys for excessive play.

Fix

1. Power off the machine and unplug it.
2. Visually inspect drive belts (e.g., pantograph drive, head drive) for cracks, fraying, or looseness. Adjust tension or replace if worn (refer to manual for specific tensioning procedures).
3. Inspect visible gears for worn or broken teeth. If found, replacement is necessary.
4. Check for excessive play or looseness in shafts, bearings, and bushings. Worn bearings can cause friction and slow movement.
5. If significant wear is detected, replacement of the affected components is required. This often requires specialized tools and knowledge.
6. After any component replacement, ensure proper lubrication as per the manual.

Relevant sections include 08 Drive, 10A Pantograph drive A through 10H Pantograph drive H, and components within 01A Head Bed A, 01B Head Bed B.

Parts involved: Belts, pulleys & gears → Shafts, bearings & bushings → Head & mechanical parts →

8. Faulty Sensors or Electronics low likelihood

How to tell

The machine may stop unexpectedly, display specific error codes (consult your manual), or behave erratically without a clear mechanical cause. This can be difficult to diagnose without diagnostic tools.

Fix

1. Power off the machine and unplug it.
2. Visually inspect accessible wiring and connectors for any loose connections, pinches, or damage. Reseat any loose connectors.
3. If your Barudan machine has built-in diagnostic tools, run them as per the operator's manual to identify potential sensor or electronic faults.
4. If an error code points to a specific sensor (e.g., thread break sensor, rotary hook sensor), inspect that sensor for physical damage or obstruction.
5. Replacing faulty sensors or electronic boards typically requires a qualified technician.

Electronic components are found in sections like 11A Control A, 11B Control B.

Parts involved: Sensors & switches → Circuit boards & electronics → Cables & wiring →

9. Unstable Power Supply low likelihood

How to tell

The machine may randomly freeze, reset, or slow down, especially if other high-power devices are on the same circuit. Lights might flicker, or the machine might behave erratically during power fluctuations.

Fix

1. Ensure the machine is plugged directly into a dedicated wall outlet, not into a power strip shared with other high-draw appliances.
2. Verify the wall outlet provides stable voltage (can be checked with a multimeter if you have one).
3. Inspect the machine's power cable for any cuts, frays, or damage. Replace if necessary.
4. Consider using a high-quality surge protector or an Uninterruptible Power Supply (UPS) to provide stable power and protect against fluctuations.

Parts involved: Cables & wiring → Circuit boards & electronics →
