A thread break detector board is one of the most essential components in modern embroidery machines. It ensures smooth, uninterrupted production by monitoring thread movement and stopping the machine whenever a thread break is detected. Without a reliable thread break detector, you risk producing defective designs, wasting time, and losing materials.
At 360 Digitizing Solutions, we offer high-quality thread break detector boards compatible with leading embroidery machine brands like Tajima, Barudan, SWF, Brother, and Toyota. This article will explain what these boards do, why they are important, and how to choose and maintain them for optimal performance.
What is a Thread Break Detector Board?

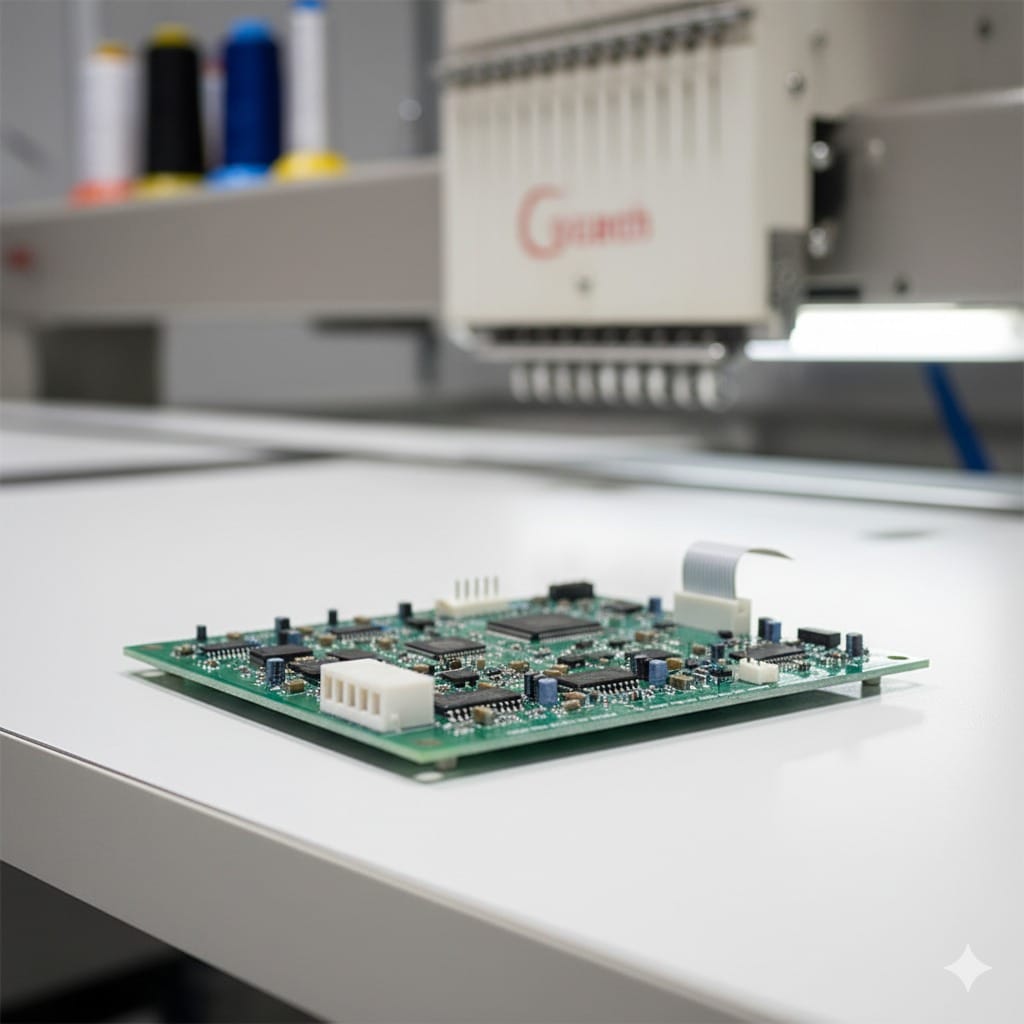

A thread break detector board is an electronic circuit board that monitors the motion of top threads on each head of an embroidery machine. When a thread breaks, the board signals the controller to stop the machine immediately, preventing mis-stitching and material wastage.
Key Functions:
- Thread Monitoring: Constantly checks if threads are moving correctly.
- Automatic Machine Stop: Halts production instantly upon detecting a break.
- Error Signals: Communicates with the control panel to display the broken needle position.
- Multi-Head Synchronization: Ensures only the affected head is stopped on some machines, minimizing downtime.
Benefits of a High-Quality Thread Break Detector Board
- Reduced Wastage: Saves garments and material by catching breaks early.
- Higher Efficiency: Minimizes rework and keeps production on schedule.
- Better Quality Control: Ensures clean, defect-free embroidery designs.
- Machine Safety: Prevents needle bar damage caused by running with broken threads.
Technical Specifications to Consider
- Compatibility: Match the board with your machine model and number of heads.
- Detection Accuracy: Look for boards with fast response and high sensitivity.
- Connector Type: Ensure proper matching with machine’s harness and sensors.
- Signal Stability: High-quality boards provide stable communication with the controller.
- Durability: Select boards with heat- and vibration-resistant components for longer lifespan.
Compatible Brands
Our thread break detector boards work with:
- Tajima – Trusted for industrial embroidery production.
- Barudan – Precision detection for multi-head, high-speed setups.
- SWF – Reliable operation even under continuous heavy workloads.
- Brother & Toyota – Perfect for single-head and small-scale operations.
Maintenance Tips
- Keep Sensors Clean: Dust or lint can cause false thread break signals.
- Inspect Wiring Regularly: Look for frayed wires or loose connectors.
- Check Board Mounting: Securely fasten to reduce vibration damage.
- Avoid Moisture: Protect board from humidity and liquid spills.
- Test Periodically: Run test cycles to confirm correct break detection.
Why Choose 360 Digitizing Solutions
- OEM & High-Quality Compatible Detector Boards
- Expert Assistance in Part Selection & Installation
- Competitive Pricing & Bulk Discounts
- Reliable Warranty and After-Sales Support
We help you maintain production continuity with dependable, tested thread break detector boards.
Conclusion
A properly functioning thread break detector board is critical for maintaining consistent quality and reducing downtime in embroidery production. By choosing a reliable board and following proper maintenance, you can save time, prevent costly rework, and keep your machines running at peak performance.
Visit 360 Digitizing Solutions today to browse our range of thread break detector boards and get expert support for your specific machine model.
