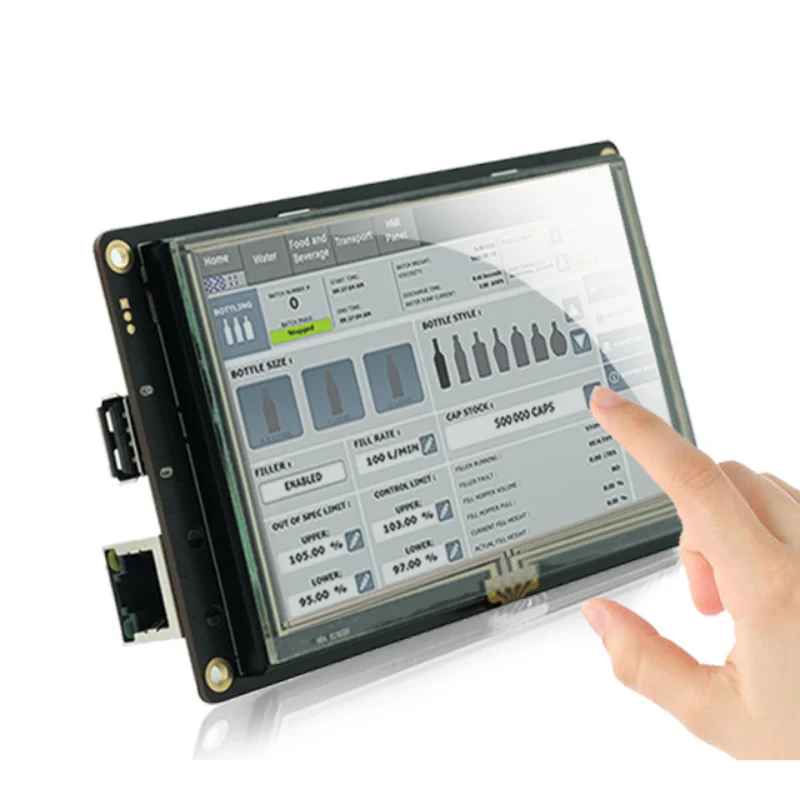

STONE HMI Smart LCD Touch Display Module for Arduino & Raspberry Pi
859
Items sold in last 12 months
For Bulk Orders & Wholesale Prices OR any other queries, Contact Live Chat Support
11
People watching this product now!
High-performance STONE HMI Smart LCD display with integrated touch screen, ideal for Arduino, Raspberry Pi, ESP32, and STM32 projects. Perfect for smart IoT interfaces and embedded systems.
Price range: 165,00 € through 419,00 €
STONE HMI Smart LCD Touch Display Module for Arduino & Raspberry Pi
859
Items sold in last 12 months
14
People watching this product now!
High-performance STONE HMI Smart LCD display with integrated touch screen, ideal for Arduino, Raspberry Pi, ESP32, and STM32 projects. Perfect for smart IoT interfaces and embedded systems.
No one dislikes.
Free Shipping
Enjoy free shipping to your door step on order over $150
Worldwide
Fast Delivery.
Using Major Shipping Services worldwide
Live Chat & Email
After Sales 24/7 Support
Available to Serve 24/7 on live chat & Email Support.
Easy Return
Hassle Free Easy Return
5 Days Easy Return, Shop without worries
Description
Enhance your embedded projects with the STONE HMI Smart LCD Display Module, designed for developers who demand precision, performance, and simplicity. Available in 3.5 to 10.4-inch screen sizes, this intelligent touch display combines a crystal-clear TFT LCD with an integrated controller and responsive capacitive touch panel, eliminating the need for complex driver coding.
Whether you’re developing industrial control panels, IoT dashboards, smart home interfaces, or educational robotics projects, this display module offers seamless integration and professional-grade results.
✅ Key Features
-
Wide Size Range: Available from 3.5″, 4.3″, 5.0″, 7.0″, 8.0″, 10.1″, and 10.4″ screen options.
-

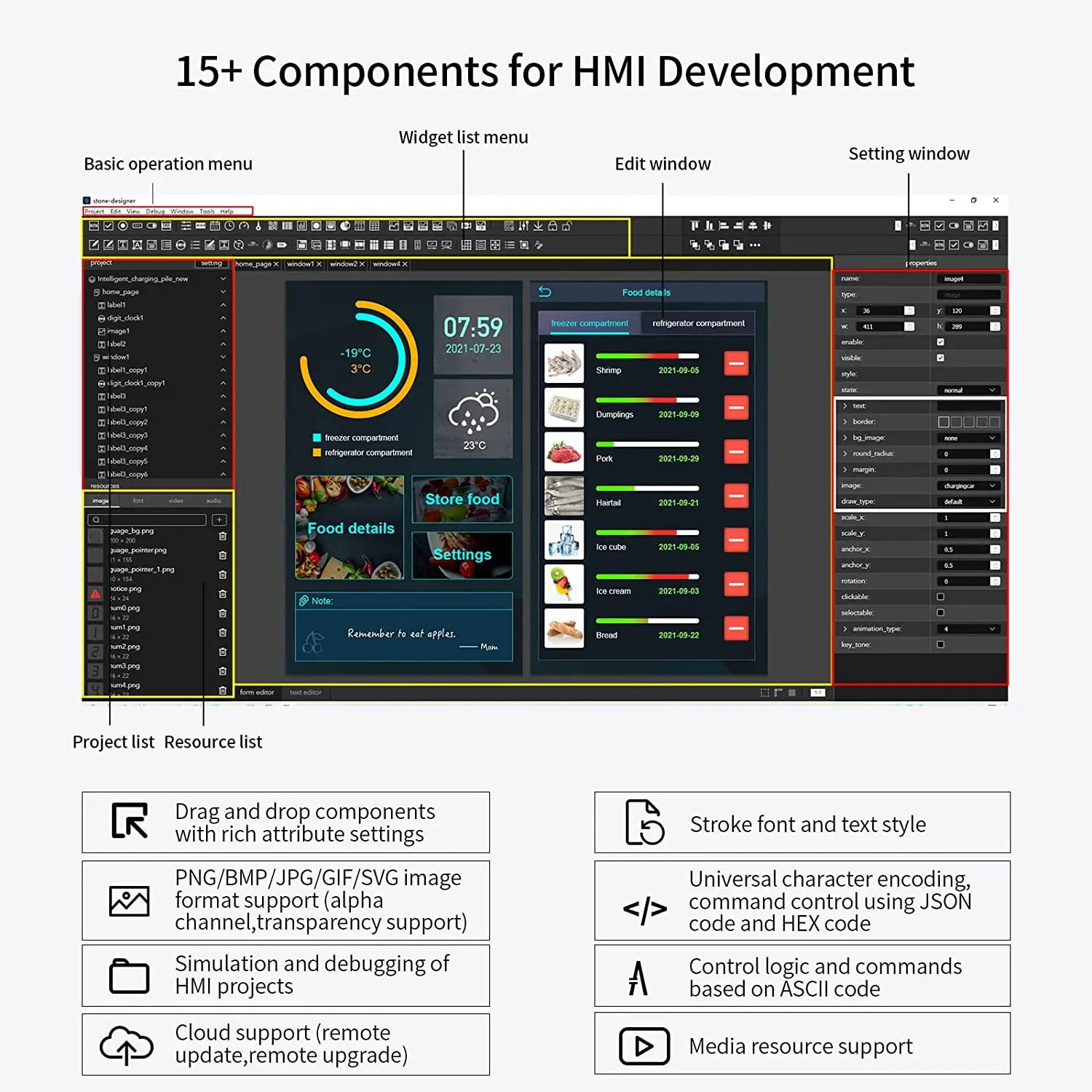

Smart GUI Programming: Use the STONE Editor software to easily design interactive interfaces without advanced programming knowledge.
-
High-Resolution Display: Delivers vivid colors and sharp detail suitable for both indoor and outdoor applications.
-
Fast Response Touchscreen: Accurate, lag-free control for smooth operation.
-
Built-in Memory and CPU: Reduces microcontroller load for faster processing and reliable performance.
-

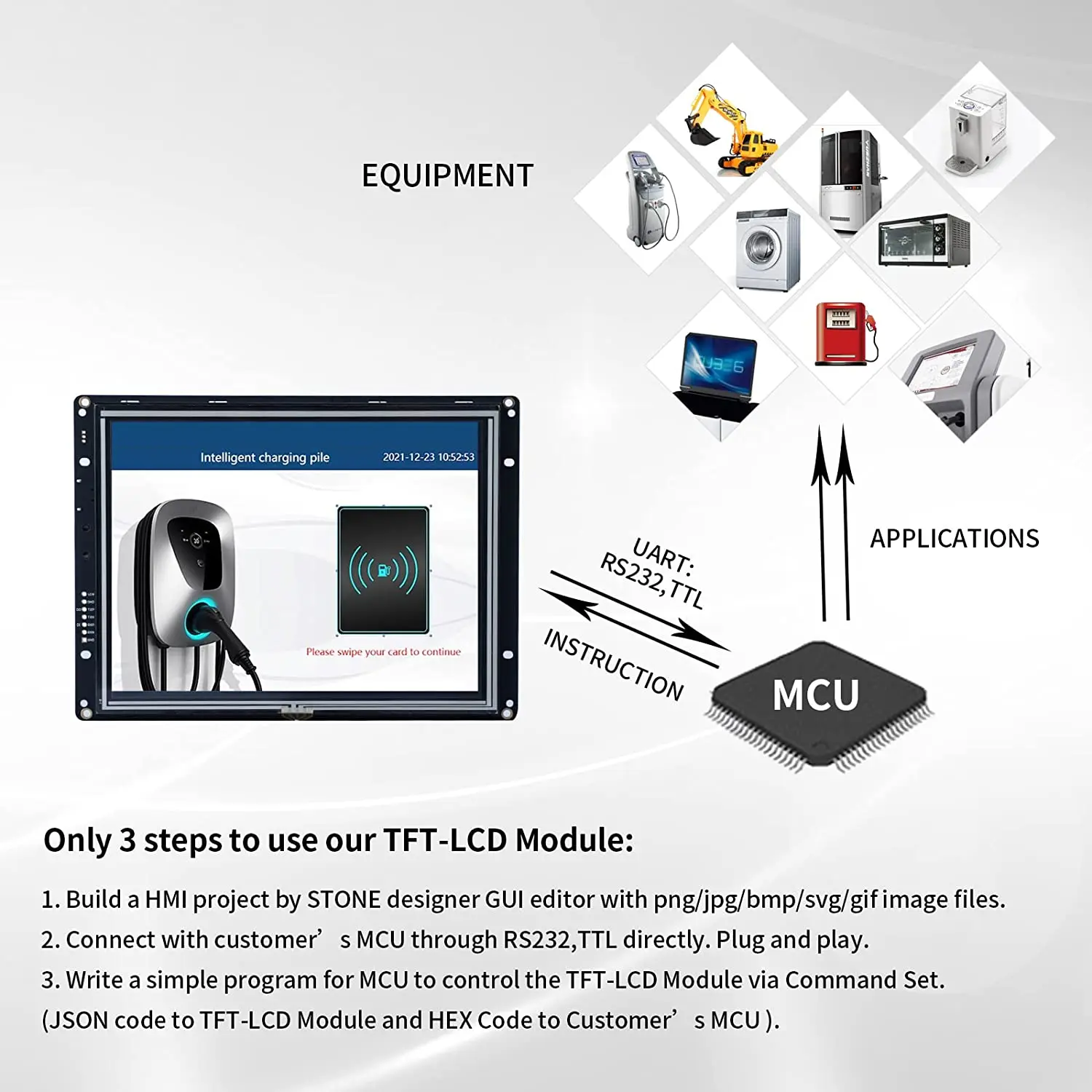

Plug-and-Play Serial Communication: Uses UART (RS232/TTL) for direct communication with most microcontrollers.
⚙️ Compatible Devices
-
Arduino Series (Uno, Mega, Due, Nano)
-
Raspberry Pi (All models including Pi 4, Pi 3B+, Pi Zero 2 W)
-
ESP32 / ESP8266 Boards
-
STM32 Microcontrollers
-
Industrial PLCs with UART/RS232 interface
💡 Ideal Applications
-
Industrial HMI systems
-
IoT device interfaces
-
Smart home dashboards
-
Automotive display panels
-
Educational or DIY embedded projects
🔧 Technical Highlights
-
Display Type: TFT LCD with Touch Screen
-
Interface: UART/RS232/TTL
-
Operating Voltage: 5V DC
-
Storage: Onboard Flash for GUI and Data Storage
-
Software Support: STONE GUI Design Tool (Windows)
-
Operating Temperature: -20°C ~ +70°C
🎯 Why Choose STONE HMI
Unlike conventional LCD screens that rely heavily on the host controller, STONE HMI modules include a built-in processor to handle display logic and UI rendering — freeing your main microcontroller for core functions. This makes your project faster, cleaner, and more reliable.
Perfect for engineers, students, and embedded system designers, this display allows you to create a modern, professional user interface with minimal effort.

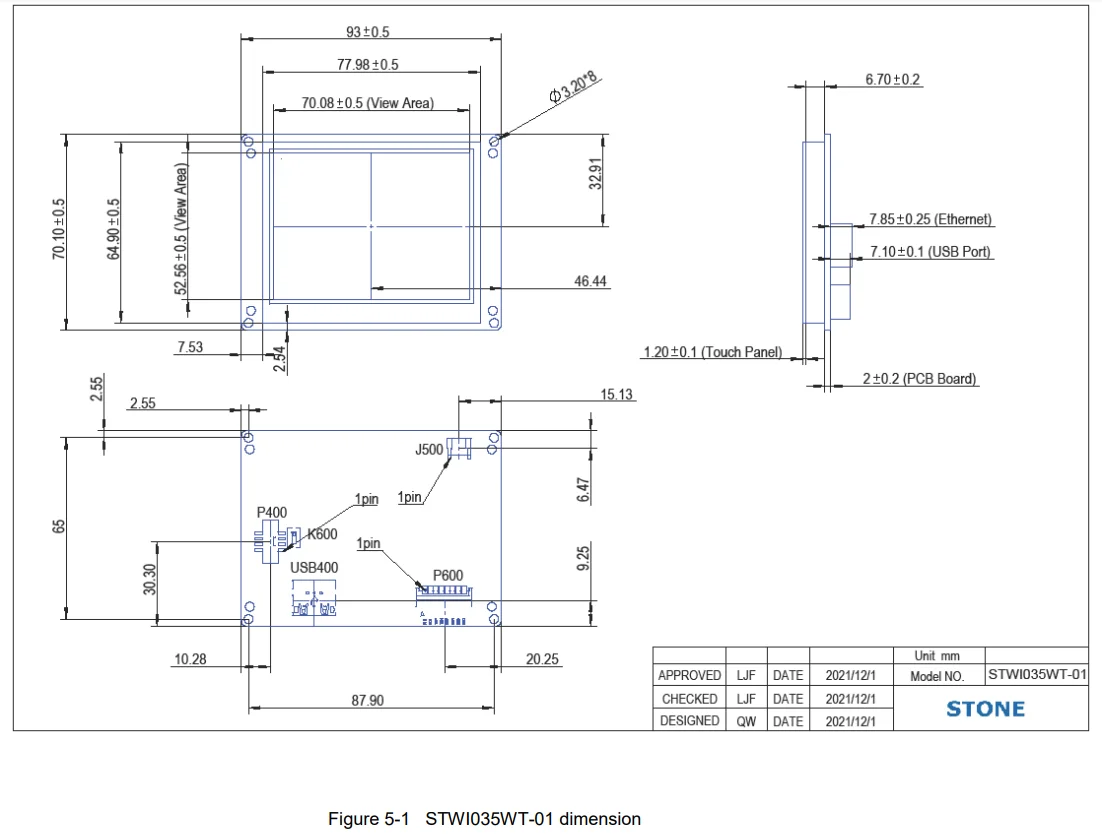

3.5 Inch：STWI035WT-01
|
Physical Parameter |
|
|
Size |
3.5 inch |
|
Resolution |
320×RGB×240 |
|
Pixel Spacing |
73um × 219um |
|
Color |
262,144 colors (18 bit) |
|
Viewing Area |
70.08(H) × 52.56(V) |
|
Display |
71.9mm× 53.8mm |
|
Overall Dimension |
93mm×70.1mm×14.9mm (T) (Standard type) 93mm×70.1mm×23.8mm (T) (with Ethernet port) |
|
Net Weight |
100g (T) |

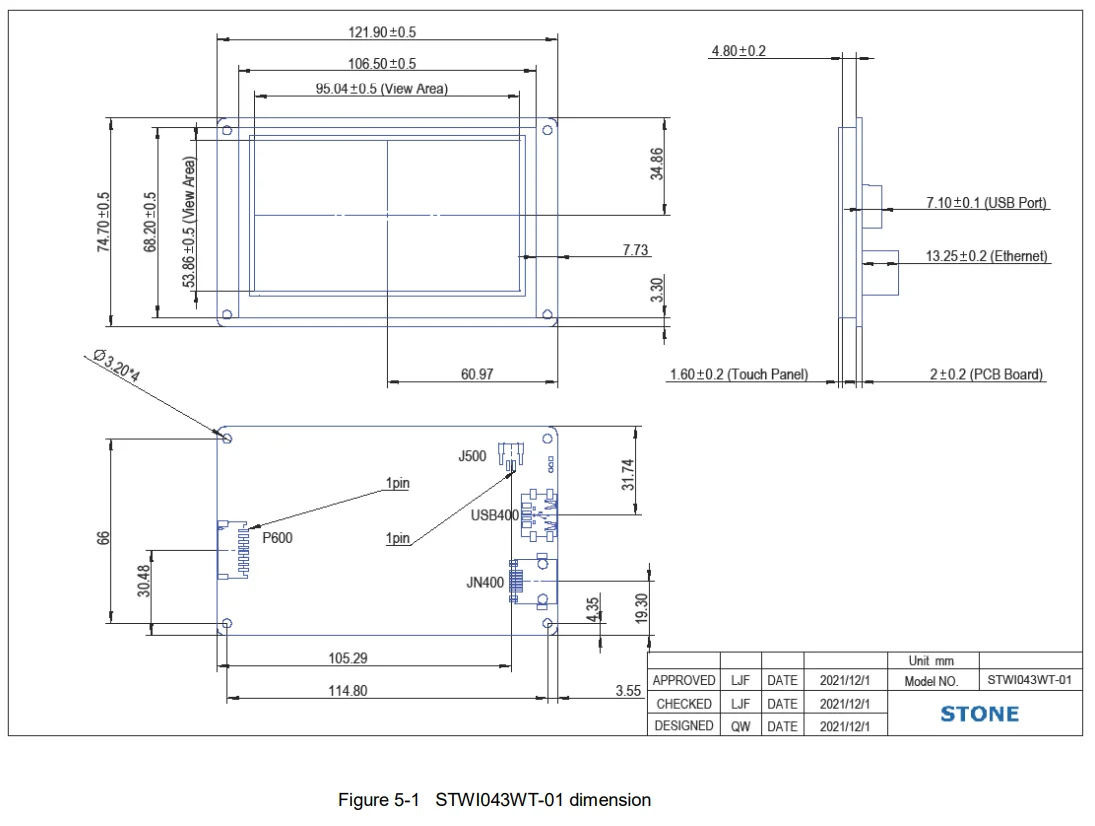

4.3 Inch：STWI043WT-01
|
Physical Parameter |
|
|
Size |
4.3 inch |
|
Resolution |
480×RGB×272 |
|
Pixel Spacing |
0.066(W) × 0.198(H) mm |
|
Color |
262,144 colors (18 bit) |
|
Viewing Area |
95.04(W) × 53.856(H) mm |
|
Display Dimension |
97.1mm× 56mm |
|
Overall Dimension |
121.9mm×74.7 mm×13.8 mm (T) (Standard type) 121.9mm×74.7 mm×23.8mm (T) (with Ethernet port) |
|
Net Weight |
155g(T) |
5 Inch：STWI050WT-01
|
Physical Parameter |
|
|
Size |
5.0 inch |
|
Resolution |
800×RGB×480 |
|
Pixel Spacing |
0.045(W) × 0.135(H) mm |
|
Color |
262,144 colors (18 bit) |
|
Viewing Area |
108.0(W) × 64.8(H) mm |
|
Display Dimension |
109.6mm×66.8mm |
|
Overall Dimension |
140mm×80.9mm×15.1mm (T) (Standard type) 140mm×80.9mm×23.8mm (T) (with Ethernet port) |
|
Net Weight |
200g(T) |

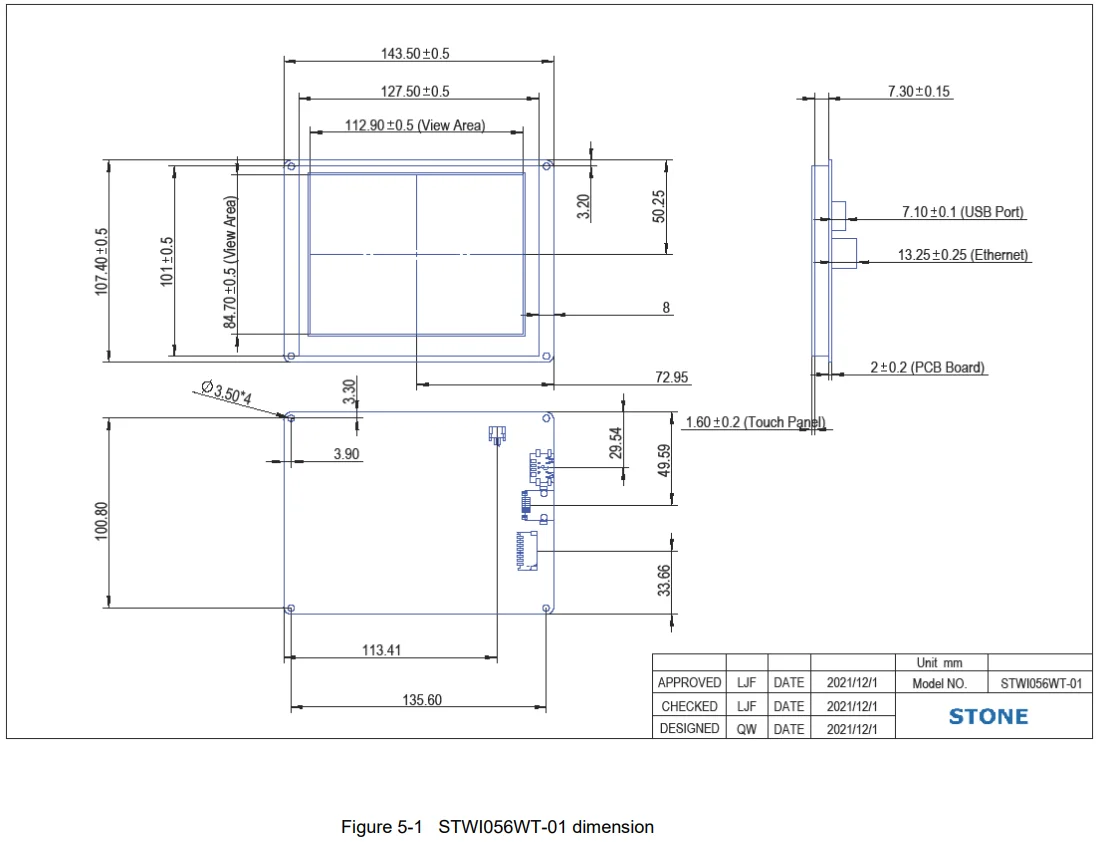

5.6 Inch：STWI056WT-01
|
Physical Parameter |
|
|
Size |
5.6 inch |
|
Resolution |
640×RGB×480 |
|
Pixel Spacing |
0.0588(W) × 0.1764(H) mm |
|
Color |
262,144 colors (18 bit) |
|
Viewing Area |
112.896 (W) × 84.672(H) |
|
Display Dimension |
115.1mm× 86.9mm |
|
Overall Dimension |
143.5mm×107.4mm×17.4mm (T) (Standard type) 143.5mm×107.4mm×23.8mm (T) (with Ethernet port) |
|
Net Weight |
275g (T) |

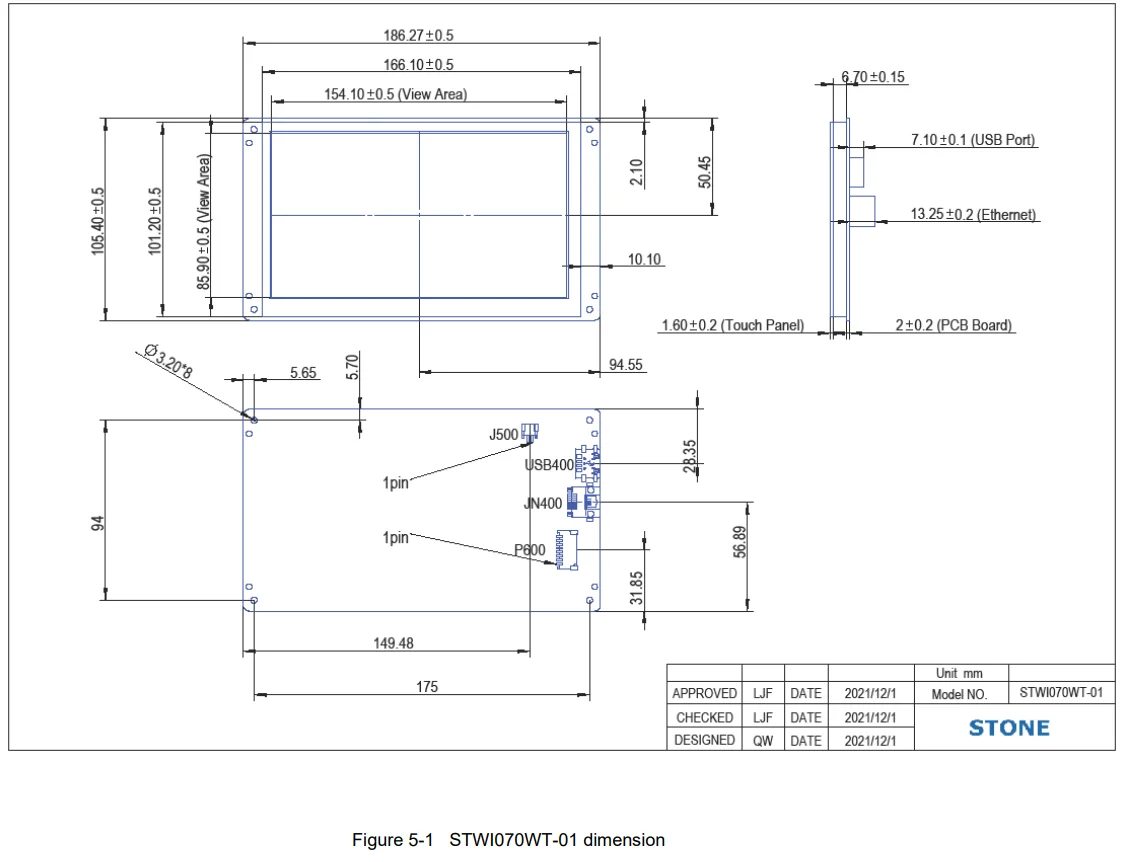

7 Inch：STWI070WT-01
|
Physical Parameter |
|
|
Size |
7 inch |
|
Resolution |
800×RGB×480 |
|
Pixel Spacing |
0.0642(W) × 0.1790(H) mm |
|
Color |
262,144 colors (18 bit) |
|
Viewing Area |
154.08(W) × 85.92(H) mm |
|
Display Dimension |
186.4mmx105.5mm |
|
Overall Dimension |
186.4mmx105.5mmx17.4mm (Standard type) 186.4mmx105.5mmx23.8mm (with Ethernet port) |
|
Net Weight |
300g |
8 Inch：STWI080WT-01
|
Physical Parameter |
|
|
Size |
8 inch |
|
Resolution |
800×RGB×600 |
|
Pixel Spacing |
0.0675(W) × 0.2025(H) mm |
|
Color |
262,144 colors (18 bit) |
|
Viewing Area |
162.0(W) × 121.5(H) mm |
|
Display Dimension |
162.8mm× 122.3mm |
|
Overall Dimension |
203mm×148.8mm×15.8mm (T) (Standard type) 203mm×148.8mm×23.8mm (T) (with Ethernet port) |
|
Net Weight |
550g(T) |

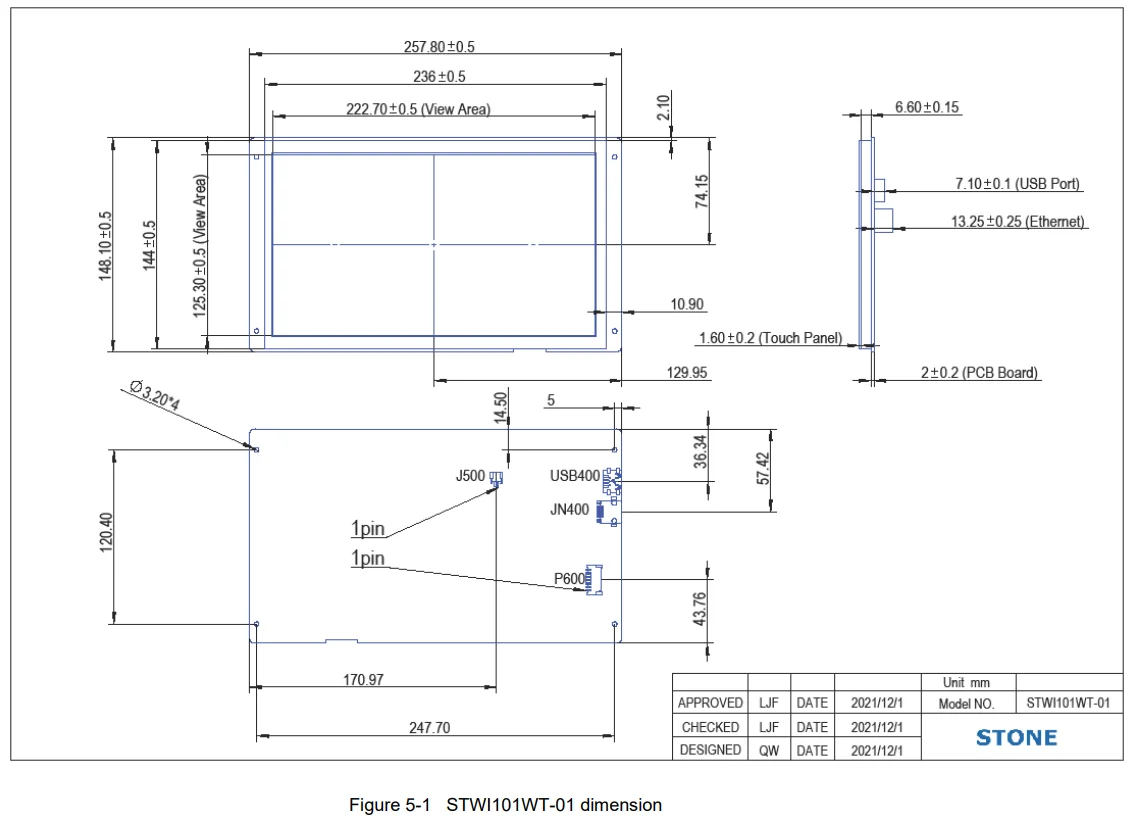

10.1 Inch：STWI101WT-01
|
Physical Parameter |
|
|
Size |
10.1 inch |
|
Resolution |
1024×RGB×600 |
|
Pixel Spacing |
0.2175(H) × 0.2088(V) |
|
Color |
262,144 colors (18 bit) |
|
Viewing Area |
222.72(H) × 125.28(V) |
|
Display |
225.9mm× 127.9mm |
|
Overall Dimension |
257.8mm×148.1mm×15.2mm (T) (Standard type) 257.8mm×148.1mm×23.8mm (T) (with Ethernet port) |
|
Net Weight |
795g(T) |

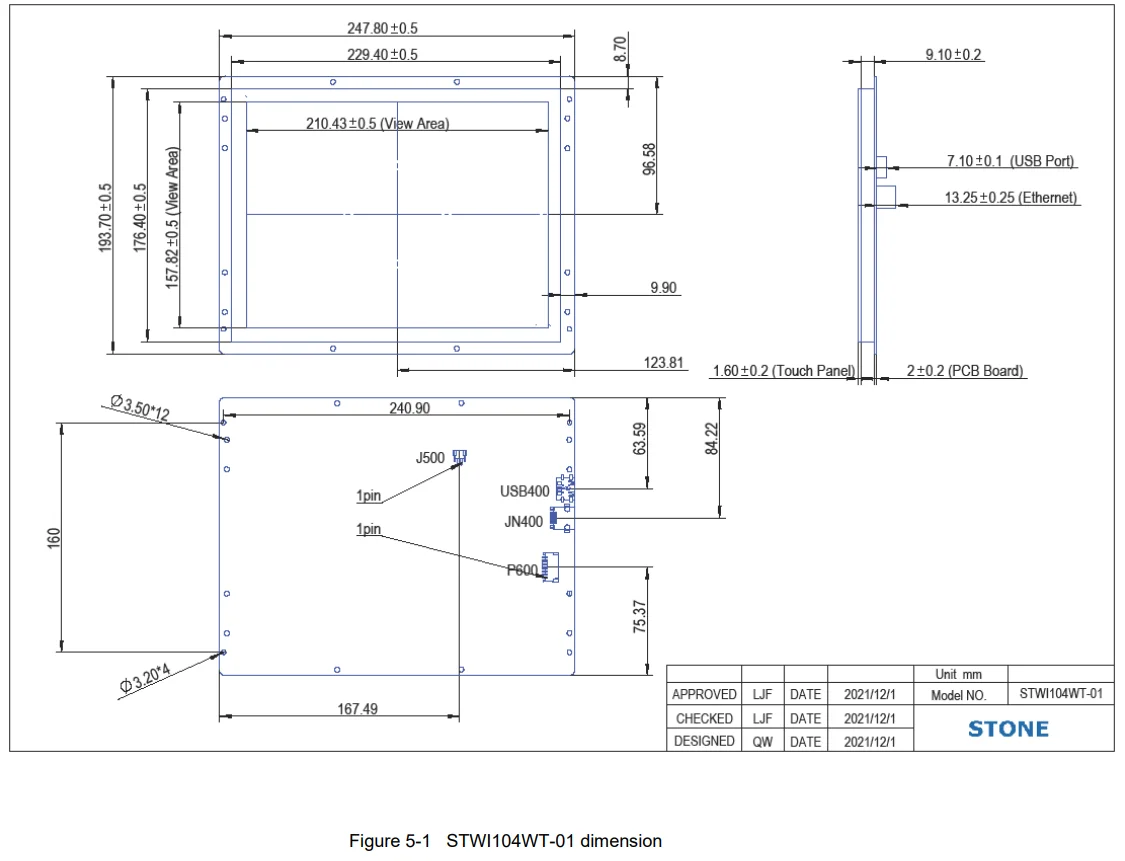

10.4 Inch：STWI104WT-01
|
Physical Parameter |
|
|
Size |
10.4 inch |
|
Resolution |
1024×RGB×768 |
|
Pixel Spacing |
0.0685 (H) × 0.2055 (V) |
|
Color |
262,144 colors (18 bit) |
|
Viewing Area |
210.4 (H) × 157.8 (V) |
|
Display Dimension |
212.6mm×159.8mm |
|
Overall Dimension |
247.8mm×193.7mm×15.8mm (T) (Standard type) 247.8mm×193.7mm×23.8mm (T) (with Ethernet port) |
|
Net Weight |
805g(T) |
Additional information
| Weight | 40 oz |
|---|---|
| Dimensions | 30 in |
| Display Mode |
500:1 |
| Hign-concerned Chemical |
None |
| Resolution |
128*64 |
| Model Number |
STWI-0zz |
| Type |
TFT |
| is_customized |
Yes |
| Colors |
262K |
| CPU |
1G Hz Cortex A8 |
| Interface |
RS232/RS422/RS485/TTL |
| Touch Panel |
4-wire resistance |
| Flash Memory |
256M |
| Working Voltage |
5-28V |
| Size |
3.5-15 Inch Available |
| LCD Class |
A |
| Choice |
yes |
| semi_Choice |
yes |
