Greensboro Left-Chest Embroidery Digitizing Case Study

Project Specifications

Detailed Case Study: Handling Density on Classic Cotton

The Design Challenge

The “Greensboro” project presented an interesting technical challenge. The client required a highly detailed design to be prepared for left-chest placement on standard cotton garments. While a typical left-chest design sits comfortably between 6,000 and 10,000 stitches, this specific artwork demanded 26,926 stitches to faithfully capture all of its complex elements within a compact 3×3.5-inch footprint.

Cotton is a natural fiber with a flexible weave. When you inject nearly 27,000 needle penetrations into such a confined space, the fabric naturally wants to pull, shift, and pucker. Standard, automated digitizing settings would result in a stiff, bullet-like patch that feels uncomfortable to wear and distorts the garment completely. Our goal was to deliver a file that runs smoothly on the machine while keeping the finished garment soft, wearable, and perfectly flat.

The Digitizing Process

To solve the density challenge, our senior digitizing team manually planned every path of the Greensboro design. Instead of relying on generic default settings, we approached the project with a multi-layered stabilization strategy.

First, we constructed a comprehensive grid underlay. This foundational step is critical for cotton fabric. The underlay acts like an anchor, binding the cotton fibers to the backing material and minimizing horizontal and vertical shifting. By securing the fabric first, we could apply the dense top-stitching without causing the cotton to pull inward.

Second, we carefully managed stitch angles. Overlapping stitches at identical angles creates massive bulk. By shifting the angles of adjacent fills and satin segments, we distributed the physical tension of the thread across different axes. We also micro-managed the density of the background fills, reducing stitch counts in areas where overlapping details would naturally sit on top, saving valuable machine run-time and preventing needle breakage.

The Production Outcome

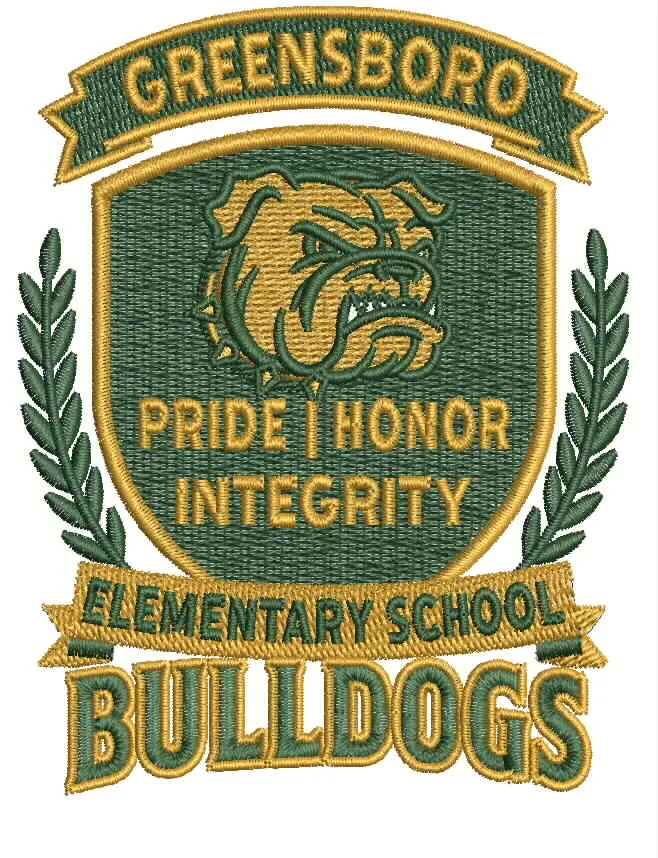

The resulting production file runs beautifully. The final proof displays crisp, clean borders, highly legible text, and distinct separation of fine design details. By optimizing the pathing, we minimized unnecessary jump stitches, which dramatically reduces thread trims and keeps production moving fast on the shop floor.

Most importantly, the physical sample stitched out perfectly flat on the cotton substrate. The design retains its crisp, professional appearance without turning the left-chest area into a rigid, heavy panel. The client received a reliable, production-ready file that runs efficiently from the first garment to the last.
