What is this case study? This page documents a real completed Digitizing order produced by 360 Digitizing Solutions for a Cap Front placement on Canvas. To protect client privacy, company and brand names have been anonymized. Browse specs, before/after images, and production notes below.
Mastering Canvas Cap Front Digitizing
A closer look at how we transformed a detailed bear head artwork into a clean, production-ready embroidery file for structured headwear.
Customer Original Artwork

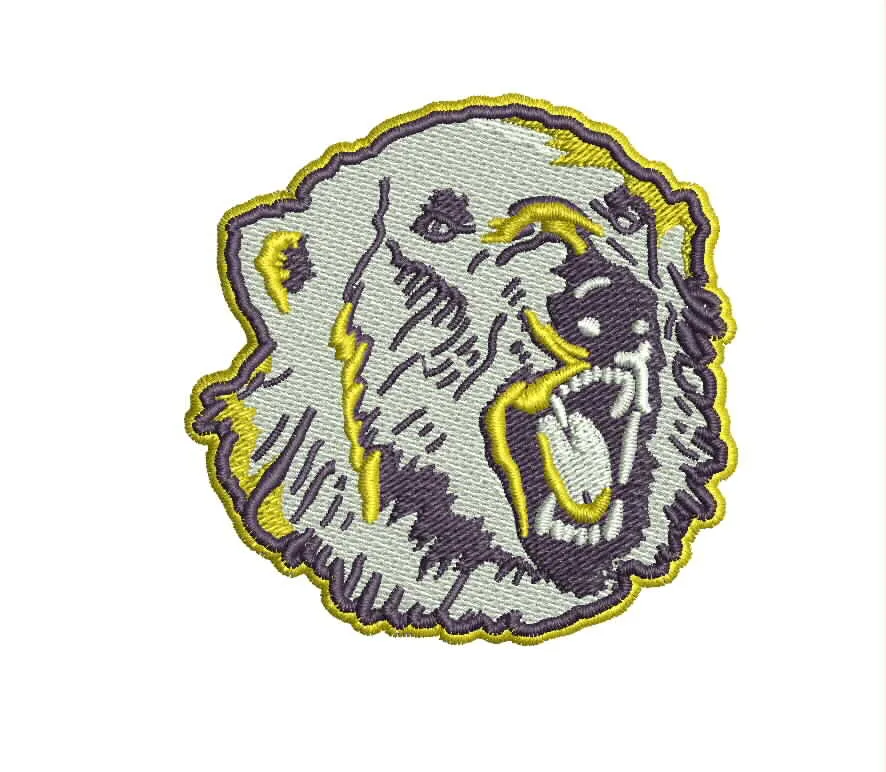

Final Digitized Proof
Order Specifications
Project Background
Working with canvas fabric presents a unique set of challenges for embroiderers. Canvas is heavy, rigid, and tightly woven, which means that any excess density or poorly planned stitch angles can cause the material to pucker, warp, or cause frequent needle breakage on the shop floor.
The primary goal for this order was to convert the customer’s original vector art into a clean instruction set that runs smoothly on high-speed commercial embroidery machines. Since the finished patch area measured just 2.2 by 2.2 inches, every single millimeter of the layout required deliberate planning to avoid overlapping thread buildup.
Our experienced digitizers reviewed the artwork file carefully before starting the conversion process. We mapped out a strategy to handle the dense facial features of the bear design while maintaining sharp contours that would stand out clearly on structured canvas headwear.
By focusing heavily on pull compensation and optimal stitch sequencing, our production team ensured the final output would hold its shape without distorting the fabric foundation. This proactive approach saved our client valuable production time and eliminated the need for costly trial-and-error stitching.
Technical Production Process
Next, we programmed the fill angles to flow naturally with the contours of the bear head. By alternating needle penetration points across adjacent sections, we successfully minimized unwanted thread accumulation and kept the overall profile neat and professional.
Finally, we optimized the trim commands and jump connections to ensure the automated machine could stitch the entire 16376-stitch count smoothly without manual intervention. Every color transition was mapped logically to reduce travel time and prevent thread fraying.
- ✓ Applied custom pull compensation to counteract canvas material shrinkage during high-speed sewing.
- ✓ Programmed strategic underlay foundations to secure the dense 2.2×2.2 inch layout on structured caps.
- ✓ Refined stitch angles and density settings to guarantee sharp edges and prevent thread breakage.
Final Outcome
Because the design was meticulously engineered for canvas material, the decorator experienced zero downtime from thread breaks or fabric distortion. This successful run highlights our commitment to providing reliable, production-ready files for every custom apparel order.
Our team remains dedicated to supporting local decorators and shops with dependable digitizing solutions that perform consistently in real-world manufacturing environments.
Ready for Flawless Production?
We deliver production-ready files optimized for your exact machines and fabrics, reducing thread breaks and maximizing shop efficiency.
Frequently Asked Questions
What fabric was used for this cap front design? +
This project was embroidered on durable canvas fabric, specifically chosen for structured headwear applications.
How many stitches were required for the 2.2×2.2 inch layout? +
The finalized design utilized 16376 stitches to capture every intricate detail cleanly without fabric puckering.
Are your digital files optimized to prevent thread breaks? +
Yes, every file we process includes optimized underlay patterns and jump management to ensure smooth runs on commercial machines.
