Jackson FB Arch Left-Chest Embroidery Digitizing Case Study

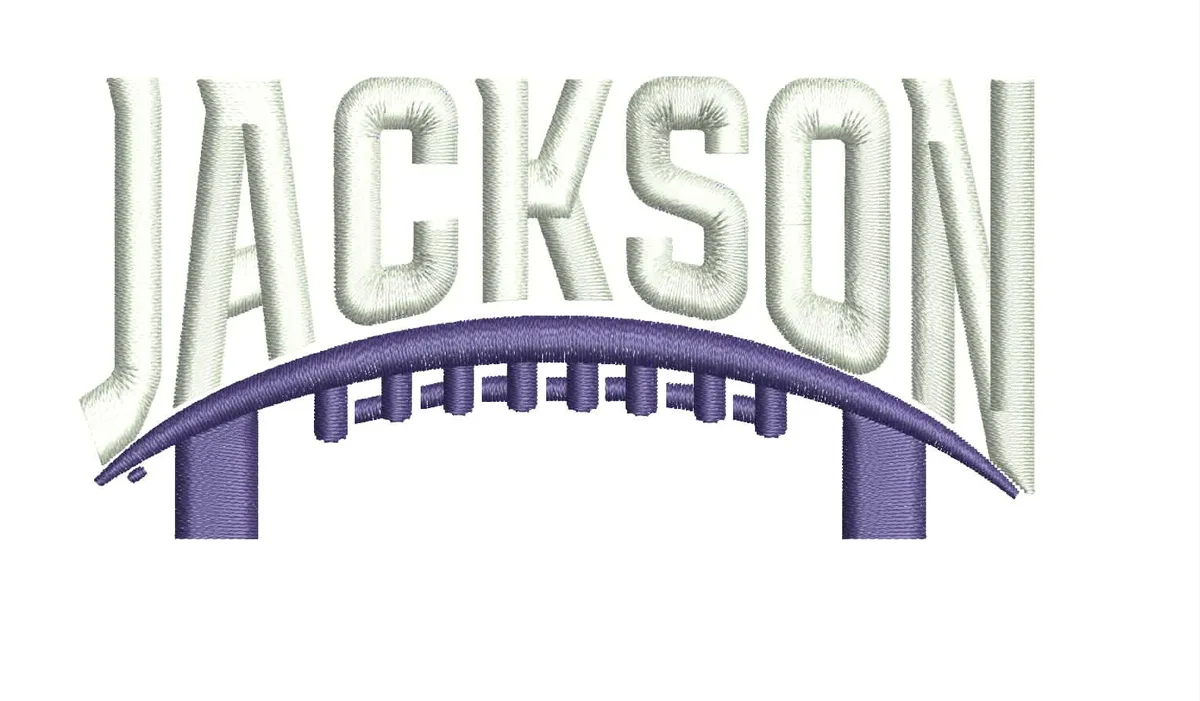

Final Digitized Proof

Order Specifications

Compounding this specific challenge was the choice of fabric. The client intended to run this design on lightweight, tightly woven polyester garments frequently used in team athletic wear and performance uniforms. Polyester lacks the natural give of cotton, meaning any excess stitch density will immediately cause puckering around the edges. Furthermore, synthetic performance fabrics have a slick texture that requires proper stabilization and balanced pull compensation to ensure the embroidery remains flat and secure after washing.

Our primary goal for this order was to convert the client concept into a highly reliable production file that could run at commercial speeds without manual intervention from machine operators. We needed to map out the letter forms carefully to maintain legible gaps between characters while keeping the total stitch footprint light enough to preserve the natural flexibility of the polyester substrate. Every curve had to be inspected and adjusted by hand before generating the final path data.

By analyzing the precise dimensions of 3.75 by 1.75 inches, our digitizers planned a structured layout that fit comfortably within standard left-chest framing limits. We evaluated how the density would distribute across the narrow span of the banner and lettering, ensuring that the finished emblem would look balanced, sharp, and easy to read from a distance. The resulting blueprint was built from the ground up to eliminate common embroidery defects on slick synthetic textiles.

Next, we managed the stitch density meticulously. Because polyester does not absorb thread or hide excessive buildup, we reduced the column density slightly while increasing pull compensation values. This adjustment prevents the stitches from pulling the fabric inward, keeping the final dimensions true to the requested 3.75×1.75 inch size without distorting the lettering.

Finally, we optimized the sequence and trim commands to minimize unnecessary jump stitches and thread trimmings. By mapping logical entry and exit points for each letter segment, the embroidery machine moves smoothly across the design, reducing overall run time and preventing thread friction that often leads to unexpected production halts on high-speed industrial equipment.

Through careful node editing and angle tuning, the finished program translates complex vector curves into clean satin and fill formations that lay flat against performance textiles, guaranteeing professional results for every garment produced.

The client successfully ran a full batch of apparel without encountering a single broken thread or registration error. This project demonstrates our commitment to delivering precise, machine-ready digitizing files that save time, reduce material waste, and ensure consistent quality across large production runs for apparel decorators everywhere.
