What is this case study? This page documents a real completed Digitizing order produced by 360 Digitizing Solutions for a Cap Front placement on Cotton. To protect client privacy, company and brand names have been anonymized. Browse specs, before/after images, and production notes below.
Mastering Complex Cap-Front Cotton Embroidery
Discover how our manual pathing and precise density adjustments turned a challenging cap-front concept into a clean, retail-ready embroidered product on durable cotton.

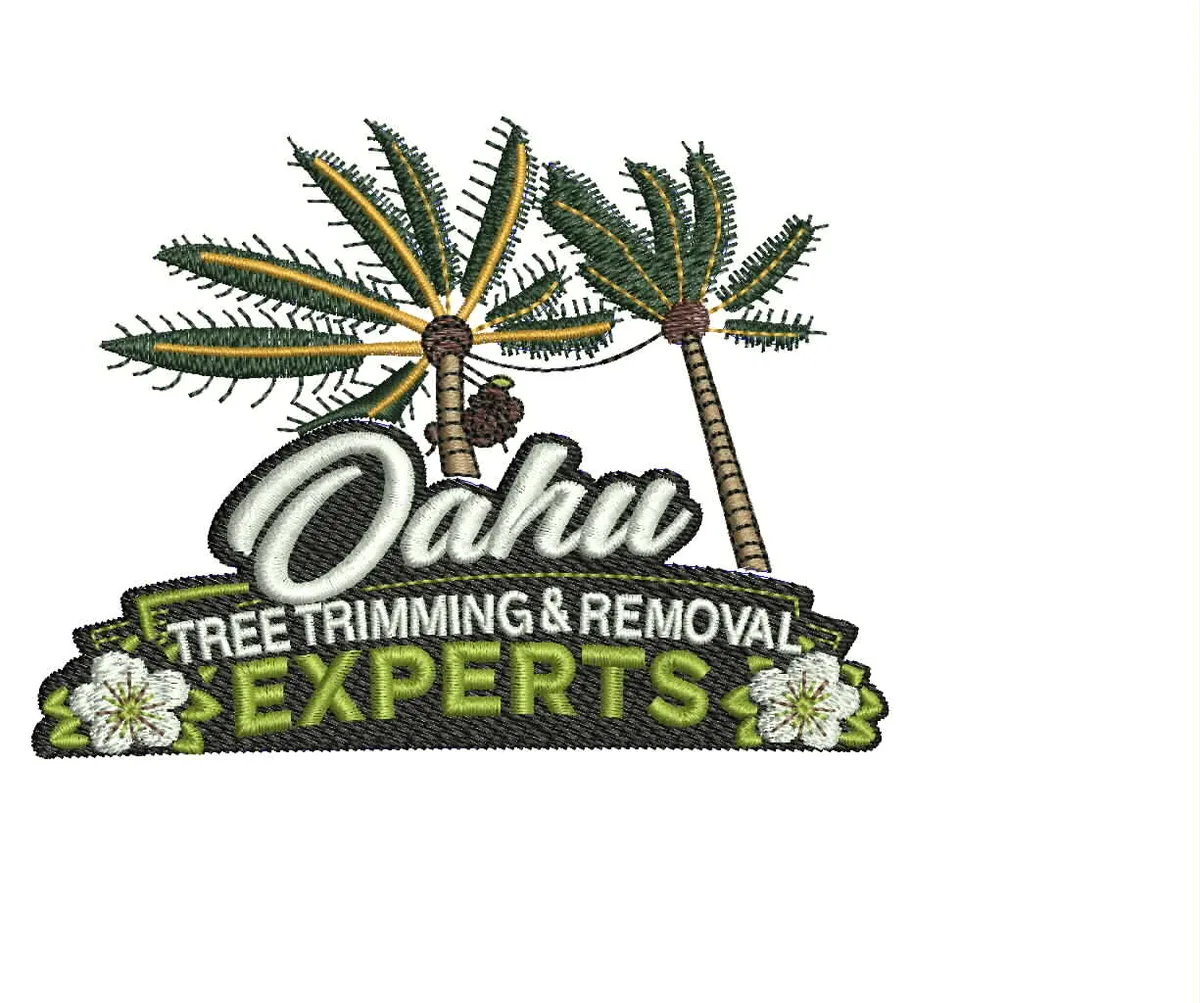

Final Digitized Proof
Order Specifications
Project Background
The client’s main goal was to achieve crisp outlines and solid fill areas without creating excessive bulk that could compromise the hat structure or cause needle deflection. Because cotton has a distinct weave and reacts strongly to high stitch densities, our primary challenge involved balancing visual coverage with mechanical stability to ensure smooth, uninterrupted runs on commercial multi-head machines.
Our digitizers analyzed the client’s concept to map out the optimal sewing sequence. We wanted to minimize unnecessary jump stitches and prevent the fabric from pulling inward under tight columns. Every curve and sharp corner required individual attention to maintain proportion and legibility at a finished size of 3.811 by 2.815 inches.
By planning the stitch angles strategically, we ensured the final output would lay flat against the crown of the cap. The resulting blueprint provided the exact structural foundation needed for high-speed production without sacrificing any fine visual details requested by the decorator.
Technical Production Process
Stitch directions were carefully angled across the canvas to distribute tension evenly across the cap frame. We adjusted the density parameters downward slightly in overlapping sections to avoid thread build-up, which frequently leads to birdnesting or needle breakage on thicker cap seams.
The connection points and trims were optimized to reduce machine downtime. By mapping logical travel paths between color blocks, we eliminated long floating threads that operators would otherwise need to clean up manually after every single cap came off the machine.
- ✓ Tailored edge-walk underlay to stabilize cotton weave and prevent shifting
- ✓ Optimized pull compensation to maintain registration on curved cap fronts
- ✓ Clean travel paths to minimize trims and maximize production speed
Final Outcome
The embroiderer successfully ran the 16,909 stitches at high commercial speeds without encountering thread breaks or machine jams. This project highlights our commitment to providing reliable, production-ready digitizing files that save time, reduce material waste, and elevate the quality of finished apparel items.
Ready for Flawless Production?
We deliver production-ready files optimized for your exact machines and fabrics, reducing thread breaks and maximizing shop efficiency.
Frequently Asked Questions
What fabric types do you support for cap-front digitizing? +
We optimize files for all common apparel fabrics, including cotton, twill, canvas, and blended materials, ensuring minimal puckering and clean registration.
How do you prevent distortion on curved caps? +
We apply specific pull compensation and center-out sewing paths to counteract the natural tension and curvature of structured and unstructured caps.
Are your files ready for immediate machine production? +
Yes, every file is manually punched and tested to ensure efficient running speeds, reduced thread breaks, and flawless visual output.
