Mastering Compact Cap Front Embroidery on Cotton

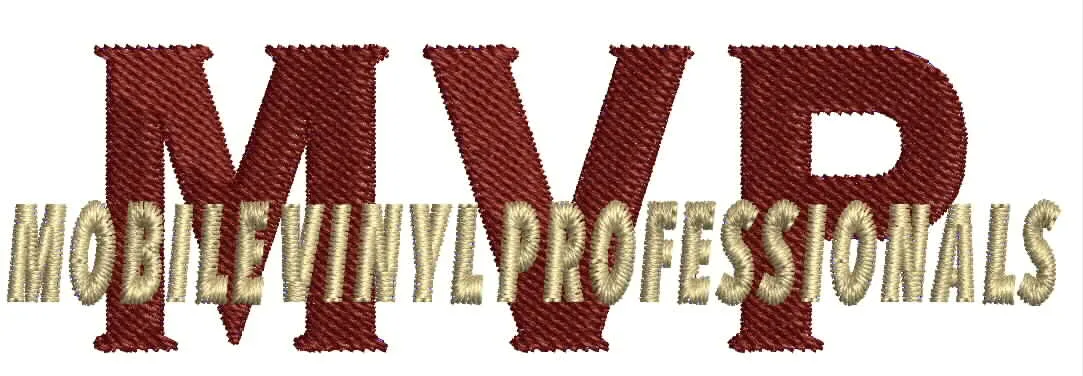

Final Digitized Proof

Order Specifications

Caps present unique challenges compared to flat garments because the hoop holds the fabric under tension around a curved surface. When stitching wide and short logos on the front panel, improper push and pull compensation can easily distort letterforms, making them look messy or misaligned. Our primary objective was to ensure the lettering remained completely legible, crisp, and properly centered during high-speed production runs.

Cotton fabric is generally forgiving, but the interaction between a dense cap buckram and fine lettering requires a tailored approach. If the stitch density is set too high, the fabric will pucker and pull away from the center seam. Conversely, if the density is too low, the underlying material will peek through, ruining the solid appearance of the brand identity.

Our team analyzed the exact dimensions and fabric characteristics to design a custom pathway. By keeping the total stitch count balanced at 5,809 stitches, we achieved full coverage without overloading the fabric fibers. Every single letter was mapped out to counteract the natural distortion tendencies inherent to cap embroidery frames.

The client needed a reliable file that could run on commercial multi-head machines without constant thread breaks or manual adjustments. Our focus from the start was to deliver a production-ready file that would allow the shop floor to load the design, hit start, and produce hundreds of flawless caps in a row.

Next, we carefully adjusted the pull compensation values horizontally to accommodate the stretch of the cap front panel. Since the design was wider than it was tall, minimizing unnecessary travel runs was critical to prevent birdnesting on the underside of the cap. Jump stitches were minimized and strategically trimmed to maintain clean boundaries between characters.

Finally, density settings were calibrated to ensure smooth satin column widths. We avoided overly long stitches that could snag during everyday wear, breaking the design down into stable, manageable stitch segments that lay completely flat against the stiffened cotton surface.

The entire sequence was rigorously tested mentally and digitally against common cap-sewing speeds. By optimizing the entry and exit points for each letter, the machine needle moves fluidly from one stroke to the next without sudden direction changes that cause thread friction.

The client successfully ran the production batch without encountering unexpected thread breaks or alignment errors. This streamlined workflow allowed them to complete their customer order ahead of schedule, proving the immense value of professionally engineered digitizing.

We take pride in turning challenging dimensions into reliable, high-speed production files. Every project we handle is built to save time, reduce material waste, and deliver standout retail-quality results on any fabric.
