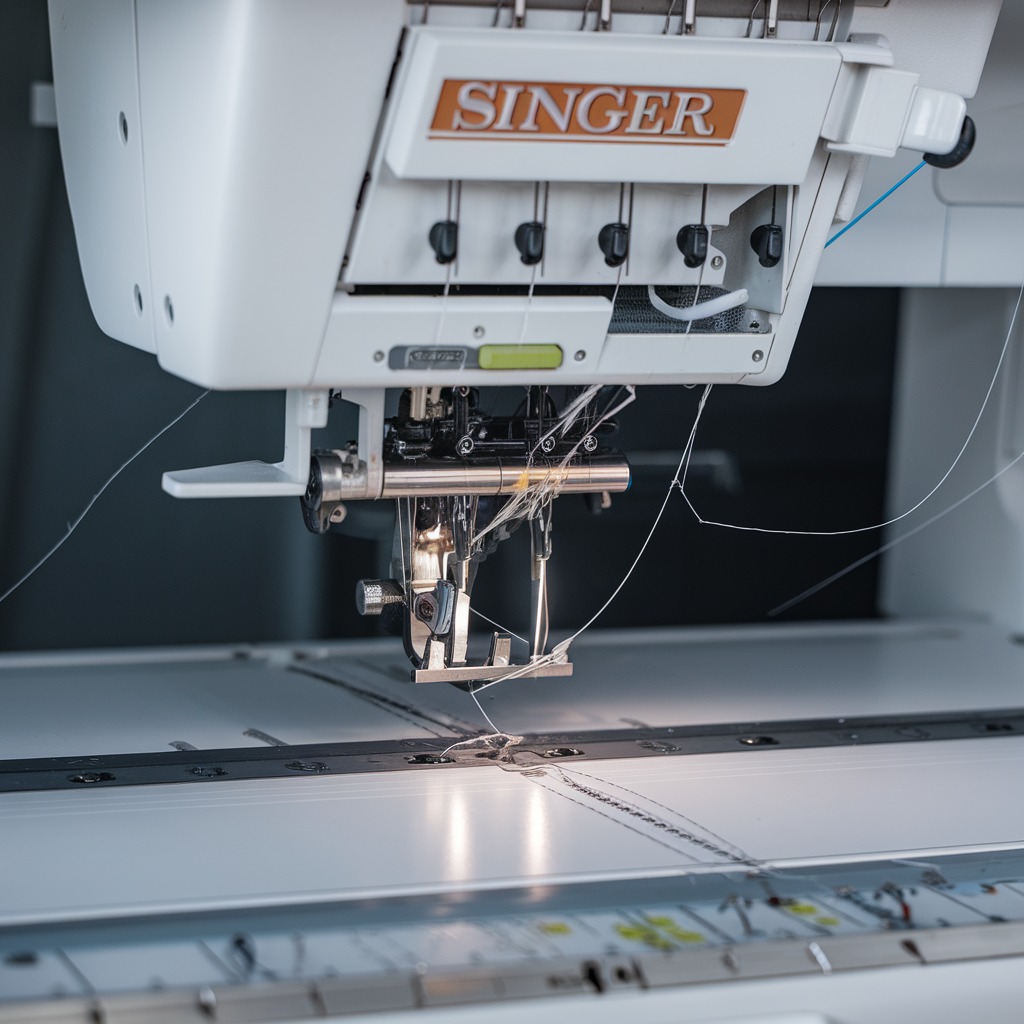

Singer Futura XL-420: Troubleshooting Thread Breakage
Quick answer: Thread breakage on the Singer Futura XL-420 is most often caused by incorrect upper threading, a damaged or incorrect needle, or improper bobbin setup. Systematically check these areas first.
Thread breakage is a common and frustrating issue for Singer Futura XL-420 embroidery machine users. It can interrupt projects and lead to inconsistent stitch quality. This guide provides practical, step-by-step solutions to diagnose and fix the most frequent causes of thread breakage, helping you get back to smooth embroidery.
Two-minute checks before you open anything
- Is the upper thread correctly routed through all guides, tension discs, and the take-up lever?
- Is the needle new, correctly inserted, and appropriate for your fabric and thread type?
- Is the bobbin wound evenly and inserted correctly into the bobbin case?
- Is the upper thread tension dial set appropriately for your thread and fabric (typically between 3-5 for embroidery)?
- Is the machine clean, especially around the needle plate, bobbin area, and thread path?
1. Incorrect Upper Threading high likelihood
How to tell
Thread breaks frequently, often at the same point in the thread path, or the machine jams shortly after starting. Stitch quality may be poor or inconsistent.
Fix
- Raise the presser foot lever to release tension discs.
- Remove the upper thread completely from the machine.
- Consult your Singer Futura XL-420 user manual for the precise threading path.
- Thread the machine carefully, ensuring the thread passes through all guides, is seated correctly between the tension discs, and goes through the eye of the take-up lever from right to left.
- Ensure the thread is passed through the needle eye from front to back.
Parts involved: Thread path & tension →
2. Damaged or Incorrect Needle high likelihood
How to tell
Thread frays, shreds, or breaks consistently. You might hear a 'popping' sound as the needle penetrates the fabric. Visually inspect the needle tip for burrs, bends, or dullness. Check if the needle size/type matches your project.
Fix
- Turn off the machine power.
- Loosen the needle clamp screw using the provided screwdriver.
- Remove the old needle, noting its orientation (flat side facing the back).
- Insert a new embroidery machine needle (e.g., a 75/11 or 90/14 embroidery needle) with the flat side of the shank facing the back of the machine, pushing it up as far as it will go into the needle clamp.
- Tighten the needle clamp screw securely.
- Turn on the machine and test with scrap fabric.
Parts involved: Needles & needle bars →
Parts you may need for Singer
In stock, tested before dispatch, Buyer Protection on every order. Part types for this problem: Thread path & tension, Needles & needle bars, Rotary hooks & bobbin cases, Threads & supplies.
Bobbin Case & 2 Metal Bobbins for Brother, Janome, Singer, Babylock...$ 5.59View part →
PET-121 40WT 120D/2 Polyester Embroidery Thread 4000M Spool, 80 Mad...$ 17.49View part →
Flying Tiger DBx1 Industrial Lockstitch Needles, 100 pcs/box, Sizes...$ 10.99View part →
PET-80 80 Madeira Colors Embroidery Thread Set - Premium 40WT Polye...$ 15.99View part →40 Weight 120D/2 Polyester Embroidery Thread 4000M PET-121 for Brot...$ 17.49View part →
ORGAN HAX1 Household Sewing Machine Needles for SINGER & BROTHER, S...$ 6.29View part →All Singer parts → Thread Path & Tension → Needles & Needle Bars → Rotary Hooks & Bobbin Cases →
3. Bobbin Issues (Winding, Insertion, Tension) high likelihood
How to tell
Thread breaks from the bobbin, or the upper thread breaks due to excessive drag from the bobbin. Stitch quality on the underside of the fabric is poor, looped, or inconsistent. The bobbin may spin erratically in the bobbin case.
Fix
- Remove the bobbin case and bobbin from the machine.
- Inspect the bobbin: if it's wound unevenly, too loosely, or too tightly, rewind it. Use the machine's bobbin winder, ensuring the thread winds smoothly and evenly.
- Insert the bobbin correctly into the bobbin case, following the diagram on the bobbin case or in your manual. Ensure the thread feeds out in the correct direction (usually counter-clockwise when viewed from the top).
- Check bobbin tension: pull the bobbin thread. It should have slight resistance but pull smoothly. If it's too tight or too loose, adjust the small screw on the bobbin case a quarter turn at a time. (Turn clockwise to tighten, counter-clockwise to loosen).
- Reinsert the bobbin case into the machine, ensuring it clicks securely into place.
Parts involved: Rotary hooks & bobbin cases → Threads & supplies →
4. Upper Thread Tension Too High high likelihood
How to tell
The upper thread snaps frequently, especially during dense stitching or at high speeds. The bobbin thread may appear on the top side of the fabric, indicating the upper thread is pulling too hard.
Fix
- Locate the upper thread tension dial on your machine.
- Reduce the tension setting by turning the dial to a lower number (e.g., from 5 to 4, or 4 to 3).
- Test sew on a scrap piece of fabric with similar material and design density.
- Adjust incrementally until the stitches are balanced (no loops on top or bottom, and the bobbin thread is not visible on the top surface).
Parts involved: Thread path & tension →
5. Machine Maintenance Issues (Lint, Debris, Lack of Lubrication) medium likelihood
How to tell
Thread breakage occurs along with increased machine noise, sluggish operation, or visible lint buildup in the bobbin area, under the needle plate, or in thread guides. Thread may fray as it passes through dirty areas.
Fix
- Turn off the machine and unplug it.
- Remove the needle plate screws and lift the needle plate.
- Use a small brush and/or vacuum cleaner (with a narrow nozzle) to remove all lint and thread bits from the bobbin area, feed dogs, and under the needle plate.
- Clean any visible lint from the upper thread path guides and tension discs.
- Apply a small drop of sewing machine oil to the designated lubrication points as indicated in your Singer Futura XL-420 user manual (typically around the bobbin race and hook area). Do not over-oil.
- Replace the needle plate and screws, then test the machine.
Parts involved: Lubrication & maintenance → Screws, springs & small parts →
6. Low-Quality or Old Thread medium likelihood
How to tell
Thread breaks easily even with correct machine settings. The thread may appear fuzzy, brittle, or have inconsistent thickness. Older thread can degrade and lose strength.
Fix
- Replace the current thread spool with a new spool of high-quality embroidery thread from a reputable brand.
- Ensure the thread is stored in a cool, dry, dust-free environment when not in use.
- Avoid using thread that appears brittle, fuzzy, or has been exposed to direct sunlight or humidity for extended periods.
Parts involved: Threads & supplies →
7. Incorrect Hooping or Hoop Size medium likelihood
How to tell
Thread breaks when the needle encounters resistance from poorly hooped fabric or when the design extends too close to the hoop's edge. Fabric may pucker or shift during embroidery.
Fix
- Ensure the chosen hoop size is appropriate for your embroidery design. The design should fit comfortably within the hoop's inner boundary without touching the edges.
- Hoop the fabric tautly, but without distorting the fabric's weave. The fabric should be drum-tight and free of wrinkles.
- Use appropriate stabilizer for your fabric type and design density to provide adequate support and prevent fabric movement.
- Ensure the hoop is securely attached to the embroidery unit and is not loose or wobbly.
Parts involved: Hoops & frames →
Stop and call a technician if
- If thread breakage persists after trying all troubleshooting steps.
- If you suspect an internal mechanical issue, such as a misaligned hook timing or damaged thread guides that you cannot access or repair.
- If the machine displays an error code related to the embroidery unit or motor that you cannot resolve with basic troubleshooting.
Prevent it coming back
- Always use high-quality embroidery thread and store it properly.
- Change your needle regularly (after every 8-10 hours of embroidery or at the start of a new major project) and use the correct needle type and size.
- Ensure your machine is threaded correctly every time, with the presser foot raised during threading.
- Clean the bobbin area, under the needle plate, and thread path regularly to remove lint and debris.
- Lubricate your machine according to the manufacturer's guidelines in your user manual.
- Use appropriate stabilizer for your fabric and design, and hoop the fabric correctly – taut but not distorted.
Frequently asked questions
Why does my Singer Futura XL-420 keep breaking thread even after I've rethreaded it?
Even after rethreading, thread breakage can persist if the needle is dull or bent, the bobbin is incorrectly wound or inserted, or if there's lint buildup in the machine. Check these areas thoroughly.
What type of needle should I use for embroidery on my Singer Futura XL-420?
For embroidery on the Singer Futura XL-420, it's best to use specialized embroidery needles (e.g., Organ or Schmetz Embroidery needles) with a size appropriate for your thread and fabric, commonly 75/11 or 90/14. These needles have a larger eye and a slightly rounded tip to reduce friction and prevent thread damage.
How often should I clean my Singer Futura XL-420 to prevent thread breakage?
It's recommended to clean your Singer Futura XL-420 after every 8-10 hours of use, or after completing a large project, especially around the bobbin area and under the needle plate. Regular cleaning prevents lint buildup that can cause friction and thread breakage.
