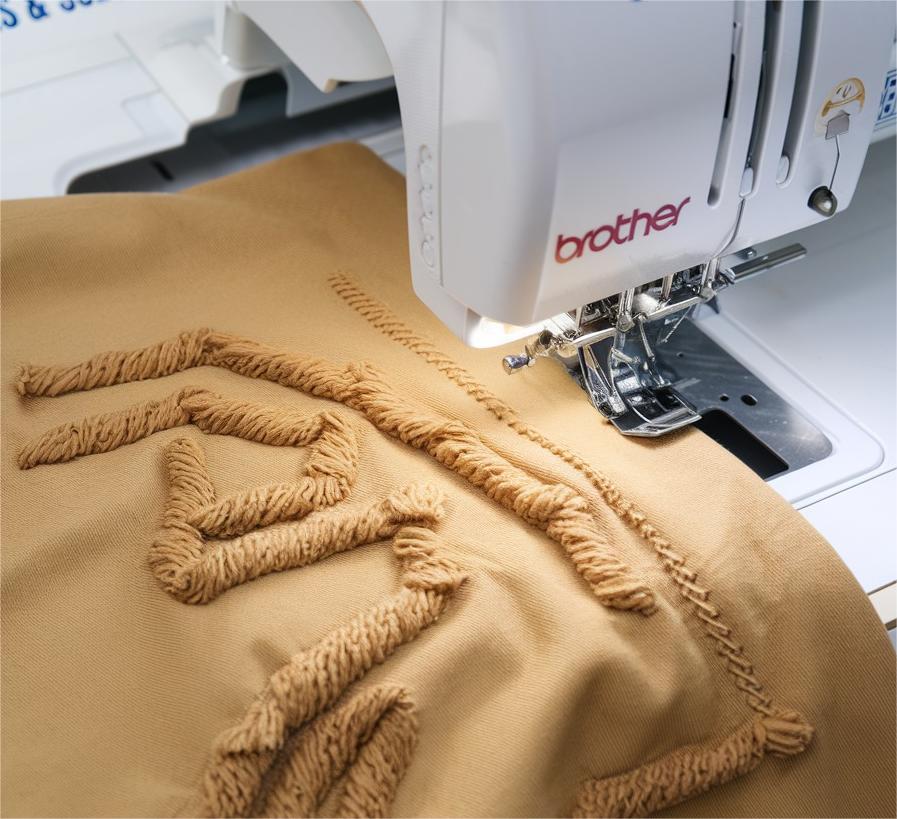

Brother Embroidery Machine: Troubleshooting Uneven Stitch Quality

1. Incorrect Thread Tension high likelihood

How to tell

Stitches appear irregular, too loose (loops on top or bottom), or too tight (fabric puckering, thread breaking). Check the upper thread tension dial setting. For bobbin tension, observe the bobbin thread on the underside of the fabric; it should appear balanced with the upper thread.

Fix

1. Adjust the upper thread tension dial incrementally. A common starting point is the middle setting, then adjust as needed. Stitch a test pattern on scrap fabric.
2. To check bobbin tension, remove the bobbin case. If it's a drop-in bobbin, ensure the thread feeds smoothly. If it's a front-loading bobbin case, hold the thread tail and let the bobbin case hang; it should slowly unspool a few inches and then stop. Adjust the small screw on the bobbin case if necessary (turn clockwise to tighten, counter-clockwise to loosen) in very small increments.

The upper tension unit and the bobbin case tension spring are critical components.

Parts involved: Thread path & tension → Rotary hooks & bobbin cases →

2. Worn or Damaged Needle high likelihood

How to tell

Skipped stitches, inconsistent stitch formation, thread shredding, or small holes in the fabric. Visually inspect the needle for any bends, burrs, or a dull tip. A needle that has hit the hoop or bobbin case will often be bent or have a damaged tip.

Fix

1. Replace the needle with a new one. Always use a fresh needle for each major project or after about 8 hours of embroidery time.
2. Ensure the correct needle type and size are used for your fabric and thread combination (e.g., sharp point for wovens, ballpoint for knits, appropriate eye size for thread thickness).
3. Ensure the needle is inserted correctly, fully seated into the needle bar with the flat side facing the rear of the machine.

Needles are consumable parts.

Parts involved: Needles & needle bars →

3. Improper Threading high likelihood

How to tell

Thread breaks, loops on the fabric surface, skipped stitches, or inconsistent tension despite dial adjustments. The thread may not be seated correctly in the tension discs, guides, or take-up lever. The bobbin may be wound incorrectly or inserted with the thread unwinding in the wrong direction.

Fix

1. Completely unthread the machine (both upper and bobbin).
2. Re-thread the upper thread carefully, ensuring it passes through every guide, is fully seated between the tension discs, and correctly enters the take-up lever eye.
3. Ensure the bobbin is wound evenly, not too full or too loose. Insert the bobbin into its case or well so the thread unwinds in the correct direction as specified in your machine's manual.

Parts involved: Thread path & tension → Rotary hooks & bobbin cases →

4. Dirty Tension Discs or Bobbin Case medium likelihood

How to tell

Inconsistent tension, thread shredding, or thread getting caught. Lint, dust, or thread fragments can accumulate in the upper tension discs, preventing them from gripping the thread correctly, or inside the bobbin case, interfering with thread movement.

Fix

1. For upper tension discs: Raise the presser foot to open the tension discs. Use a piece of dental floss or a thin, stiff brush to clean between the discs, removing any trapped lint or thread.
2. For the bobbin case: Remove the bobbin case and use a small brush or compressed air to clean out any lint, dust, or thread bits from inside the case and around the tension spring. Inspect for any burrs or damage.

Parts involved: Thread path & tension → Rotary hooks & bobbin cases → Lubrication & maintenance →

5. Fabric Not Properly Hooped medium likelihood

How to tell

Fabric puckering, shifting during embroidery, misaligned designs, or uneven stitch density. The fabric may be too loose in the hoop, stretched unevenly, or the wrong size hoop is used.

Fix

1. Ensure the fabric and stabilizer are taut in the hoop, but not overstretched. The surface should feel like a drum.
2. Use the correct size hoop for your design and fabric. Avoid hooping too close to the edge of the fabric.
3. If using a floating method, ensure the fabric is securely attached to the hooped stabilizer with temporary adhesive or basting stitches.

Parts involved: Hoops & frames →

6. Incorrect Fabric and Stabilizer Pairing medium likelihood

How to tell

Fabric shifting, puckering, tunneling, or stitches sinking into the fabric. The fabric may not be adequately supported for the stitch density of the design.

Fix

1. Select a stabilizer appropriate for your fabric type and design density. Lightweight fabrics and dense designs require more stable support.
2. Consider using multiple layers of stabilizer or a heavier-weight stabilizer for complex or dense designs.
3. Ensure the stabilizer is hooped correctly with the fabric, or used as a 'float' if appropriate for your project.

Stabilizer is a consumable supply.

Parts involved: Threads & supplies →

7. Old or Poor-Quality Thread low likelihood

How to tell

Frequent thread breaks, fraying, inconsistent sheen, or uneven stitch appearance. Old thread can become brittle, and low-quality thread may have inconsistent thickness or weak spots.

Fix

1. Use high-quality embroidery thread specifically designed for machine embroidery.
2. Avoid using very old thread, especially if it has been stored in extreme temperatures or humidity.
3. Ensure the thread spool unwinds smoothly without catching.

Thread is a consumable supply.

Parts involved: Threads & supplies →

8. Machine Speed Too Fast low likelihood

How to tell

Reduced stitch precision, especially on delicate fabrics or intricate details. The machine may not have enough time to form perfect stitches at very high speeds.

Fix

1. Reduce the machine's embroidery speed, especially when working with delicate fabrics, fine details, or metallic threads.
2. Test different speeds on scrap fabric to find the optimal balance between speed and stitch quality for your specific project.

Parts involved: Control panels & displays →
