Nema23 Stepper Motor 57J1841-420-SX for CNC & 3D Printers

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Add to Cart

Weight	9 oz
Dimensions	8 in
Hign-concerned Chemical	None
Certification	ce
Step Angle(degrees)	1.8
Phase	2
Model Number	57J1841-420-SX
Holding Torque	0.75Nm

57 Stepper Motor 3.1N.M with DM542 Driver for CNC & 3D Printers

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Add to Cart

Weight	10 oz
Dimensions	10 in
Hign-concerned Chemical	None
Certification	CCC
Step Angle(degrees)	1.8
Phase	2
Model Number	J-5718HB5401
Holding Torque	3.1N/M
Current / Phase	4.4A
Type	Variable Reluctance

Low Price 3N.m NEMA 24 Stepper Motor for CNC & 3D Printer

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Add to Cart

Weight	12 oz
Dimensions	8 in
Hign-concerned Chemical	None
Certification	ce
Phase	2
Model Number	60J1887-440
Holding Torque	3Nm
Current / Phase	4.2A

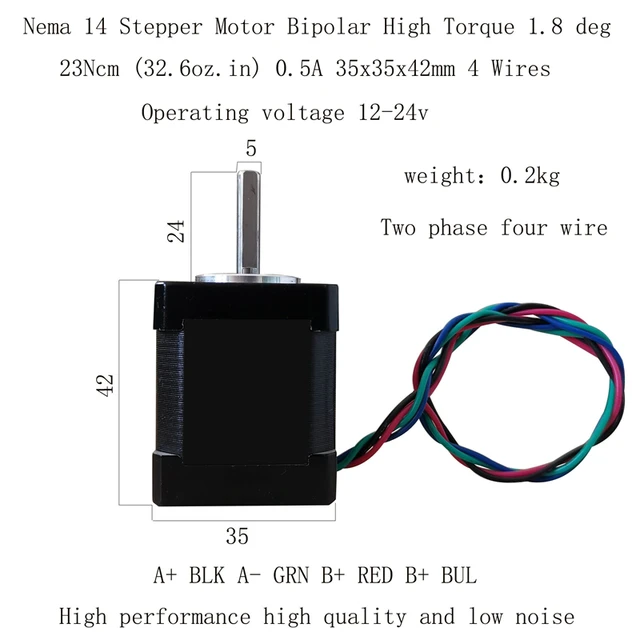

NEMA14 35BYGH42 Stepper Motor 23Ncm High Torque 4-Wire Bipolar

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Ships From

Shaft Diameter

Clear

Select

Weight	10 oz
Dimensions	10 in
Hign-concerned Chemical	None
Step Angle(degrees)	1.8°
Phase	2
Model Number	JL35STH42-0504A
Holding Torque	23Ncm 32.6oz.in
Gear Ratio	100:1
Current / Phase	0.5A
Type	HYBRID
Certification	CCC

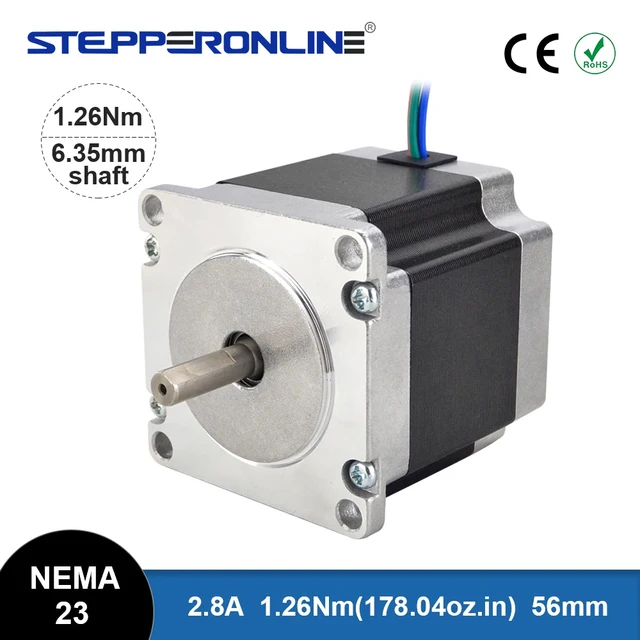

NEMA 23 Stepper Motor 1.26Nm 2.8A for CNC & Embroidery Machines

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Ships From

Clear

Select

Weight	8 oz
Dimensions	10 in
Hign-concerned Chemical	None
Certification	ROHS
Step Angle(degrees)	1.8 deg
Model Number	23HE22-2804S
Holding Torque	1.26 Nm(178.04oz.in)
Current / Phase	2.8 A
Type	HYBRID
Phase Resistance	0.9 ohms± 10%
Size	575756mm
Shaft Diameter	6.35 mm
Shaft Type	D-cut
Number of Leads	4
Lead Length	300 mm
Warranty	1 Year
Application	3D printers, Reprap project, CNC machine

Jkongmotor NEMA 11 Stepper Motor for 3D Printers & Embroidery Machines

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Shaft Diameter

Clear

Select

Weight	10 oz
Dimensions	10 in
Step Angle(degrees)	1.8 degree
Phase	2
Model Number	JK28HS32-0674 / JK28HS32-0956
Type	HYBRID
Certification	CE
Motor Length	32mm
Current/Phase	0.67A
Resistance/Phase	5.6Ω
Inductance/Phase	3.4mH
Holding Torque	6.0 N.cm
# of Leads	4 / 6
Shaft Dia.	5mm
Size	28x28x32mm

NEMA 23 Stepper Motor with DM542 Driver for CNC & 3D Printers

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Ships From

Shaft Diameter

Clear

Select

Weight	10 oz
Dimensions	10 in
Hign-concerned Chemical	None
Certification	ROHS
Step Angle(degrees)	1.8
Phase	2
Model Number	23HS5628
Holding Torque	12600g.cm
Current / Phase	2.8A
Type	HYBRID

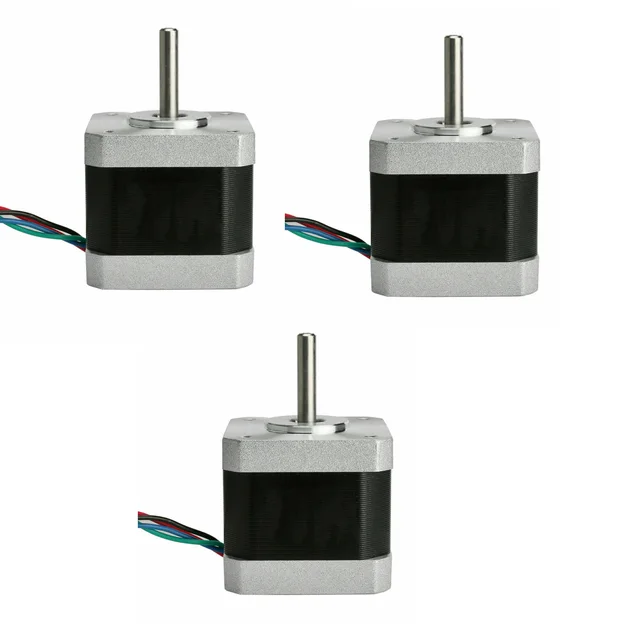

Nema17 Stepper Motor 2-Phase 4-Wire for CNC & 3D Printer

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Options

Ships From

Shaft Diameter

Clear

Select

Weight	10 oz
Dimensions	8 in
Hign-concerned Chemical	None
Plug Type	XH-2.54
Step Angle(degrees)	1.8°
Phase	2
Model Number	17HS4401
Holding Torque	42N.cm
Current / Phase	1.5A
Type	HYBRID
Cable Length	1m
Certification	CE

NEMA 17 Stepper Motor 17HS5424-06 | 2.5A 85oz.in 4-Lead Motor

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Ships From

Clear

Select

Weight	10 oz
Dimensions	7 in
Hign-concerned Chemical	None
Step Angle(degrees)	1.8°
Phase	2
Model Number	17HS4415-04
Holding Torque	71OZ.IN
Current / Phase	1.5A
Type	HYBRID
Certification	CE
condition	new

Compare

Quick view

Add to wishlist

NEMA 11 28mm Stepper Motor with 24V Brake – JL28STH51-0674B-BZ

Motors & Drivers

Rated 0 out of 5

(0)

In stock

77,00 €

Ships From

Shaft Diameter

Clear

Select

Weight	8 oz
Dimensions	9 in
Hign-concerned Chemical	None
Step Angle(degrees)	1.8
Phase	2
Model Number	JL28STH51-0674B-BZ
Holding Torque	0.12NM
Gear Ratio	100:1
Current / Phase	0.67A
Type	HYBRID
Certification	CCC
Rated voltage	6.16V DC
Detent Torque	8mN.m
Phase Resistance	9.2ohm±10percent (At 20℃)
Phase Inductance	7.2mH±20%
Rotor Inertia	18g.cm²
Net weight of motor	0.2kg
Insulation Resistance	100MΩmin.(500V DC)
Insulation class	Class B
