Price range: 29,00 € through 32,00 €

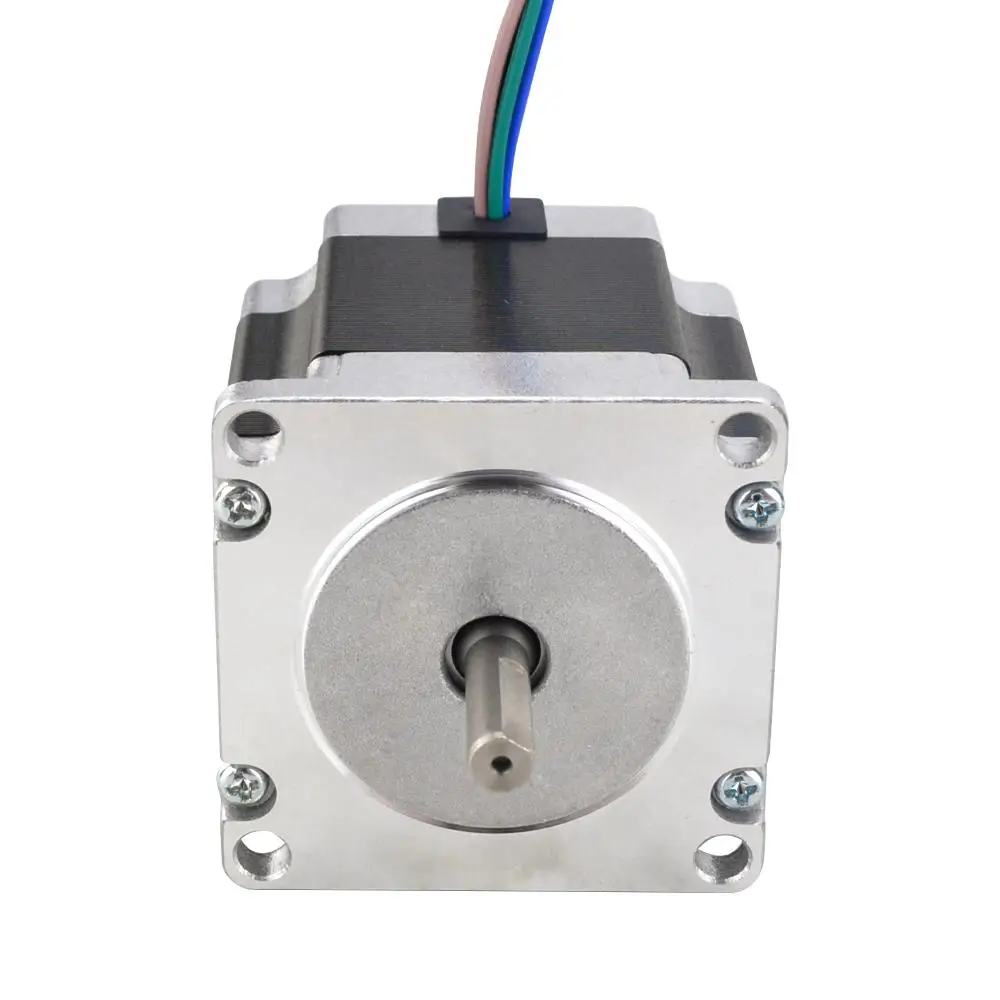

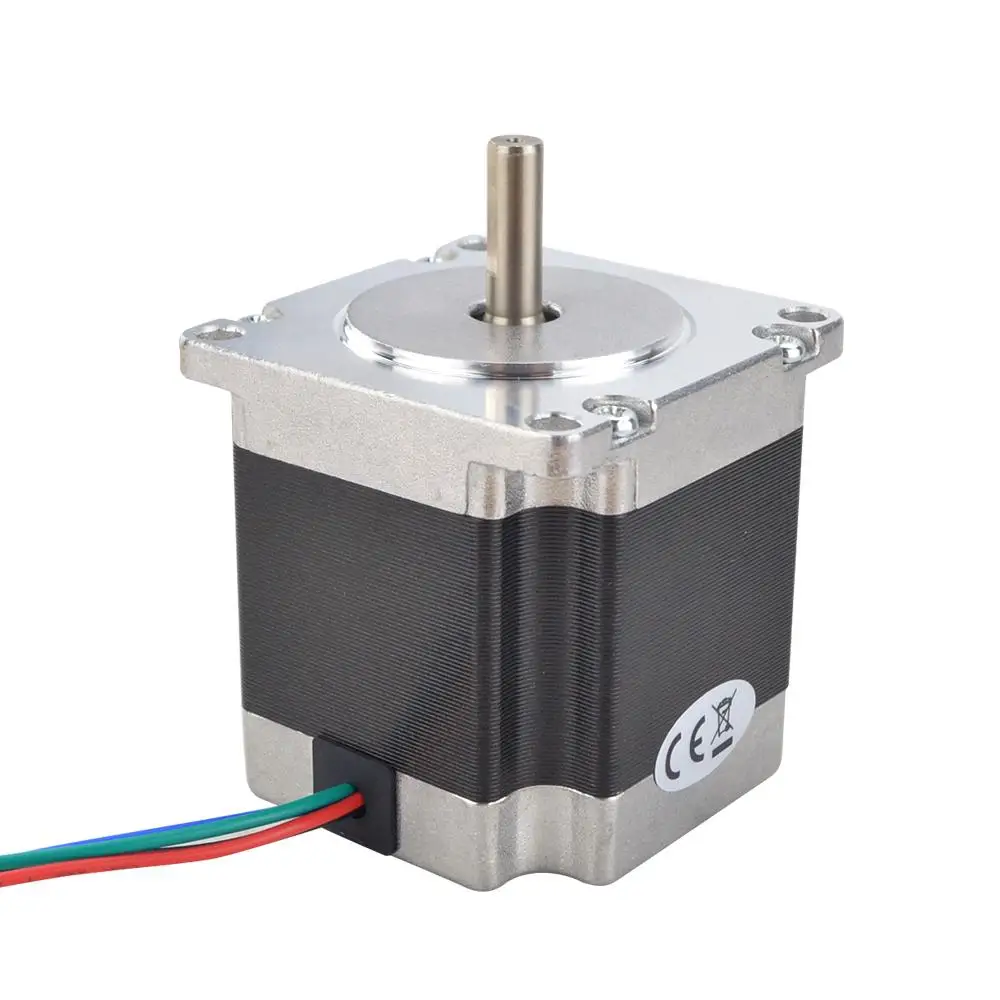

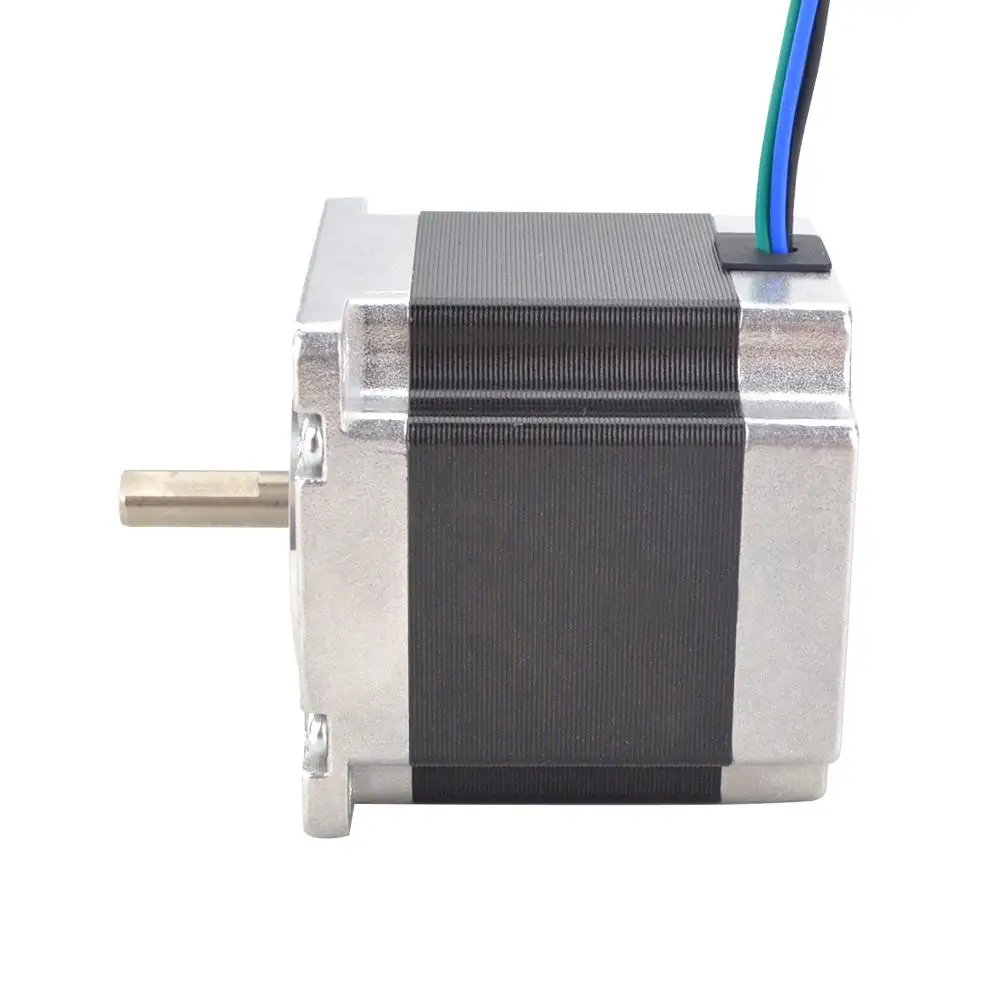

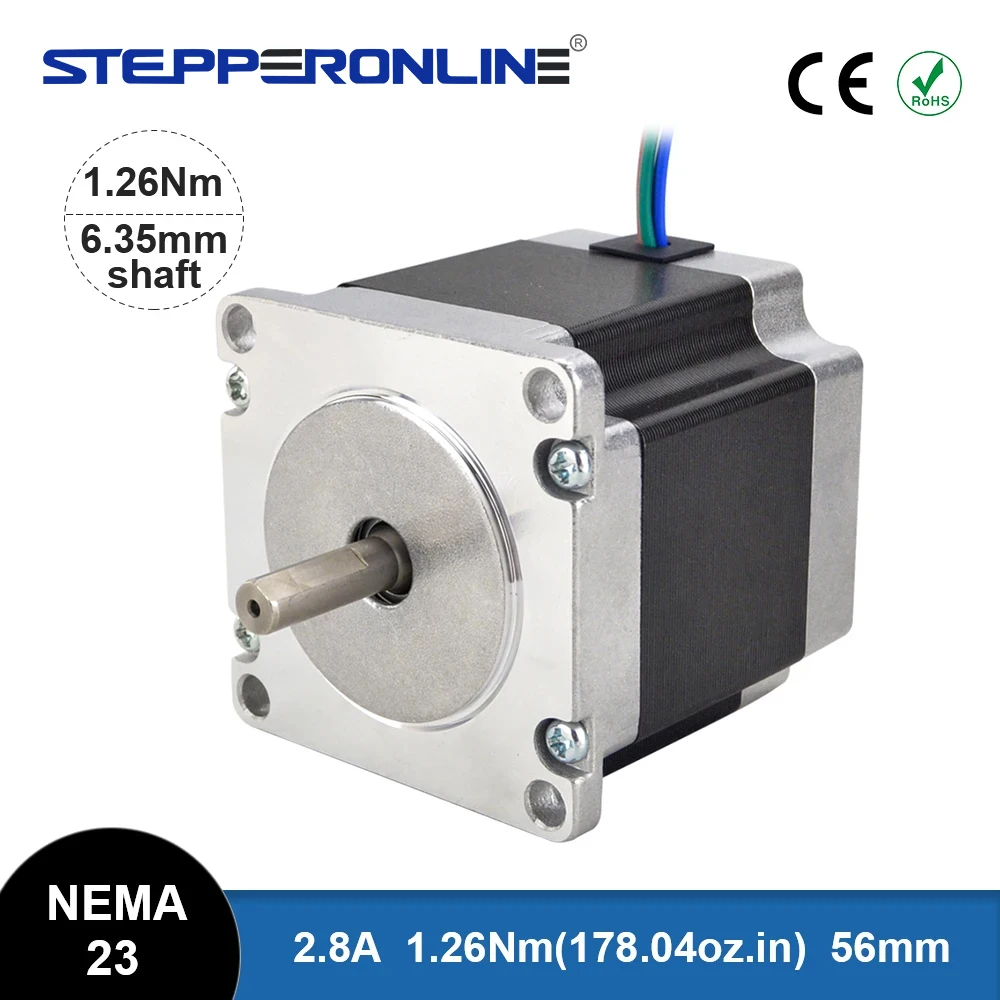

NEMA 23 Stepper Motor 1.26Nm 2.8A for CNC & Embroidery Machines
1418
Items sold in last 12 months
For Bulk Orders & Wholesale Prices OR any other queries, Contact Live Chat Support
10
People watching this product now!
High-torque NEMA 23 Stepper Motor (1.26Nm, 2.8A) for embroidery machines and CNC routers. Delivers reliable motion control with a 6.35mm shaft and 56mm body — ideal for precision and performance.
| Weight | 8 oz |
|---|---|
| Dimensions | 10 in |
| Hign-concerned Chemical | None |
| Certification | ROHS |
| Step Angle(degrees) | 1.8 deg |

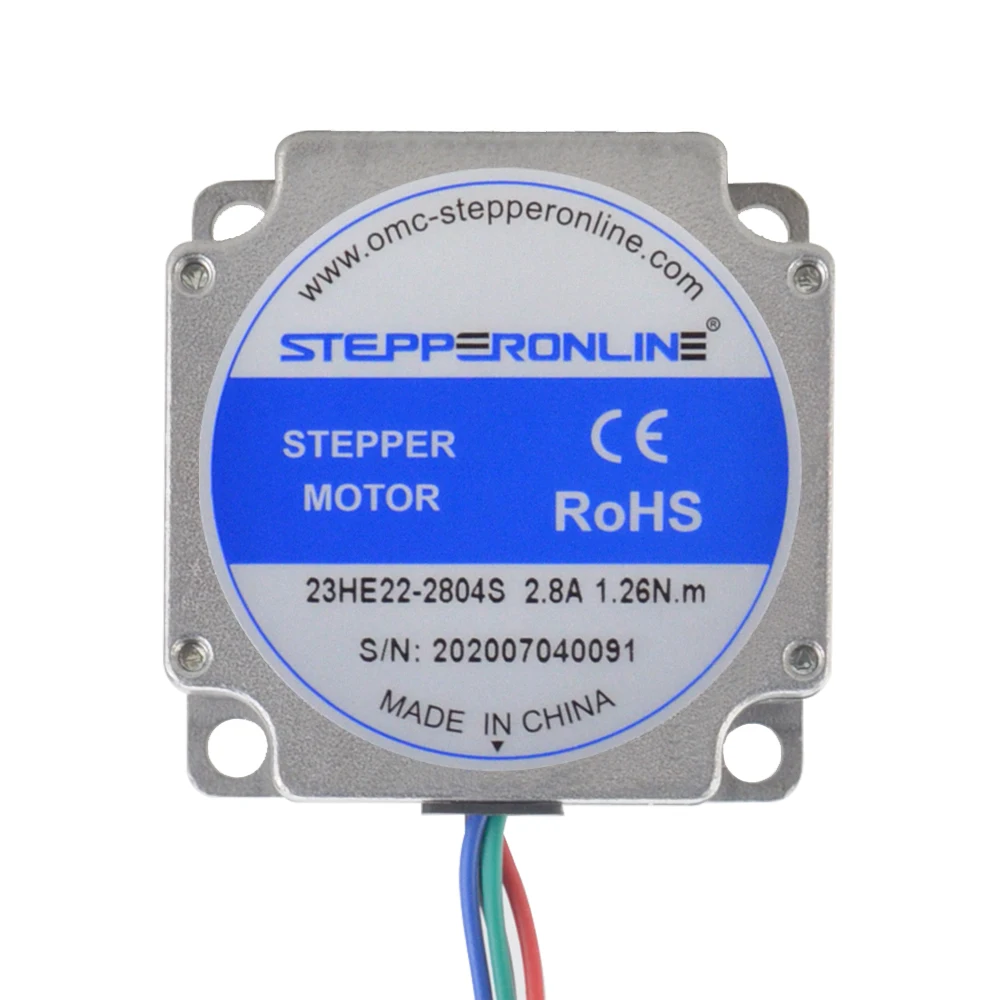

| Model Number | 23HE22-2804S |
| Holding Torque | 1.26 Nm(178.04oz.in) |
| Current / Phase | 2.8 A |
| Type | HYBRID |
| Phase Resistance | 0.9 ohms± 10% |
| Size | 57*57*56mm |
| Shaft Diameter | 6.35 mm |
| Shaft Type | D-cut |
| Number of Leads | 4 |
| Lead Length | 300 mm |
| Warranty | 1 Year |
| Application | 3D printers, Reprap project, CNC machine |
Price range: 29,00 € through 32,00 €
NEMA 23 Stepper Motor 1.26Nm 2.8A for CNC & Embroidery Machines
1418
Items sold in last 12 months
16
People watching this product now!
High-torque NEMA 23 Stepper Motor (1.26Nm, 2.8A) for embroidery machines and CNC routers. Delivers reliable motion control with a 6.35mm shaft and 56mm body — ideal for precision and performance.
| Weight | 8 oz |
|---|---|
| Dimensions | 10 in |
| Hign-concerned Chemical | None |
| Certification | ROHS |
| Step Angle(degrees) | 1.8 deg |
| Model Number | 23HE22-2804S |
| Holding Torque | 1.26 Nm(178.04oz.in) |
| Current / Phase | 2.8 A |
| Type | HYBRID |
| Phase Resistance | 0.9 ohms± 10% |
| Size | 57*57*56mm |
| Shaft Diameter | 6.35 mm |
| Shaft Type | D-cut |
| Number of Leads | 4 |
| Lead Length | 300 mm |
| Warranty | 1 Year |
| Application | 3D printers, Reprap project, CNC machine |
No one dislikes.
Free Shipping
Enjoy free shipping to your door step on order over $150
Worldwide
Fast Delivery.
Using Major Shipping Services worldwide
Live Chat & Email
After Sales 24/7 Support
Available to Serve 24/7 on live chat & Email Support.
Easy Return
Hassle Free Easy Return
5 Days Easy Return, Shop without worries
Description
Upgrade your embroidery or CNC setup with the NEMA 23 Stepper Motor 1.26Nm 2.8A (Model: 23HS5628) — engineered for precision, stability, and long-term performance. This high-torque stepper motor delivers a powerful 178.04 oz.in holding torque and ensures smooth motion control for high-speed embroidery operations or CNC routing.
Built with a 56mm body length and a 6.35mm shaft diameter, this NEMA 23 motor is ideal for precision-driven applications that demand accuracy and consistent output. Designed for durability, it operates quietly with minimal vibration, making it a top choice for both industrial embroidery machines and CNC routers.
✅ Key Features:
-
Torque: 1.26Nm (178.04 oz.in)
-
Current: 2.8A per phase
-
Shaft: 6.35mm diameter
-
Body length: 56mm
-
Step angle: 1.8° for precise control
-
Compact and reliable for continuous operation
-
Compatible with multiple stepper motor drivers and controllers
🧩 Compatible With:
-
Tajima, Barudan, Brother, Ricoma, Happy, ZSK, and Melco embroidery machines (for X/Y axis motion systems)
-
CNC Routers, 3D Printers, Laser Engravers, and DIY Robotics Projects
💡 Perfect for:
Embroidery machine motion upgrades, CNC router precision tasks, and automation enthusiasts who value performance and dependability.
Additional information
| Weight | 8 oz |
|---|---|
| Dimensions | 10 in |
| Hign-concerned Chemical | None |
| Certification | ROHS |
| Step Angle(degrees) | 1.8 deg |
| Model Number | 23HE22-2804S |
| Holding Torque | 1.26 Nm(178.04oz.in) |
| Current / Phase | 2.8 A |
| Type | HYBRID |
| Phase Resistance | 0.9 ohms± 10% |
| Size | 57*57*56mm |
| Shaft Diameter | 6.35 mm |
| Shaft Type | D-cut |
| Number of Leads | 4 |
| Lead Length | 300 mm |
| Warranty | 1 Year |
| Application | 3D printers, Reprap project, CNC machine |
