Are you tired of inconsistent embroidery results, imprecise CNC cuts, or layer shifts in your 3D prints? These frustrations often stem from underperforming or unreliable motor and driver systems. The NEMA 23 (23HS5628) Stepper Motor and DM542 Driver Kit is your solution to achieving unparalleled accuracy and smooth, reliable motion, transforming your workflow and elevating the quality of your output.

Eliminate Missed Stitches & Inaccurate Cuts with Superior Control

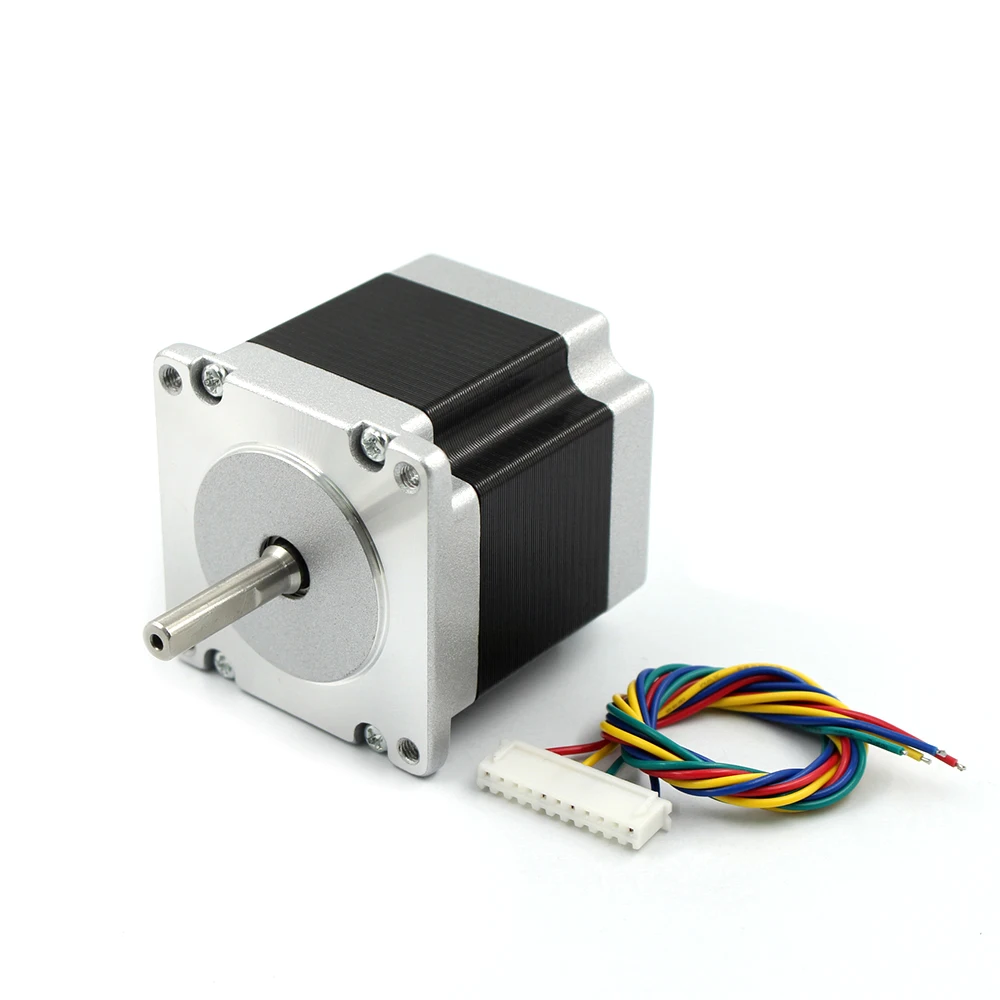

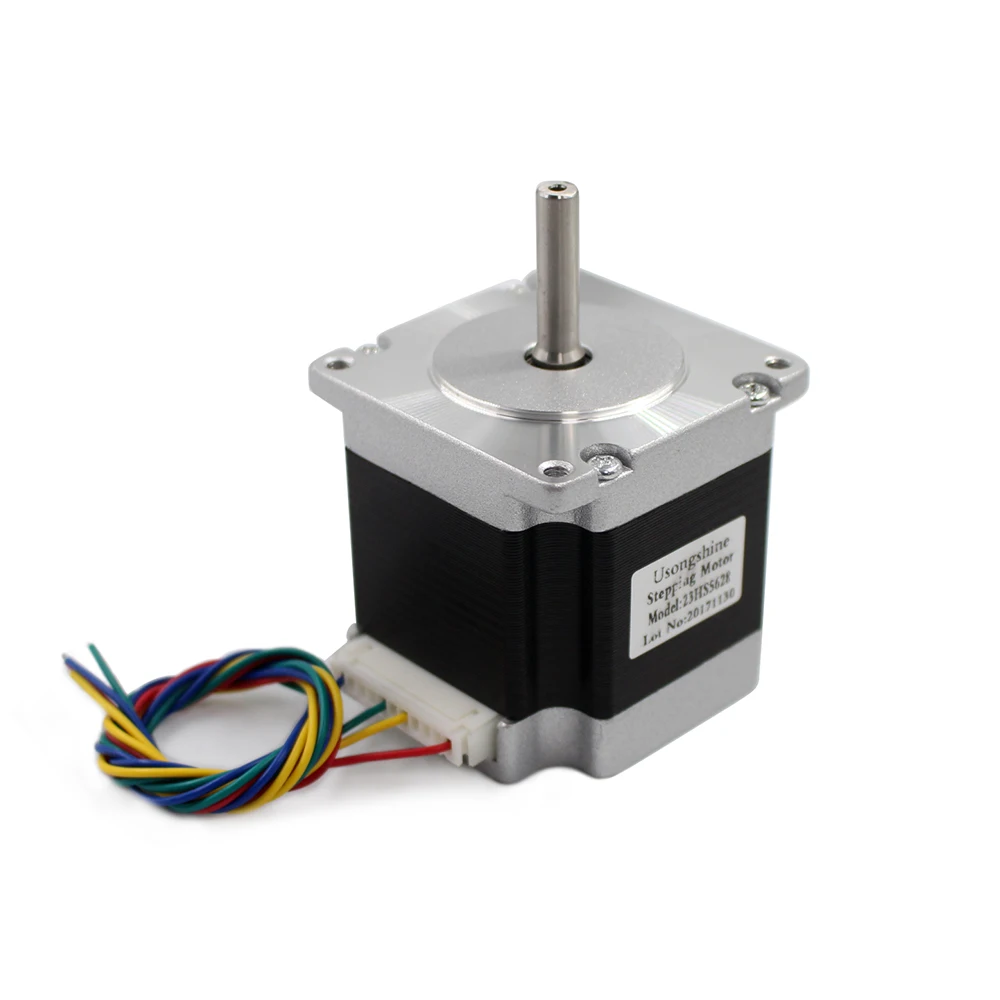

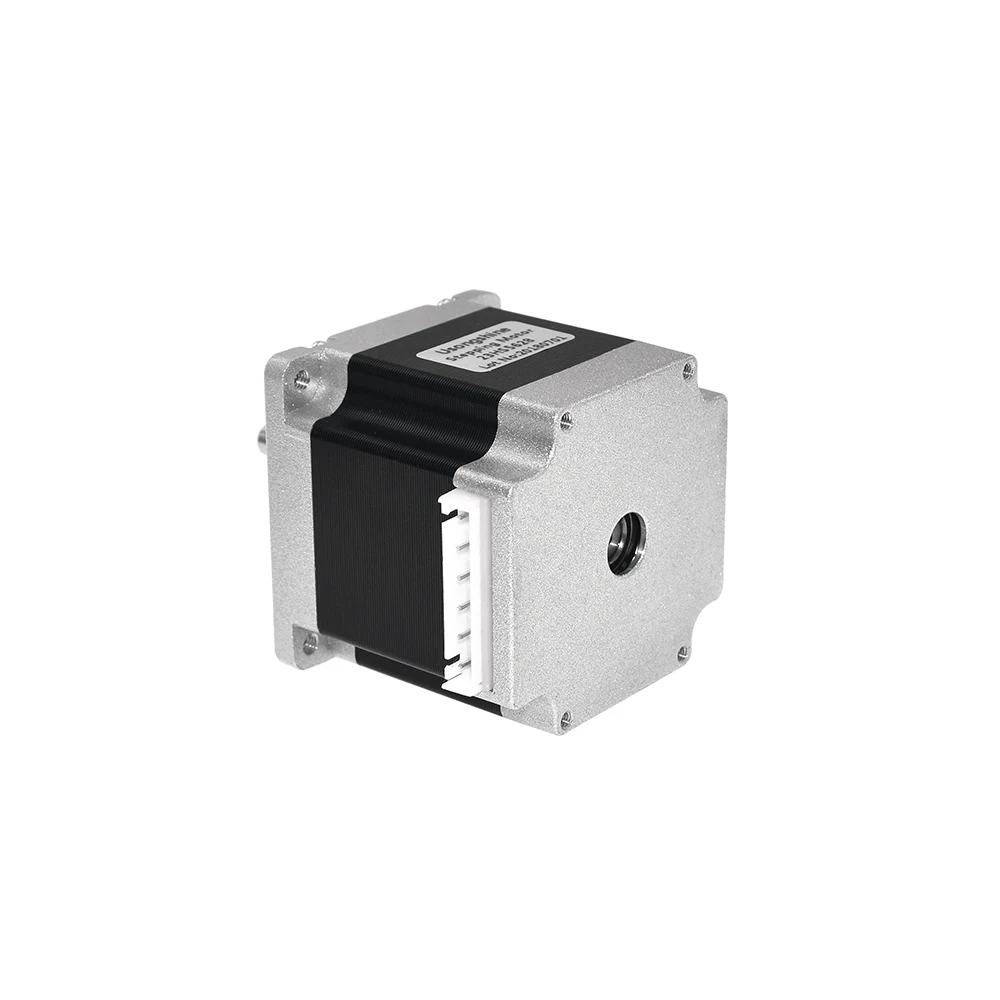

At the heart of precision motion control lies the synergy between a powerful stepper motor and an intelligent driver. The NEMA 23 (23HS5628) Stepper Motor, with its robust 1.26 Nm (12600g.cm) holding torque and 1.8° step angle, ensures that your machine‘s movements are not just powerful, but also incredibly precise. This high holding torque prevents unwanted shifts or vibrations, crucial for intricate details in embroidery, sharp edges in CNC routing, or smooth layers in 3D printing. Operating at 2.8A, it delivers consistent power without overheating.

Paired with the motor is the advanced DM542 Stepper Driver. This 4.2A max driver offers exceptional micro-stepping capabilities, allowing for incredibly smooth and quiet operation, even at high speeds. Its intelligent design includes essential over-voltage, over-current, and thermal protection, safeguarding your system and extending the lifespan of both the motor and driver. This combination means less noise, more stable operation, and the confidence that your machine will execute commands with pinpoint accuracy, project after project.

Unlock New Possibilities: Applications & Compatible Machines

This NEMA 23 (23HS5628) Stepper Motor and DM542 Driver Kit is built to integrate seamlessly into a wide range of professional and hobbyist machinery, providing the backbone for high-demand applications:

• For Embroidery Businesses: Achieve flawless stitches and intricate designs on multi-head or single-head machines.
• For CNC Operators: Execute precise cuts, engravings, and milling with enhanced stability and repeatability.
• For 3D Printing Enthusiasts: Experience smoother prints, reduced layer lines, and faster, more reliable extrusion and axis movement.

Compatible With:

• Embroidery Machines: Tajima, Barudan, Brother, SWF, Happy, ZSK
• CNC Machines: CNC routers, laser engravers, milling machines
• 3D Printers: Creality, Anycubic, Prusa, and other open-source printers

Engineered for Reliability: Key Specifications

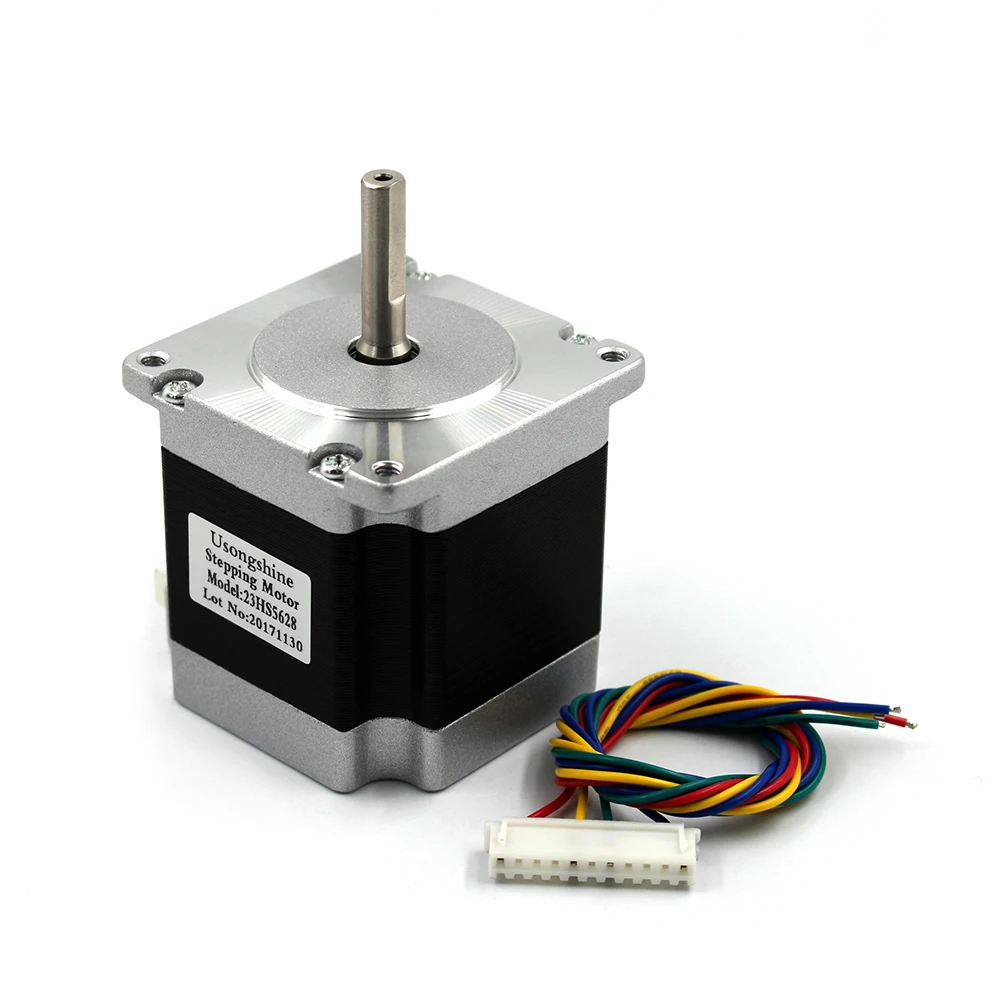

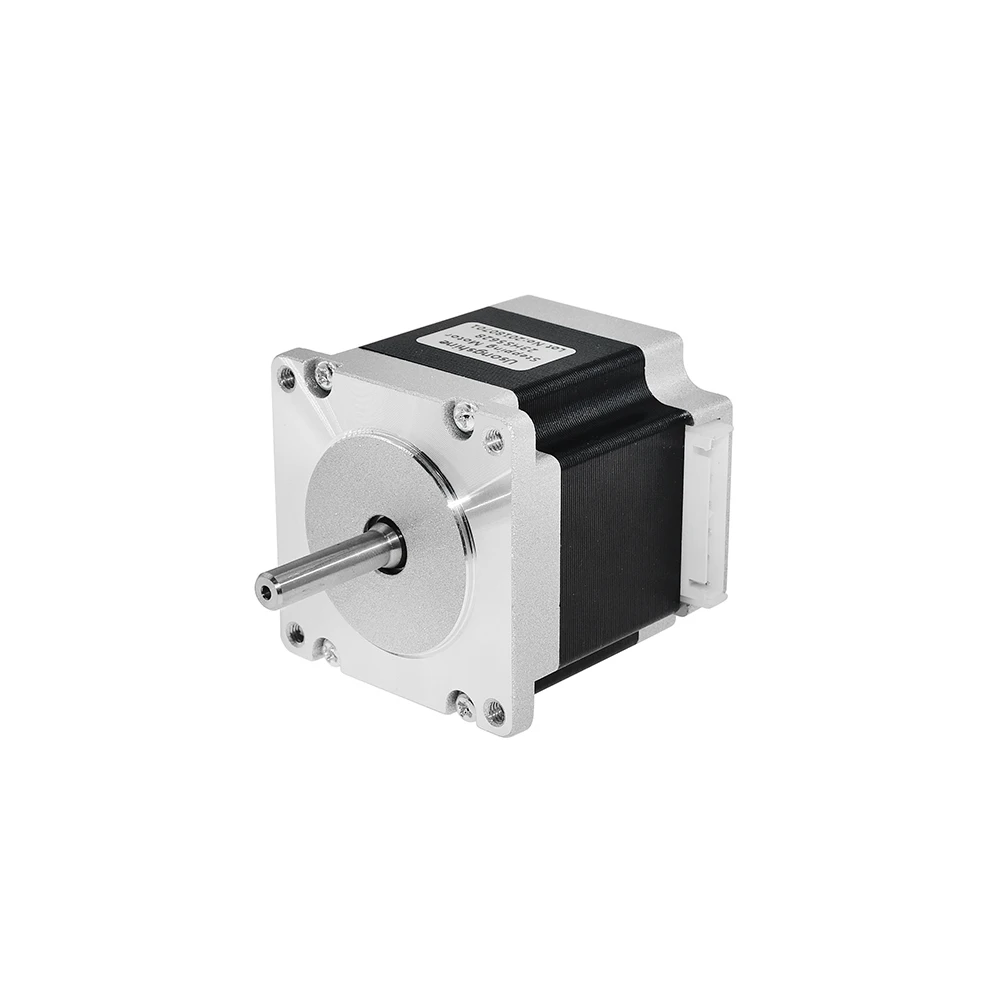

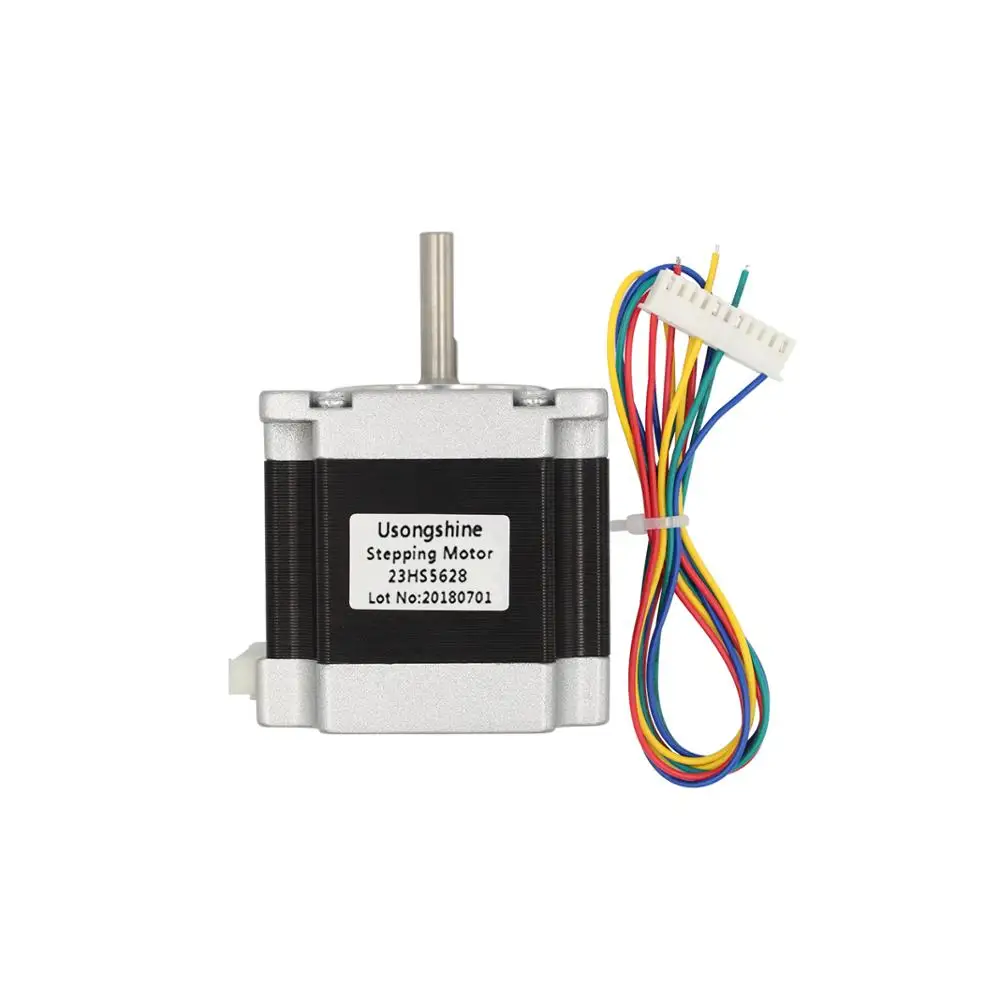

• Motor Model: NEMA 23 (23HS5628)
• Motor Current: 2.8A
• Holding Torque: 1.26 Nm (12600g.cm)
• Step Angle: 1.8°
• Phase: 2

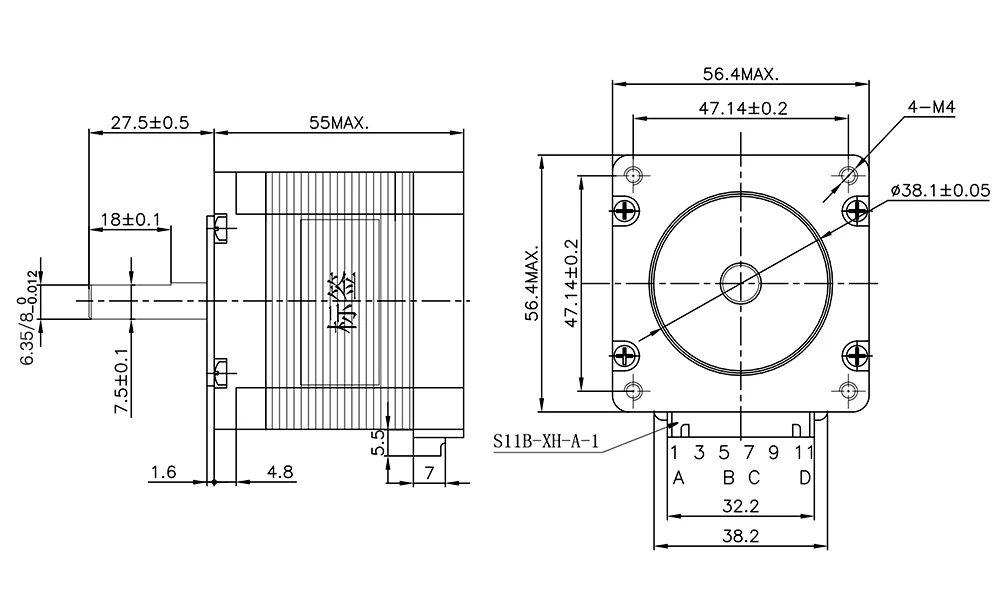

• Shaft Diameter Options: DM542 23HS5628-6.35, DM542 23HS5628-8.00 (Please select your required shaft diameter)

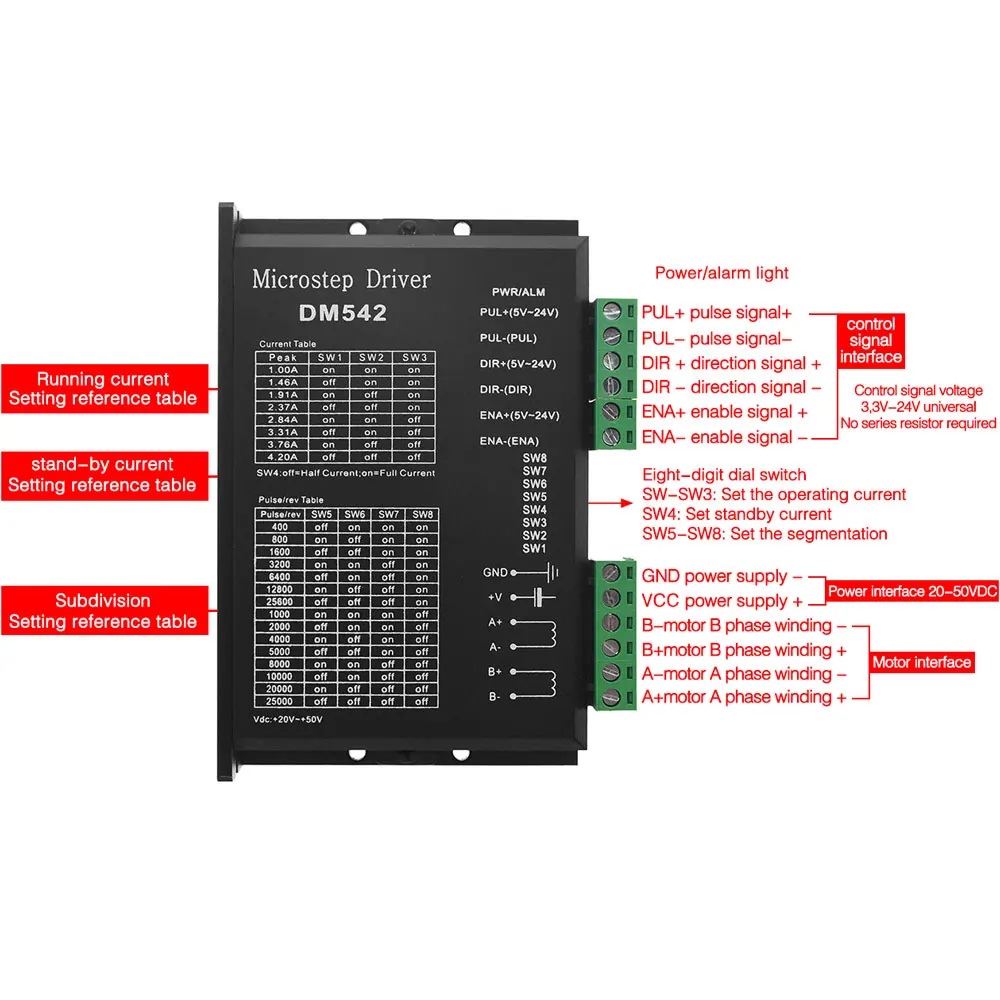

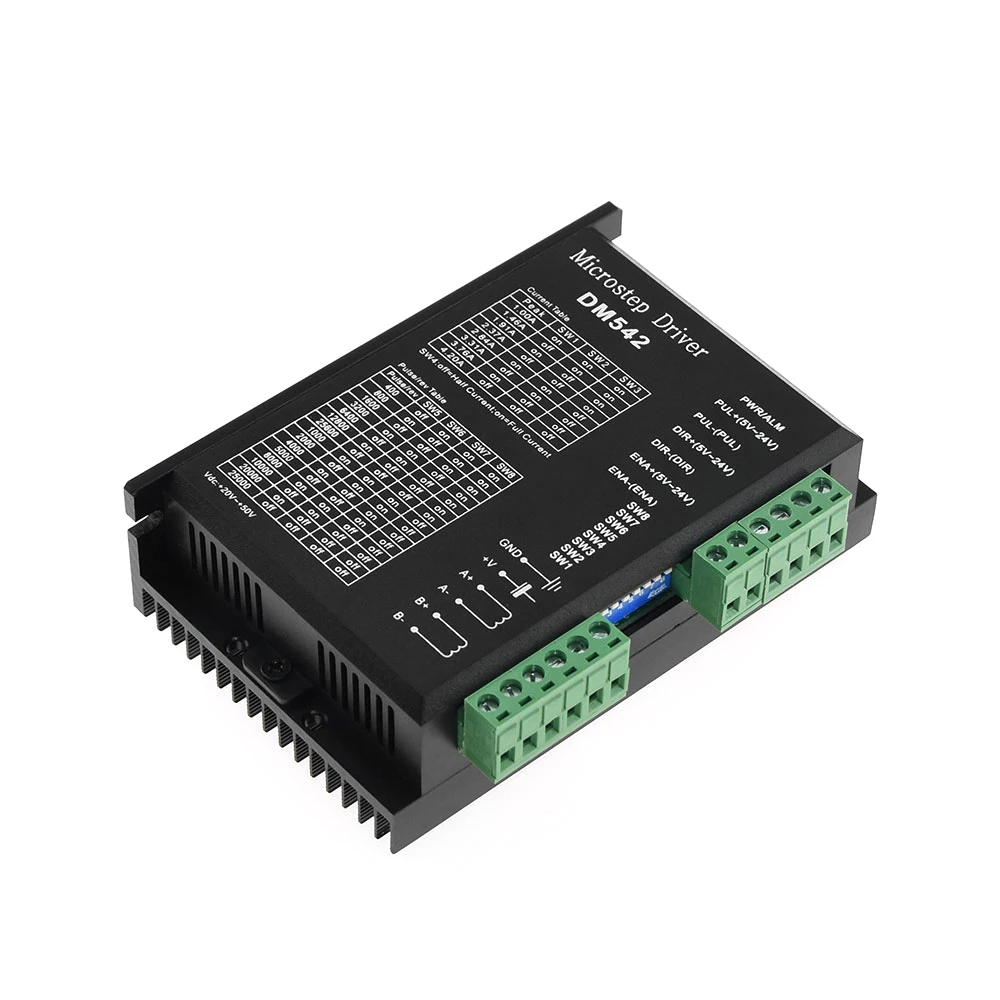

• Driver Model: DM542
• Driver Current: 4.2A (Max)
• Voltage Range: 18V–50V DC
• Microstep Settings: 400–25,600 steps/rev
• Protection: Over-voltage, over-current, and thermal protection
• Certification: ROHS
• Type: HYBRID

Your Investment is Protected

At 360 Digitizing Shop, we understand the critical role these components play in your business. Every NEMA 23 Stepper Motor and DM542 Driver kit is rigorously function-tested before shipping, ensuring that defective units are never sent. In the rare event a defective item arrives, rest assured that you are covered by our buyer protection policy, guaranteeing a full refund within 4 days. We are committed to providing reliable parts that keep your operations running smoothly.

To ensure perfect compatibility, we recommend confirming the required shaft diameter for your machine before ordering. Not sure? Contact us with your machine model, and our expert team will gladly confirm the correct fitment for you.

Frequently Asked Questions

What machines is this NEMA 23 Stepper Motor and DM542 Driver kit compatible with?
This kit is compatible with a wide range of machinery, including Tajima, Barudan, Brother, SWF, Happy, ZSK embroidery machines, various CNC routers, laser engravers, milling machines, and 3D printers like Creality, Anycubic, and Prusa.

What are the key benefits of upgrading to this motor and driver kit?
This kit provides high precision, smooth and quiet operation, enhanced holding torque (1.26 Nm), and advanced protection features for reliable, accurate motion control, significantly improving the quality and efficiency of your projects.

How do I ensure this kit will fit my machine?
Please confirm the required shaft diameter for your machine before ordering. The motor is available with 6.35mm and 8.00mm shaft diameter options. If you’re unsure, contact us with your machine model, and we can help confirm compatibility.

What is included in this product package?

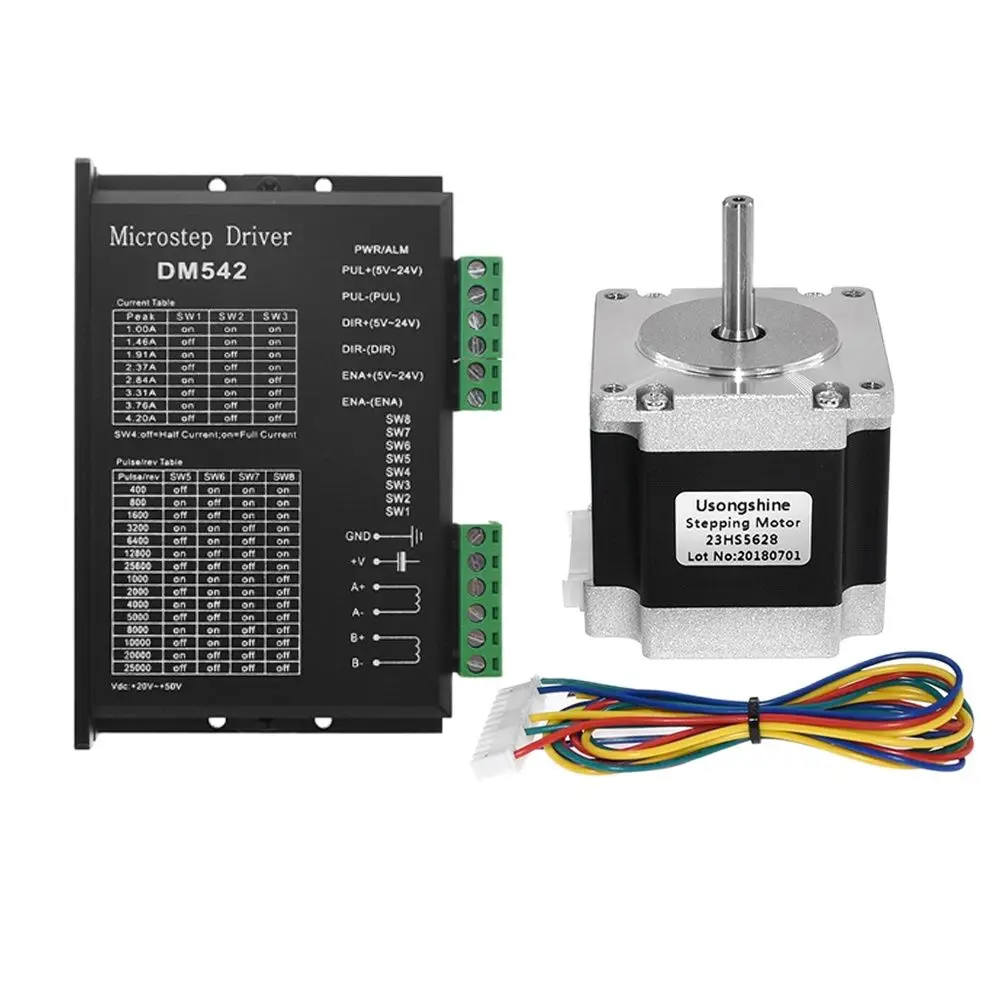

This kit includes one NEMA 23 (23HS5628) Stepper Motor and one DM542 Stepper Driver. Please select the appropriate shaft diameter for the motor.

What kind of quality assurance and buyer protection is offered?
Every motor and driver kit is function-tested before shipping to prevent defective units. If a defective item arrives, you are covered by our buyer protection, guaranteeing a full refund within 4 days.
