Is your embroidery machine suffering from skipped stitches, inconsistent movements, or frequent downtime? A worn-out stepper motor can cripple your production, leading to rejected garments, wasted materials, and frustrated customers. The 360 Digitizing Shop 17HS15-1504S-X1 Nema 17 Stepper Motor is engineered to restore precision and reliability, ensuring your embroidery business operates at peak efficiency and delivers flawless results every time.

Eliminate Inaccurate Stitching and Downtime

Precision is paramount in embroidery. Without a reliable stepper motor, your machine‘s accuracy suffers, leading to misaligned designs and costly reworks. This 17HS15-1504S-X1 Nema 17 Stepper Motor, also known as a 42BYGH motor, provides a robust 45Ncm (63.74oz.in) holding torque. This high torque ensures that the motor maintains its position firmly, preventing skipped steps and maintaining perfect stitch alignment even during high-speed operation. The precise 1.8° step angle allows for incredibly fine control over movement, translating directly into crisp, detailed embroidery patterns and accurate cuts for CNC applications.

Designed for Seamless Integration and Enduring Performance

This hybrid Nema 17 Stepper Motor is built for durability and ease of use. With a compact 39mm body length and a 5mm D-cut shaft diameter, it’s designed for direct replacement in many popular machines. The motor features 4-lead wiring and comes with a convenient 1-meter cable and connector pre-attached, drastically simplifying installation and minimizing wiring hassles. Operating at a 1.5A current per phase with a phase resistance of 2.3 ohms and inductance of 4.4mH ± 20%(1KHz), this motor delivers consistent power and smooth, low-noise operation, extending the lifespan of your equipment and improving the working environment.

Broad Compatibility for Your Workshop

The 17HS15-1504S-X1 Nema 17 Stepper Motor is a versatile component, ideal for a wide range of precision motion control applications:

• Embroidery Machines: Tajima, Barudan, Brother, Happy, SWF, ZSK, Ricoma
• 3D Printers: Creality Ender 3 / 5, Prusa i3, Anycubic, Flashforge
• CNC & Automation Equipment: DIY CNC routers, laser engravers, plotters, and general robotics applications

While designed for broad compatibility, we always recommend confirming the specific model and dimensions required for your machine. Not sure? Contact us with your machine model, and we will help confirm the fit.

Technical Specifications

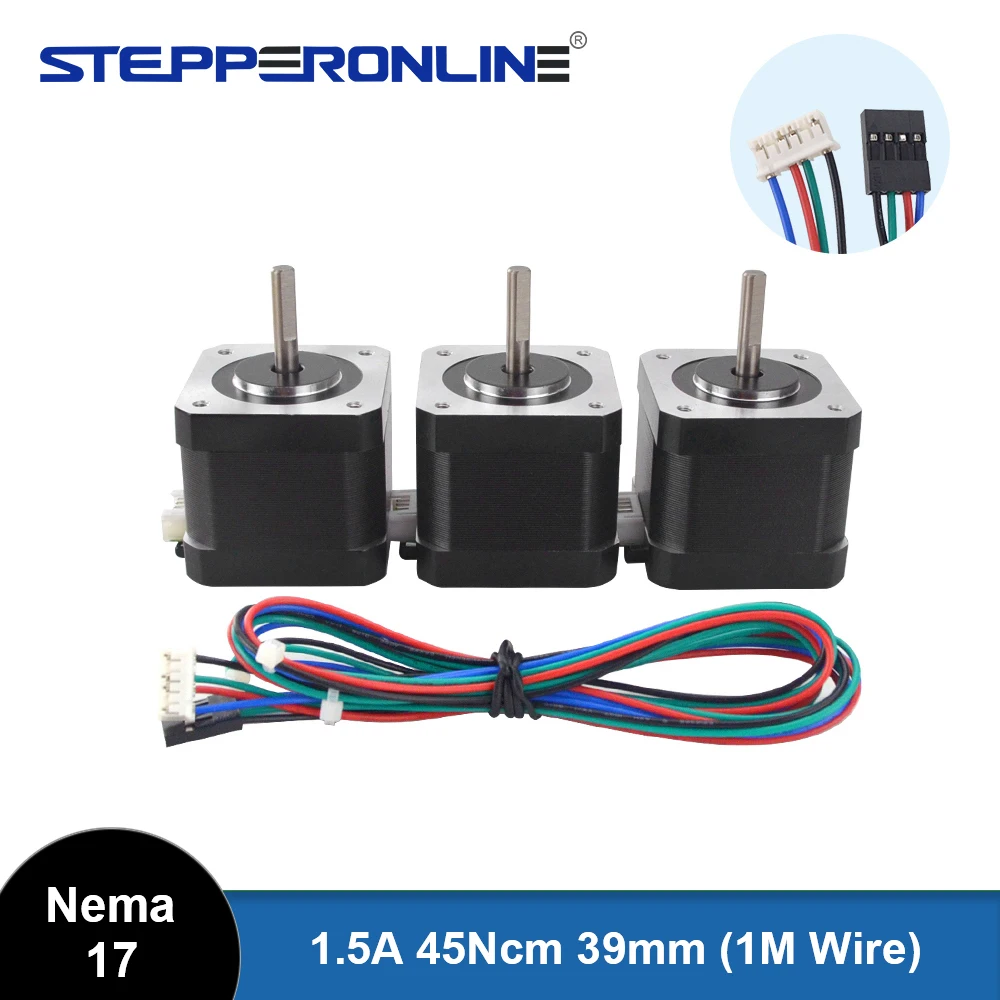

• Model Number: 17HS15-1504S-X1 (42BYGH)
• Type: Hybrid Bipolar Stepper Motor
• Size: 42 x 42 x 39mm (Body Length: 39mm)
• Step Angle: 1.8° per step
• Phase: 2
• Holding Torque: 45Ncm (63.74oz.in)
• Rated Current/Phase: 1.5A
• Phase Resistance: 2.3ohms
• Inductance: 4.4mH ± 20%(1KHz)
• Number of Leads: 4
• Cable: 1m 4 wires with connector included
• Shaft Diameter: 5mm
• Shaft Shape: D-cut
• Rotor Inertia: 54g-cm2
• Certification: ROHS

Our Quality Promise

At 360 Digitizing Shop, we understand that reliability is crucial for your business. Every 17HS15-1504S-X1 Nema 17 Stepper Motor is rigorously function-tested before shipping, ensuring that defective units are never sent. In the rare event a defective item arrives, you are protected by our buyer protection policy and will receive a full refund within 4 days. Invest in confidence, invest in precision.

Frequently Asked Questions

What machines is the 17HS15-1504S-X1 Nema 17 Stepper Motor compatible with?
This motor is compatible with a wide range of equipment including embroidery machines (Tajima, Barudan, Brother, Happy, SWF, ZSK, Ricoma), 3D printers (Creality Ender 3 / 5, Prusa i3, Anycubic, Flashforge), and various CNC and robotics applications.

What does the 45Ncm holding torque mean for my machine's performance?
The 45Ncm (63.74oz.in) holding torque ensures the motor firmly maintains its position, preventing skipped steps and providing stable, accurate movements crucial for precise embroidery stitching, 3D printing, and CNC operations.

Is this Nema 17 motor difficult to install?
No, the motor comes with a pre-attached 1-meter 4-wire cable and connector, designed for straightforward integration and reducing complex wiring hassles.

What is included when I purchase this stepper motor?
You will receive one 17HS15-1504S-X1 Nema 17 Stepper Motor with a 39mm body length, a 5mm D-cut shaft, and a pre-wired 1-meter 4-lead cable with a connector.

How can I confirm this motor will fit my specific machine model?
While designed for broad compatibility, we recommend checking your machine‘s existing motor specifications (e.g., Nema 17 size, 39mm body length, 5mm D-cut shaft, 1.5A current). If you’re unsure, contact us with your machine model, and we’ll help confirm the fit.

What is 360 Digitizing Shop's policy on defective motors?
Every motor is function-tested before shipping. If a defective item arrives, you are protected by our buyer protection policy and will receive a full refund within 4 days.
