Including Duty & Taxes.
-72%
Price range: 57,00 € through 157,00 €
Nema23/Nema34 Planetary Gearbox Reducer for Stepper & Servo Motors
294
Items sold in last 12 months
For Bulk Orders & Wholesale Prices OR any other queries, Contact Live Chat Support
15
People watching this product now!
High-precision Nema23/Nema34 planetary gearbox reducer with <7 arcmin backlash. Boosts torque and motion control for stepper & servo motors in embroidery and CNC systems.
| Weight | 10 oz |
|---|---|
| Dimensions | 10 in |
| Hign-concerned Chemical | None |
| Certification | CE |
| Model Number | PLF060-090 |
| 31-101 Backlash | ≤7 arcmin |
| 151-1001 Backlash | ≤12 arcmin |
| speed ratio | 5:1-100:1 |
| IP Degree | IP65 |
| Flange size | 60mm 90mm |
| Product Type 1 | 750W Servo Motor Gearbox |
| Product Type 2 | Nema34 Motor Planetary Reducer |
| Product Type 3 | Nema34 Motor Planetary Gearbox |
| Product Type 4 | Nema34 Step-down Gearbox |
| Product Type 5 | Straight Gear Planetary Reducer |
| Product Type 6 | Nema34 Motor Gearbox |
| Product Type 7 | Nema34 Motor Reducer |
| Product Type 8 | 86mm motor Reducer |
| Product Type 9 | 86mm motor Gearbox |
| Product Type 10 | Speed Reducer |
| Product Type 11 | reduction gearbox |
| Product Type 12 | Nema 23 gearbox |
| Product Type 14 | Nema 23 motor Reducer |
| Product Type 15 | 1000W servo Reducer |
| Product Type 16 | 200W servo Reducer |
| Product Type 17 | 400W servo Reducer |
| Product Type 18 | 600W servo Reducer |
Price range: 57,00 € through 157,00 €
Nema23/Nema34 Planetary Gearbox Reducer for Stepper & Servo Motors
294
Items sold in last 12 months
12
People watching this product now!
High-precision Nema23/Nema34 planetary gearbox reducer with <7 arcmin backlash. Boosts torque and motion control for stepper & servo motors in embroidery and CNC systems.
| Weight | 10 oz |
|---|---|
| Dimensions | 10 in |
| Hign-concerned Chemical | None |
| Certification | CE |
| Model Number | PLF060-090 |
| 31-101 Backlash | ≤7 arcmin |
| 151-1001 Backlash | ≤12 arcmin |
| speed ratio | 5:1-100:1 |
| IP Degree | IP65 |
| Flange size | 60mm 90mm |
| Product Type 1 | 750W Servo Motor Gearbox |
| Product Type 2 | Nema34 Motor Planetary Reducer |
| Product Type 3 | Nema34 Motor Planetary Gearbox |
| Product Type 4 | Nema34 Step-down Gearbox |
| Product Type 5 | Straight Gear Planetary Reducer |
| Product Type 6 | Nema34 Motor Gearbox |
| Product Type 7 | Nema34 Motor Reducer |
| Product Type 8 | 86mm motor Reducer |
| Product Type 9 | 86mm motor Gearbox |
| Product Type 10 | Speed Reducer |
| Product Type 11 | reduction gearbox |
| Product Type 12 | Nema 23 gearbox |
| Product Type 14 | Nema 23 motor Reducer |
| Product Type 15 | 1000W servo Reducer |
| Product Type 16 | 200W servo Reducer |
| Product Type 17 | 400W servo Reducer |
| Product Type 18 | 600W servo Reducer |
No one dislikes.
Free Shipping
Enjoy free shipping to your door step on order over $150
Worldwide
Fast Delivery.
Using Major Shipping Services worldwide
Live Chat & Email
After Sales 24/7 Support
Available to Serve 24/7 on live chat & Email Support.
Easy Return
Hassle Free Easy Return
5 Days Easy Return, Shop without worries
Description

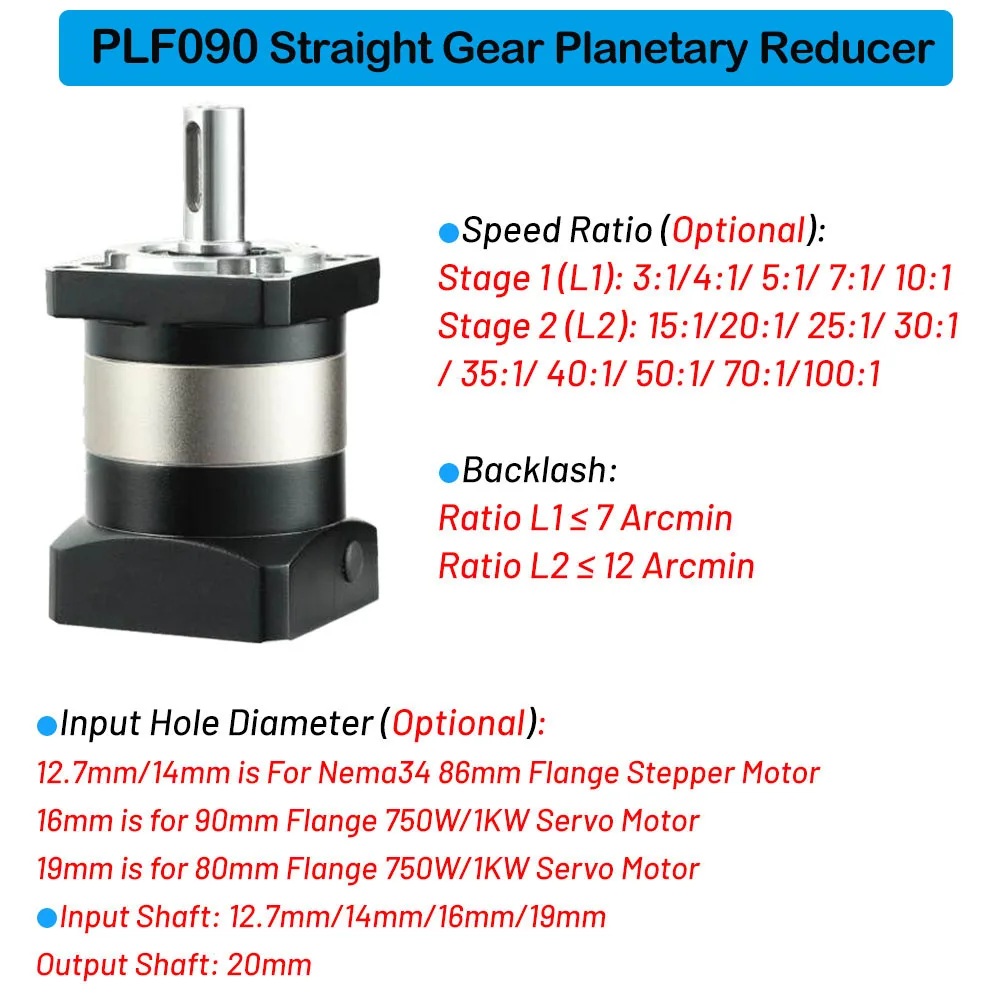

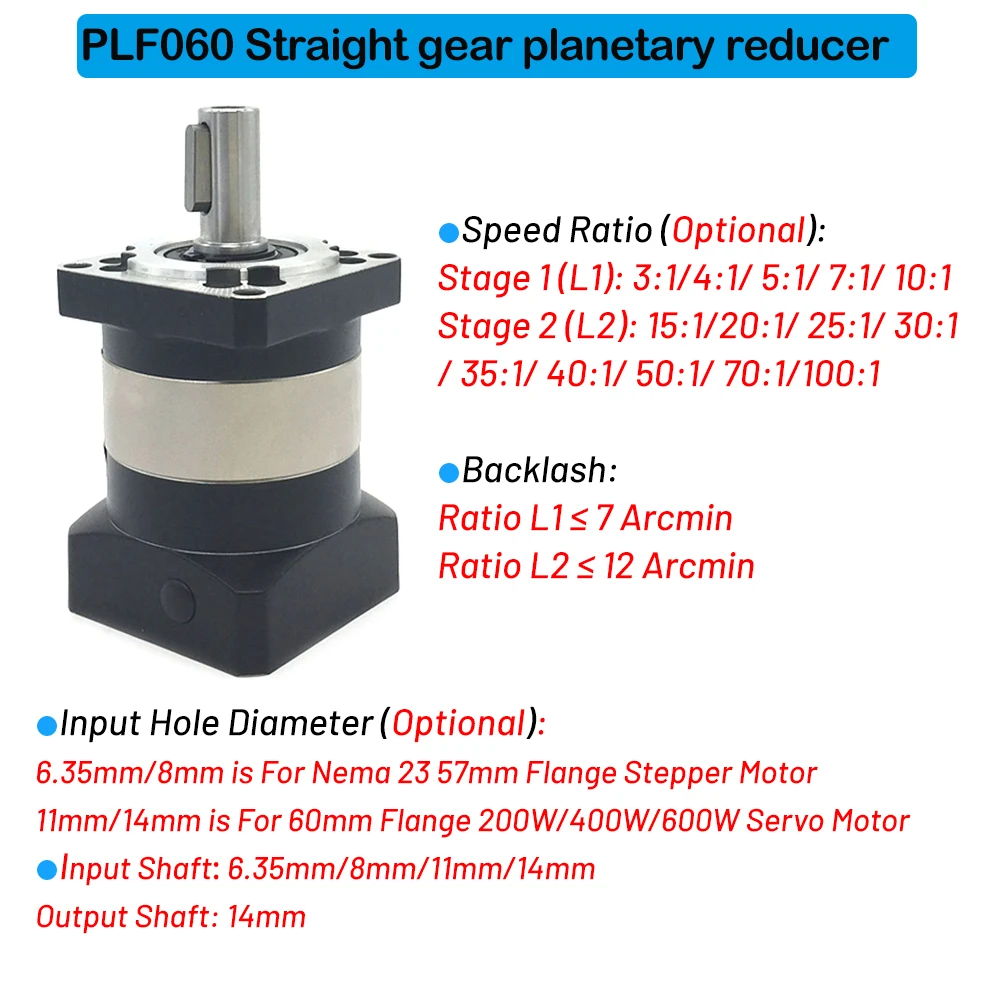

Upgrade your embroidery machine or automation setup with this Nema23/Nema34 Planetary Gearbox Step-Down Motor Reducer, engineered for high torque, low backlash (less than 7 arcmin), and precise performance. This gearbox is designed to optimize your stepper and servo motor systems, ensuring smooth motion control, stability, and efficiency for industrial and embroidery applications.

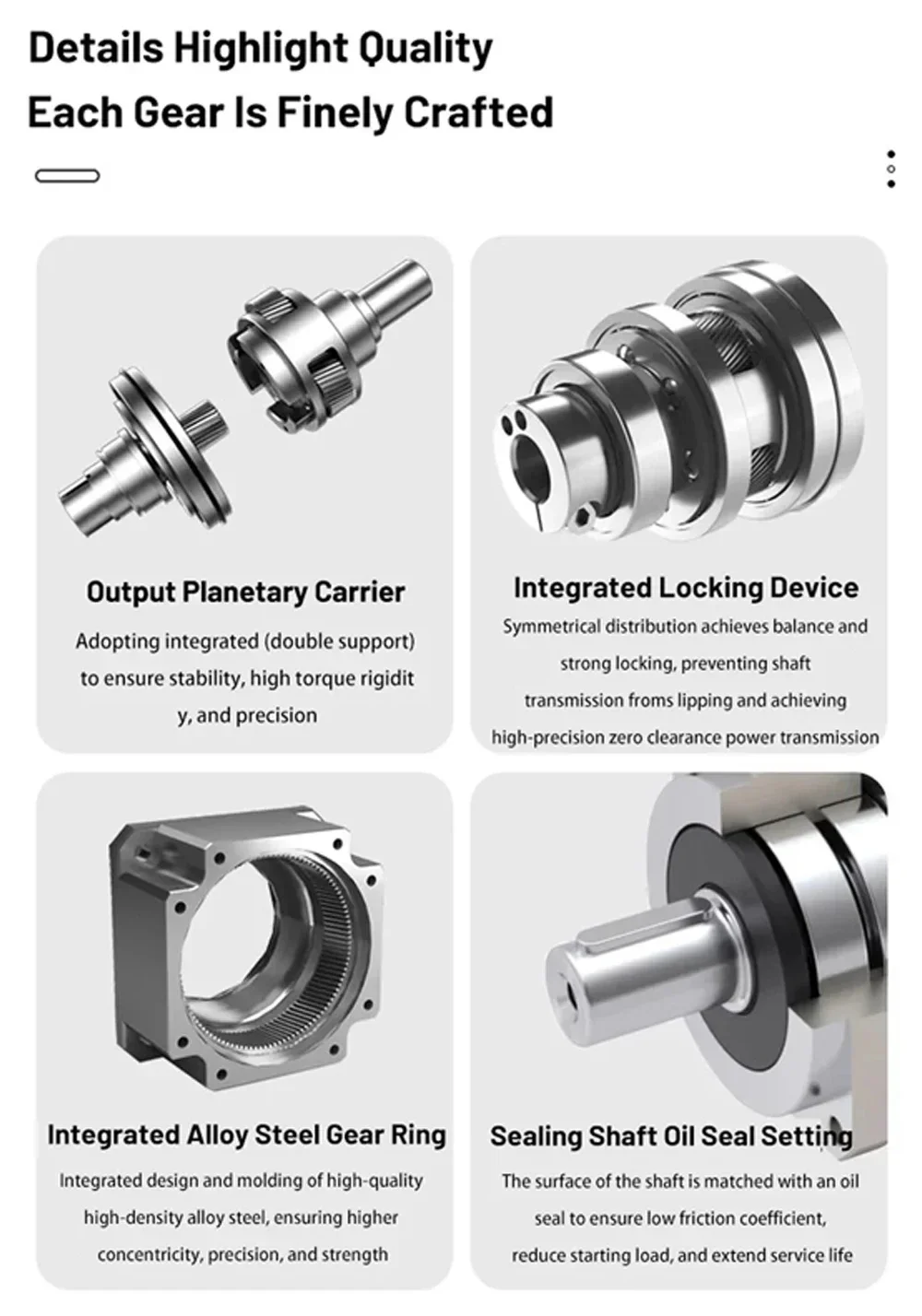

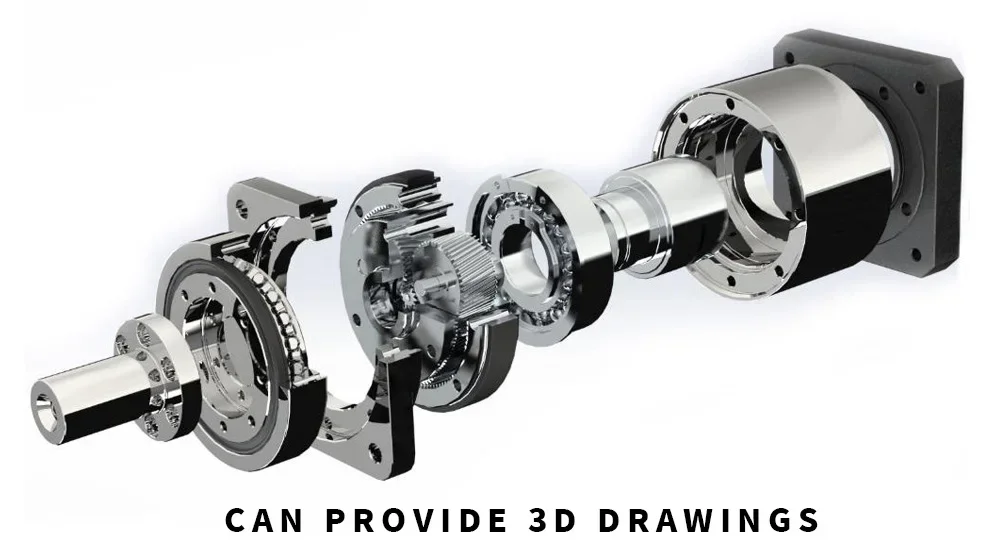

Built with durable alloy materials and precision-cut gears, this planetary reducer offers excellent transmission accuracy, reduced vibration, and long service life. Its step-down ratio allows your motor to deliver greater torque at lower speeds, ideal for embroidery machines, CNC systems, robotic arms, and automation projects.
🔧 Compatible With:
-
Embroidery Machines: Tajima, Barudan, Ricoma, Brother PR Series, ZSK, SWF
-

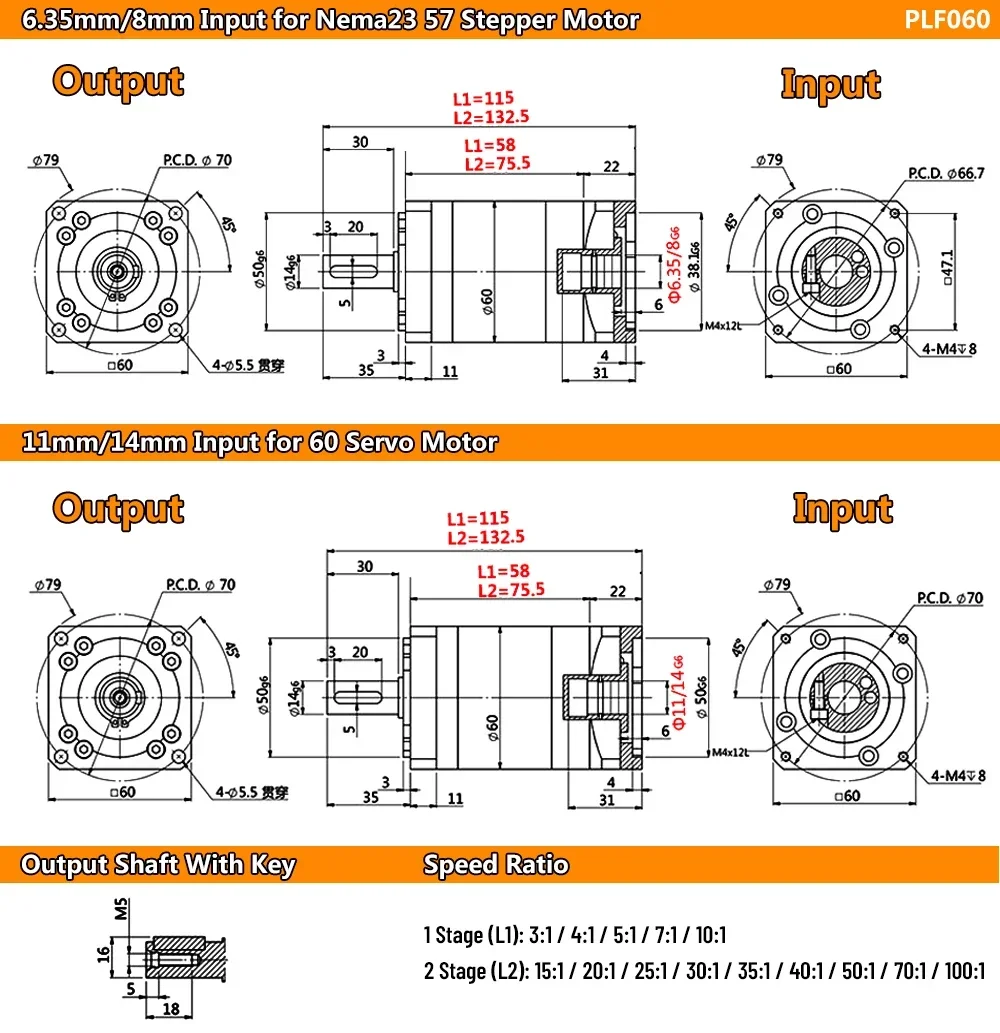

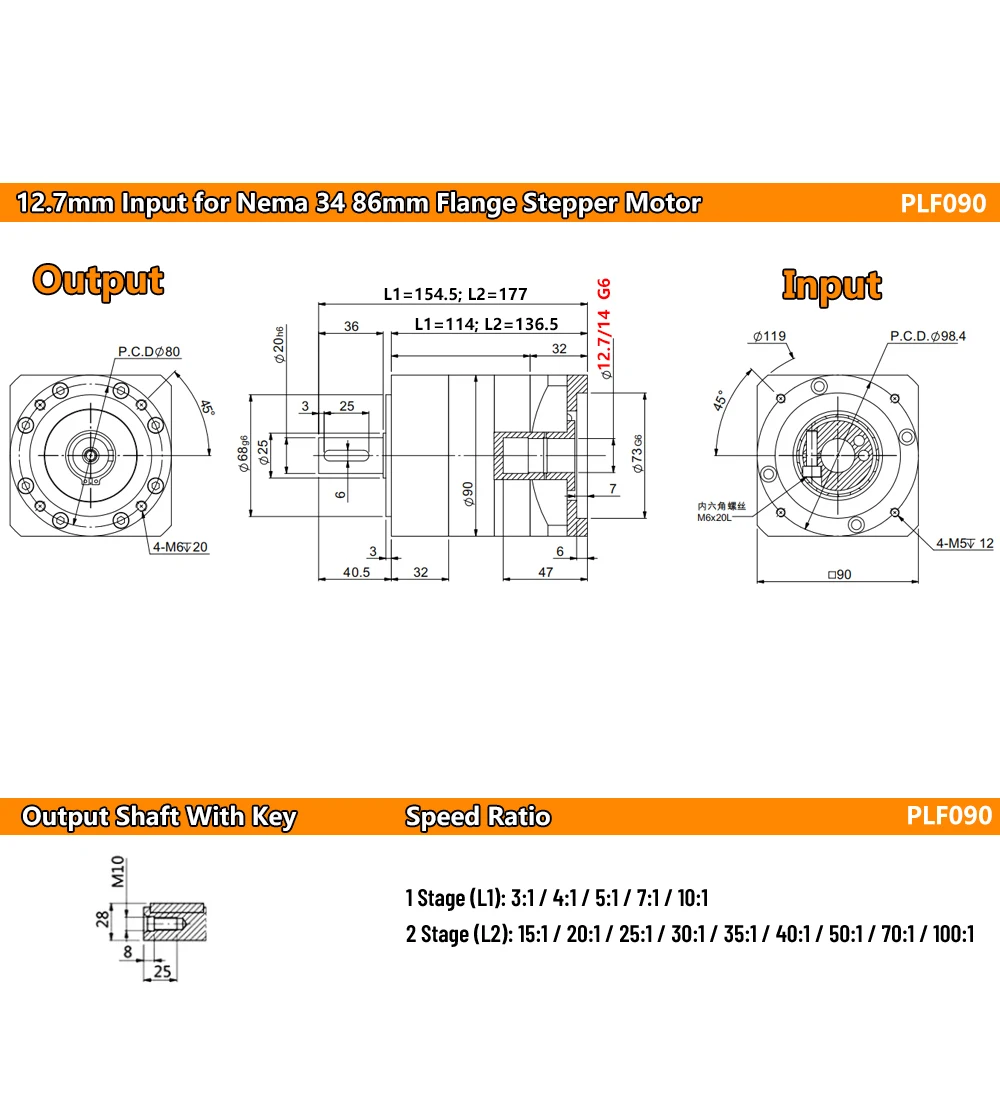

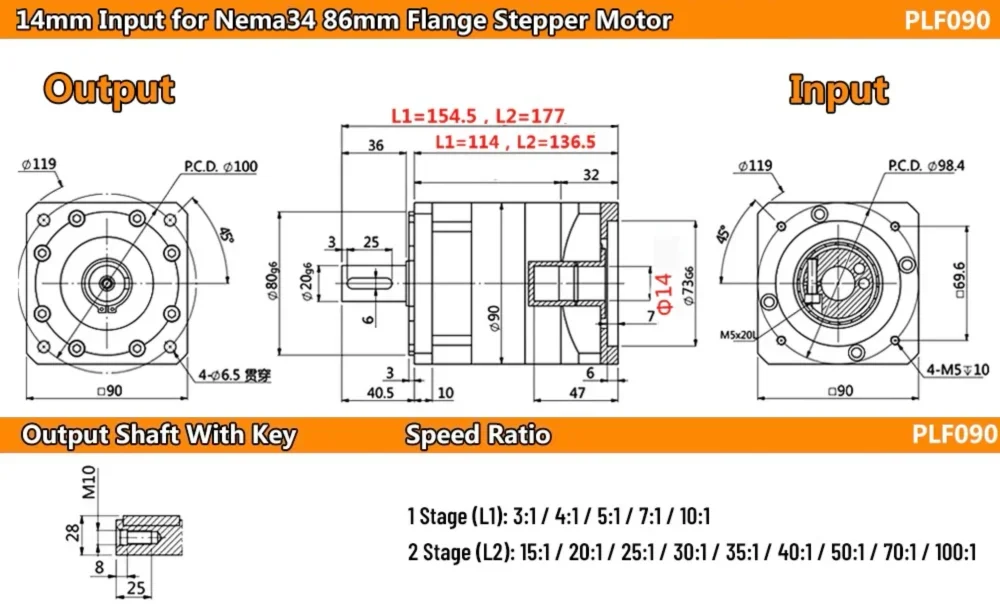

Stepper Motors: Nema 23, Nema 34
-

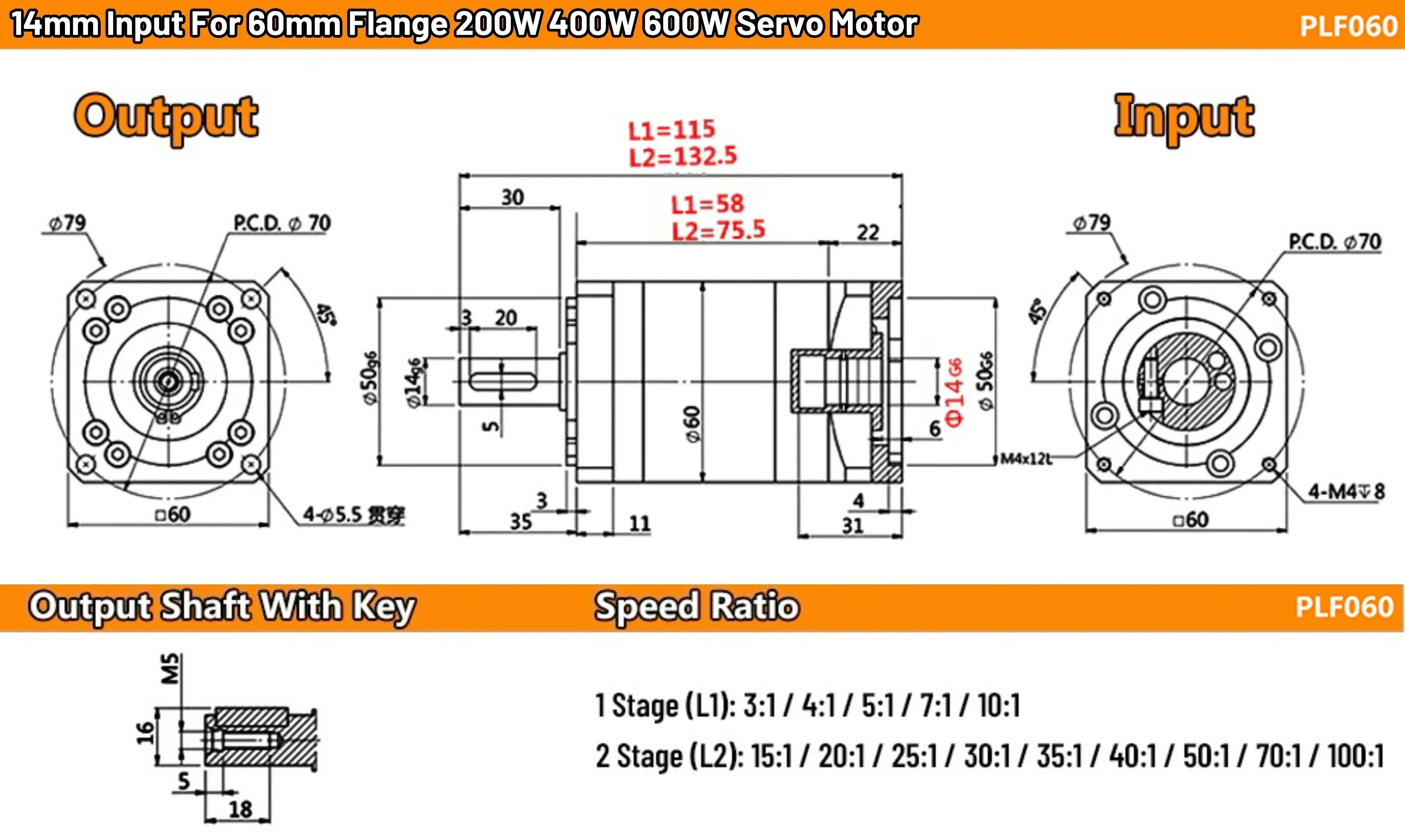

Servo Motors: 400W, 750W motors (60mm / 80mm / 90mm frame sizes)
-
Automation Systems: CNC routers, robotics, pick-and-place machines, 3D printers
⚙️ Key Features:
-
High precision planetary gearbox with less than 7 arcmin backlash
-
Compatible with stepper and servo motors (60mm, 80mm, 90mm)
-
High torque output with smooth transmission
-
Long-lasting, low-noise design
-
Perfect for embroidery machine motion upgrades
-
Easy installation and maintenance
This planetary gearbox reducer ensures reliable, consistent motion — making it an ideal choice for professionals who demand precision and durability in embroidery machine performance or automation systems.
1* Planetary reducer
1*Key
4*Install screws
| Technical Parameter | PLF042 | PLF060 | PLF080 | PLF090 | PLF120 | PLF160 | |||
| Max Radial Torque | N | 185 | 240 | 400 | 450 | 1240 | 2250 | ||
| Max Axis Torque | N | 150 | 220 | 420 | 430 | 1000 | 1500 | ||
| Torsional Stiffness | Nm/arcmin | 0.7 | 1.8 | 4.7 | 4.85 | 11 | 35 | ||
| Max Input Speed | rpm | 8000 | 8000 | 6000 | 6000 | 6000 | 4000 | ||
| Rated Input Speed | rpm | 4500 | 4000 | 3500 | 3500 | 3500 | 3000 | ||
| Noise | dB | ≤55 | ≤58 | ≤60 | ≤60 | ≤65 | ≤70 | ||
| Backlash (arcmin) |
Stage 1 | ≤7 | |||||||
| Stage 2 | ≤12 | ||||||||
| Max. Output Torque | Nm | 1.5 Times Rated Output Torque | |||||||
| Instant Braking Torque | Nm | 2 Times Rated Output Torque | |||||||
| Life time | h | 20000 | |||||||
| IP Degree | IP65 | ||||||||
| Operating Temp | -10℃~+90℃ | ||||||||
| Full Load Efficiency | L1≥96%, L2≥94% | ||||||||
| Stage | Ratio | PLF042 | PLF060 | PLF080 | PLF090 | PLF120 | PLF160 | ||
| Rated Output Torque (N.m) | Stage 1 (L1) |
3:1 | 16 | 27 | 50 | 96 | 161 | 364 | |
| 4:1 | 16 | 40 | 90 | 122 | 210 | 423 | |||
| 5:1 | 15 | 40 | 90 | 122 | 210 | 423 | |||
| 7:1 | 12 | 34 | 48 | 95 | 170 | 358 | |||
| 10:1 | 10 | 16 | 22 | 56 | 86 | 210 | |||
| Stage 2 (L2) | 15:1 | 16 | 27 | 50 | 96 | 161 | 364 | ||
| 20:1 | 16 | 40 | 90 | 122 | 210 | 423 | |||
| 25:1 | 15 | 40 | 90 | 122 | 210 | 423 | |||
| 30:1 | 16 | 27 | 50 | 96 | 161 | 364 | |||
| 35:1 | 12 | 40 | 90 | 122 | 210 | 423 | |||
| 40:1 | 16 | 40 | 90 | 122 | 210 | 423 | |||
| 50:1 | 15 | 40 | 90 | 122 | 210 | 423 | |||
| 70:1 | 12 | 34 | 48 | 95 | 170 | 358 | |||
| 100:1 | 10 | 16 | 22 | 56 | 86 | 210 | |||
| Moment of Inertia (Kg.cm2) |
Stage 1 (L1) |
3:1 | 0.10 | 0.46 | 0.77 | 1.73 | 12.78 | 36.72 | |
| 4:1 | 0.10 | 0.46 | 0.77 | 1.73 | 12.78 | 36.72 | |||
| 5:1 | 0.10 | 0.46 | 0.77 | 1.73 | 12.78 | 36.72 | |||
| 7:1 | 0.06 | 0.41 | 0.65 | 1.42 | 11.38 | 34.02 | |||
| 10:1 | 0.06 | 0.41 | 0.65 | 1.42 | 11.38 | 34.02 | |||
| Stage 2 (L2) | 15:1 | 0.08 | 0.44 | 0.72 | 1.49 | 12.18 | 34.24 | ||
| 20:1 | 0.08 | 0.44 | 0.72 | 1.49 | 12.18 | 34.24 | |||
| 25:1 | 0.08 | 0.44 | 0.72 | 1.49 | 12.18 | 34.24 | |||
| 30:1 | 0.08 | 0.44 | 0.72 | 1.49 | 12.18 | 34.24 | |||
| 35:1 | 0.08 | 0.44 | 0.72 | 1.49 | 12.18 | 34.24 | |||
| 40:1 | 0.08 | 0.44 | 0.72 | 1.49 | 12.18 | 34.24 | |||
| 50:1 | 0.05 | 0.34 | 0.58 | 1.25 | 11.18 | 34.02 | |||
| 70:1 | 0.05 | 0.34 | 0.58 | 1.25 | 11.48 | 34.02 | |||
| 100:1 | 0.05 | 0.34 | 0.58 | 1.25 | 11.48 | 34.02 | |||
