Nema23 57 Stepper Motor 3A 270Oz-in for CNC Router &#038; Milling Machine

12 People watching this product now!

High-torque Nema23 57 Stepper Motor (270Oz-in, 3A) ideal for CNC routers, milling, and embroidery automation. Delivers precision motion control and reliability for industrial and DIY use.

Weight	15 oz
Dimensions	15 in
Hign-concerned Chemical	None
Step Angle(degrees)	1.8
Model Number	23HS8430
Type	HYBRID
Certification	CE

No one dislikes.

Free Shipping

Enjoy free shipping to your door step on order over $150

Worldwide

Fast Delivery.

Using Major Shipping Services worldwide

Live Chat & Email

After Sales 24/7 Support

Available to Serve 24/7 on live chat & Email Support.

Easy Return

Hassle Free Easy Return

5 Days Easy Return, Shop without worries

Door-Step Delivery.

All Around the World. We are delivering worldwide. So, keep shopping and leave the rest to us.

Discount on Bulk Orders

After Sales Support

24/7 Support on chat, email & Call. We are here to help you stay focused on your business.

Buyer Protection

We've got your back with Buyer Protection Policy! Shop & Leave it to us and focus on your business.

Description

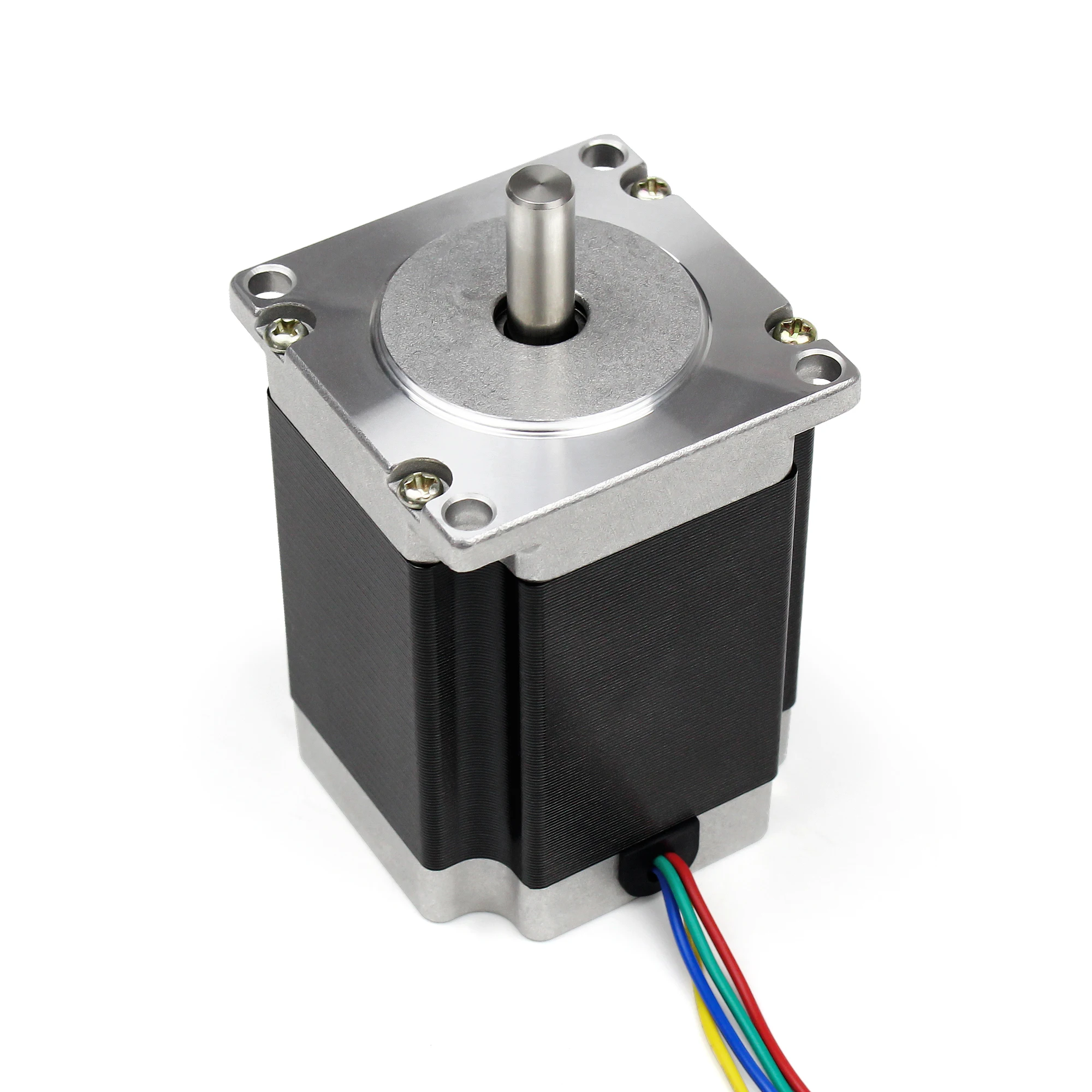

Upgrade your CNC router or milling machine performance with the Nema23 57 Stepper Motor 23HS8430, designed for precision, stability, and long-term reliability. This high-torque hybrid stepper motor delivers 270 Oz-in of holding torque with a 3A current rating, making it ideal for various industrial and DIY CNC applications.

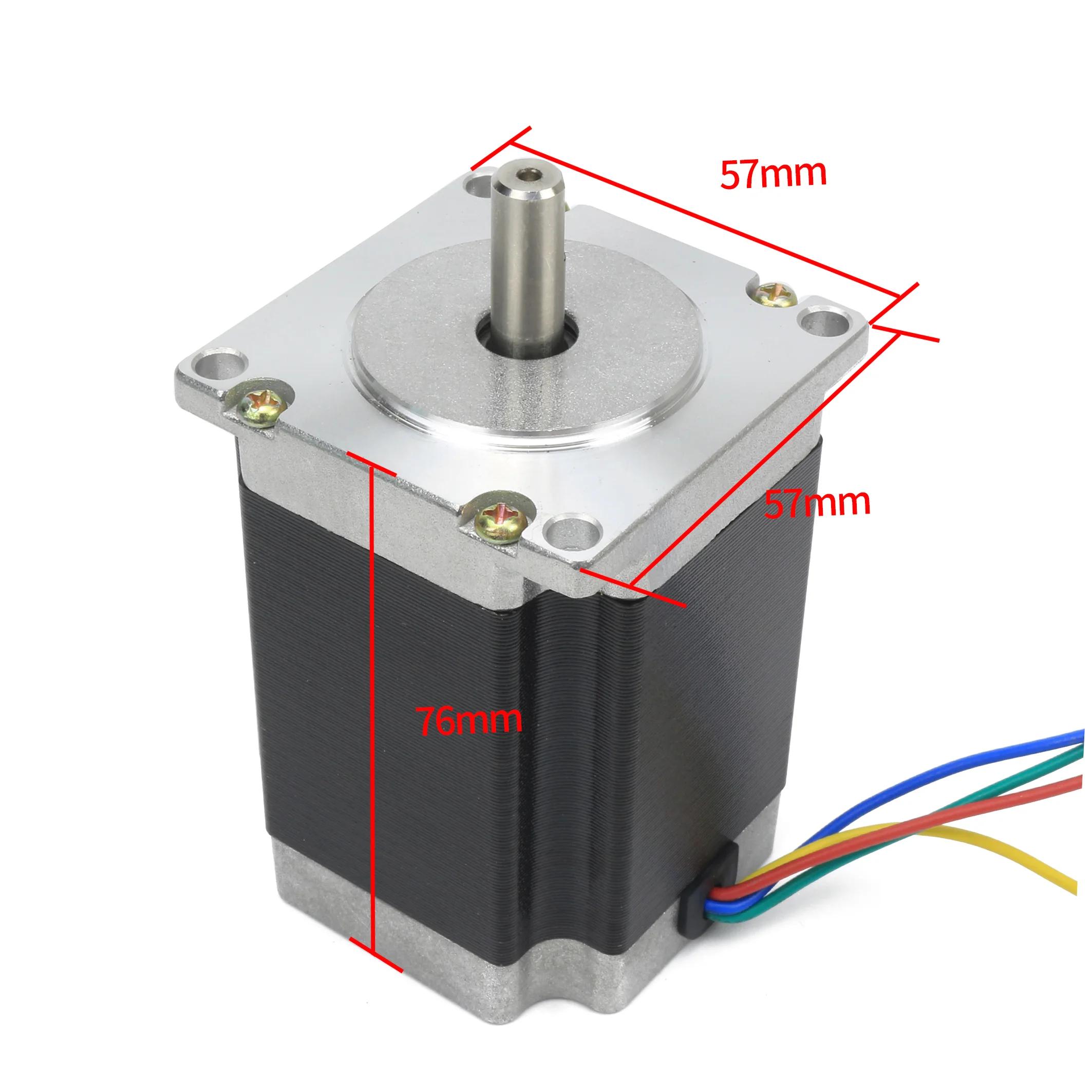

With an 8mm single shaft and 1.8° step angle, it ensures accurate motion control, smooth rotation, and minimal vibration — perfect for detailed engraving, milling, and machine automation tasks. The 76mm body length offers a compact yet powerful configuration to fit seamlessly into your setup.

⚙️ Key Features

High-torque 270 Oz-in (1.9Nm) stepper motor for superior holding force
1.8° step angle for precise movement and fine control
3A rated current per phase for efficient performance
8mm single shaft ensures strong coupling with mechanical parts
Durable 76mm body for compact CNC integration
Long operational life with low noise and heat generation

🧩 Compatible With

CNC Router Machines
Milling Machines
3D Printers
Engraving Machines
Laser Cutting Machines
DIY Robotics & Automation Projects
Compatible Brands: Tajima, Barudan, Brother, Janome, Singer, Ricoma, HappyJapan, Melco, ZSK (for motion-related applications and CNC attachments)

🛠️ Applications

Perfect for:

CNC routers and milling machines used in embroidery frame carving, vector cutting, and digitizing toolpath automation.
Robotics, 3D printing, and stepper-based embroidery machine upgrades.

⚡ Specifications

Model: 23HS8430
Type: Hybrid Stepper Motor
Shaft: 8mm Single Shaft
Step Angle: 1.8°
Holding Torque: 270 Oz-in (1.9Nm)
Current Rating: 3A
Body Length: 76mm
Phases: 2
Voltage: DC Compatible
Weight: Approx. 1.1 kg

🛒 Why Buy from 360 Digitizing Solutions?

100% genuine and tested machine parts
Fast worldwide shipping
24/7 customer support and after-sales service
Trusted by embroidery professionals globally

3/4pcs x 23HS8430 Nema23 Stepper Motor 76mm

General Specification:

Step angle accuracy:+ – 5%(full step,not load)

Resistance accuracy: + – 10%

Inductance accuracy:+ – 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ———-—20deg —- +50deg

Insulation resistance:100ohm Min,500VDC

Insultion Strength——–500VAC for one minute

Datasheet(23HS8430,8mm diameter shaft,270oz-in or 18kg.cm holding torque)

Stepper motor‘s red wire connect to driver’s A+ port
Stepper motor‘s green wire connect to driver’s A- port
Stepper motor‘s yellow wire connect to driver’s B+ port
Stepper motor‘s blue wire connect to driver’s B- port

Advantages

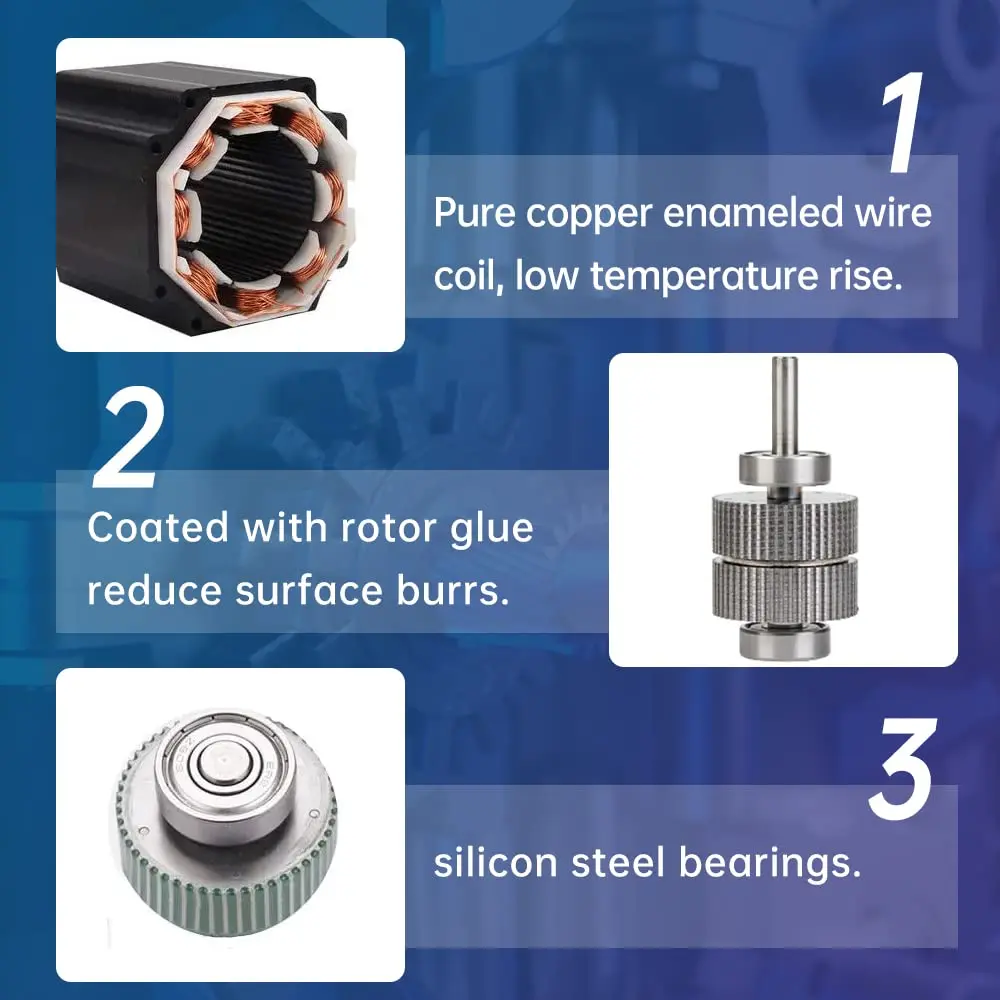

Our motor is made of solid and durable metal. The perfect combination of
rubber and rotor makes the internal structure more stable, and also
reduces the vibration and noise when the engine runs.
The motor runs more quietly, with a high torque of 12Nm.The coil uses pure
copper enamelled wire to ensure that long-term operation will not lead
to excessive engine temperature.
The rotor surface is coated with high-quality epoxy resin adhesive to
isolate the adsorbed burrs on the rotor surface, more stable magnetic
field and longer service life of motor.

Usage or Application

This products are widely used in engraving machine, printer, medical
equipment,embroidery machine, stage lighting, textile automation,
printing,packaging and other industries automation equipment.

Additional information

Weight	15 oz
Dimensions	15 in
Hign-concerned Chemical	None
Step Angle(degrees)	1.8
Model Number	23HS8430
Type	HYBRID
Certification	CE
