Are you tired of missed steps, inconsistent cuts, and vibrations derailing your CNC projects? The HLTNC Nema 34 86HB250 Closed Loop Stepper Motor Kit is your solution for achieving professional-grade precision and reliability. Designed to bridge the gap between traditional stepper and full servo systems, this kit ensures your machine performs flawlessly, even under demanding loads.

Eliminate Missed Steps and Boost Precision

Traditional open-loop stepper motors can lose steps under heavy loads or high speeds, leading to inaccurate results and wasted material. Our HLTNC Nema 34 Closed Loop Stepper Motor (model 86HB250) integrates a high-resolution encoder, constantly feeding back position data to the HBS860H Hybrid Servo Driver. This real-time feedback allows the system to detect and instantly correct any position deviation, guaranteeing that your machine always knows its exact location. The result? Smoother operation, reduced vibration, and significantly enhanced accuracy for all your engraving, milling, and routing tasks.

Optimized Performance and Control

The included HBS860H Hybrid Servo Driver features advanced 32DSP processing and sophisticated algorithms, ensuring smooth, quiet operation with improved torque delivery. It’s designed to interface seamlessly with MACH3-compatible CNC controllers, providing reliable communication and precise control over your machine‘s movements. A robust 400W 60V power supply delivers stable voltage, crucial for consistent motor performance, while the MACH3 interface board simplifies connectivity. This integrated approach means less setup hassle and more uptime for your business.

Designed for Versatility and Durability

Each HLTNC Nema 34 motor boasts a durable 14mm shaft diameter and 35mm length, built to withstand the rigors of continuous operation. With holding torque options of 4.5N, 8.5N, or 12N, you can select the perfect power for your specific application. Every component in this kit is function-tested before shipping, ensuring that defective units never leave our facility. Should a rare issue occur, our buyer protection guarantees a full refund within 4 days of a confirmed defective item’s arrival.

Compatible With:

• CNC Engraving Machines
• CNC Routers
• CNC Milling Machines
• Any CNC system supporting MACH3 software

Product Specifications:

• Motor Model: HLTNC Nema 34 86HB250 Closed Loop Stepper Motor
• Motor Type: HYBRID
• Shaft Diameter: 14mm
• Shaft Length: 35mm
• Step Angle: 1.8 degrees
• Phase: 2

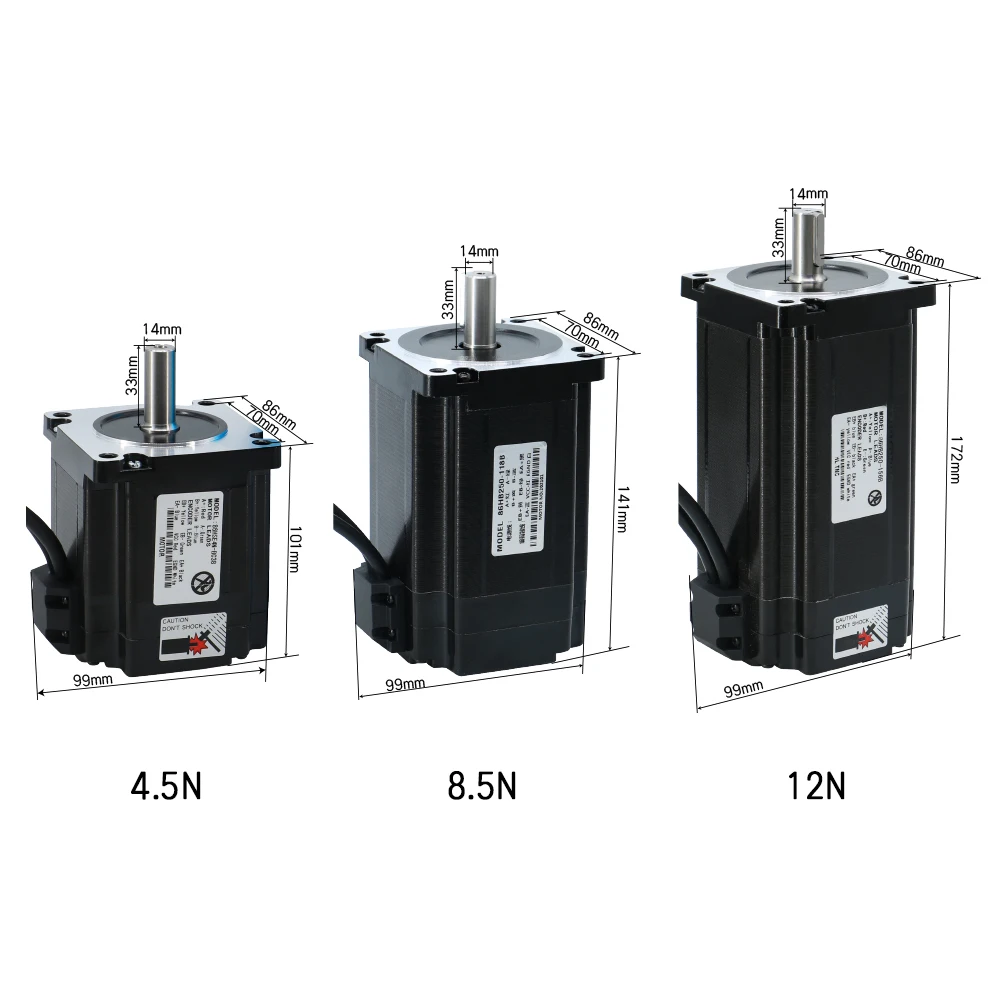

• Holding Torque Options: 4.5N, 8.5N, 12N

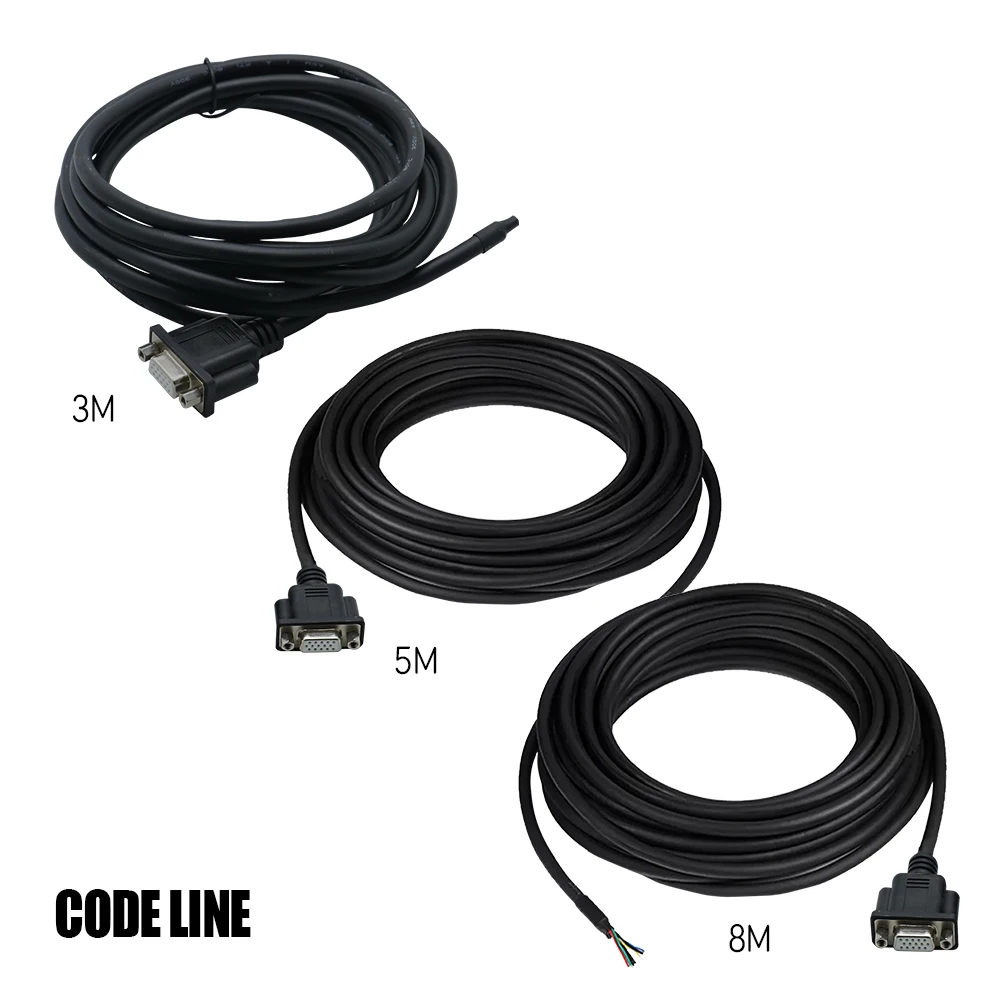

• Cable Length: 3m (Extended Encoder Cable)

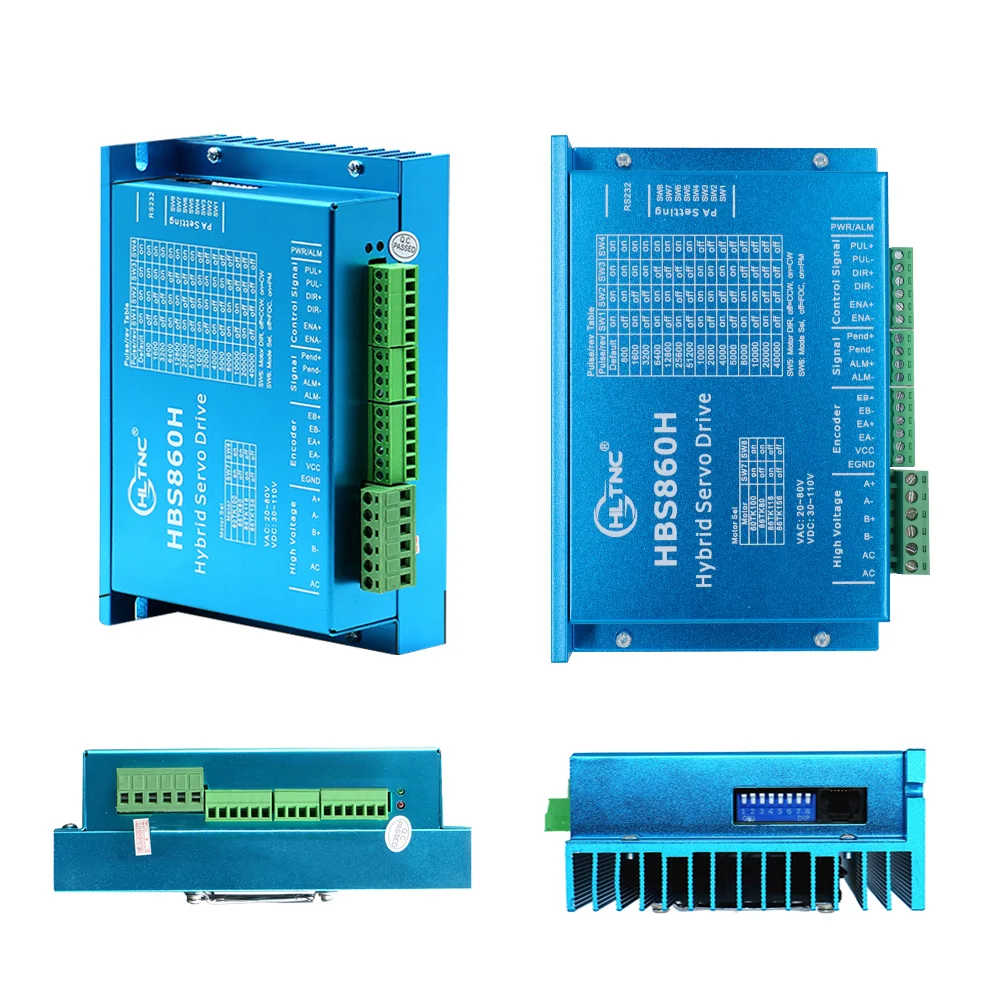

• Driver Model: HBS860H Hybrid Servo Driver
• Driver Processor: 32DSP
• Warning Signal: Support
• Pulse Voltage: 5V-24V
• Response Voltage: Maximum 200kHz
• Phase Current: 8A/pha
• Pulse Method: Single Pulse (Default)
• Subdivision: 2-256 (Maximum 51200 Steps/Laps)
• Cooling Method: Cooling Fan
• Driver Shell Size: 151×97.5x52mm

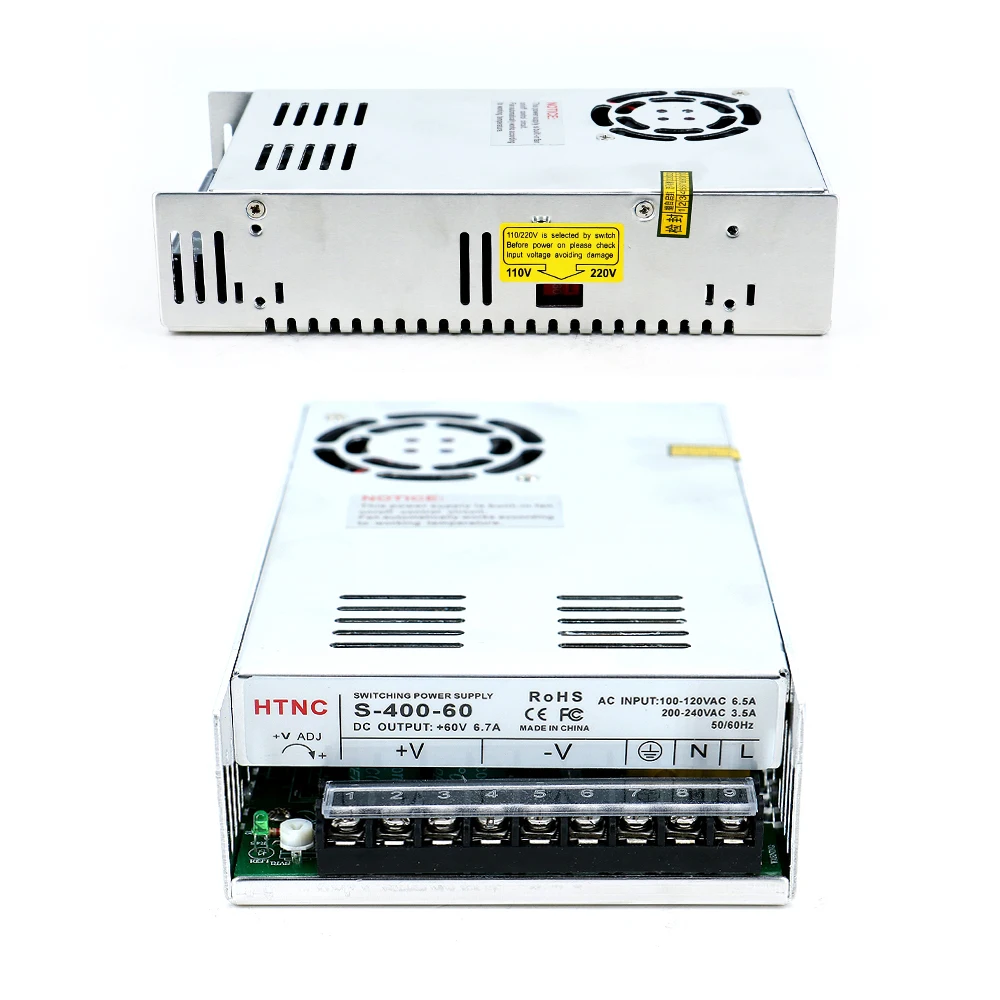

• Power Supply: 400W 60V
• Interface Board: MACH3-compatible (4-Axis USB Port included with 3 & 4 set kits)
• Input Power Supply Voltage (Driver): VAC20V-80V / VDC24V-100V
• Logic Input Current (Driver): 7-16mA
• Pulse Frequency (Driver): Max 200kHz

Please confirm your machine‘s model and control system requirements before ordering. Not sure? Contact us with your machine model, and we will help confirm compatibility.

Frequently Asked Questions

What is a closed-loop stepper motor kit and how does it benefit my CNC machine?
A closed-loop stepper motor kit, like the HLTNC Nema 34 86HB250, uses an encoder to provide real-time position feedback to the driver. This allows the system to detect and correct any missed steps, ensuring higher precision, smoother operation, reduced vibration, and increased reliability compared to traditional open-loop steppers.

What components are included in each HLTNC Nema 34 Motor Kit configuration?

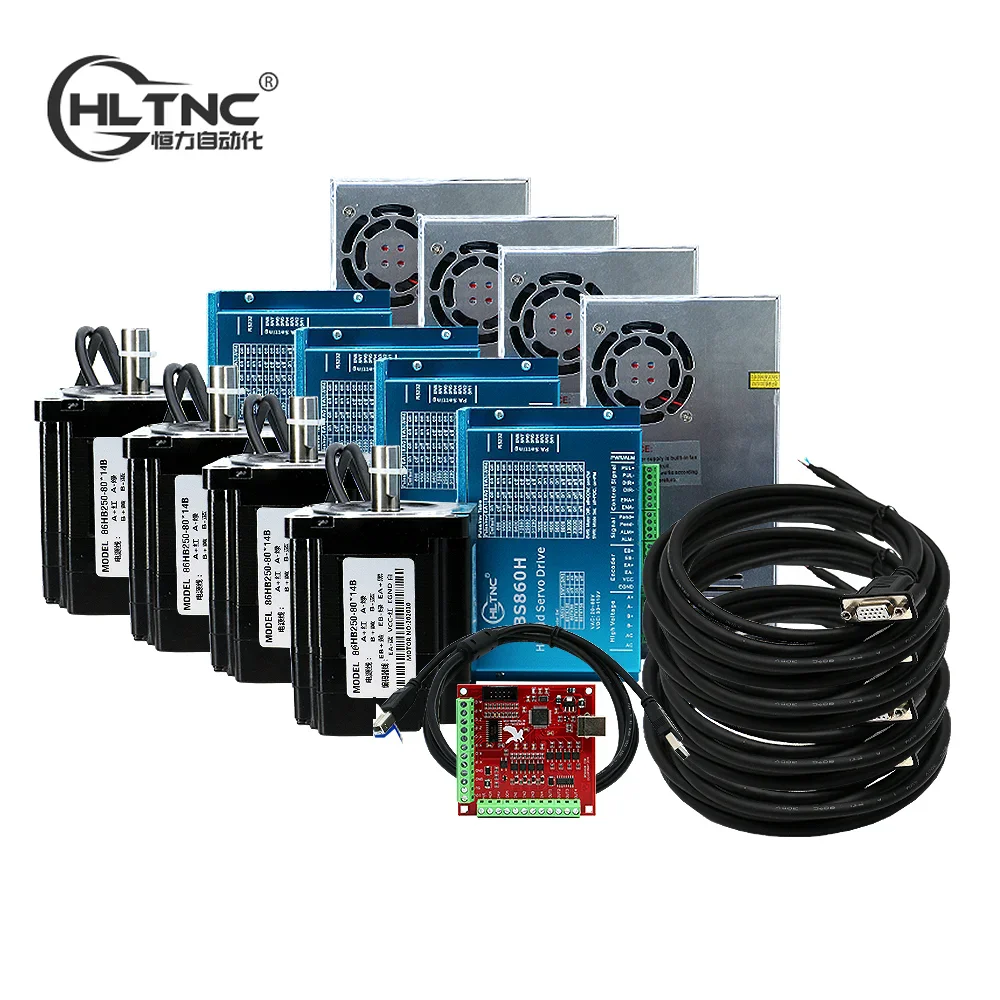

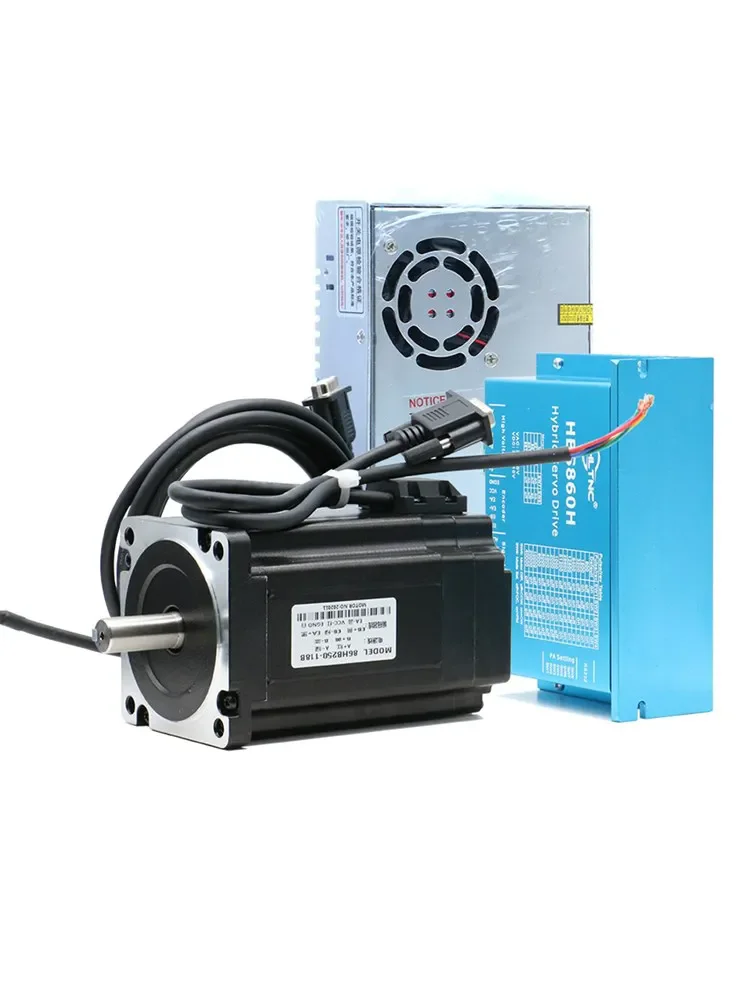

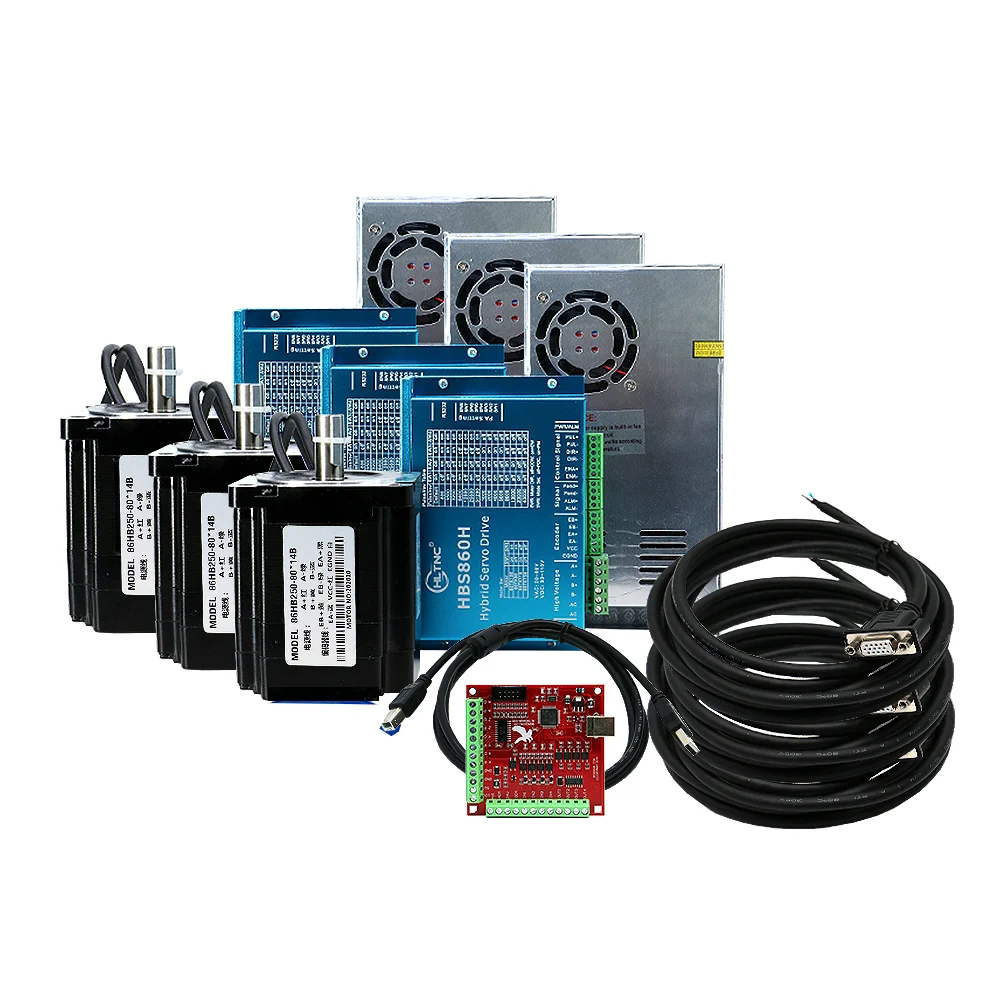

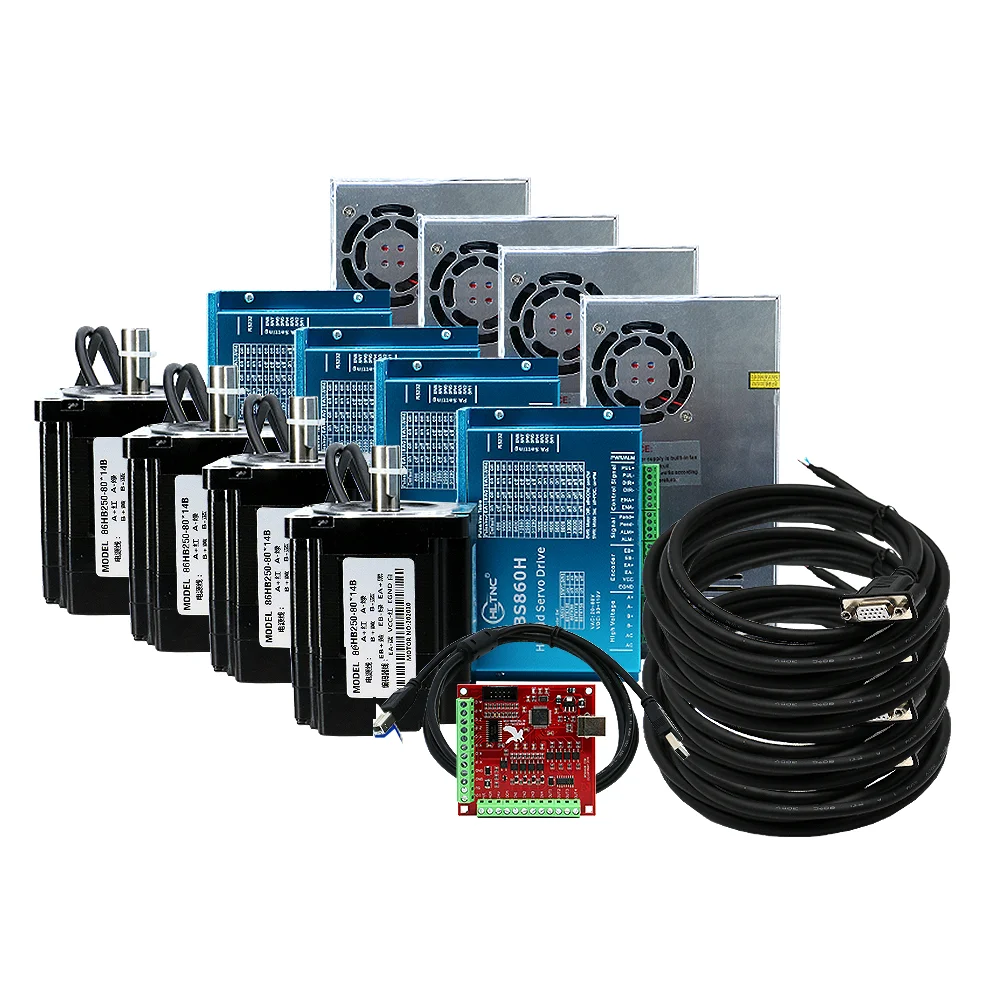

The Single Axis Kit includes 1 HBS860H Driver, 1 400W 60V Power Supply, 1 Nema34 Closed Loop Motor, and 1 3-meter Extended Encoder Cable. The 3 Sets Motor Kit includes 3 of each of these components plus 1 Set 4-Axis USB Port Mach3 Breakout Board. The 4 Sets Motor Kit includes 4 of each of these components plus 1 Set 4-Axis USB Port Mach3 Breakout Board.

How do I confirm if the HLTNC Nema 34 kit is compatible with my CNC machine?
This kit is compatible with various CNC engraving machines and routers that support MACH3 software. We recommend checking your machine‘s control system and interface requirements. If you’re unsure, please contact us with your machine model, and we will help confirm compatibility.

What is the maximum pulse frequency supported by the HBS860H driver?
The HBS860H driver supports a maximum response voltage (pulse frequency) of 200kHz.

What is 360 Digitizing Shop's quality assurance and return policy for this product?
Every HLTNC Nema 34 kit is function-tested before shipping to ensure no defective units are sent. In the rare event a defective item arrives, you are protected by our buyer protection and will receive a full refund within 4 days.
