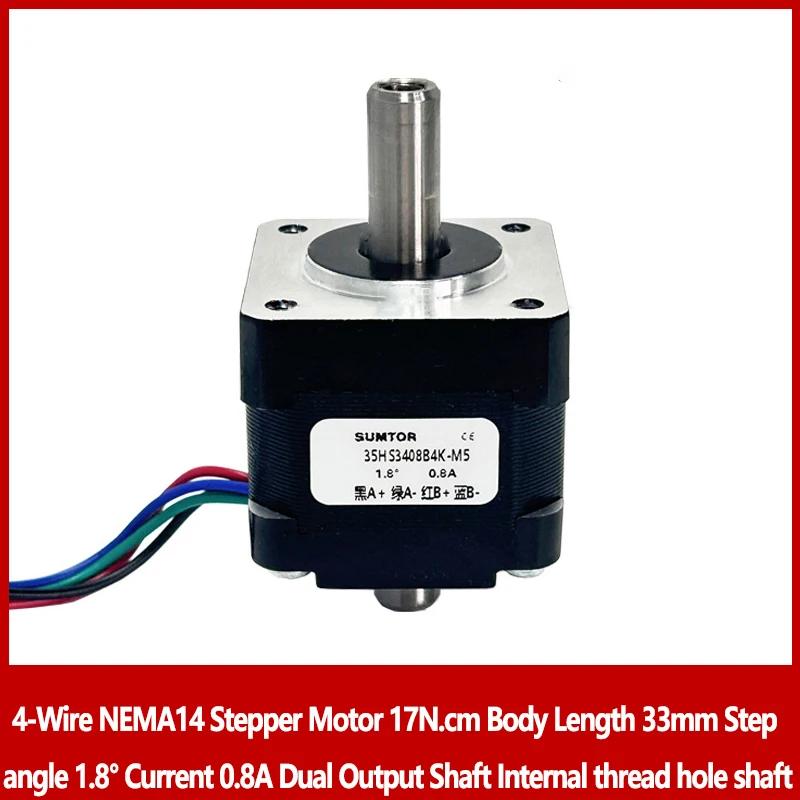

Are you struggling with inconsistent motion, limited design flexibility, or unreliable performance in your embroidery, CNC, or automation projects? The right stepper motor is critical for achieving the precision and control your work demands. The NEMA14 35HS3408B4K-M5 4-Wire Stepper Motor is engineered to deliver the consistent, accurate movement you need, transforming your project’s potential from concept to flawless execution.

Unleash Precision and Versatility in Your Motion Control

This NEMA14 stepper motor is designed for exacting applications where precision and adaptability are paramount. Its 1.8° step angle ensures incredibly fine rotational control, leading to smoother movements and superior accuracy in your machine‘s operations. With a robust 17N·cm (24 oz-in) holding torque, it maintains position firmly, preventing missed steps even under moderate loads, crucial for consistent output in tasks like detailed embroidery or precise milling.

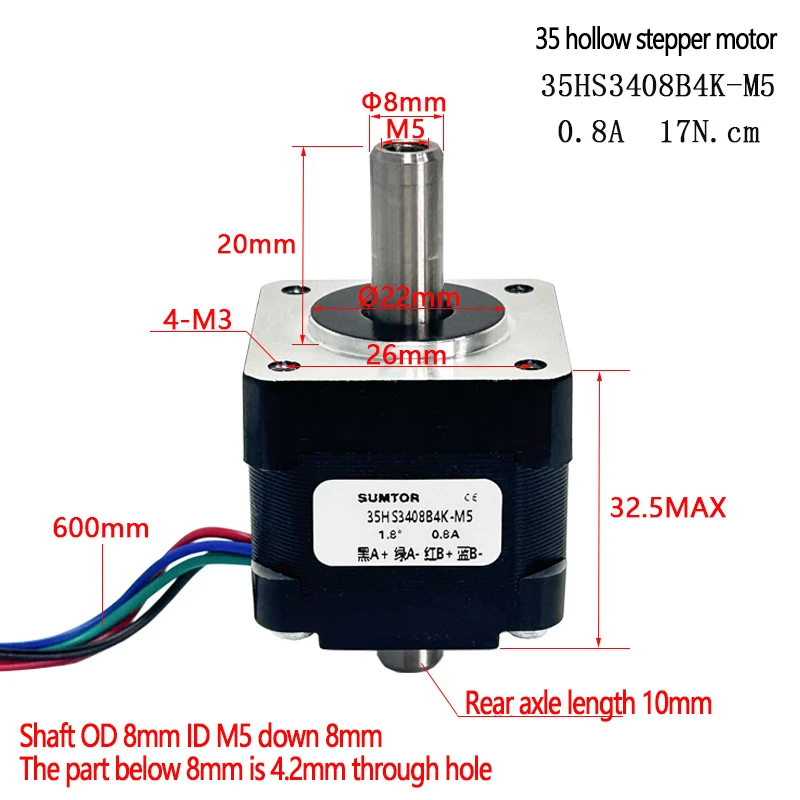

The innovative dual output shaft design with an internal threaded shaft hole significantly expands your mechanical integration options. This feature allows for simultaneous connection of multiple components or through-shaft mounting, providing unparalleled flexibility for complex designs. Operating efficiently at 0.8A per phase, this motor delivers stable performance with minimal heat generation, extending the lifespan of your equipment. Its compact 33mm body length (NEMA 14 frame size) makes it an ideal choice for space-constrained applications without compromising on power or reliability.

Ideal for Demanding Applications Including:

• CNC Routers and Mills
• 3D Printers (Extruders, X/Y/Z Axes)
• Robotics and Automation Equipment
• Laser Engravers and Cutters
• Embroidery Machines (specific motion control tasks)
• Precision Dispensing Systems
• DIY and Prototyping Projects

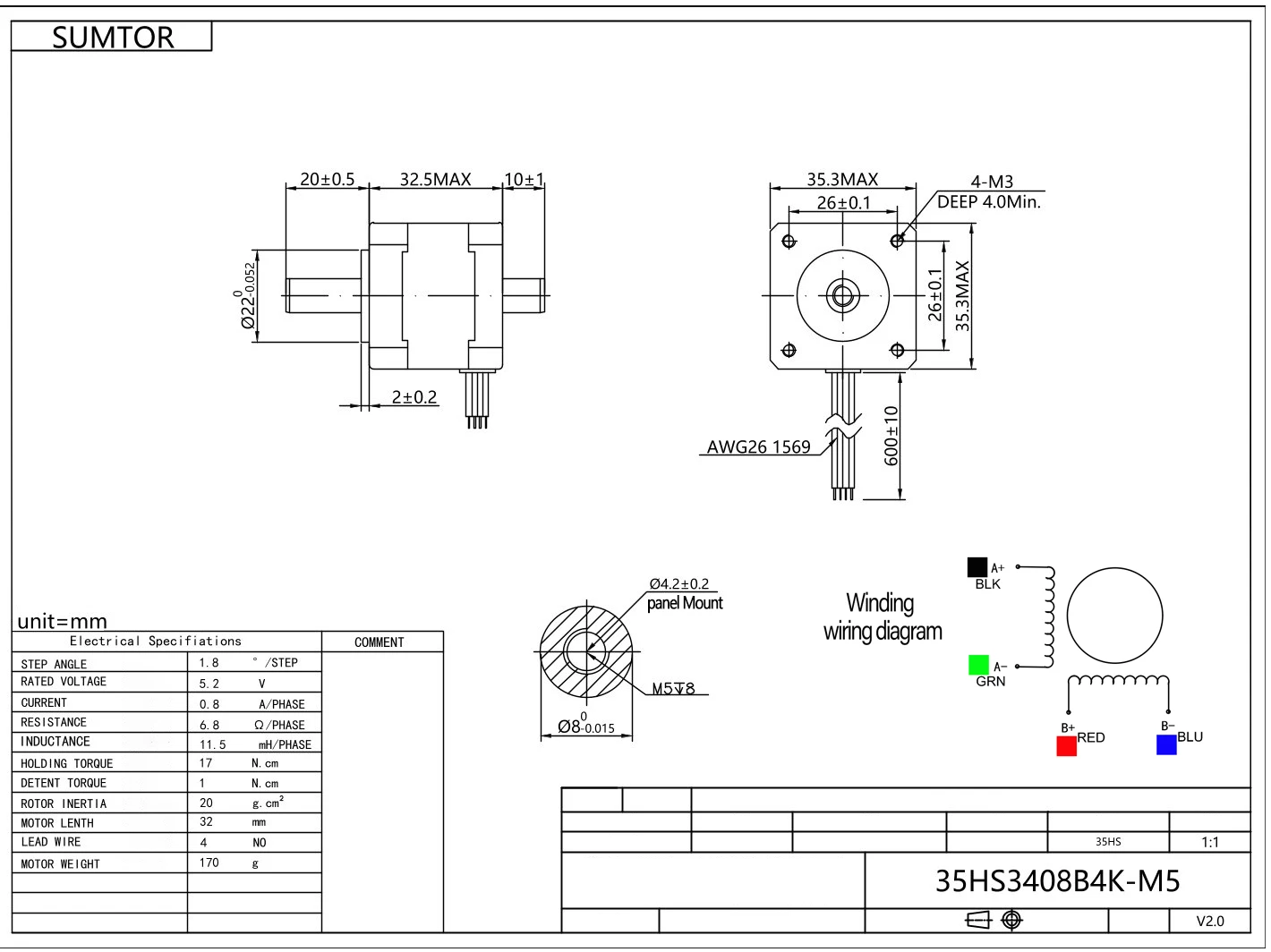

Key Specifications:

• Model Number: 35HS3408B4K-M5
• Frame Size: NEMA 14 (26mm)
• Step Angle: 1.8° (±5% accuracy)
• Holding Torque: 17N·cm
• Phase: 2
• Current per Phase: 0.8A
• Body Length: 32.5mm (approx 33mm)
• Resistance Accuracy: ±10%
• Insulation Resistance: 100MΩ Min. at 500VDC
• Ambient Temperature: -20°C to +50°C
• Certification: ROHS

Confirming Compatibility

While designed for broad application in precision motion control, we recommend verifying the specific dimensions and electrical requirements against your machine‘s specifications before ordering. If you’re unsure, please contact us with your machine model, and our experts will gladly help confirm the best fit for your needs.

Confidence in Every Purchase

At 360 Digitizing Shop, your operational success is our priority. Every NEMA14 35HS3408B4K-M5 Stepper Motor is rigorously function-tested before shipping to ensure it meets our high standards for performance and reliability. This meticulous process means defective units are never sent out. In the rare event a defective item does arrive, rest assured that your purchase is protected: a full refund will be processed within 4 days under our buyer protection policy, getting you back to business quickly and without hassle.

Frequently Asked Questions

What is the step angle of this motor?
The NEMA14 35HS3408B4K-M5 Stepper Motor has a 1.8° step angle, allowing for precise and smooth rotational control.

What does the dual output shaft enable?
The dual output shaft, with an internal threaded hole, offers enhanced versatility for mechanical integration, allowing connection of components on both ends or through-shaft mounting for complex designs.

How much torque does this motor provide?
This motor provides 17N·cm of holding torque, ensuring strong position retention and preventing missed steps under load.

How can I confirm if this motor will fit my machine?
We recommend comparing the NEMA 14 frame size, 33mm body length, and electrical specifications (0.8A current, 1.8° step angle) with your machine‘s requirements. For specific guidance, contact us with your machine model.

What is your policy if a defective motor arrives?
Every motor is function-tested before shipping. If a defective item does arrive, you are protected by our policy, and a full refund will be processed within 4 days.
