Are you struggling with inconsistent movement, skipped steps, or a general lack of precision in your embroidery machine, 3D printer, or CNC setup? Poor motor performance can lead to costly material waste, lost production time, and ultimately, dissatisfied clients. The right motor is crucial for delivering the intricate details and smooth finishes your business demands.

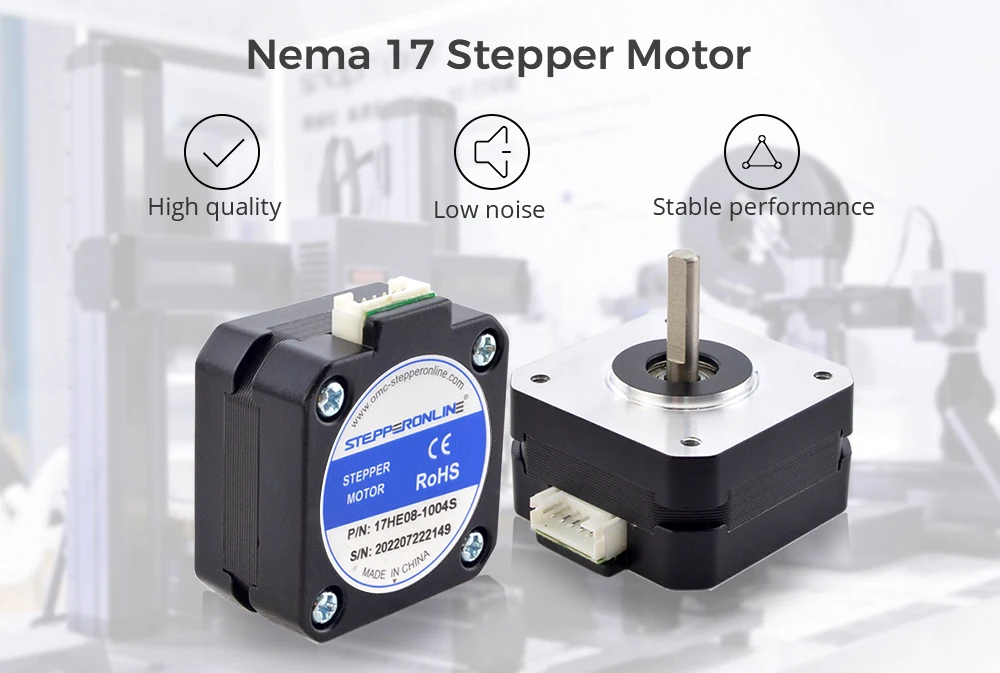

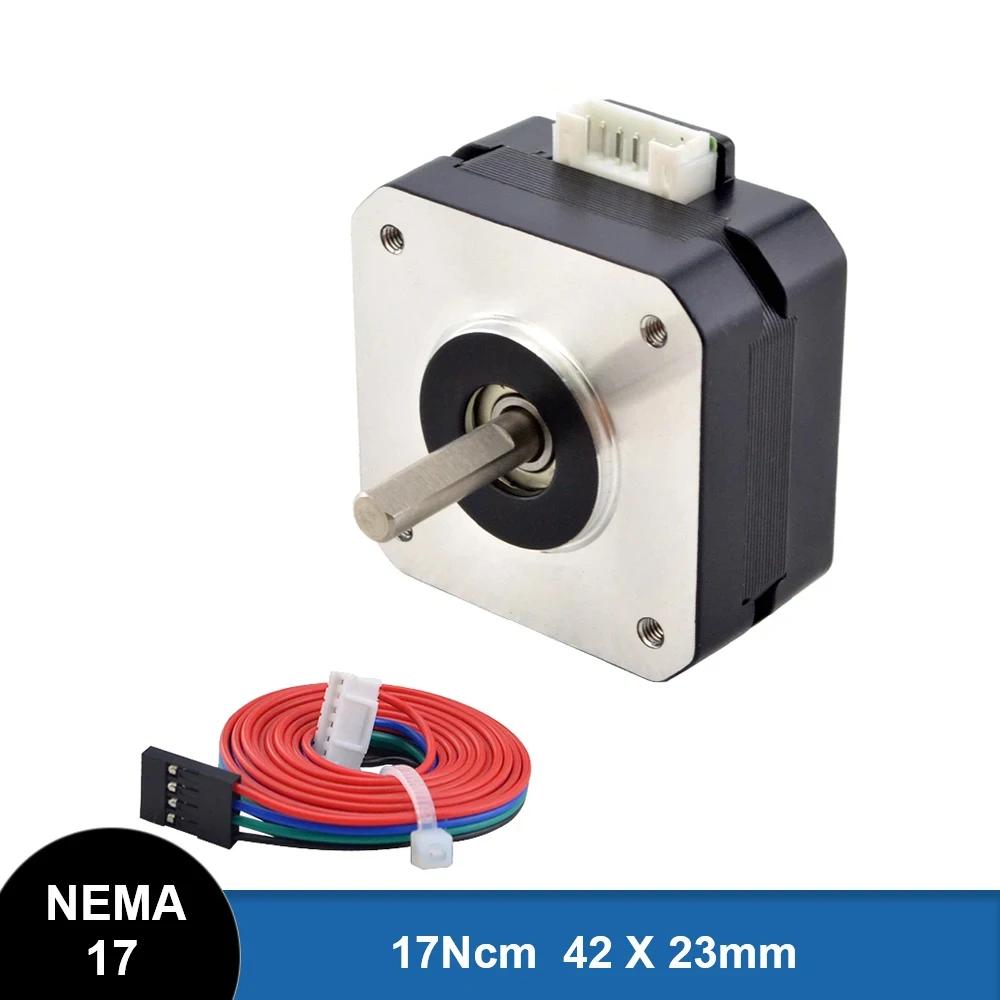

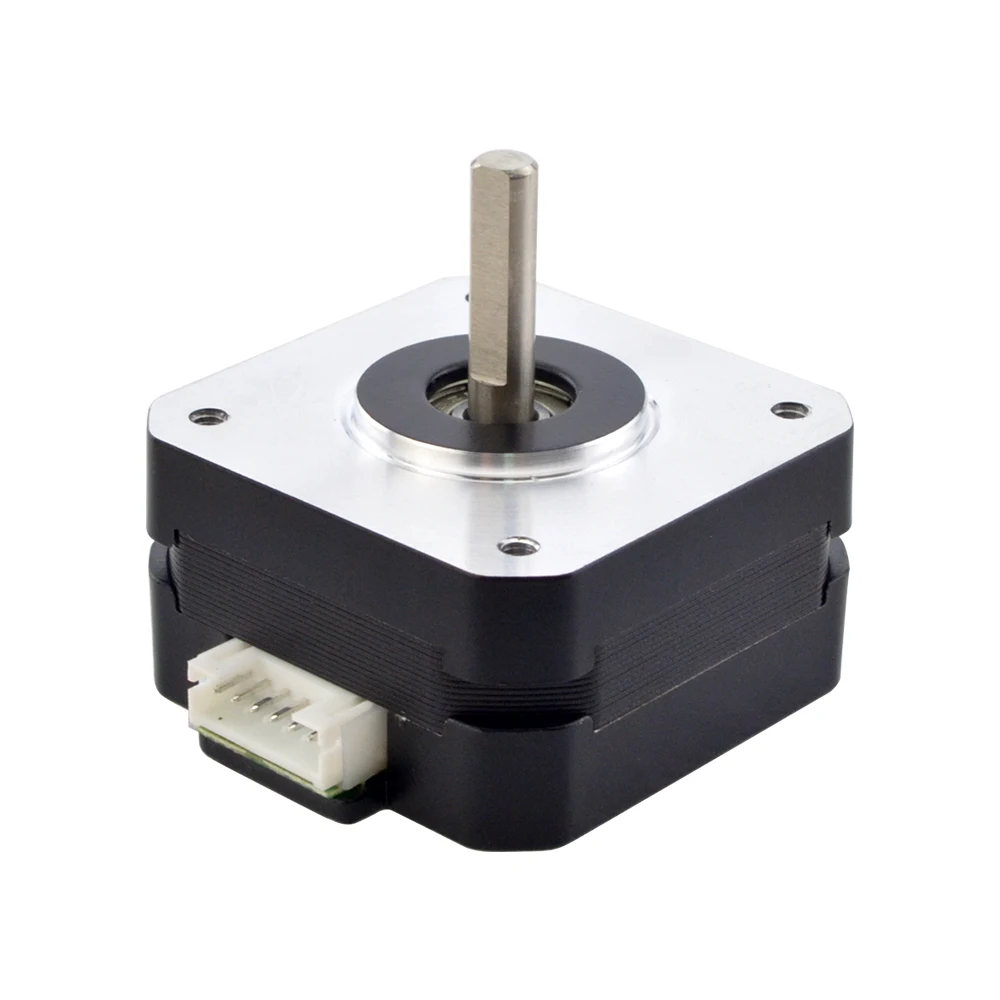

Unlock new levels of detail, speed, and reliability with the Nema 17 17HE08-1004S Stepper Motor. This high-performance 2-phase hybrid stepper motor is specifically designed to provide the precise, controlled motion essential for professional-grade results. Its 1.8-degree step angle ensures incredibly fine positional accuracy, preventing skipped steps and allowing for highly detailed work, from intricate embroidery patterns to precise CNC cuts.

With a robust 17Ncm (24.07oz.in) holding torque and operating at 1A per phase, this motor delivers consistent power and stability, even under demanding loads. The compact 42x42x23mm size with a 5mm D-cut shaft makes it an ideal fit for a wide range of applications where space is at a premium, without compromising on performance. Experience smoother operation, reduced vibration, and a significant boost in the quality of your finished products.

Enhance Precision Across Your Operations

• Most 3D Printers: Prusa, Creality, Ender series for accurate layer deposition and print quality.
• CNC Machines: Shapeoko, X-Carve, DIY CNC routers for precise cutting, carving, and engraving.
• Embroidery Machines: Brother, Singer, Janome models compatible with stepper motors for flawless stitch registration and intricate designs.
• XYZ Axis Systems: Robotics and automation for reliable, repeatable motion control.

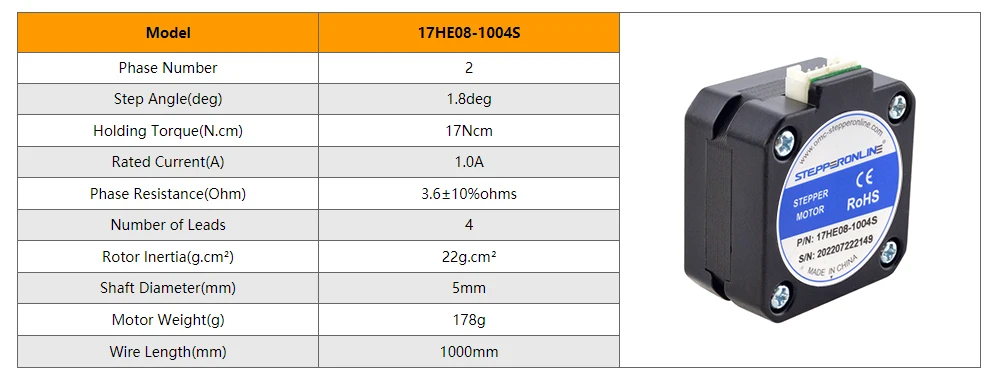

Key Specifications

• Model Number: 17HE08-1004S
• Step Angle: 1.8 degrees
• Phase: 2
• Holding Torque: 17Ncm (24.07oz.in)
• Current/Phase: 1A
• Type: HYBRID
• Cable Length: 1m
• Certification: CE

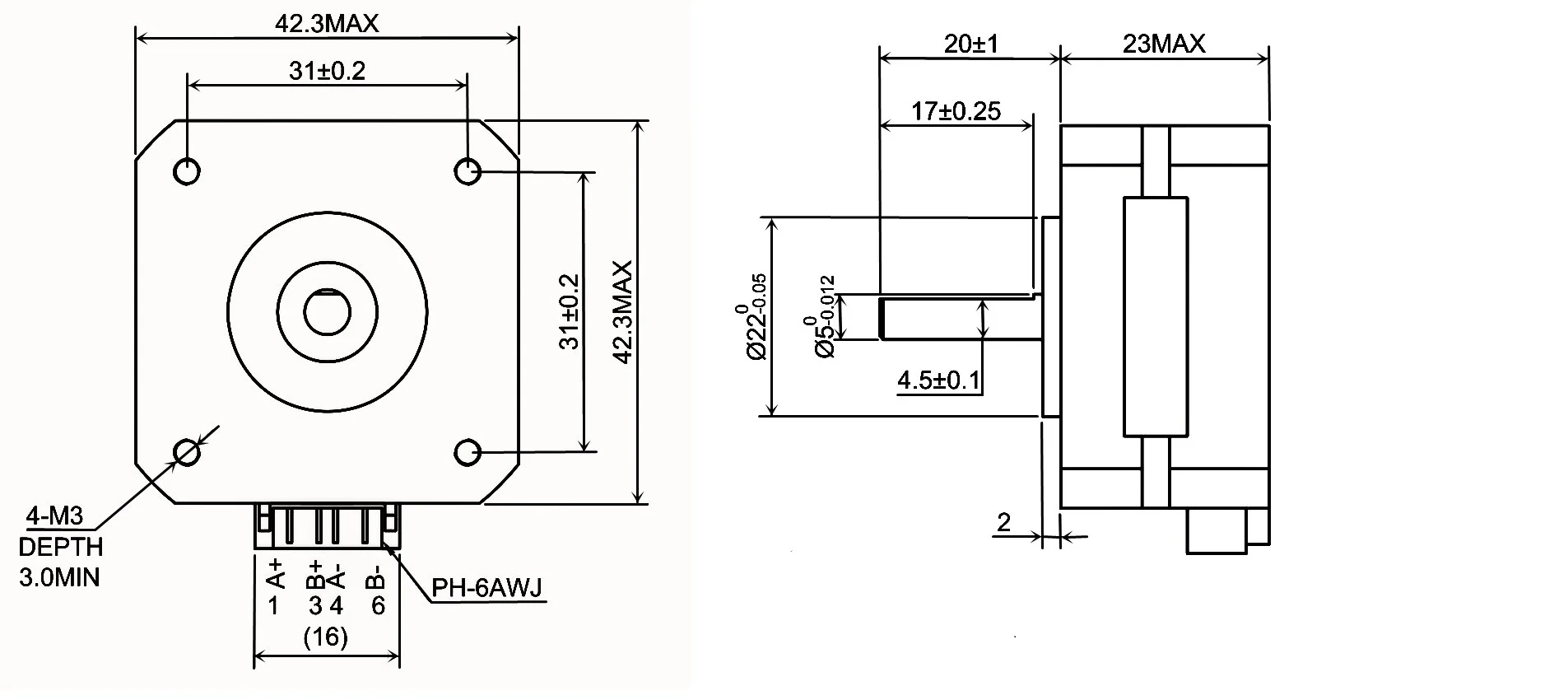

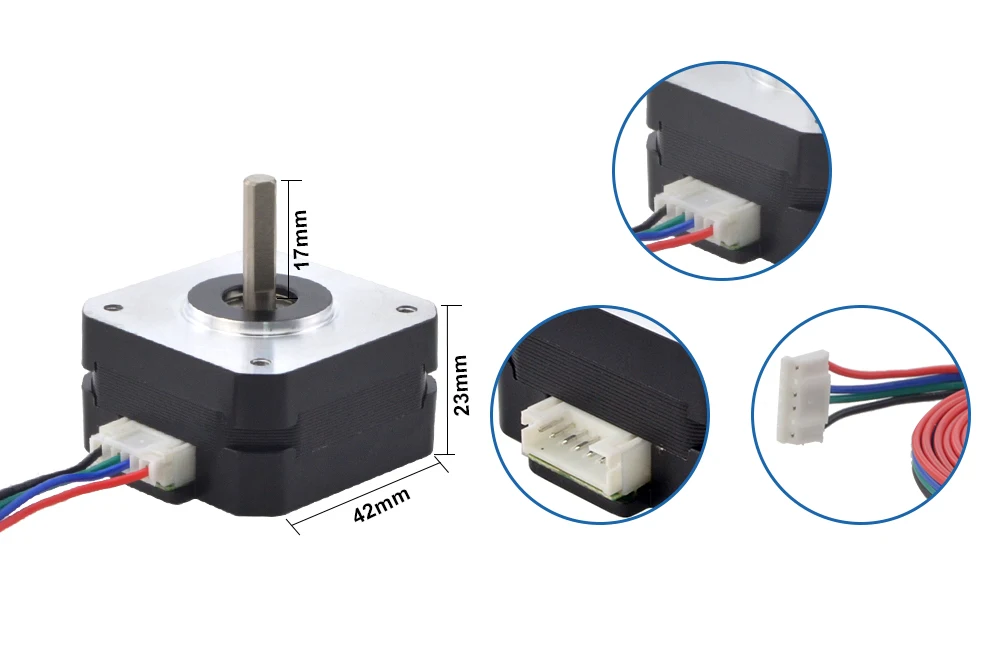

• Size: 42x42x23mm
• Shaft Diameter: 5mm

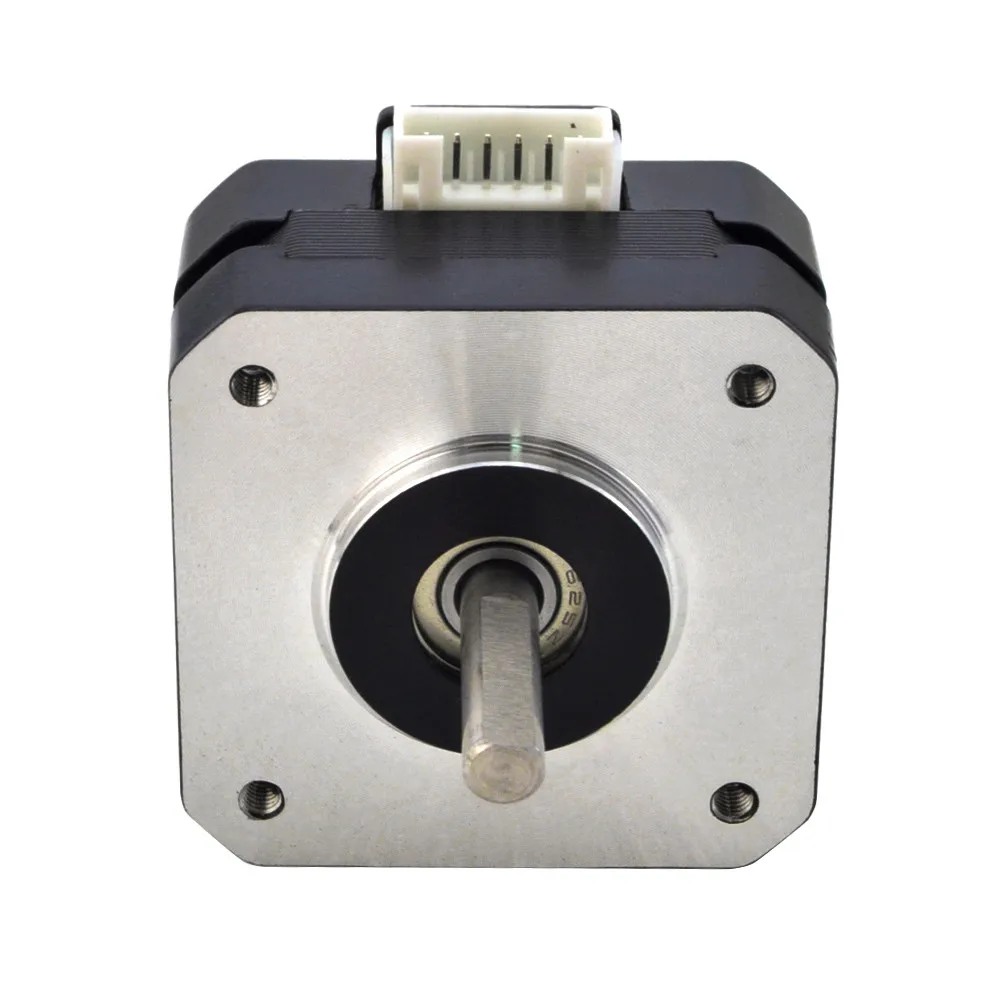

• Shaft Shape: D-cut
• Rotor Inertia: 22g-cm2

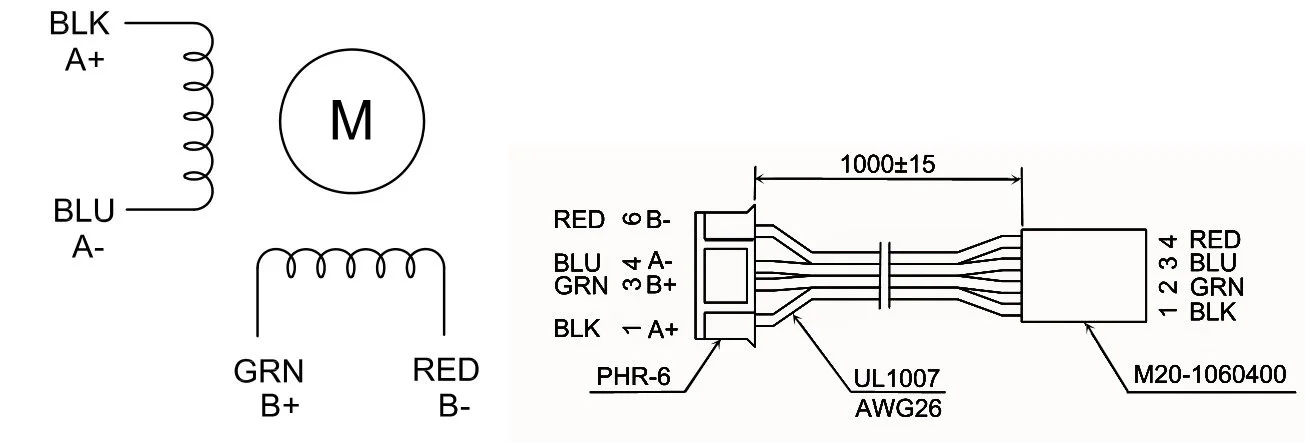

• Plug Type: XH-2.54

While designed for a wide range of machines, we recommend confirming compatibility with your specific model. Not sure? Contact us with your machine model, and our experts will confirm the fit.

Every Nema 17 17HE08-1004S Stepper Motor is function-tested before shipping to ensure it meets our high performance standards, so defective units are never sent. In the rare event a defective item arrives, rest assured you’re covered by our buyer protection, guaranteeing a full refund within 4 days.

Frequently Asked Questions

What is the primary use of this Nema 17 Stepper Motor?
This motor is ideal for applications requiring precise, controlled movement, such as the XYZ axes of 3D printers, CNC machines, and embroidery machines, as well as general robotics and automation systems.

What are the key specifications of the 17HE08-1004S motor?
It’s a 2-phase hybrid stepper motor with a 1.8-degree step angle, 17Ncm (24.07oz.in) holding torque, 1A current per phase, and a compact size of 42x42x23mm. It features a 5mm D-cut shaft and a 1m cable with an XH-2.54 plug.

How can I confirm if this motor will fit my machine?
We recommend checking your machine‘s existing motor specifications or user manual for compatibility with Nema 17 motors, particularly regarding size (42x42x23mm), shaft diameter (5mm), and electrical requirements (1A per phase). If you’re unsure, contact us with your machine model, and we’ll gladly assist you.

What does "function-tested before shipping" mean for this motor?
Every Nema 17 17HE08-1004S Stepper Motor undergoes rigorous function testing to ensure it operates perfectly according to specifications before it leaves our warehouse. This minimizes the chance of receiving a defective unit.

What happens if I receive a defective motor?
In the unlikely event a defective item arrives, your purchase is protected. We guarantee a full refund within 4 days under our buyer protection policy.
