Nema 17 Stepper Motor 17HS08-1004S – 4-Lead 1A 13Ncm for CNC & 3D Printers (2 Pcs)
In stock
Original price was: 51,00 €.28,00 €Current price is: 28,00 €.
Nema 17 Stepper Motor 40mm 1.5A for CNC & 3D Printers
In stock
Original price was: 50,00 €.29,00 €Current price is: 29,00 €.
NEMA 17 Stepper Motor 17HS5424-06 | 2.5A 85oz.in 4-Lead Motor
In stock
Original price was: 110,00 €.44,00 €Current price is: 44,00 €.
Nema 17 Stepper Gear Motor for 3D Printer & CNC Router
In stock
Price range: 59,00 € through 67,00 €
| Weight | 10 oz |
|---|---|
| Dimensions | 8 in |
| Hign-concerned Chemical | None |
| Model Number | 42BYG2-76-8-3.7G 14G |
| Current / Phase | 1.5A |
| Certification | CE |
| Name | stepper gear motor |
| Shaft diameter | 8mm |
| Insulation resistance | 100 (500V DC) |
| Resistance | 1.9±10%Ω |
| Inductance | 2.5±10%mH |
| Holding torque | 1.665N 5N |
| Insulation class | B |
| Rated voltage | 9-20V |
| Rated current | 1.5A |
| Choice | yes |
| semi_Choice | yes |

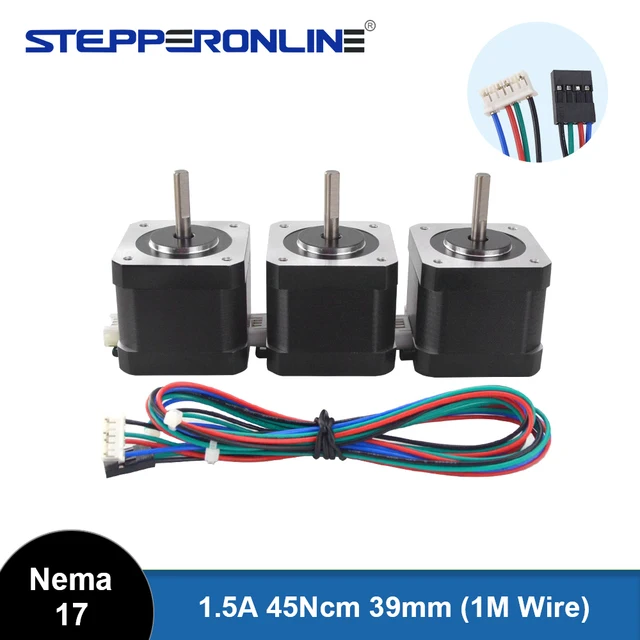

Nema 17 Stepper Motor 39mm 1.5A 45Ncm with Cable & Connector
In stock
Price range: 24,00 € through 82,00 €
| Weight | 12 oz |
|---|---|
| Dimensions | 8 in |
| Hign-concerned Chemical | None |
| Certification | ROHS |
| Step Angle(degrees) | 1.8 deg |
| Phase | 2 |
| Model Number | 17HS15-1504S-X1 |
| Holding Torque | 45Ncm (63.74oz.in) |
| Current / Phase | 1.5A |
| Type | Hybrid |
| Size | 42 x 42x 39mm |
| Shaft shape | D-cut |
| Shaft Diameter | 5mm |
| Phase Resistance | 2.3ohms |
| Inductance | 4.4mH ± 20%(1KHz) |
| Number of Lead | 4 |
| Cable | 1m 4 wires w/ connector |
| Application | 3D printers,CNC and robotics applications |
| Rotor Inertia | 54g-cm2 |
Nema 17 Double Shaft Stepper Motor for Embroidery & CNC Machines
In stock
Price range: 23,00 € through 36,00 €
Nema 17 Stepper Motor 17HS4415-04 | 71 oz.in | 1.5A 2-Phase Motor
In stock
Original price was: 137,00 €.39,00 €Current price is: 39,00 €.
