When your embroidery or chenille combo machine starts showing signs of inconsistent movement, skipped stitches, or unreliable color changes, it’s more than just a minor inconvenience – it’s a direct hit to your production schedule and profitability. A failing stepper motor can lead to wasted materials, costly rework, and frustrated operators. The 360 Digitizing Shop 42BYG560-4 Stepper Motor is engineered to bring back the flawless precision your business demands, ensuring every stitch and every color transition is executed with perfect accuracy.

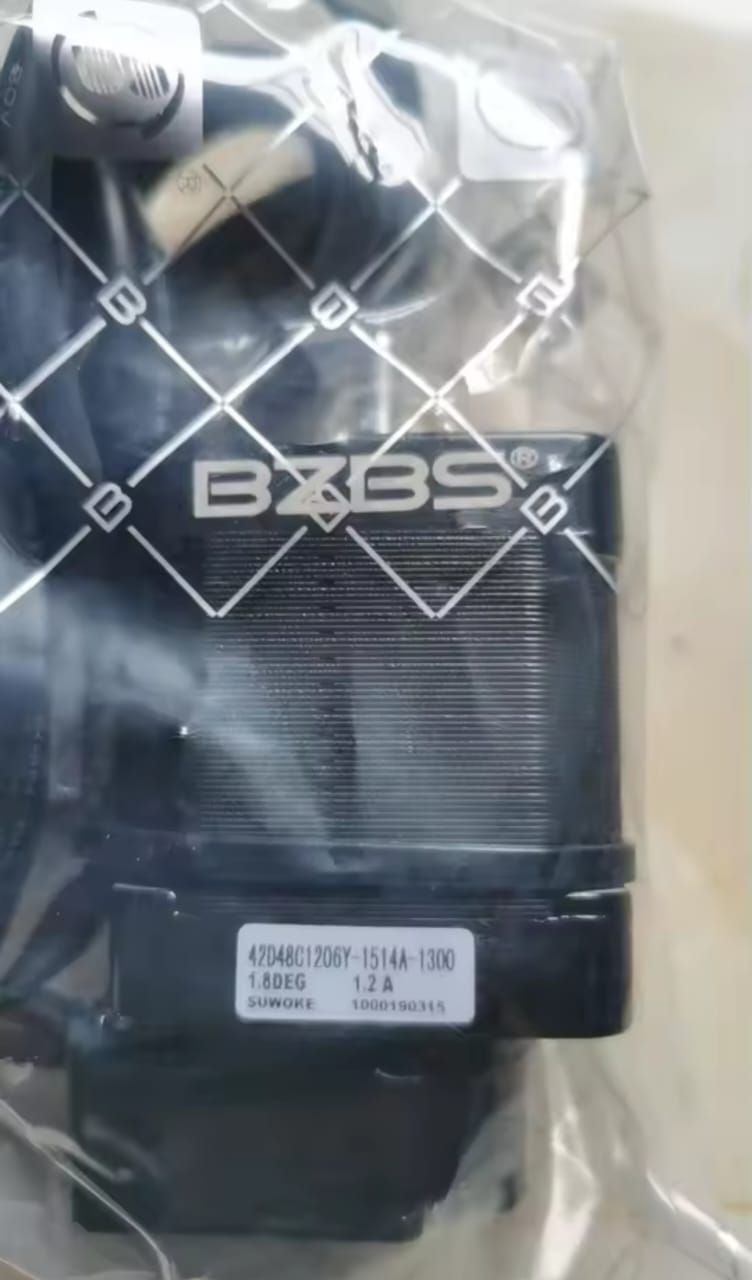

The 42BYG560-4 Stepper Motor is a robust 2-phase, 4-wire motor designed for the rigorous demands of industrial embroidery and chenille applications. Its 2-phase configuration provides excellent torque and fine step resolution, crucial for precise movement control in embroidery heads and color change mechanisms. The 4-wire connection simplifies wiring, ensuring straightforward integration into your existing machine‘s control system. With a standard 42mm x 42mm body size, it adheres to the NEMA 17 mounting standard, making it a direct and reliable replacement. The 5mm shaft diameter is engineered for compatibility with common drive components, delivering stable and consistent rotation essential for high-quality output.

Eliminate Inconsistent Stitching and Misalignment

A precise stepper motor is the heart of accurate embroidery. The 42BYG560-4 provides the consistent, step-by-step motion control needed to prevent misaligned designs, broken needles, and uneven stitching, ensuring your finished products meet the highest quality standards.

Restore Reliable Color Changes and Head Movement

Hesitant or faulty motor movements can disrupt critical functions like automatic color changes and X/Y axis head positioning. This motor delivers the dependable, smooth operation required for seamless transitions and precise design placement, maximizing your machine‘s efficiency.

Minimize Downtime and Maintenance Costs

Built with durable components and tight tolerance bearings, the 42BYG560-4 Stepper Motor ensures long-lasting performance even in continuous production environments. Replacing a worn-out motor proactively prevents more extensive machine damage and keeps your production line running smoothly.

Applications:

• Chenille embroidery combo machines
• Embroidery head X/Y axis movement
• Needle bar positioning
• Automatic color change mechanisms
• Thread trimming systems
• Other precise motion control applications in multi-head embroidery equipment

Technical Specifications:

• Model: 42BYG560-4
• Type: 2-Phase Stepper Motor
• Wiring: 4-Wire Connection
• Body Size: 42mm x 42mm
• Shaft Diameter: 5mm
• Shaft Length: 14mm
• Motor Height: 63mm
• Mounting Hole Spacing: 31mm (typical NEMA 17 size)
• Rated Voltage / Current: As per machine requirement (typically 3.6–4.2V DC, 1.2–1.5A)
• Rotation: Bidirectional
• Connector Type: 6-pin JST plug (pre-wired)

Compatible with:

• Tajima
• Barudan
• Brother
• ZSK
• Ricoma
• Phoenix
• Happy
• Feiya
• Butterfly
• Chinese multi-head embroidery and chenille combo machines

Before ordering, please confirm your machine‘s specific motor requirements. Not sure? Contact us with your machine model, and we will gladly confirm compatibility for you.

At 360 Digitizing Shop, we understand that reliability is paramount for your business. That’s why every 42BYG560-4 Stepper Motor is rigorously function-tested before shipping, ensuring that defective units are never sent out. In the rare event a defective item arrives, rest assured that under our buyer protection, you will receive a full refund within 4 days, minimizing any disruption to your operations. Invest in quality and peace of mind for your embroidery machine.

Frequently Asked Questions

What is the 42BYG560-4 Stepper Motor used for?
This motor is used for precise motion control in multi-head embroidery and chenille combo machines, including embroidery head movement (X/Y axis), needle bar positioning, and automatic color change mechanisms.

What machines is this motor compatible with?
It is compatible with a wide range of Chenille & Embroidery Combo Machines, including Tajima, Barudan, Brother, ZSK, Ricoma, Phoenix, Happy, Feiya, Butterfly, and various Chinese multi-head embroidery and chenille combo machines.

How do I confirm this motor will fit my machine?
To confirm compatibility, check your machine‘s original motor model number, the shaft diameter (this motor has a 5mm shaft), and the body size (this is a 42mm NEMA 17 motor). If you’re unsure, contact us with your machine model for assistance.

What are the key technical specifications of this motor?
The 42BYG560-4 is a 2-phase, 4-wire stepper motor with a 42mm x 42mm body, 5mm shaft diameter, 14mm shaft length, and 63mm overall height. It features a 6-pin JST plug connector.

What is included with my purchase?

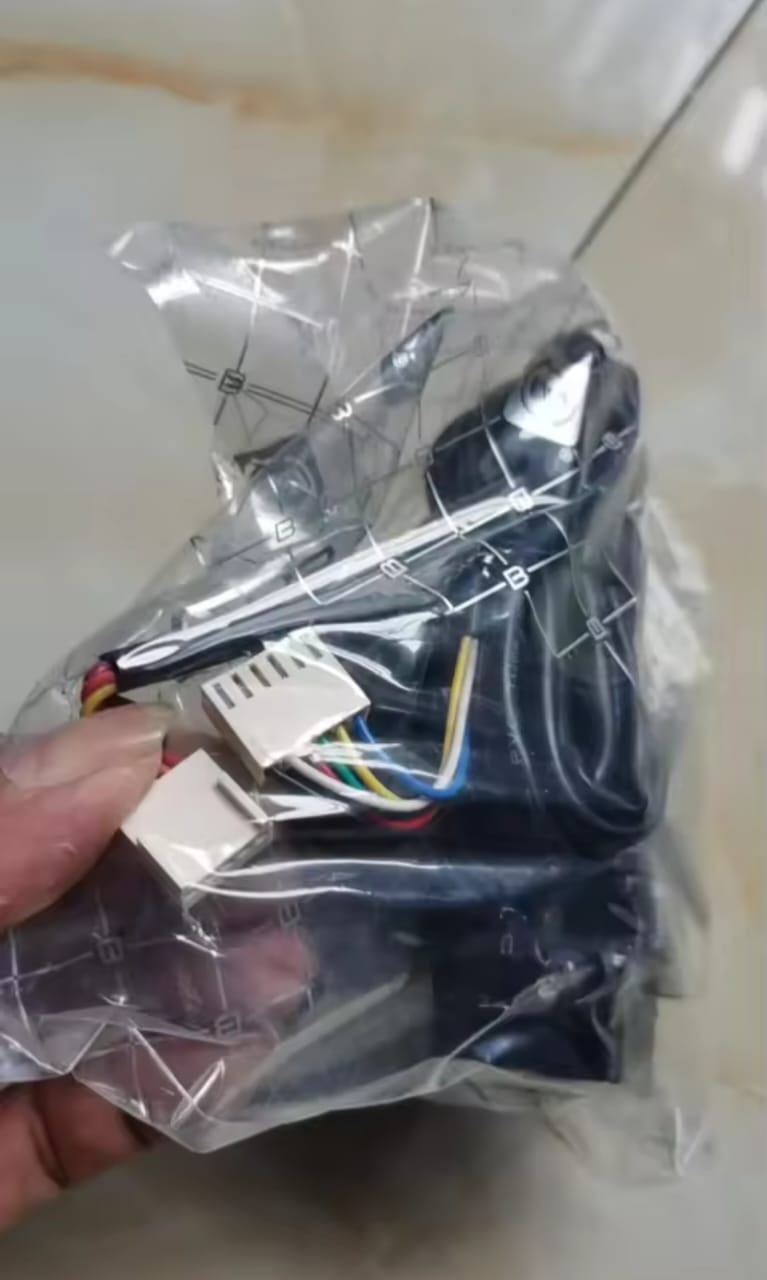

Your purchase includes one 42BYG560-4 Stepper Motor with a pre-attached cable and connector.

How does 360 Digitizing Shop ensure quality, and what is the refund policy?
Every 42BYG560-4 Stepper Motor is rigorously function-tested before shipping. In the rare event a defective item arrives, a full refund will be issued within 4 days under our buyer protection policy.
