Are you experiencing inconsistent stitch quality, frequent machine downtime, or struggling with motors that can’t keep up with demanding embroidery tasks? A weak or unreliable stepper motor can sabotage your production, leading to frustrating errors and lost revenue. The Nema23 57HS22 Stepper Motor from 360 Digitizing Shop is engineered to solve these critical problems, providing the power and precision your embroidery business needs to thrive.

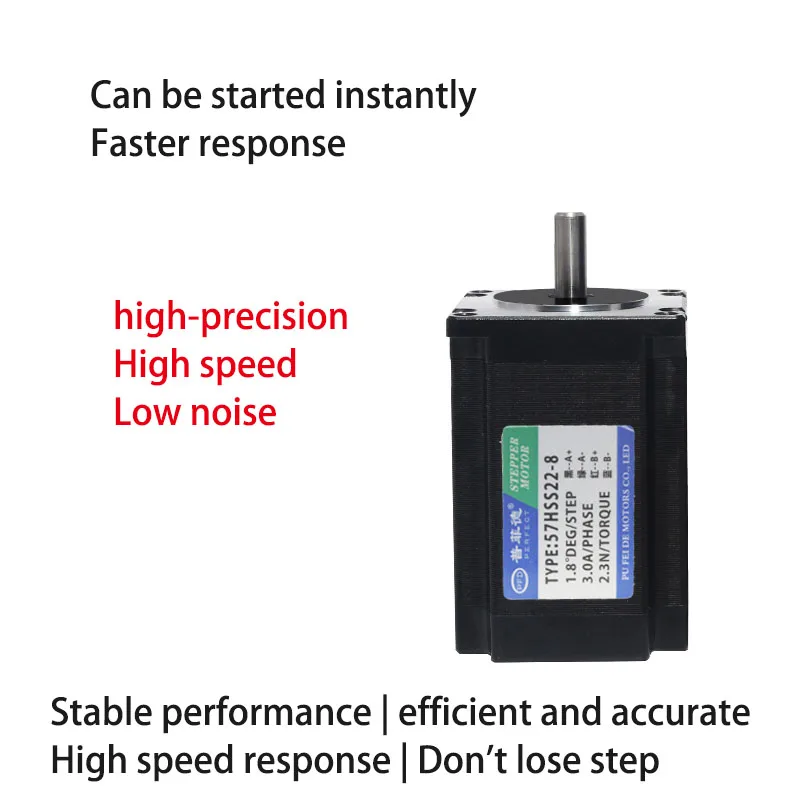

This high-torque hybrid stepper motor is designed to deliver stable, accurate motion control, crucial for every aspect of your embroidery machine‘s operation. Its 1.8° step angle ensures exceptionally fine resolution, translating directly into crisper, more accurate embroidery designs. With torque options ranging from 1.2N.M to 2.8N.M, this motor provides ample power to prevent missed steps, even when driving heavy embroidery heads, managing complex hoop movements, or operating at high speeds across various fabric types. The robust 8mm single output shaft ensures a secure and durable connection to your machine‘s mechanical components.

Eliminate Inconsistent Stitching and Machine Downtime

Poor motor performance leads to skipped stitches, misalignments, and frequent machine stops. Our Nema23 57HS22 Stepper Motor provides the consistent, powerful motion needed to maintain stitch integrity and reduce frustrating interruptions. Its durable construction and energy-efficient design mean less wear and tear, extending the lifespan of your machine and keeping production running smoothly.

Achieve Unmatched Precision and Quality

The 1.8° step angle is critical for high-fidelity embroidery. This precision allows for exact positioning, ensuring that every stitch lands exactly where it should. Whether you’re working on intricate logos, fine lettering, or dense fills, this motor helps you achieve the professional-grade quality that sets your work apart and satisfies your clients.

Ensure Long-Term Reliability Under Demanding Use

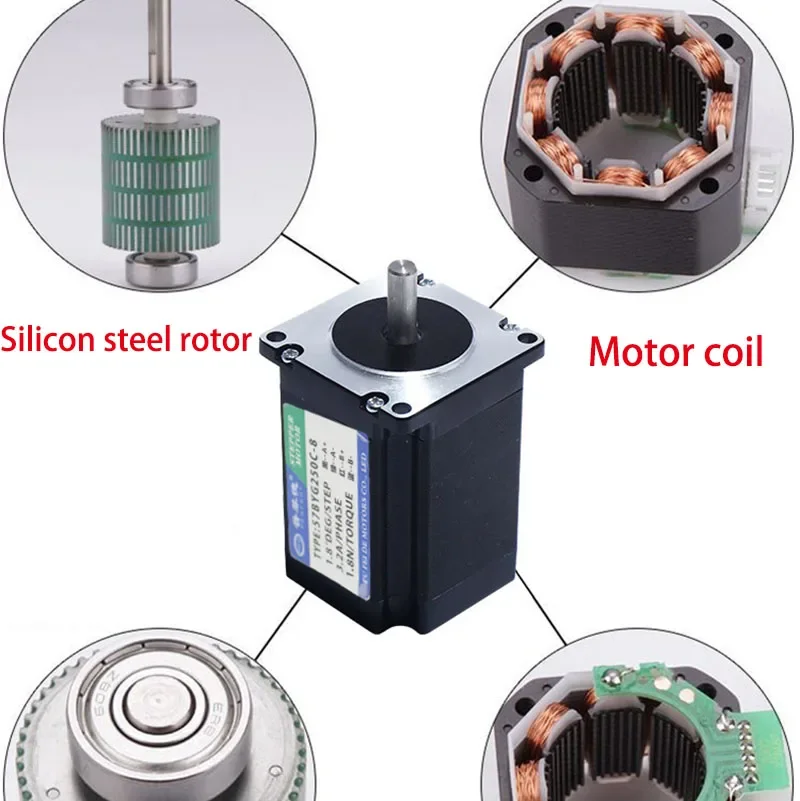

Built with durable, heat-resistant materials, this 2-phase HYBRID Nema23 Stepper Motor is designed for the continuous, heavy-duty demands of industrial embroidery. It operates with low noise and vibration, contributing to a smoother, more stable machine environment and reducing operator fatigue. With CCC certification, you can trust in its consistent performance and safety.

Compatible With:

• Tajima Embroidery Machines
• Barudan Embroidery Machines
• SWF Embroidery Machines
• Ricoma Embroidery Machines
• Happy Industrial Embroidery Machines
• ZSK Industrial Embroidery Machines
• Brother Industrial Embroidery Machines
• Most Nema23-compatible motion control systems

We recommend confirming your machine model or existing motor specifications before ordering. Not sure? Contact us with your machine model and we will confirm compatibility.

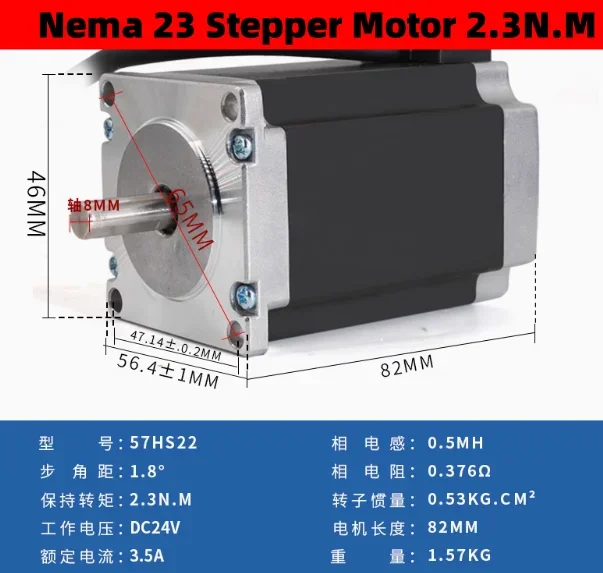

Technical Specifications:

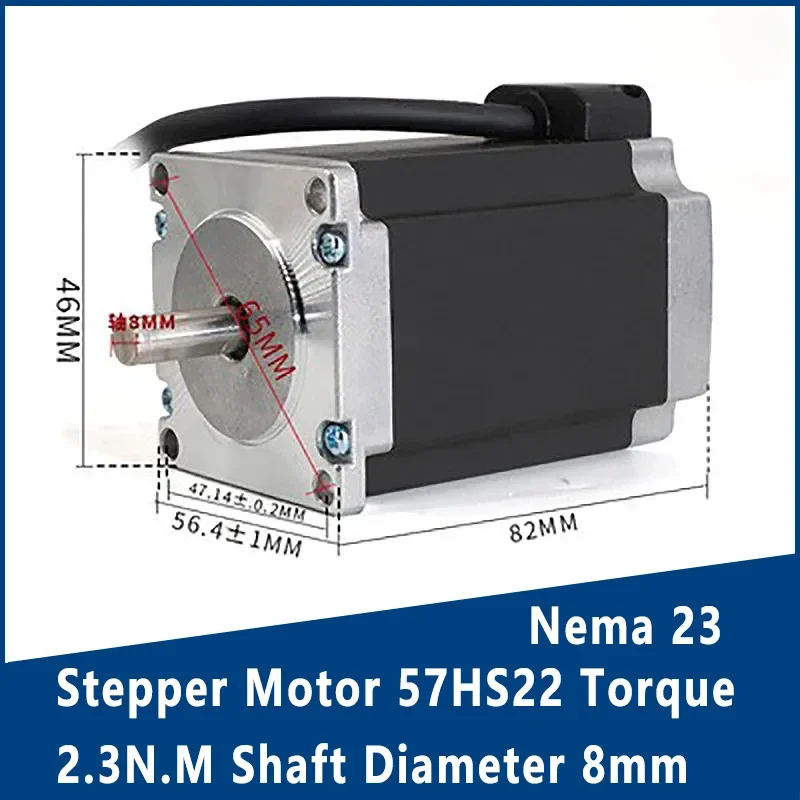

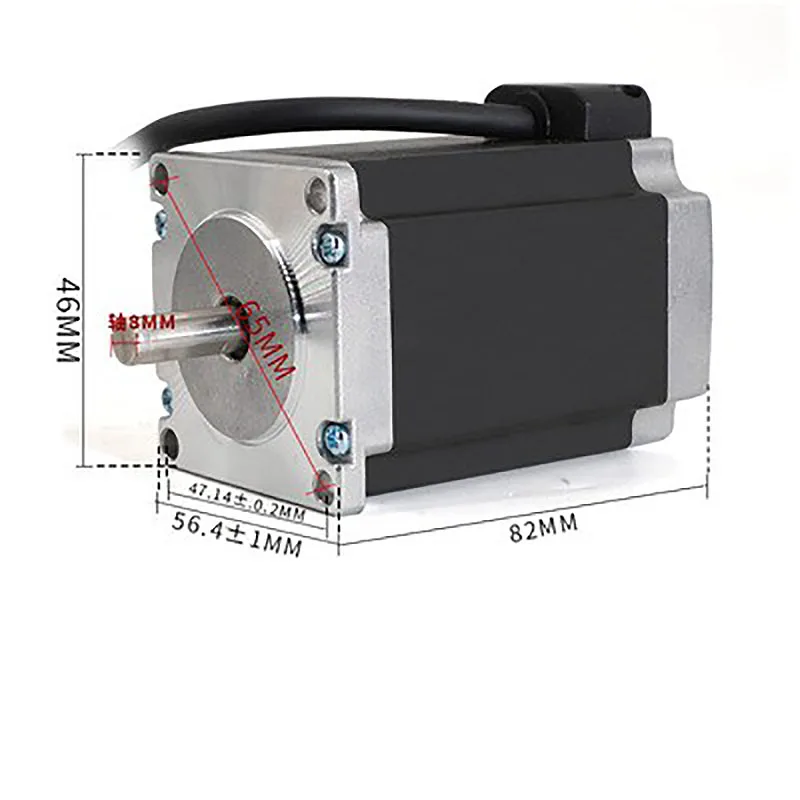

• Model Number: Nema23 Stepper Motor, 57HS22

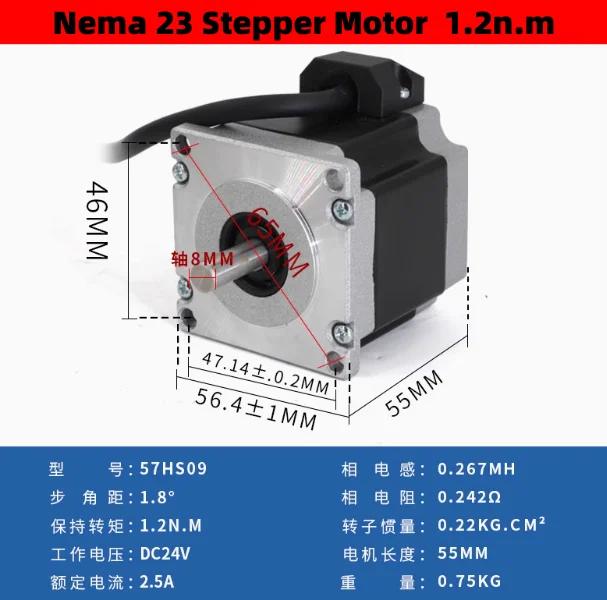

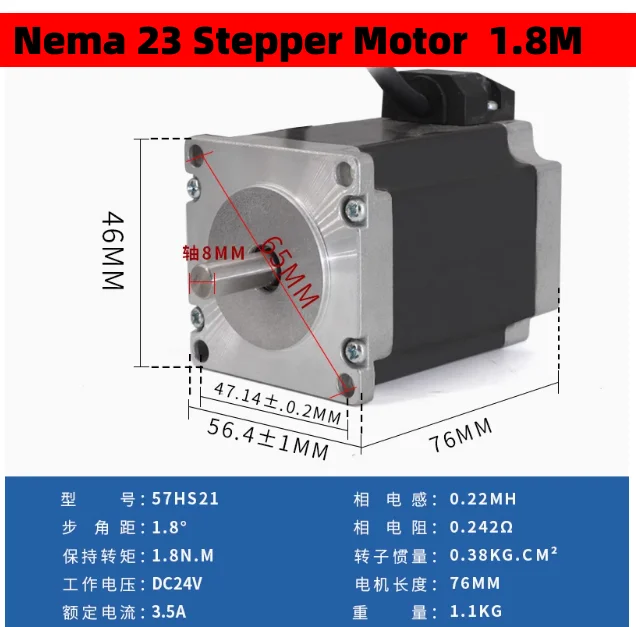

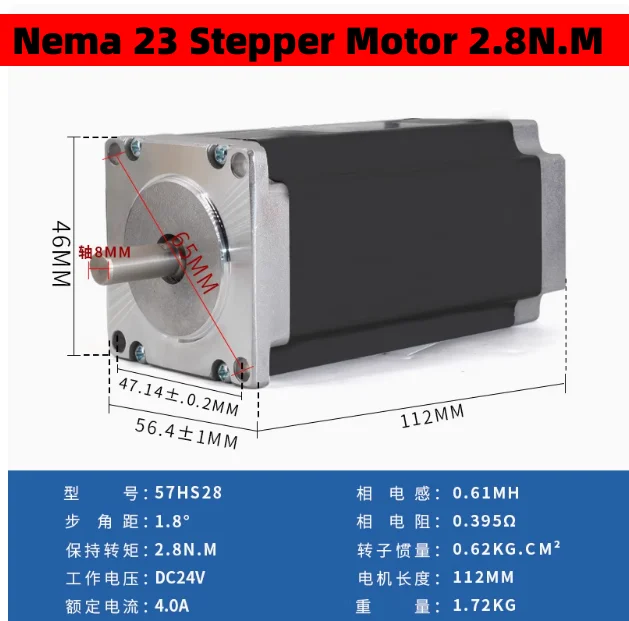

• Torque Options: 1.2N.M, 1.8N.M, 2.3N.M, 2.8N.M
• Step Angle: 1.8°
• Shaft Diameter: 8mm Single Output Shaft
• Phase: 2
• Type: HYBRID
• Certification: CCC
• Wiring: Black line A+, Green line A -, Red line B+, Blue line B-

At 360 Digitizing Shop, every Nema23 Stepper Motor is function-tested before shipping to ensure you receive a perfectly operating unit. In the rare event a defective item arrives, your purchase is protected, and a refund will be processed within 4 days.

Frequently Asked Questions

What is the primary function of this Nema23 Stepper Motor?
This Nema23 Stepper Motor is designed to provide precise, high-torque motion control for industrial embroidery machines, ensuring consistent stitch quality, accurate hoop movement, and reliable operation across various applications.

What torque options are available for this motor?
This Nema23 Stepper Motor is available with torque options of 1.2N.M, 1.8N.M, 2.3N.M, and 2.8N.M, allowing you to choose the appropriate power for your specific machine and embroidery needs.

How do I ensure this motor fits my embroidery machine?
This motor is compatible with many industrial embroidery machines, including Tajima, Barudan, SWF, Ricoma, Happy, ZSK, and Brother. We recommend confirming your machine model or existing motor specifications (like shaft diameter and step angle) before ordering. You can contact us with your machine model for confirmation.

What are the wiring instructions for this Nema23 Stepper Motor?
The standard wiring for this motor is: Black line A+, Green line A-, Red line B+, Blue line B-.

What is included when I purchase this motor?
Your purchase includes one Nema23 57HS22 Stepper Motor with your selected torque option.

What is 360 Digitizing Shop's quality assurance and refund policy?
Every Nema23 Stepper Motor is function-tested before shipping. If a defective item arrives, you are covered by our buyer protection, and a refund will be processed within 4 days.
