Are you experiencing frustrating step loss, inconsistent stitching, or excessive noise from your embroidery machine‘s motion system? These common issues can lead to costly rework, lost production time, and a damaged reputation for quality. The IHSS57-36-10-RC/EC Nema23 1.2Nm 2-Phase Integrated Stepper Motor Driver with Encoder from 360 Digitizing Shop is engineered to solve these challenges, providing a robust and precise solution for embroidery business owners and machine operators.

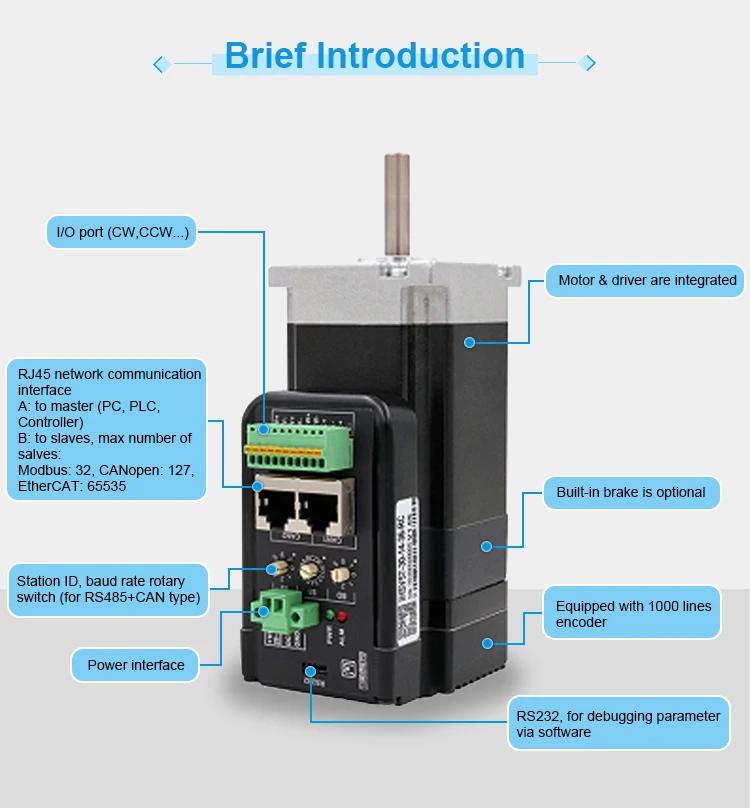

This advanced integrated stepper motor combines the motor, driver, and a high-resolution encoder into a single compact unit. This design simplifies installation and ensures seamless communication, allowing for true closed-loop control. The integrated encoder constantly monitors the motor‘s position, immediately correcting any deviations and preventing step loss even under varying loads. This translates directly into perfectly aligned stitches, sharper designs, and reliable operation, making it an essential upgrade for any precision-demanding application.

Eliminate Step Loss and Inaccurate Stitching

Traditional open-loop stepper systems can lose steps when encountering resistance, leading to misaligned patterns and wasted materials. Our integrated closed-loop system, featuring a built-in encoder, provides real-time position feedback. This means the motor always knows its exact position, making instant adjustments to prevent step loss and ensure every stitch is precisely where it should be. Experience unparalleled accuracy and consistency in your embroidery work, boosting your output quality and reducing material waste.

Upgrade for Enhanced Machine Performance and Longevity

The IHSS57-36-10-RC/EC delivers a powerful 1.2Nm of holding torque and operates with smooth, low-noise precision. Its efficient 2-phase hybrid design ensures reliable performance and a longer lifespan for your machine‘s motion components. By upgrading to this high-performance integrated driver, you’re not just replacing a part; you’re investing in the future reliability and productivity of your valuable embroidery equipment.

Streamline Integration with Advanced Communication

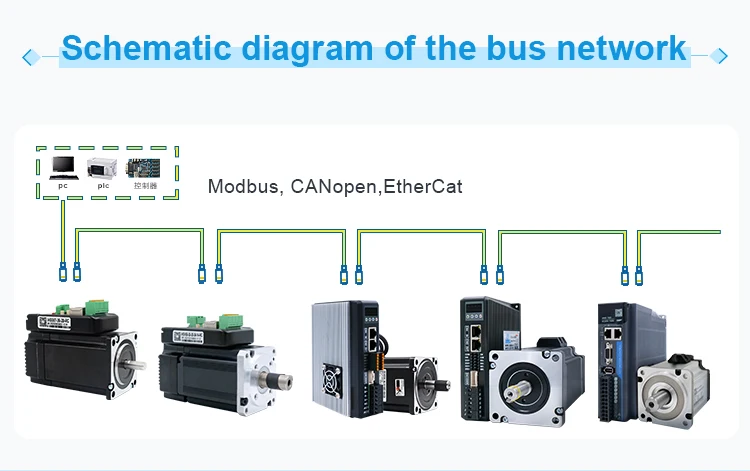

Designed with advanced Modbus RTU and CANopen communication protocols, this integrated stepper motor driver offers versatile connectivity for modern embroidery setups and CNC systems. Its plug-and-play design simplifies installation, allowing for quick and efficient upgrades or repairs. Spend less time on complex wiring and configuration, and more time on profitable production.

Works With & For:

• Tajima Embroidery Machines: All NEO series, TFMX series, TFMX-C series
• Barudan Embroidery Machines: BEKY series, BEVT series, Elite series
• Ricoma Embroidery Machines: R550 series, RCM series
• HappyJapan Machines: HCD series, HCU series
• SWF Embroidery Machines: E-Series, MAS-Series
• CNC Routers and Automation Systems using Nema23-compatible motors
• Embroidery machine repair and upgrade projects
• Precision motion control in digitizing equipment
• Replacing or upgrading old stepper motors

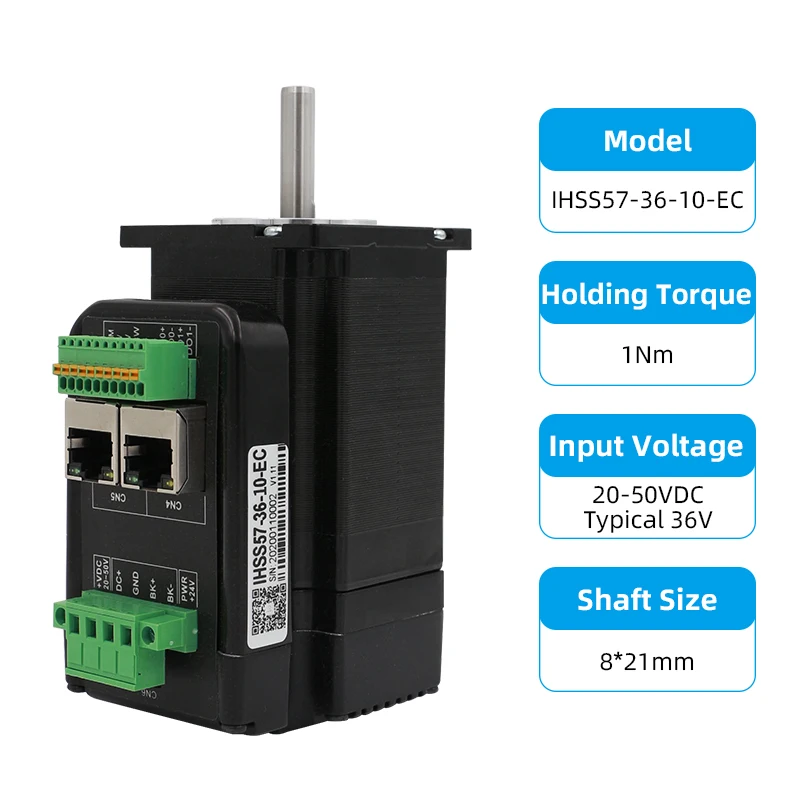

Technical Specifications:

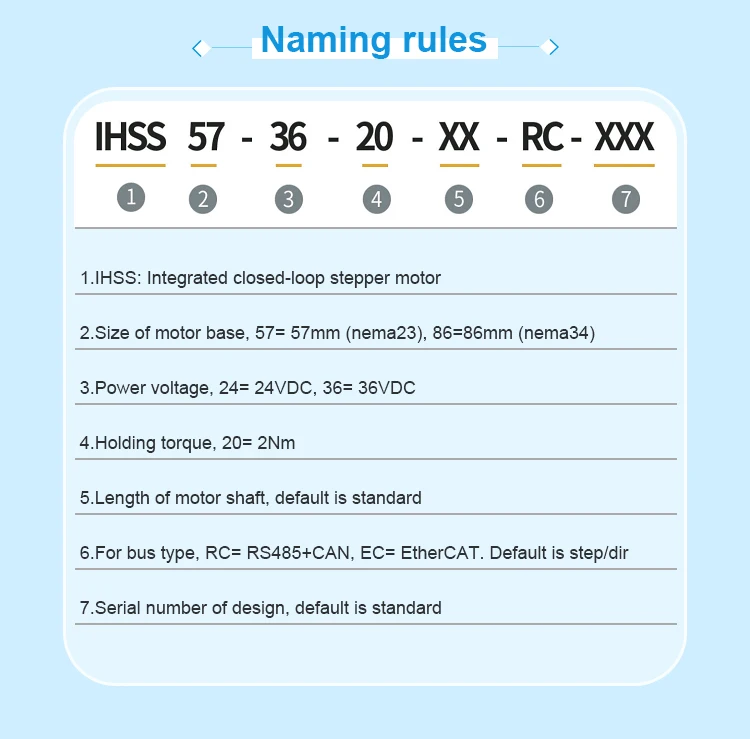

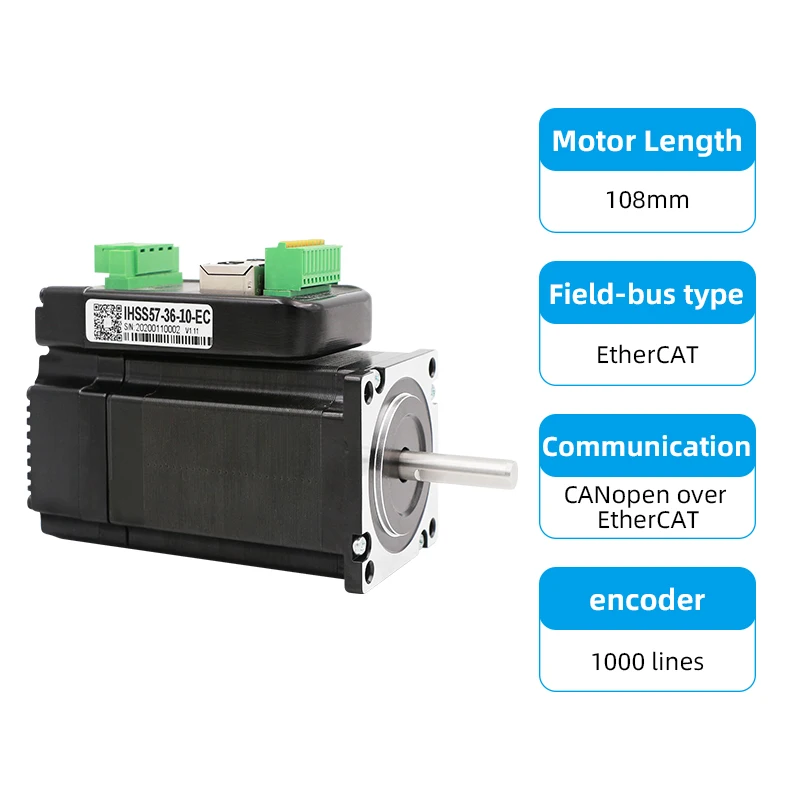

• Model Number: IHSS57-36-10-RC/EC
• Holding Torque: 1.2 Nm
• Current: 4A (Peak)
• Step Angle: 1.8°
• Phase: 2
• Type: HYBRID
• Communication Interface: CANopen / Modbus RTU
• Integrated Encoder: For Closed-Loop Control
• Certification: CE

We recommend confirming compatibility with your specific machine model before ordering. Not sure? Contact us with your machine model and we will confirm the best fit for your needs.

At 360 Digitizing Shop, we prioritize your success. Every IHSS57-36-10-RC/EC integrated stepper motor driver is function-tested before shipping, ensuring that defective units are never sent. In the rare event a defective item arrives, your purchase is protected, and a full refund will be processed within 4 days under our buyer protection policy. Invest with confidence in the performance and reliability of your embroidery business.

Frequently Asked Questions

What is an integrated stepper motor driver with encoder?
An integrated stepper motor driver combines the motor, driver electronics, and a position encoder into a single compact unit. The encoder provides real-time feedback, enabling closed-loop control to prevent step loss and ensure highly accurate positioning.

Which embroidery machine models is the IHSS57-36-10-RC/EC compatible with?
This motor is compatible with Tajima (NEO, TFMX, TFMX-C series), Barudan (BEKY, BEVT, Elite series), Ricoma (R550, RCM series), HappyJapan (HCD, HCU series), and SWF (E-Series, MAS-Series) embroidery machines, as well as Nema23-compatible CNC routers and automation systems. We advise confirming compatibility with your specific machine model.

What are the main benefits of its closed-loop control system?
The closed-loop control system, enabled by the integrated encoder, eliminates step loss, ensures precise positioning, reduces motor noise, and improves overall stitching accuracy and consistency, even under varying loads.

What communication protocols does this integrated stepper motor driver support?
The IHSS57-36-10-RC/EC supports both CANopen and Modbus RTU communication protocols, allowing for flexible integration into various industrial and embroidery machine control systems.

How does 360 Digitizing Shop ensure the quality of this product?
Every IHSS57-36-10-RC/EC integrated stepper motor driver is function-tested before shipping to ensure it is free from defects. If a defective item arrives, buyers are eligible for a full refund within 4 days under our buyer protection policy.

What is included when I purchase this item?
The purchase includes one IHSS57-36-10-RC/EC Nema23 1.2Nm 2-Phase Integrated Stepper Motor Driver with Encoder unit.
