Are you struggling with inconsistent stitch quality, unexpected machine stops, or lost embroidery progress due to power fluctuations? A failing or inadequate stepper motor can severely impact your production efficiency and the precision of your delicate embroidery designs.

The Nema17 42BYG48 42STH47-1684BZ Brake Stepper Motor is engineered to eliminate these frustrations, providing the unwavering stability and precise control your embroidery machine demands.

Uninterrupted Precision: How the Brake Stepper Motor Elevates Your Embroidery

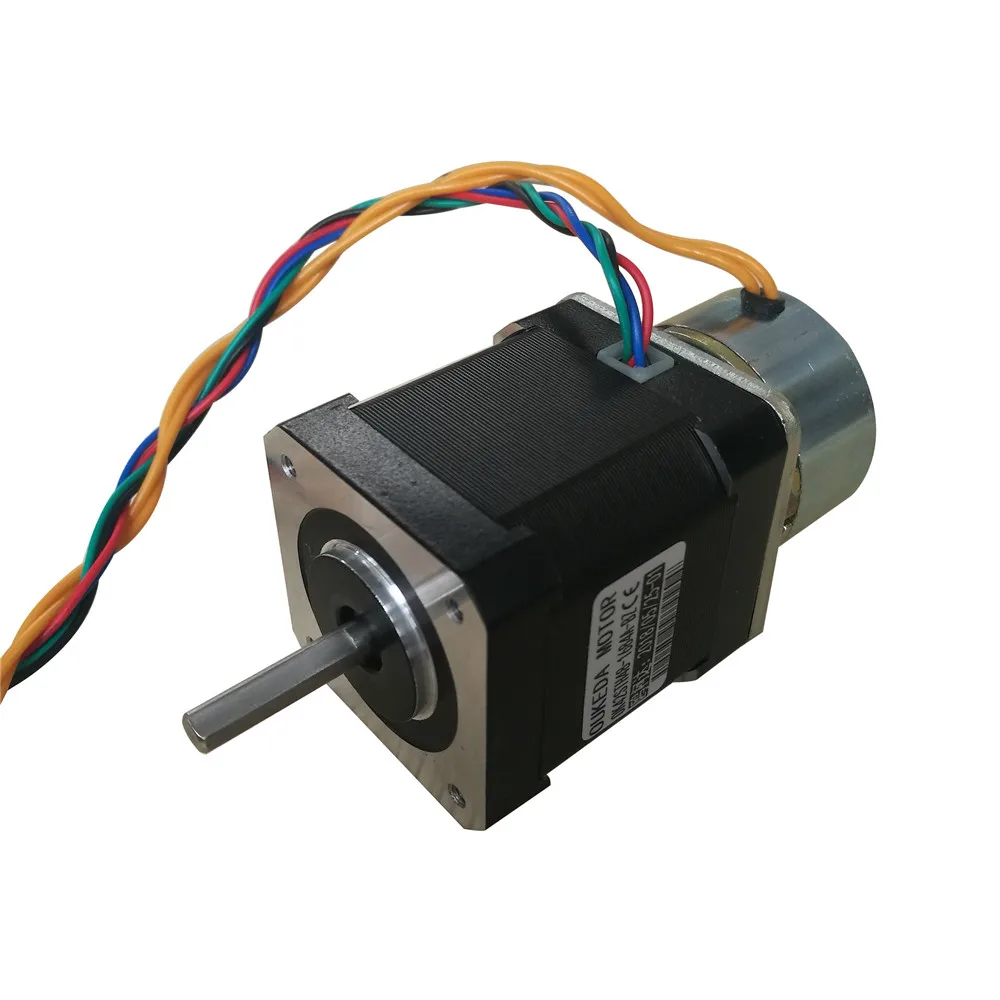

This high-performance Nema17 (42mm) hybrid stepper motor is designed for critical motion control applications in industrial and commercial embroidery machines. With a 1.8-degree step angle and 2-phase operation, it delivers smooth, accurate, and repeatable movements, essential for intricate designs.

The integrated 24V power-off brake system is a critical safety and precision feature. In the event of a power loss or machine shutdown, the brake automatically engages, locking the motor shaft in position. This prevents the embroidery head from drifting, safeguarding your work-in-progress, preventing needle breaks, and ensuring your design registration remains perfect when power is restored.

Boasting a robust 0.55NM holding torque and operating at 1.68A, this motor provides ample power to drive embroidery heads with high precision, reducing vibration and contributing to crisp, clean stitch formation across all fabric types. The 5mm shaft diameter ensures compatibility with a wide range of existing machine components.

Applications & Use Cases:

• Driving embroidery machine heads
• Controlling frame movement systems
• Ensuring precise needle bar positioning
• Applications requiring high holding torque during static states

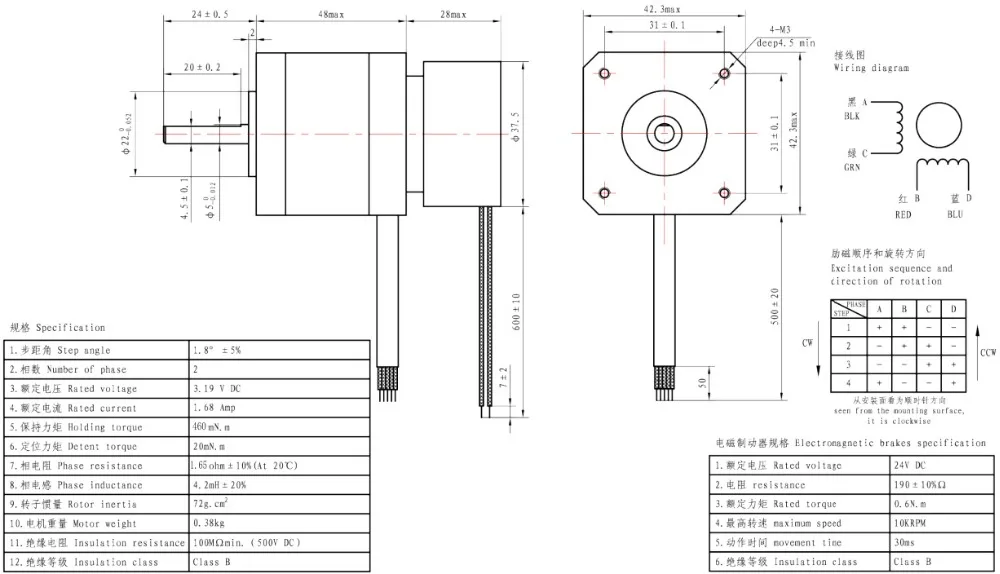

Technical Specifications:

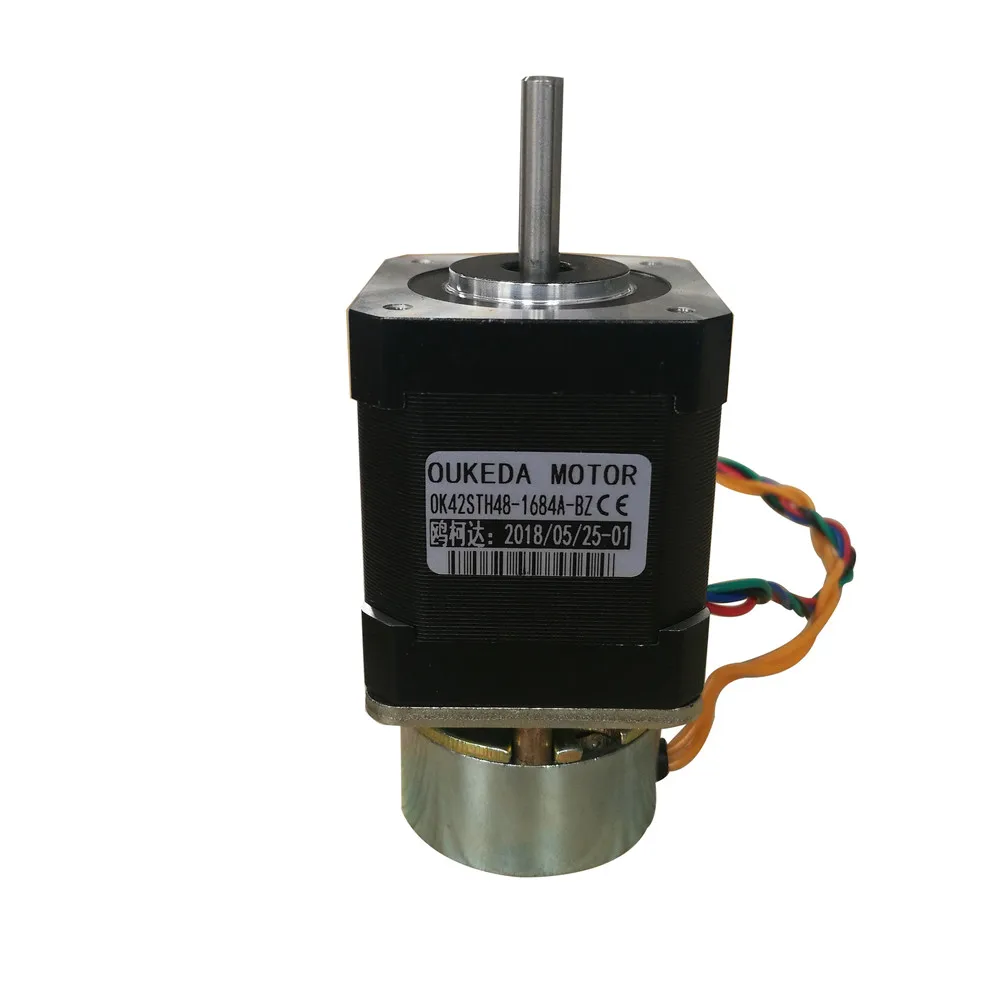

• Model Numbers: 42BYG48, 42STH47-1684BZ, 42STH48-1684A-BZ
• Motor Type: Nema17 Hybrid Stepper Motor
• Phase: 2
• Step Angle: 1.8 degrees
• Holding Torque: 0.55NM
• Rated Current/Phase: 1.68A
• Voltage: 24V DC
• Shaft Diameter: 5mm
• Gear Ratio: 100:1
• Brake System: Integrated 24V Power-Off Brake
• Certification: CCC

Compatible With:

• Tajima Embroidery Machines
• Barudan Embroidery Machines
• Brother PR & Industrial Series
• SWF Embroidery Machines
• Happy Embroidery Machines
• Ricoma Embroidery Machines
• ZSK Embroidery Systems
• Melco Embroidery Systems

This motor is designed for use with the listed machine types. We advise confirming your machine‘s specific model or existing motor specifications before ordering to ensure optimal fit. Not sure? Contact us with your machine model, and we will confirm compatibility for you.

Why Choose 360 Digitizing Shop?

At 360 Digitizing Shop, we understand the importance of reliable components for your business. Every Nema17 42BYG48 42STH47-1684BZ Brake Stepper Motor is meticulously function-tested before shipping, ensuring that defective units never leave our facility. In the rare event a defective item arrives, your purchase is protected: we guarantee a full refund within 4 days under our buyer protection policy. Invest in quality and peace of mind for your embroidery operations.

Frequently Asked Questions

What is the primary function of this Nema17 brake stepper motor?
This motor provides precise, controlled motion for critical components like embroidery heads or frame drive systems, ensuring accurate needle positioning and stitch quality in embroidery machines.

How does the integrated power-off brake system work?
The 24V power-off brake automatically engages when power is lost or the machine is stopped, locking the motor shaft to prevent movement. This protects work-in-progress and maintains design registration.

How can I confirm this motor will fit my embroidery machine?
This motor is designed for Tajima, Barudan, Brother PR & Industrial, SWF, Happy, Ricoma, ZSK, and Melco machines. We recommend checking your machine‘s existing motor model number or specifications (like shaft diameter, voltage, and holding torque) against our technical specs. If unsure, contact us with your machine model for assistance.

What are the key specifications of this motor?
It is a Nema17 2-phase hybrid stepper motor with a 1.8-degree step angle, 0.55NM holding torque, 1.68A rated current, 24V DC voltage, 100:1 gear ratio, and a 5mm shaft diameter, featuring an integrated 24V power-off brake.

What is your quality assurance and refund policy for this motor?
Every motor is function-tested before shipping to prevent defective units. If a defective item arrives, you are eligible for a full refund within 4 days under our buyer protection policy.
