Are you battling with inconsistent motor performance, lost steps, or insufficient torque that compromises the precision of your embroidery, CNC, or 3D printing projects? A motor that lacks the necessary power or accuracy can lead to costly errors, wasted materials, and missed deadlines, directly impacting your business’s profitability and reputation. The 360 Digitizing Shop 23HS30-2804S High Torque Nema 23 Stepper Motor is engineered to eliminate these frustrations, providing the robust, precise motion control you need to achieve flawless results every time.

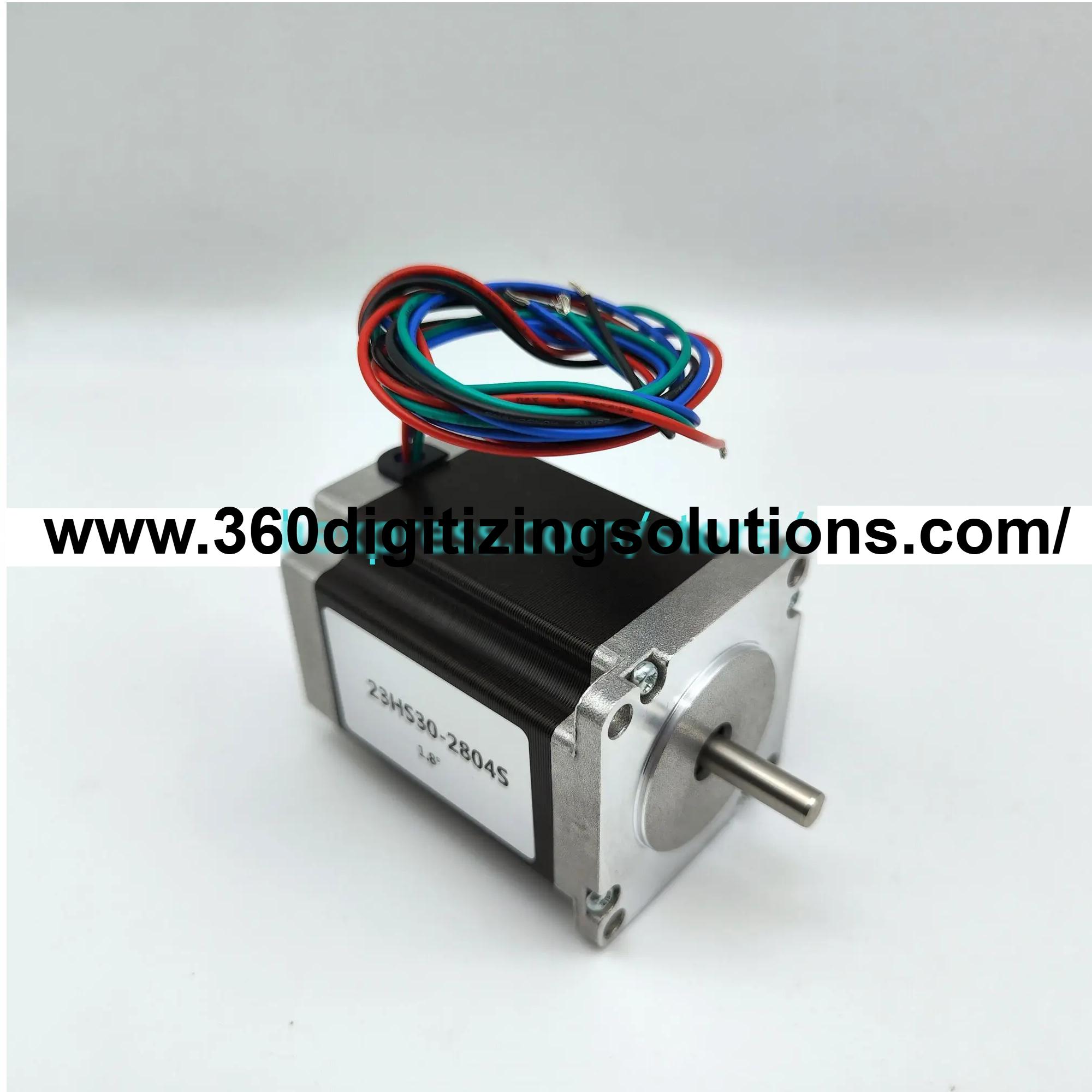

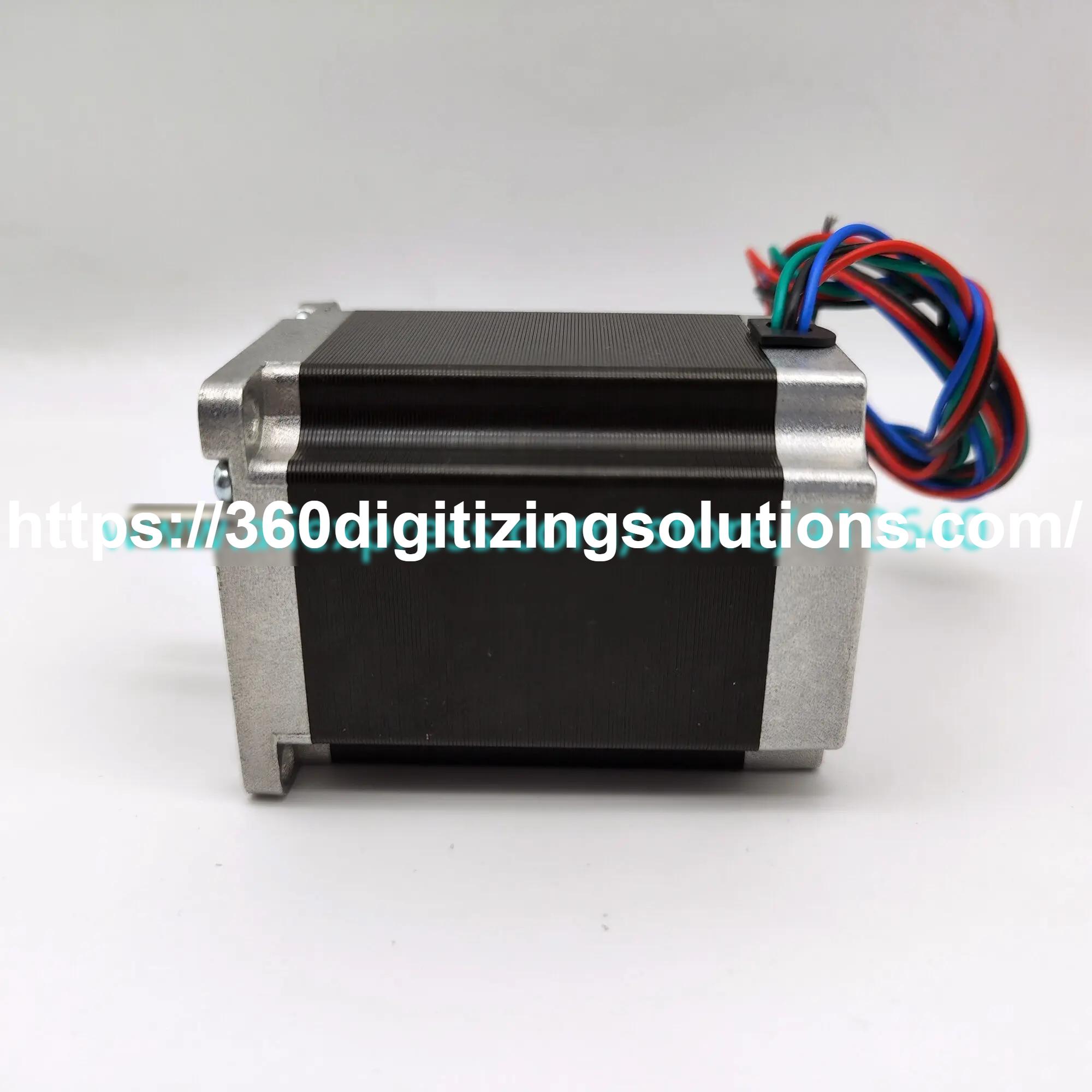

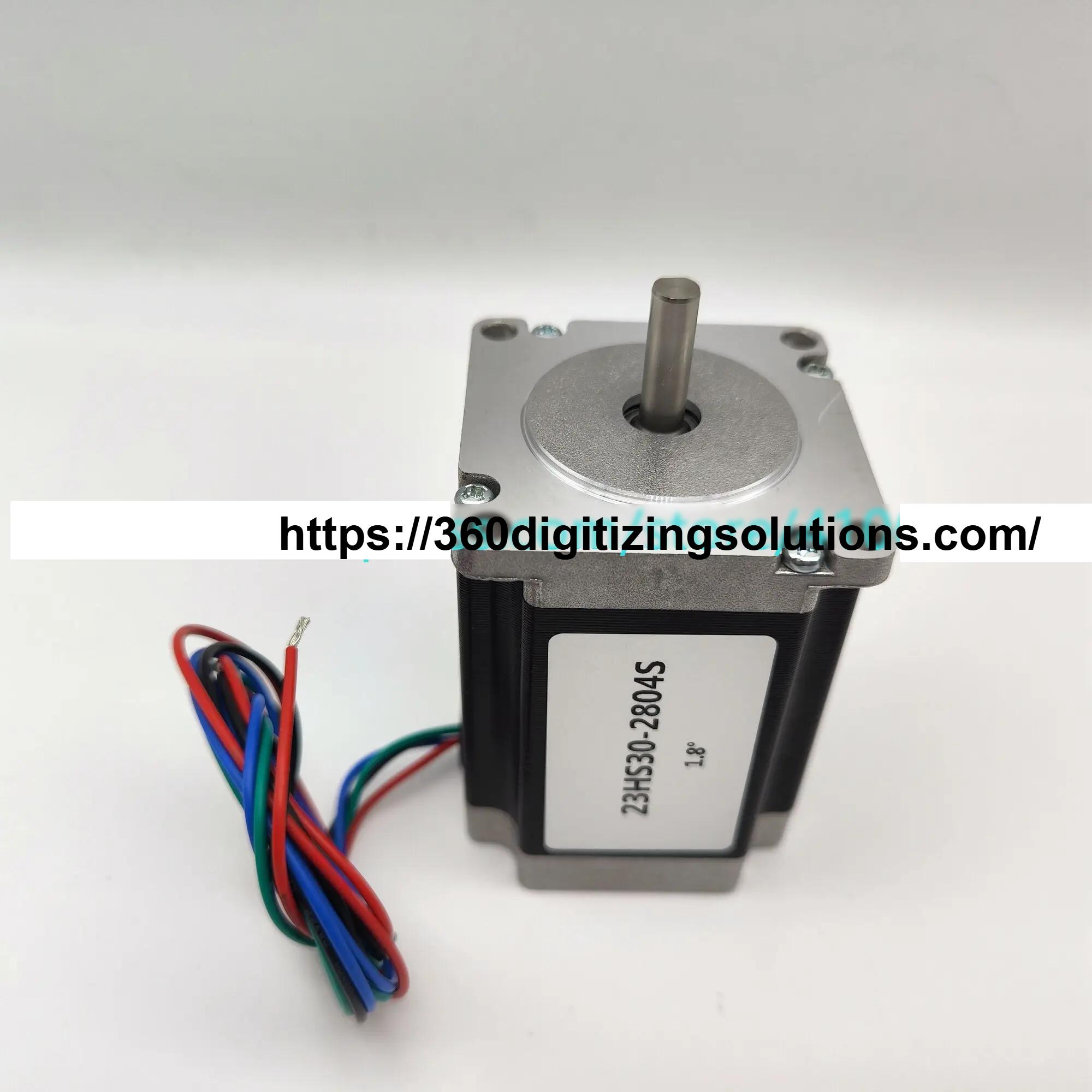

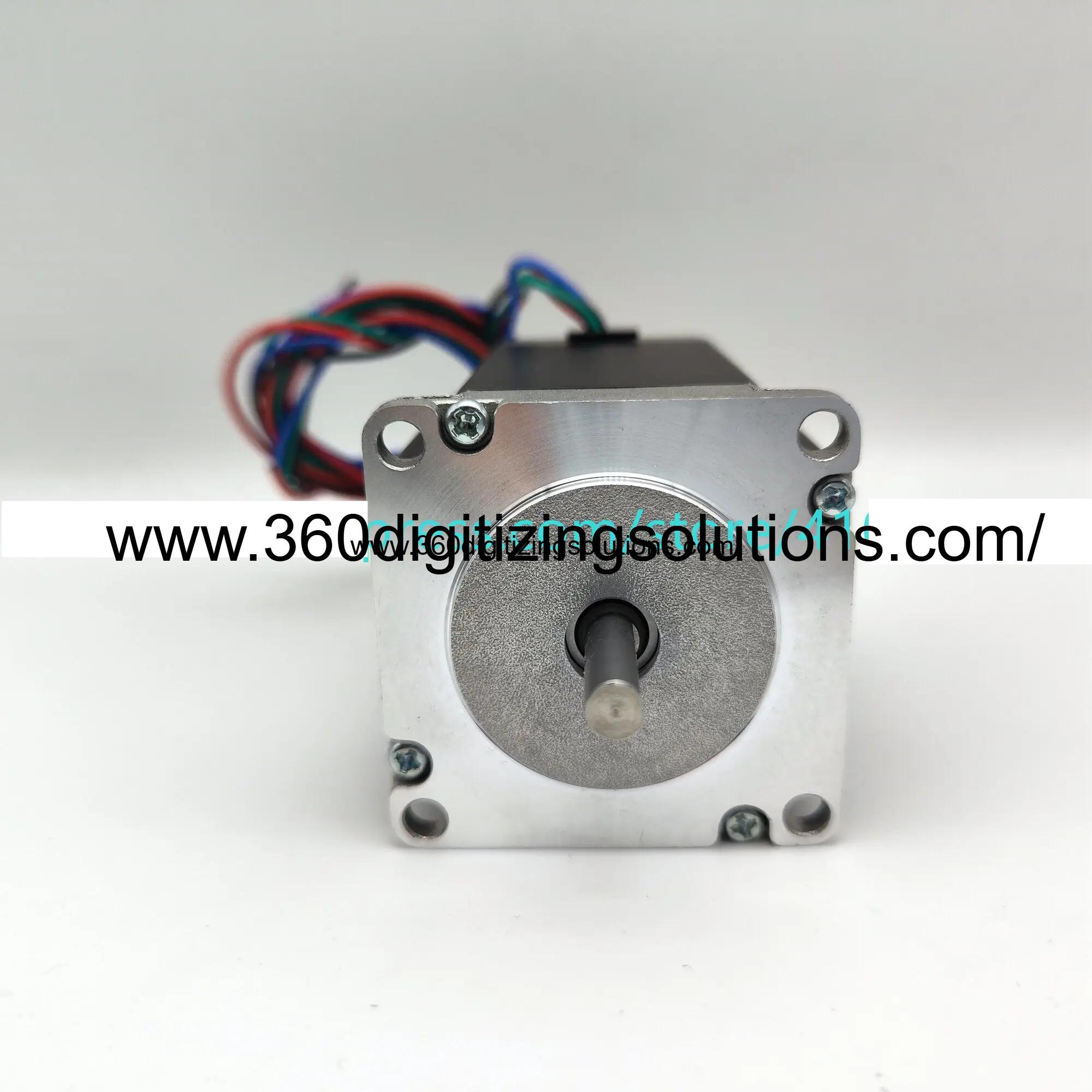

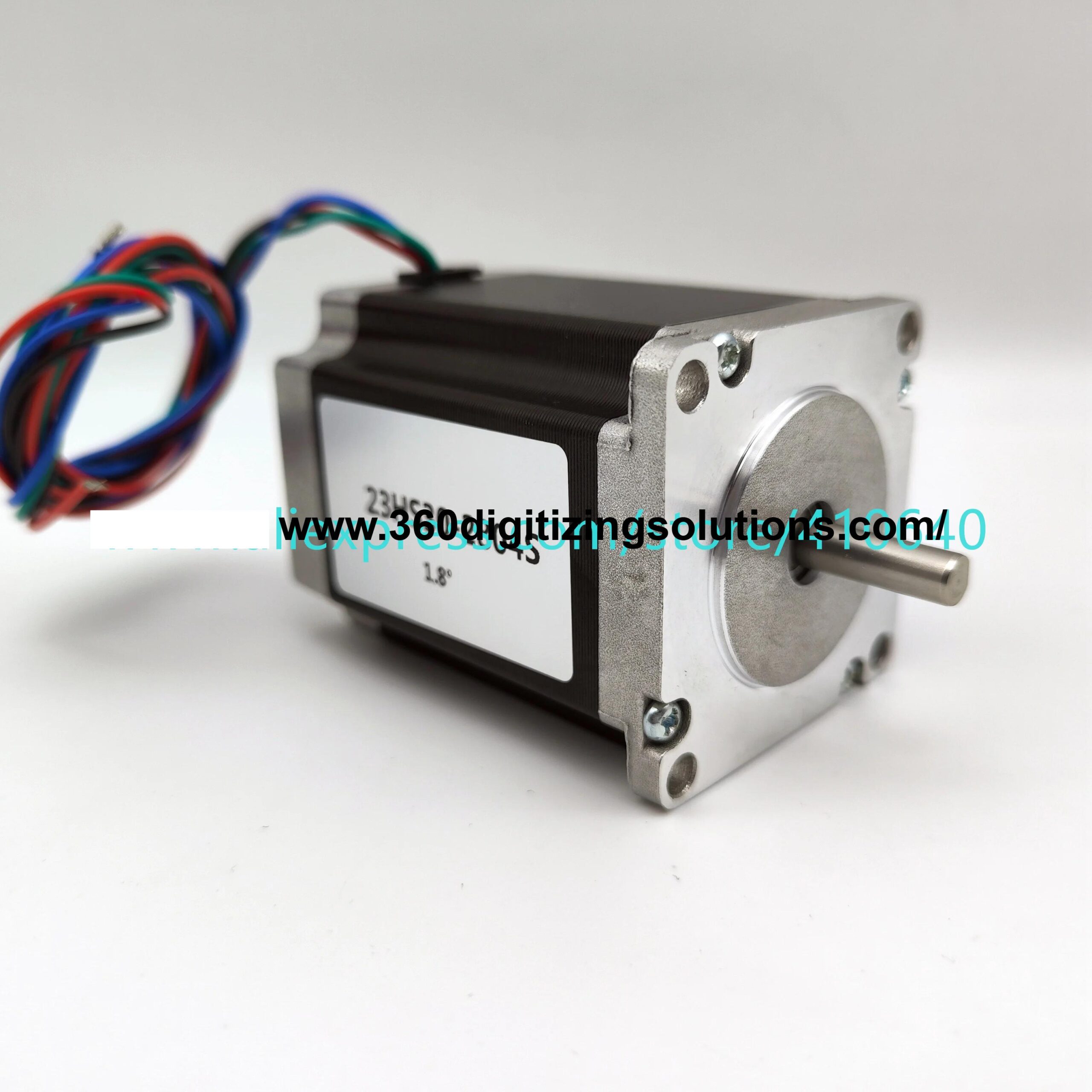

This Nema 23 Stepper Motor (model 23HS30-2804S) is a powerhouse of precision, designed to deliver exceptional control and reliability. With a 1.8° step angle, it allows for incredibly fine and accurate positioning, crucial for intricate designs and precise cuts. Its impressive 189 N.cm (268 oz-in) holding torque ensures that your machine maintains position even under significant load, preventing skipped steps and maintaining accuracy throughout long operations. Operating at 2.8A per phase, this motor provides consistent power, ensuring smooth acceleration, deceleration, and steady movement. The 4-wire configuration makes it highly compatible with standard bipolar stepper motor drivers, simplifying integration into your existing motion control systems. Encased in a durable Nema 23 (57 x 57 mm) frame with a 76mm length, this motor is built to withstand the demands of continuous industrial use, offering a long service life and dependable performance.

Unlock New Capabilities and Revenue Streams

The 23HS30-2804S High Torque Nema 23 Stepper Motor is a versatile component that empowers a wide array of precision-driven applications, ensuring your operations run smoothly and efficiently:

• CNC Machines: Ideal for CNC routers, plasma cutters, laser engravers, and milling machines requiring precise tool path control.
• 3D Printers & RepRap Machines: Provides reliable and accurate extrusion and axis movement for high-quality 3D prints.
• Embroidery Machines: Ensures intricate stitch precision and consistent fabric handling for professional embroidery results.
• Robotics & Automation Systems: Powers robotic arms, linear actuators, and motion platforms where accurate positioning is critical.
• Textile Equipment: Contributes to the precise operation of various textile machinery.
• Analytical & Medical Instruments: Supports applications demanding high precision and reliability.
• Precision Telescope Positioning Systems & High-Speed Dome Cameras: Offers the control needed for delicate adjustments.

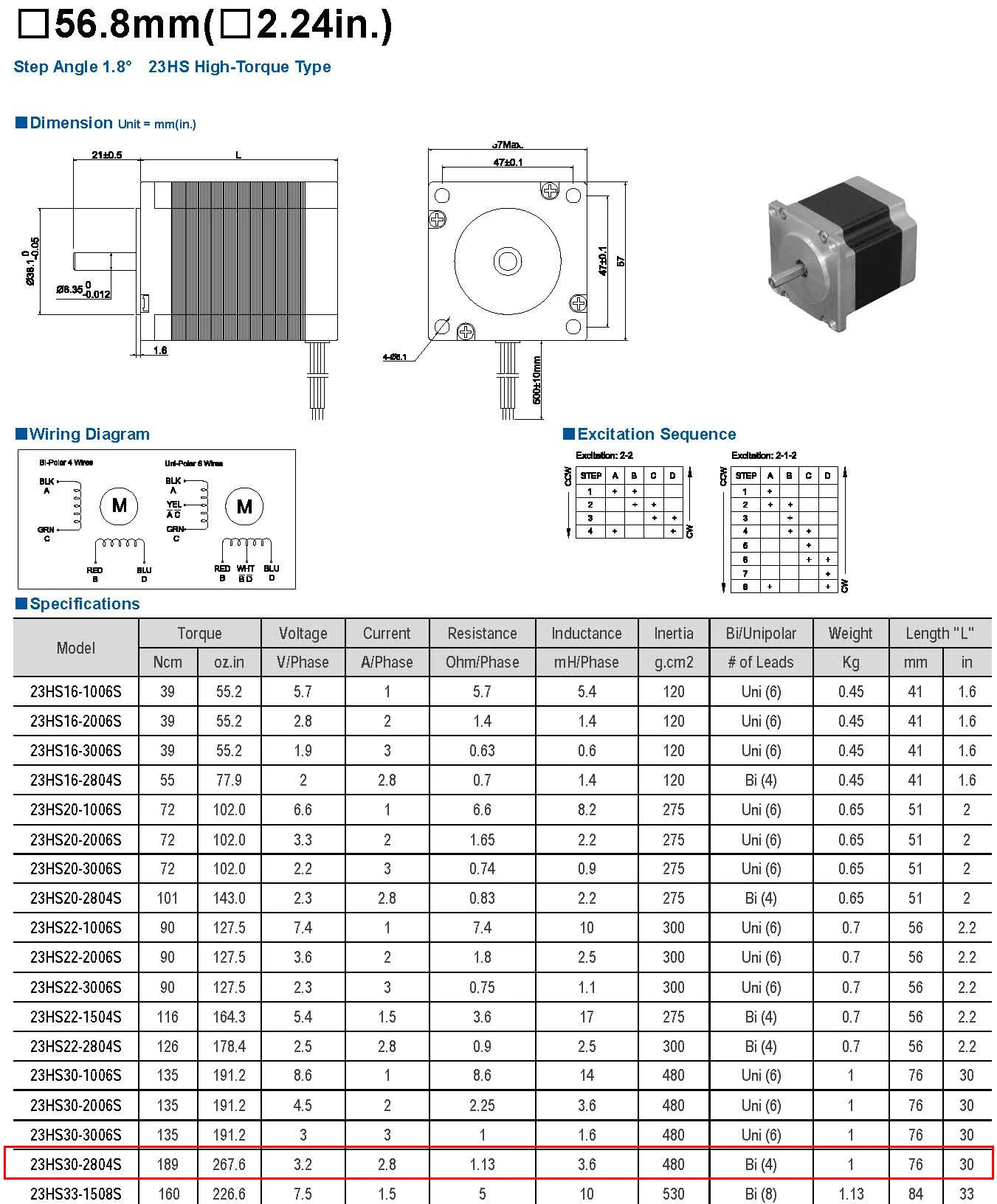

Technical Specifications for Uncompromised Performance

• Model Number: 23HS30-2804S
• Step Angle: 1.8°
• Phase: 2
• Holding Torque: 189 N.cm (268 oz-in)
• Rated Current/Phase: 2.8 A
• Type: HYBRID Stepper Motor
• Motor Length: 76 mm
• Frame Size: Nema 23 (57 x 57 mm)
• Shaft Diameter: 6.35 mm
• Number of Lead Wires: 4 (Bipolar)
• Step Angle Accuracy: ±5% (When no loading and full step)
• Resistance Accuracy: ±10%
• Inductance Accuracy: ±20%
• Insulation Resistance: 100 MΩ Min (500VDC)
• Dielectric Strength: 500VAC for one minute
• Shaft Radial Play: 0.02 mm Max (450g load)
• Shaft Axial Play: 0.08 mm Max (450g load)

To ensure optimal performance and compatibility, we recommend confirming the specific requirements of your machine model before ordering. Not sure? Contact us with your machine model and our experts will gladly assist you.

Why Choose 360 Digitizing Shop for Your Stepper Motor Needs?

At 360 Digitizing Shop, we understand that reliability is paramount. Every 23HS30-2804S Nema 23 Stepper Motor undergoes rigorous function-testing before shipping, guaranteeing that you receive a perfectly operating unit. We are committed to ensuring no defective units are ever sent. In the rare event a defective item arrives, rest assured that you are covered by our buyer protection policy, with a full refund processed within 4 days. Invest in your business with confidence, knowing you’re backed by quality products and exceptional service.

Frequently Asked Questions

What is the holding torque of this motor?
The 23HS30-2804S Nema 23 Stepper Motor has a holding torque of 189 N.cm (268 oz-in), providing strong resistance to external forces when stationary.

What is the step angle of the 23HS30-2804S motor?
This motor features a 1.8° step angle, allowing for precise and controlled rotational movements in small increments.

What applications is this Nema 23 stepper motor suitable for?
This Nema 23 stepper motor is suitable for a wide range of applications including CNC machines (routers, plasma cutters, laser engravers), 3D printers, robotics, linear actuators, motion platforms, and embroidery machines.

How many lead wires does this motor have and what does it mean?
This motor has 4 lead wires, indicating it is designed for bipolar configurations, which are commonly used with most standard stepper motor drivers.

How can I confirm if this motor is compatible with my machine?
To confirm compatibility, please check your machine‘s existing motor specifications (frame size, torque, current, shaft diameter) against the listed attributes. If unsure, contact us with your machine model, and we will help confirm.

What is 360 Digitizing Shop's policy on defective items?
Every motor is function-tested before shipping. If a defective item arrives, you are covered by buyer protection, and a full refund will be processed within 4 days.
