Eliminate Skipped Stitches and Inconsistent Embroidery

Are you struggling with embroidery machines that exhibit inconsistent stitching, skipped steps, or reduced operational speed? These common issues can lead to costly material waste, frustrating project delays, and ultimately, lost revenue. The precision and reliability of your stepper motors are critical to the quality and efficiency of your embroidery business. Upgrade to the 360 Digitizing Shop High Performance Nema23 Stepper Motor, part number 57HS11242A4D8EP-11, and transform these challenges into opportunities for flawless, high-speed production.

Designed to restore and enhance the accuracy of your embroidery machine, this motor ensures every stitch is placed perfectly, empowering you to tackle complex designs with confidence and deliver superior results to your clients.

Unrivaled Precision and Power for Demanding Workloads

The 57HS11242A4D8EP-11 is a robust 2-phase hybrid Nema23 stepper motor, engineered to provide exceptional control and power. With a substantial 3.2 N.m (Newton-meter) of holding torque, this motor firmly holds its position, preventing unwanted movement and ensuring your needle stays on target even during high-speed operations or when working with challenging materials. Its precise 1.8° step angle allows for extremely fine positional adjustments, which translates directly into sharper details, smoother curves, and overall higher definition in your embroidered designs. The 112mm body length and 8mm shaft are optimized for stability and compatibility, providing a direct fit for many industrial embroidery machine configurations. Operating at 4.2A per phase, it delivers consistent power for continuous, heavy-duty use, making it an indispensable component for professional embroidery businesses focused on quality and efficiency.

Applications and Compatible Machines

This high-performance Nema23 Stepper Motor is a vital component for maintaining the precision and speed of various industrial and professional embroidery machines, as well as custom CNC-based systems. It is ideally suited for:

• Replacing worn or underperforming stepper motors.
• Upgrading machines for enhanced speed and accuracy.
• Ensuring precise movement of X, Y, or Z axes.
• Handling intricate designs requiring fine detail.
• Supporting high-volume production environments.

Compatible with:

• Tajima Embroidery Machines
• Barudan Embroidery Machines
• SWF Embroidery Machines
• Happy Embroidery Machines
• Ricoma Embroidery Machines
• Brother PR Series Embroidery Machines (with Nema23 compatibility)
• Custom CNC-based embroidery systems

Precision Engineering for Demanding Workloads

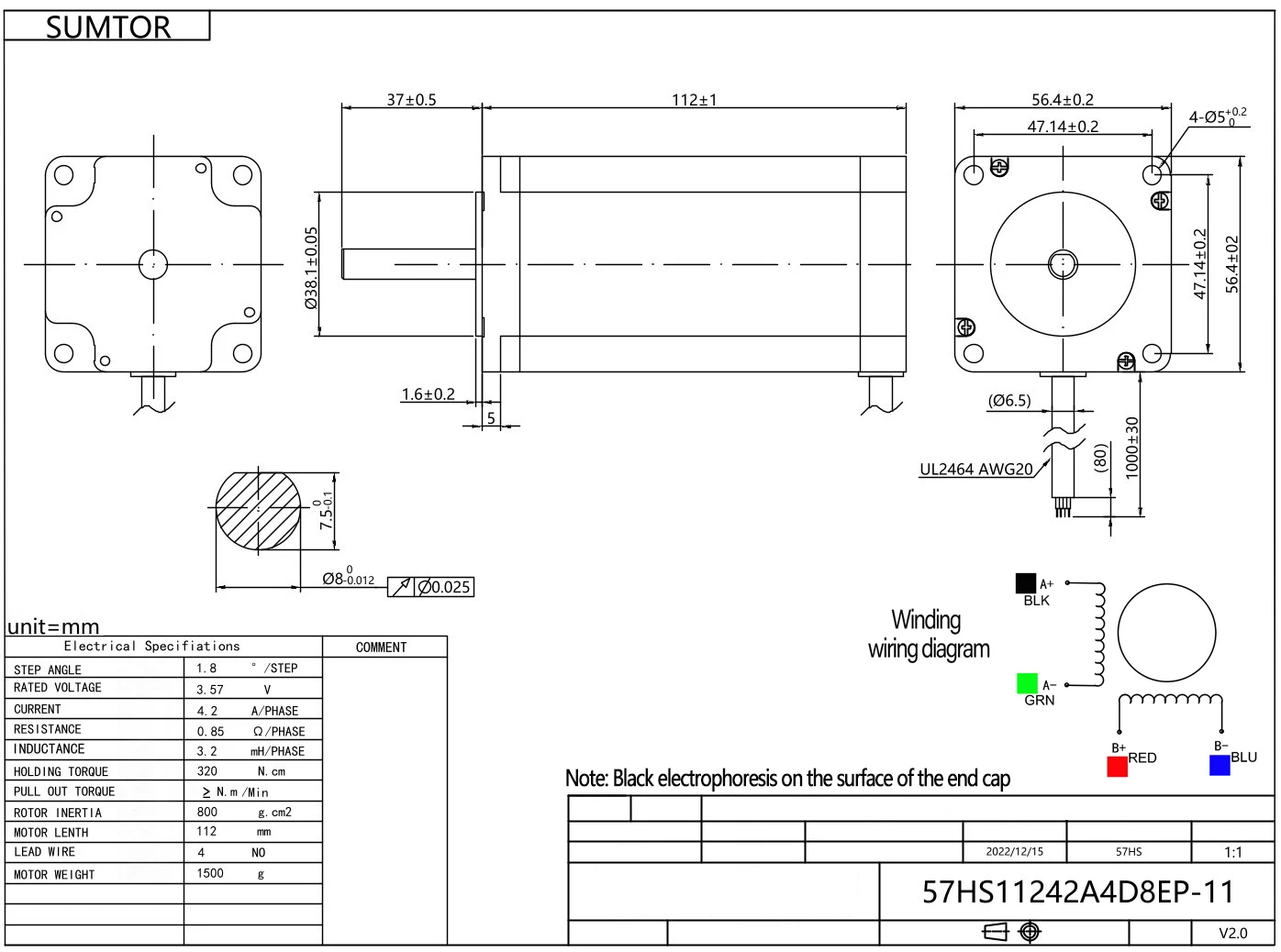

Every detail of the 57HS11242A4D8EP-11 Nema23 Stepper Motor is built for performance:

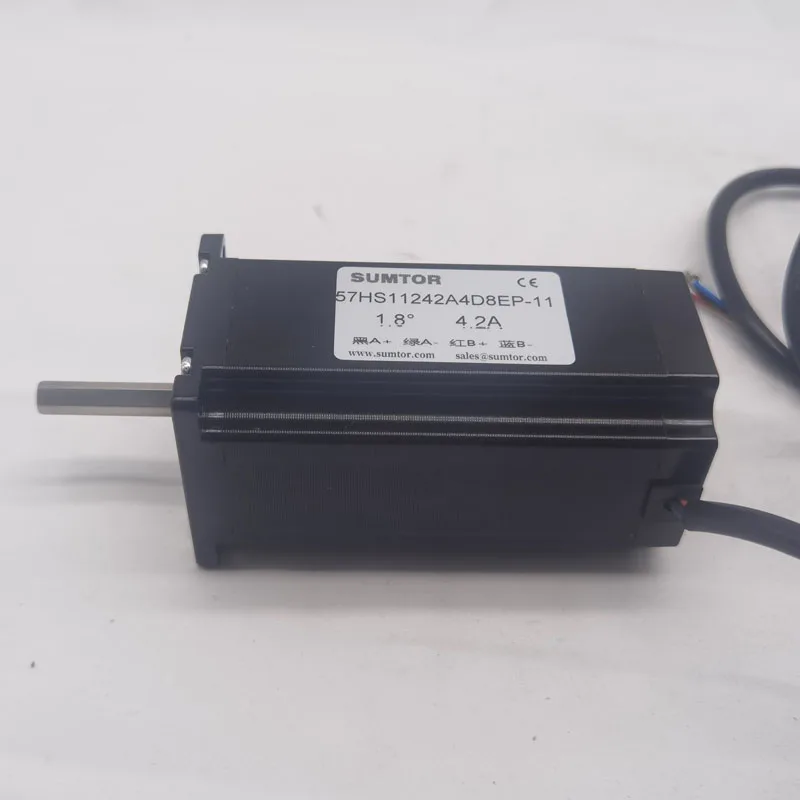

• Model Number: Stepper Motor 57HS11242A4D8EP-11
• Frame Size: NEMA 23, 57mm
• Type: HYBRID Stepper Motor
• Phase: 2
• Step Angle: 1.8°
• Holding Torque: 3.2 N.m
• Current/Phase: 4.2A
• Body Length: 112mm

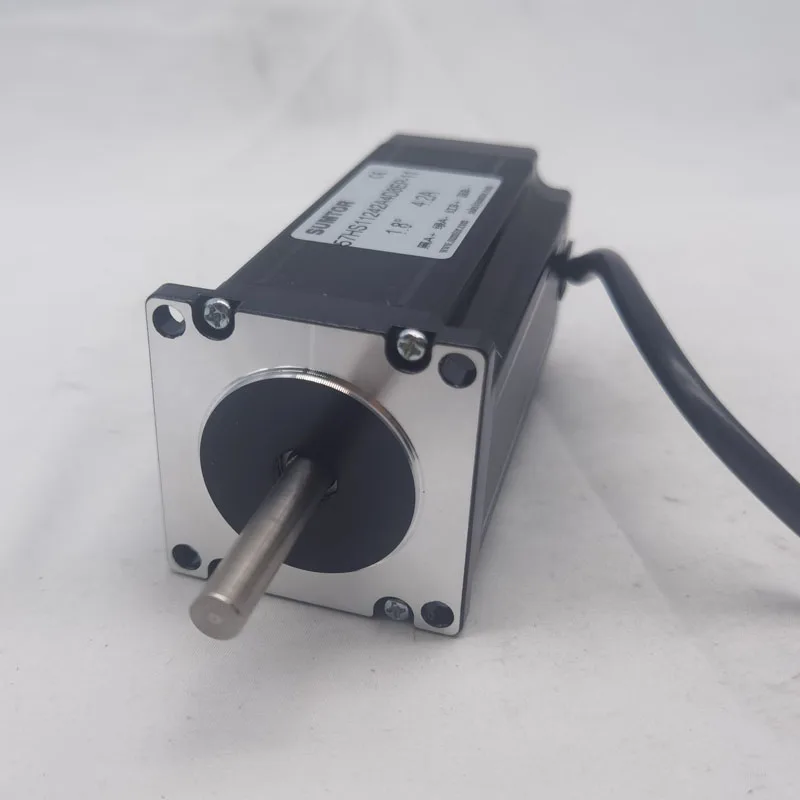

• Shaft Diameter: 8mm (D type single flat)
• Shaft Length: 37mm
• Outgoing Line: Four-wire
• Weight: 1.5KG
• Step Angle Accuracy: ±5%
• Resistance Accuracy: ±10%
• Ambient Temperature: -20~+50 Celsius
• Temperature Rise: 80 Celsius Max
• Insulation Resistance: 100MΩ Min.500VDC
• Dielectric Strength: 500VAC/1 minute
• Certification: CE

Invest in Reliability, Backed by 360 Digitizing Shop

At 360 Digitizing Shop, we understand that downtime is lost revenue. That’s why every 57HS11242A4D8EP-11 Nema23 Stepper Motor is meticulously function-tested before shipping. This rigorous quality control ensures that defective units are never sent, giving you peace of mind from the moment you order.

Should a rare issue occur and a defective item arrive, rest assured that your investment is protected. Under our buyer protection policy, you will receive a full refund within 4 days of reporting the issue. We stand by the quality and performance of our parts, helping your embroidery business run smoothly and profitably.

Important: While this motor is designed for broad compatibility, we always recommend confirming the specific requirements of your machine. Not sure if this is the right fit? Contact us with your machine model and we will gladly confirm compatibility for you.

Frequently Asked Questions

What machines is the 57HS11242A4D8EP-11 Nema23 Stepper Motor compatible with?
This stepper motor is compatible with Tajima, Barudan, SWF, Happy, Ricoma, and Brother PR Series embroidery machines (with Nema23 compatibility), as well as custom CNC-based embroidery systems.

What does 3.2 N.m holding torque mean for my embroidery projects?
A holding torque of 3.2 N.m signifies the motor‘s strong ability to maintain its position when stationary. This prevents skipped steps and ensures precise needle placement, leading to higher quality, more accurate embroidery, especially for intricate designs or high-speed operations.

How does the 1.8° step angle benefit my embroidery designs?
The 1.8° step angle allows for very fine and precise movements of the motor. This translates into smoother curves, sharper details, and overall higher resolution in your embroidered designs, enhancing the professional finish of your work.

What is included with the purchase of this Nema23 Stepper Motor?
Each purchase includes one High Performance Nema23 Stepper Motor, model 57HS11242A4D8EP-11.

How can I ensure this motor will fit my specific embroidery machine model?
We recommend comparing the specifications (Nema23 frame size, 112mm body length, 8mm shaft diameter) with your machine‘s existing motor or manual. If you’re unsure, please contact us with your machine model, and our experts will help confirm compatibility.

What is 360 Digitizing Shop's quality assurance and return policy for this motor?
Every motor is function-tested before shipping to prevent defects. If a defective item arrives, you are protected by our buyer protection policy and will receive a full refund within 4 days of reporting the issue.
