Eliminate Inconsistent Performance and Machine Noise

Are you struggling with inconsistent embroidery results, jerky CNC movements, or excessive machine noise? Precision and reliability are non-negotiable for professional embroidery businesses and CNC operations. Without a high-quality gearbox and stepper motor, your projects can suffer from inaccuracies, vibrations, and premature wear, leading to costly downtime and reduced output. The right components unlock the potential for flawless execution and increased revenue.

Precision Engineering for Flawless Operation

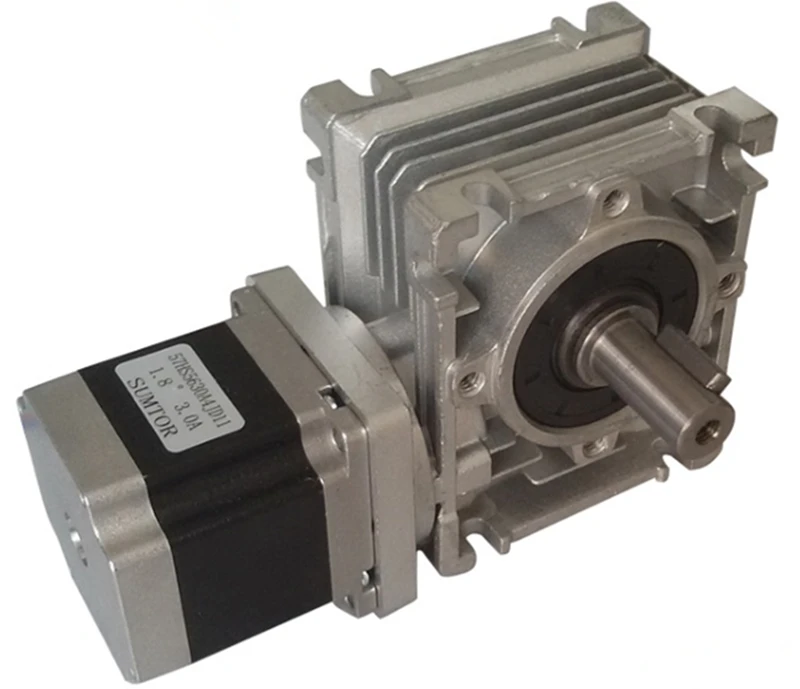

The NMRV030 Worm Gearbox Ratio 30:1, paired with the powerful NEMA23 Stepper Motor (57HS5630A4), is engineered to transform your machine‘s performance. The 30:1 gear ratio is critical: it converts the motor‘s high-speed, low-torque output into significantly increased torque and reduced speed at the gearbox output. This means your machine gains exceptional power for handling tough materials and incredibly fine positional control for intricate details, ensuring every stitch and cut is executed with precision.

Its robust design features a durable aluminum alloy body, which not only provides excellent corrosion resistance but also efficiently dissipates heat. This prevents overheating during continuous operation, extending the lifespan of both the gearbox and motor. Minimal backlash ensures that movement is precise and responsive, eliminating slop and enhancing accuracy in all applications, while its quiet operation allows for a more productive and comfortable work environment.

Designed For Demanding Applications

This high-performance worm gearbox and stepper motor combination is built for stability, accuracy, and longevity across a wide range of industrial and creative applications:

• Tajima Embroidery Machines
• Barudan Embroidery Machines
• Brother PR Series Embroidery Machines
• CNC Routers and Engraving Machines
• 3D Printers using NEMA23 stepper motors
• Industrial Automation Systems
• CNC Milling Machines
• Cutting Tools
• Robotic Motion Control Systems

Technical Specifications

• Product Model Number: 57HS5630RV30G30
• Gearbox Type: NMRV030 Worm Gearbox
• Gear Ratio: 30:1
• Motor Type: NEMA23 Hybrid Stepper Motor (57HS5630A4)
• Motor Holding Torque: 1.1Nm
• Motor Current/Phase: 3A
• Motor Step Angle: 1.8 degrees
• Motor Phase: 2
• Motor Length: 56mm
• Motor Shaft Diameter: 11mm

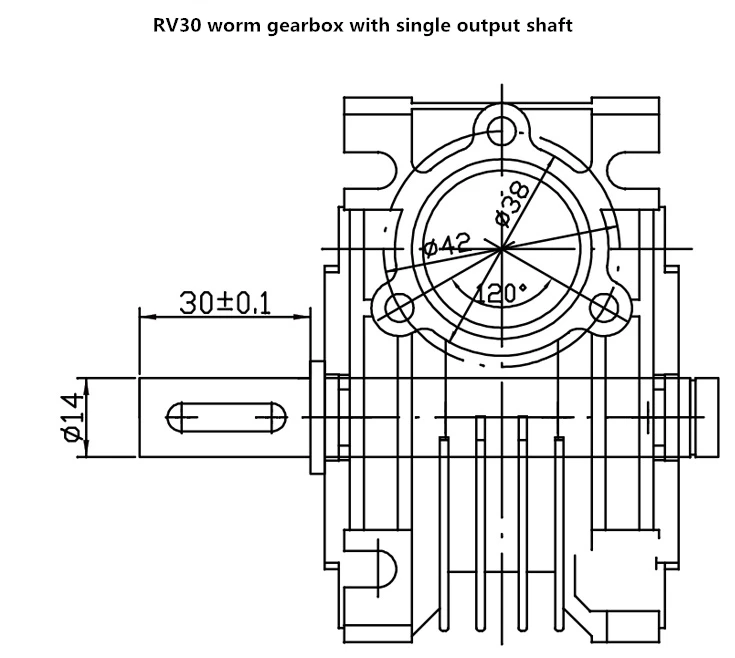

• Gearbox Output Shaft Diameter: 14mm
• Gearbox Material: High-quality aluminum alloy
• Certification: ROHS

Compatible with: NEMA23 1.1Nm stepper motors, Tajima Embroidery Machines, Barudan Embroidery Machines, Brother PR Series Embroidery Machines, CNC Routers and Engraving Machines, 3D Printers using NEMA23 stepper motors, Industrial Automation Systems.

Please confirm your machine model and required specifications before ordering. Not sure? Contact us with your machine model and we will confirm compatibility for you.

Unmatched Quality and Buyer Confidence

At 360 Digitizing Shop, we understand the importance of reliable components. That’s why every NMRV030 Worm Gearbox and NEMA23 Stepper Motor kit is meticulously function-tested before shipping. This rigorous process ensures that defective units are never sent, giving you peace of mind with every purchase. In the rare event a defective item arrives, your investment is protected: we guarantee a full refund within 4 days under our buyer protection policy, allowing you to purchase with complete confidence.

Frequently Asked Questions

What does the 30:1 gear ratio mean for my machine?
The 30:1 gear ratio means the stepper motor completes 30 rotations for every 1 rotation of the gearbox output shaft. This significantly increases torque and provides extremely precise control, ideal for detailed embroidery and accurate CNC movements.

Which machines are compatible with the NMRV030 30:1 Worm Gearbox and NEMA23 Stepper Motor (57HS5630RV30G30)?
This combination is compatible with Tajima Embroidery Machines, Barudan Embroidery Machines, Brother PR Series Embroidery Machines, CNC Routers and Engraving Machines, 3D Printers using NEMA23 stepper motors, and Industrial Automation Systems.

How can I confirm this gearbox and motor combination will fit my specific machine?

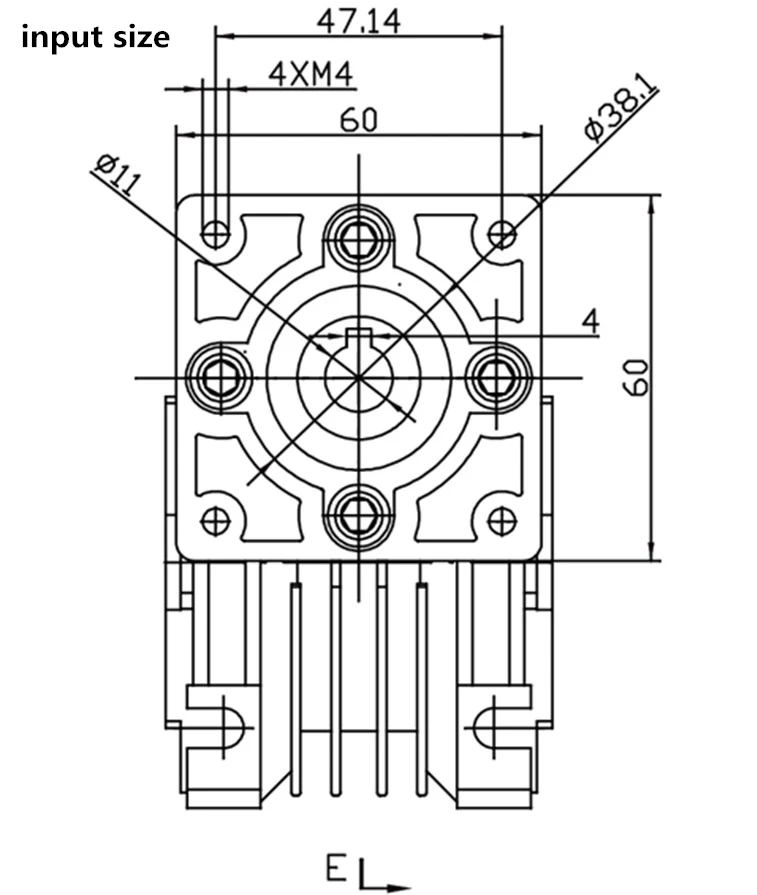

To ensure perfect fitment, please compare the specifications, particularly the shaft diameters (motor 11mm, gearbox output 14mm) and mounting dimensions, with your machine‘s requirements. If you’re unsure, contact us with your machine model, and we’ll gladly help confirm compatibility.

What items are included in the package when I purchase this product?

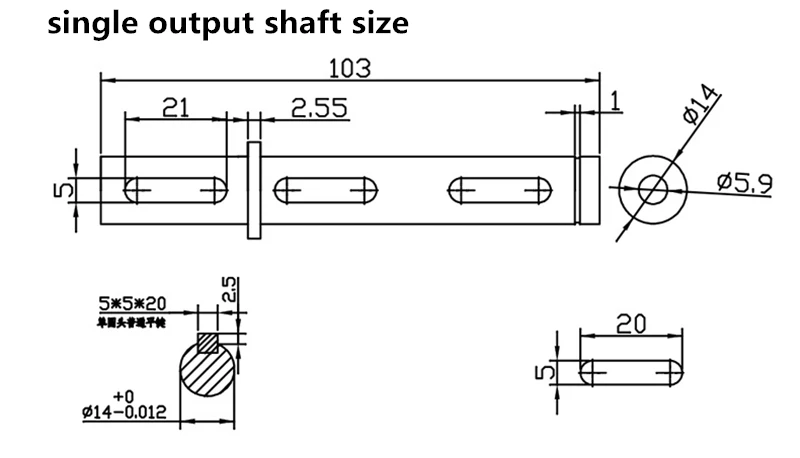

The package includes one NEMA23 1.1Nm Stepper Motor (56mm, 3A, model 57HS5630A4, with an 11mm shaft), one NMRV030 Worm Gearbox (30:1 ratio, with a 14mm output shaft), and one single output shaft for the NMRV030 worm gearbox.

How is the quality of this NMRV030 Worm Gearbox and NEMA23 Stepper Motor ensured?
Every unit is function-tested before shipping to ensure it meets performance standards and that no defective units are sent. In the rare event a defective item arrives, you are eligible for a full refund within 4 days under our buyer protection policy.

What are the main benefits of using this worm gearbox and stepper motor combination?
This combination provides high precision, stable torque, and quiet operation. It significantly enhances speed control and positional accuracy, reduces noise, and offers a durable, corrosion-resistant design for extended operational life in demanding applications.
