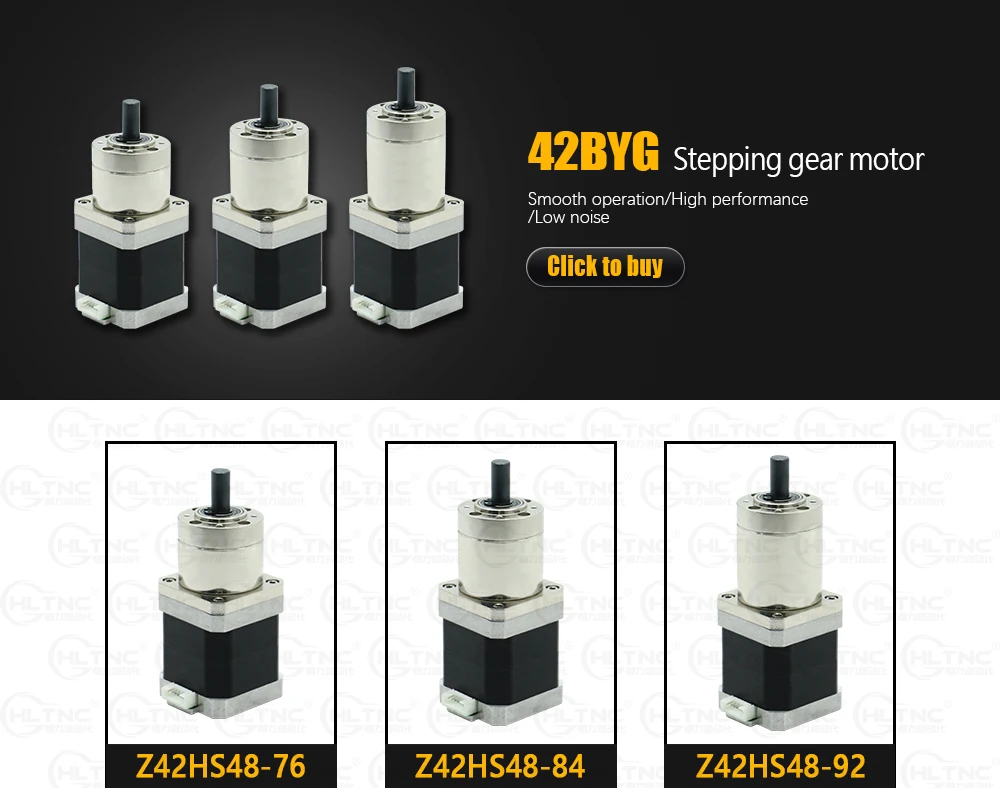

Nema 17 Stepper Gear Motor 42BYG2-76-8 42HS48 for 3D Printers, CNC, Embroidery Machines

Price range: $ 57.99 through $ 67.99

Including Duty

Ratio14 5NRatio3.7 1.665NRatio51 5N
National Fulfillment Hub
8mm
Clear
Secure checkout Function-tested before dispatch Tracked worldwide shipping
VISAMastercardAMEXApple PayG Pay₿ Crypto

For Bulk Orders & Wholesale Prices OR any other queries, Contact Live Chat Support



Eliminate skipped steps and inconsistent movement with the Nema 17 Stepper Gear Motor (models 42BYG2-76-8, 42HS48). Engineered for high-torque and precision, this 1.5A motor with an 8mm shaft ensures smooth, accurate, and quiet operation for your 3D printers, CNC routers, and embroidery machines.

Weight10 oz
Dimensions8 in
Model Number42BYG2-76-8-3.7G 14G
Current / Phase1.5A
Namestepper gear motor
Shaft diameter8mm
Insulation resistance100 (500V DC)
Resistance1.9±10%Ω
Inductance2.5±10%mH
Holding torque1.665N 5N
Insulation classB
Rated voltage9-20V
Rated current1.5A

Price range: $ 57.99 through $ 67.99

Nema 17 Stepper Gear Motor 42BYG2-76-8 42HS48 for 3D Printers, CNC, Embroidery Machines

1133 Items sold in last 12 months
Ratio14 5NRatio3.7 1.665NRatio51 5N
National Fulfillment Hub
8mm
Clear
Secure checkout Function-tested before dispatch Tracked worldwide shipping
VISAMastercardAMEXApple PayG Pay₿ Crypto

with Express Shipping

13 People watching this product now!

Eliminate skipped steps and inconsistent movement with the Nema 17 Stepper Gear Motor (models 42BYG2-76-8, 42HS48). Engineered for high-torque and precision, this 1.5A motor with an 8mm shaft ensures smooth, accurate, and quiet operation for your 3D printers, CNC routers, and embroidery machines.

Weight10 oz
Dimensions8 in
Model Number42BYG2-76-8-3.7G 14G
Current / Phase1.5A
Namestepper gear motor
Shaft diameter8mm
Insulation resistance100 (500V DC)
Resistance1.9±10%Ω
Inductance2.5±10%mH
Holding torque1.665N 5N
Insulation classB
Rated voltage9-20V
Rated current1.5A
No one dislikes.

Free Shipping

Enjoy free shipping to your door step on order over $150

Worldwide

Fast Delivery.

Using Major Shipping Services worldwide

Live Chat & Email

After Sales 24/7 Support

Available to Serve 24/7 on live chat & Email Support.

Exactly as shown

4-Day Returns

Not as shown? Free return within 4 days

1.

Door-Step Delivery.

All Around the World. We are delivering worldwide. So, keep shopping and leave the rest to us.

2.

Discount on Bulk Orders

Contact Us for Bulk Orders. We offer discounts on bulk orders. Contact us on Live chat, Email support or, call.

3.

After Sales Support

24/7 Support on chat, email & Call. We are here to help you stay focused on your business.

4.

Buyer Protection

We've got your back with Buyer Protection Policy! Shop & Leave it to us and focus on your business.

Description

Are you tired of inconsistent results, skipped steps, or insufficient power from your machine‘s motion system? Precision and reliability are non-negotiable for professional embroidery, CNC routing, and 3D printing. The Nema 17 Stepper Gear Motor (models 42BYG2-76-8, 42HS48) is engineered to solve these challenges, delivering the consistent, high-torque performance your projects demand.

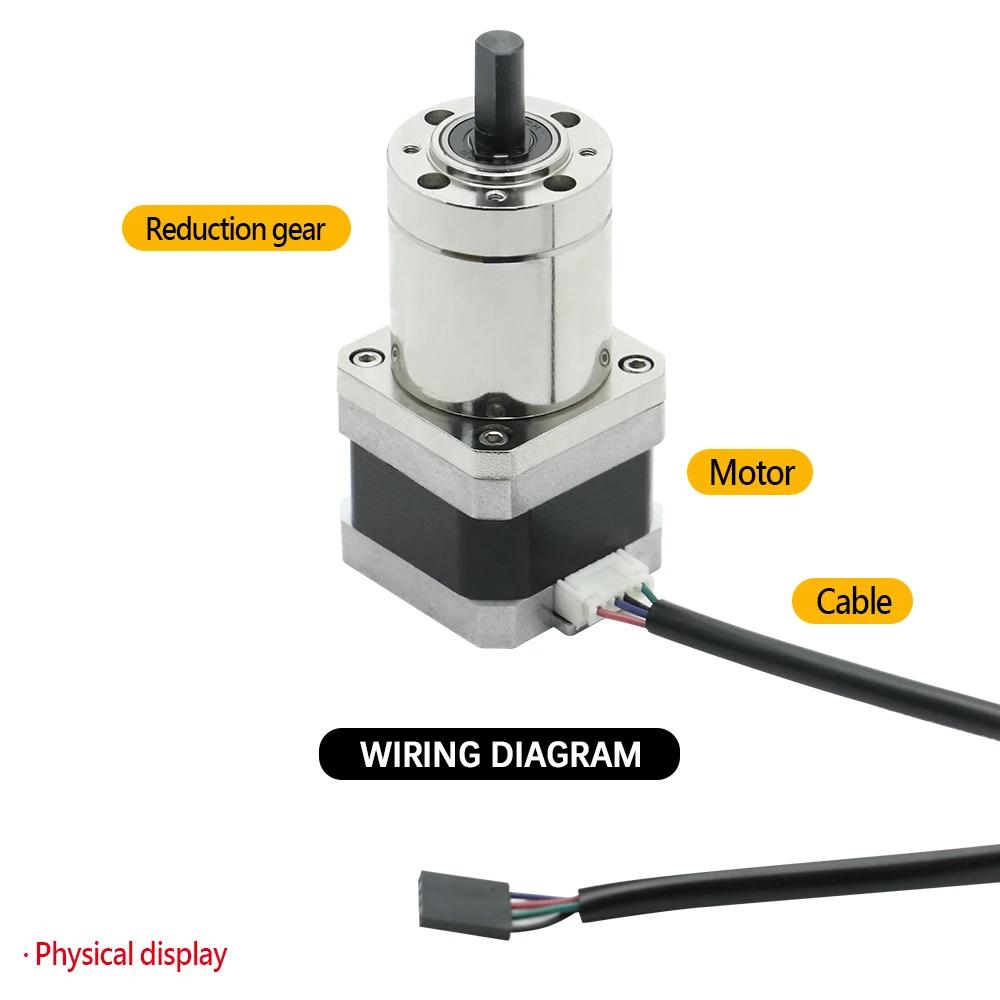

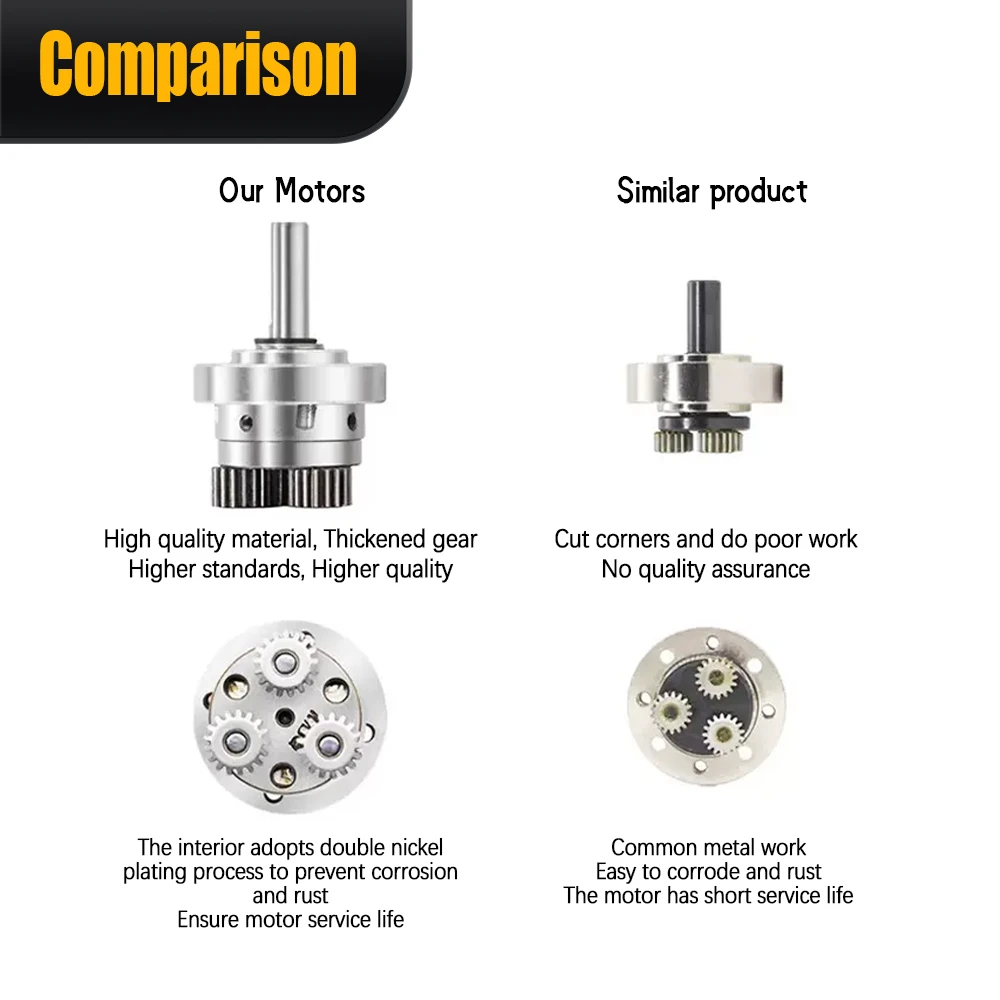

This Nema 17 Stepper Gear Motor combines the precise, incremental movement of a standard stepper motor with an integrated gearbox. The internal gearing significantly amplifies the motor‘s output torque, allowing for greater force and stability in demanding applications without increasing motor size. This design is crucial for tasks requiring high holding torque and fine resolution, preventing backlash and ensuring exact positioning, especially when moving heavy loads or maintaining position against external forces. With a robust 1.5A rated current and an 8mm shaft, it’s built for durability and consistent power delivery, minimizing vibration and noise for a smoother operational experience.

Achieve Unmatched Precision and Power

This high-performance stepper gear motor is ideal for upgrading or replacing components in a wide range of industrial and hobbyist machines:

  • CNC Routers: Enhance single-axis and multi-axis systems with reliable, high-torque movement.
  • 3D Printers: Perfect for Creality, Anycubic, Prusa, and Ender Series models, ensuring smooth and accurate extrusion or axis movement.
  • Laser Engraving Machines: Achieve fine detail and consistent passes.
  • Embroidery Machines: Compatible with Tajima, Barudan, Brother, Happy, and Ricoma machines for precise stitch placement.
  • Plotters & Robotics Projects: Provide robust and controlled motion for various automation tasks.

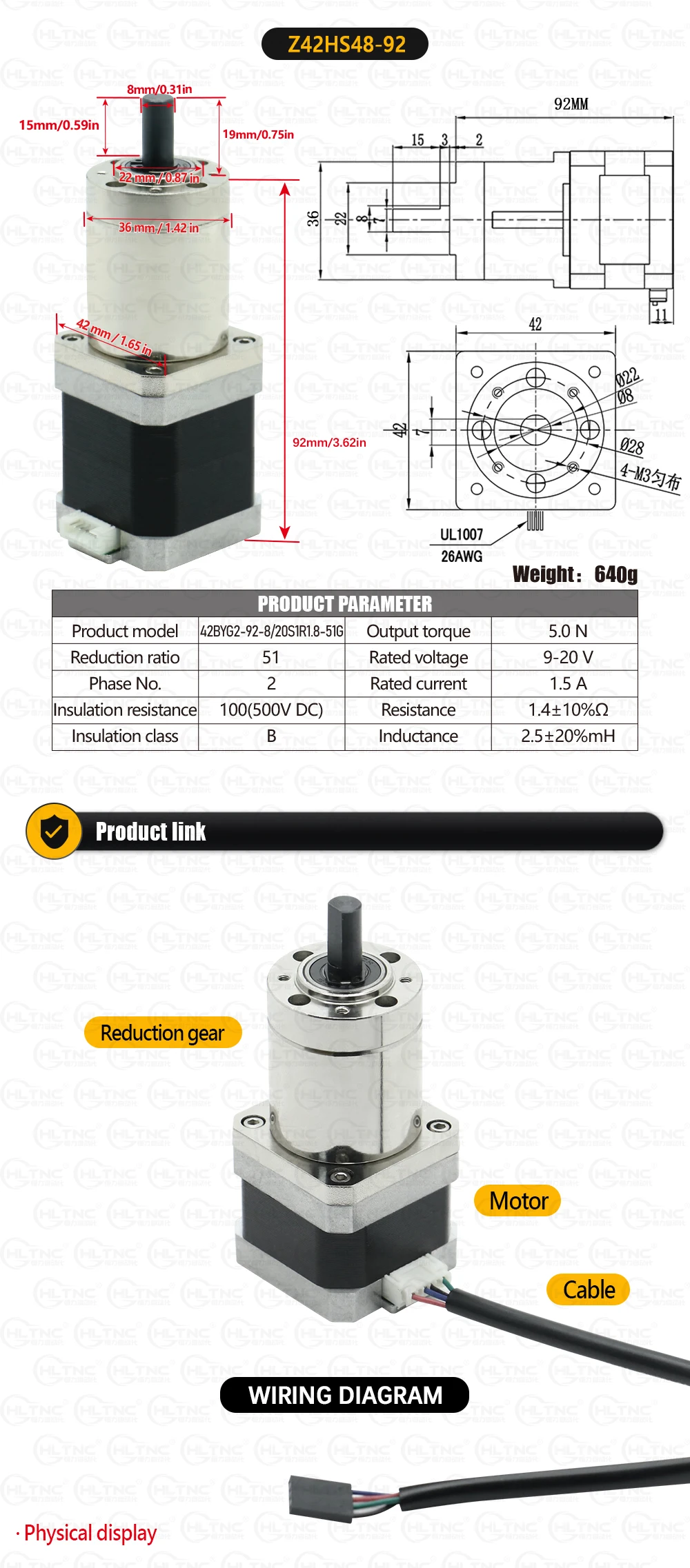

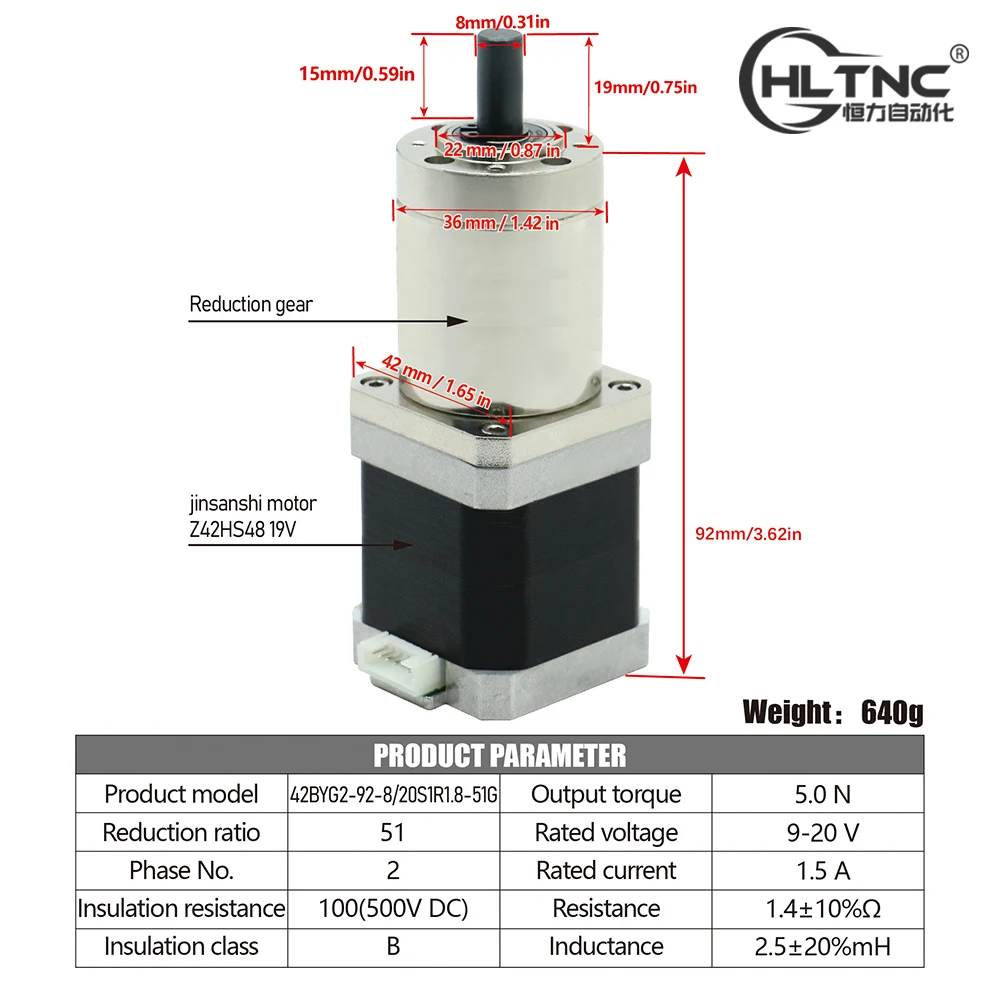

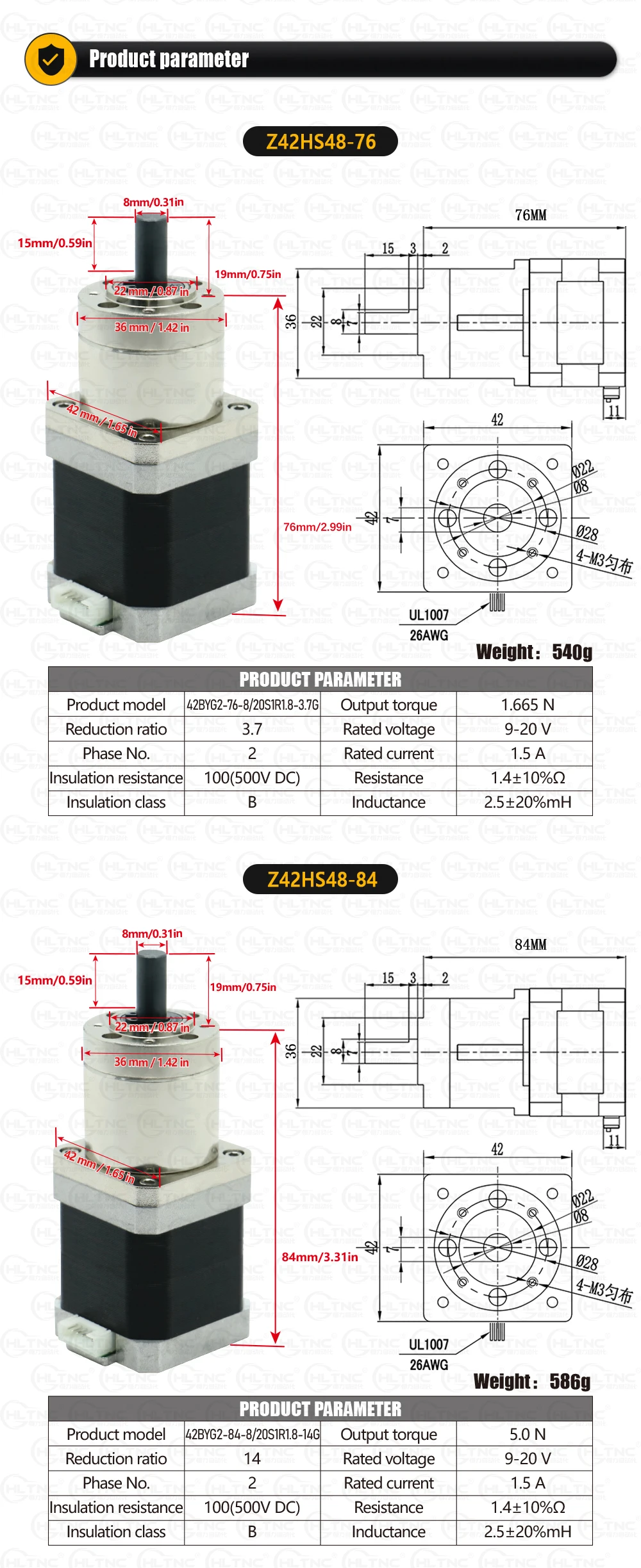

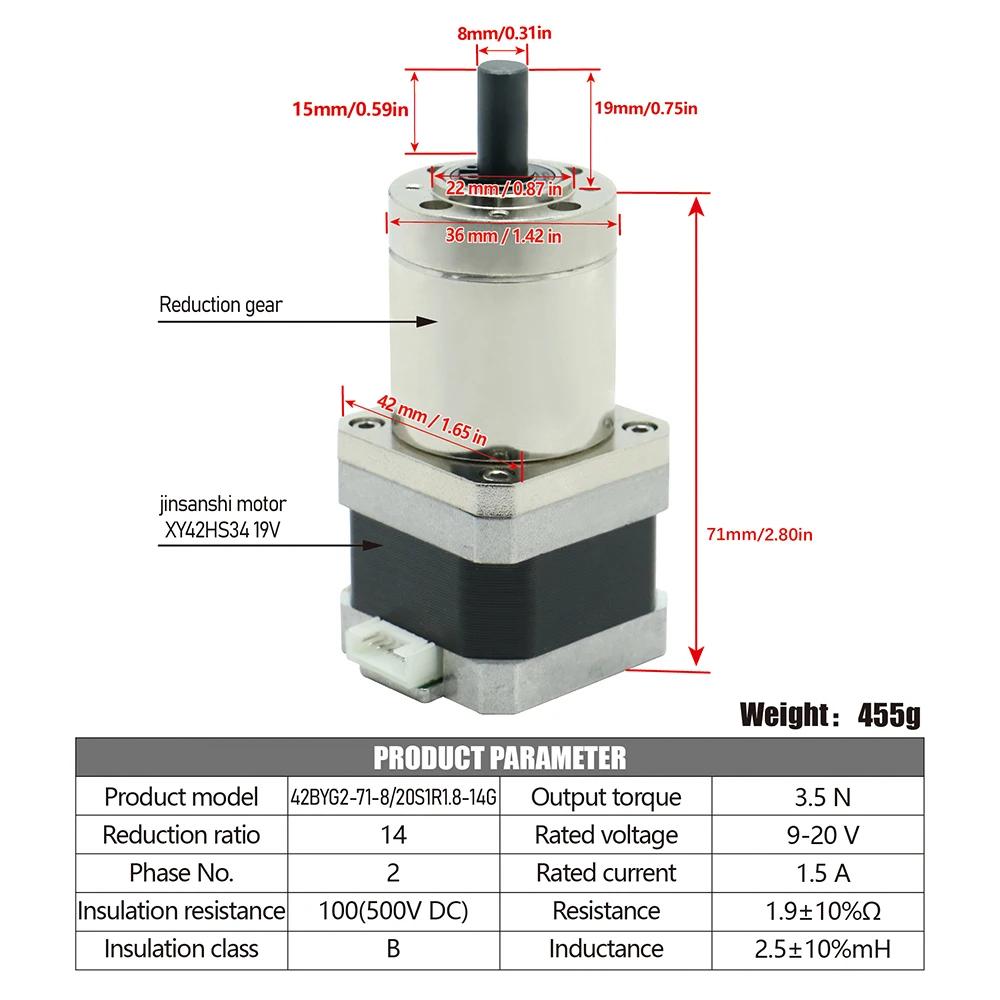

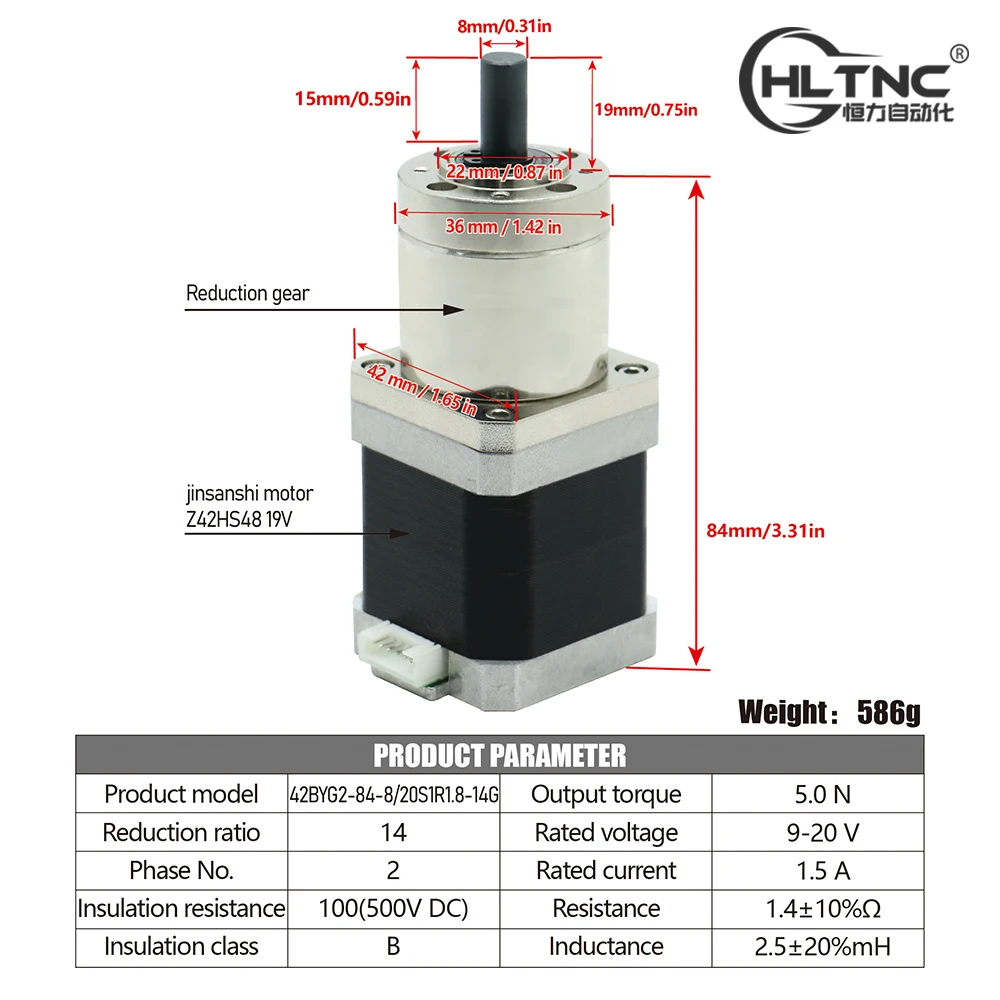

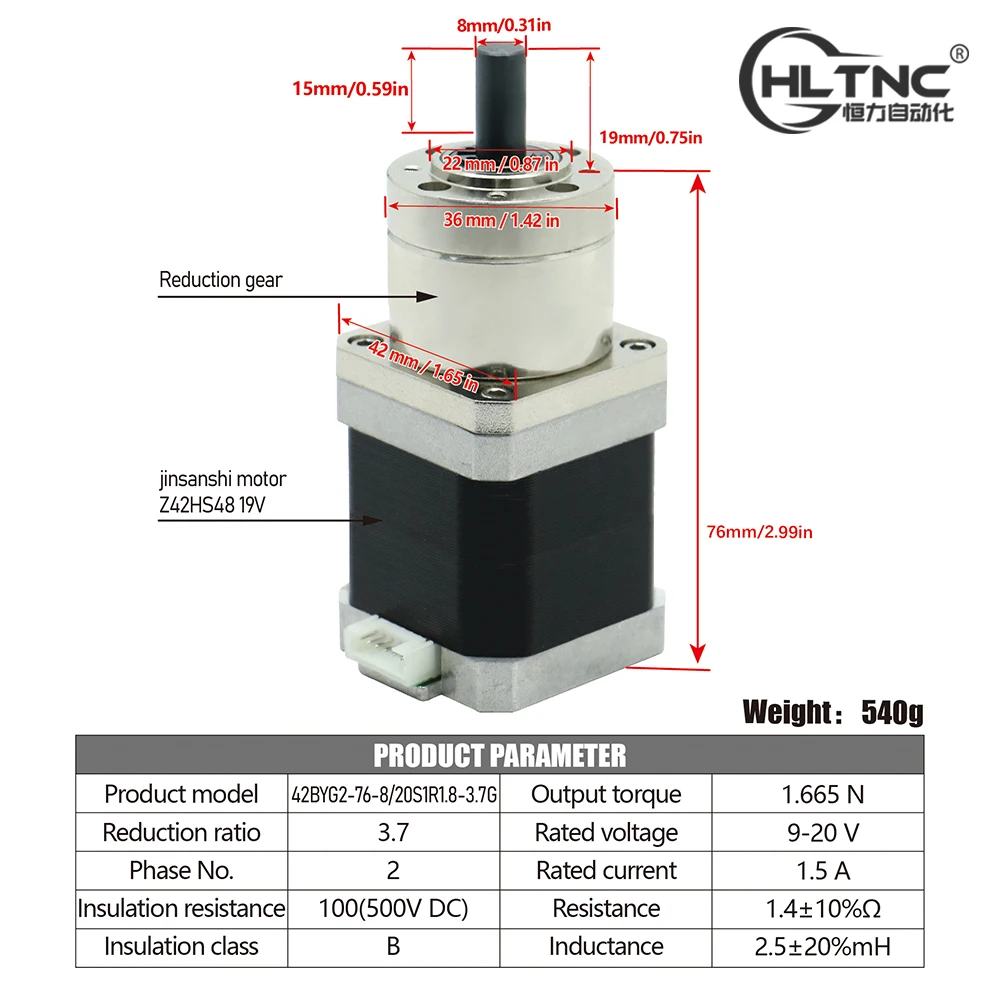

Technical Specifications

  • Model: Nema 17 Stepper Gear Motor (42BYG2-76-8, 42HS48)
  • Holding Torque: 1.665N.m – 5N.m (depending on gear ratio)
  • Gear Ratios Available: 3.7:1, 14:1, 51:1
  • Shaft Diameter: 8mm
  • Rated Current: 1.5A
  • Rated Voltage: 9-20V
  • Resistance: 1.9±10%Ω
  • Inductance: 2.5±10%mH
  • Insulation Resistance: 100MΩ (500V DC)
  • Insulation Class: B
  • Certification: CE

We recommend confirming your machine‘s motor specifications or contacting us with your machine model to ensure optimal fit. Every Nema 17 Stepper Gear Motor is rigorously function-tested before shipping to ensure you receive a perfectly operating unit. In the rare event a defective item arrives, your purchase is protected, and a full refund will be processed within 4 days.

Frequently Asked Questions

What is the benefit of this Nema 17 Stepper Gear Motor compared to a standard stepper motor?
The integrated gearbox amplifies the motor‘s output torque, providing greater force, stability, and holding power for demanding applications. This results in more precise positioning and smoother motion, especially with heavier loads.

Which machine models are compatible with this motor?
This motor is designed for use with CNC Routers, 3D Printers (including Creality, Anycubic, Prusa, Ender Series), Laser Engraving Machines, Embroidery Machines (Tajima, Barudan, Brother, Happy, Ricoma), Plotters, and various Robotics Projects.

What gear ratios are available for this motor?
This Nema 17 Stepper Gear Motor is available with gear ratios of 3.7:1, 14:1, and 51:1, allowing you to select the optimal torque and speed for your specific application.

How can I ensure this motor is the right fit for my machine?
We recommend checking your machine‘s current motor specifications for compatibility with the 8mm shaft diameter, 1.5A current, and Nema 17 frame size. If unsure, contact us with your machine model, and we can help confirm.

What is 360 Digitizing Shop's quality assurance and refund policy for this motor?
Every motor is function-tested before shipping to prevent defective units. If a defective item does arrive, you are protected, and a full refund will be processed within 4 days of notification.
