Eliminate Jerky Movement and Inaccurate Stitches

Are you experiencing inconsistent stitch quality, jerky movements, or excessive wear on your embroidery machine‘s moving parts? A worn or compromised linear guide rail car assembly can severely impact your machine‘s precision, leading to costly reworks and frustrating downtime. The Onloyo Linear Guide Rail Car Assembly is engineered to restore the smooth, precise motion critical for high-quality embroidery, ensuring every stitch is exactly where it should be and unlocking consistent revenue for your business.

Precision Engineering for Flawless Operation

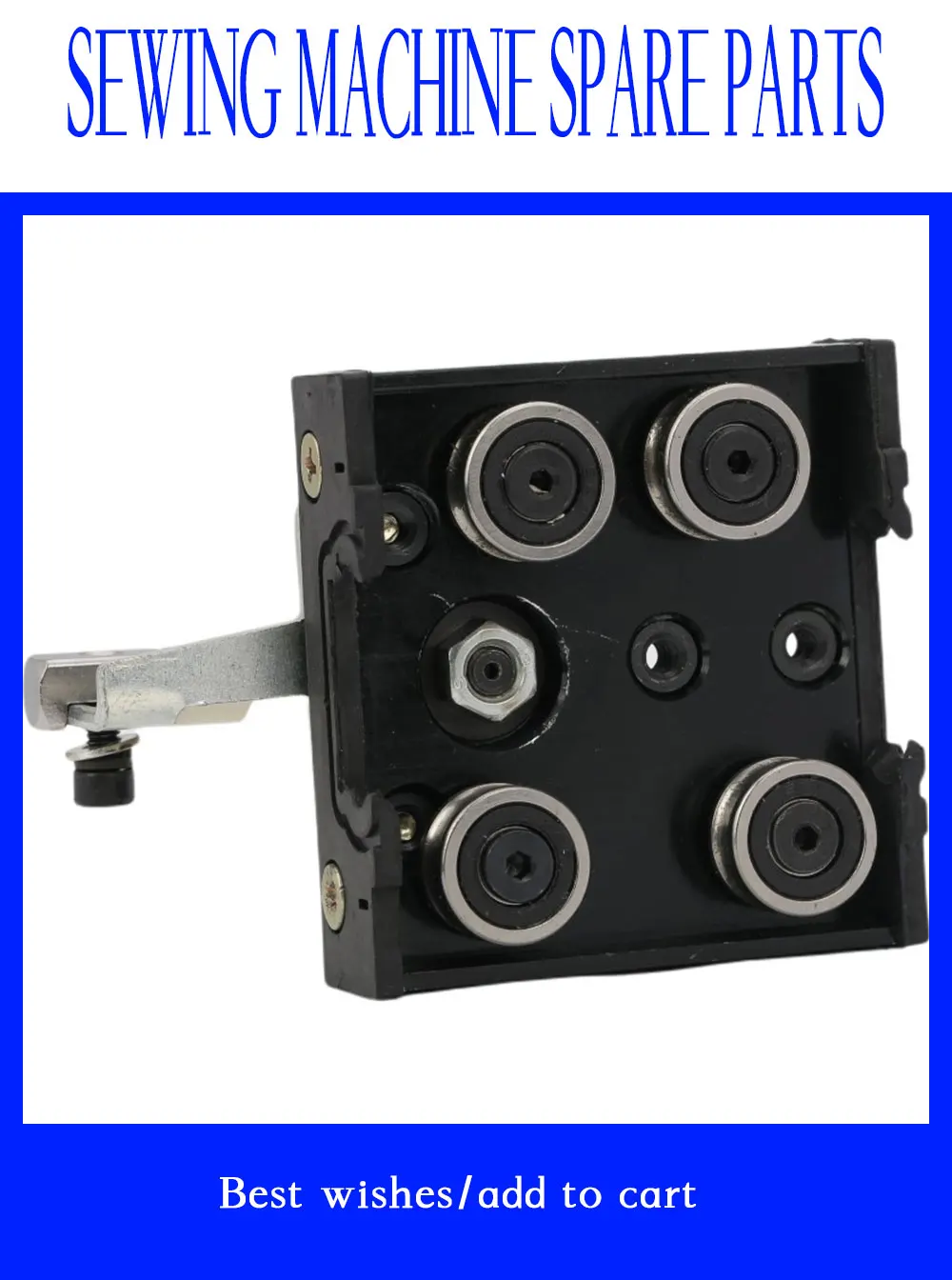

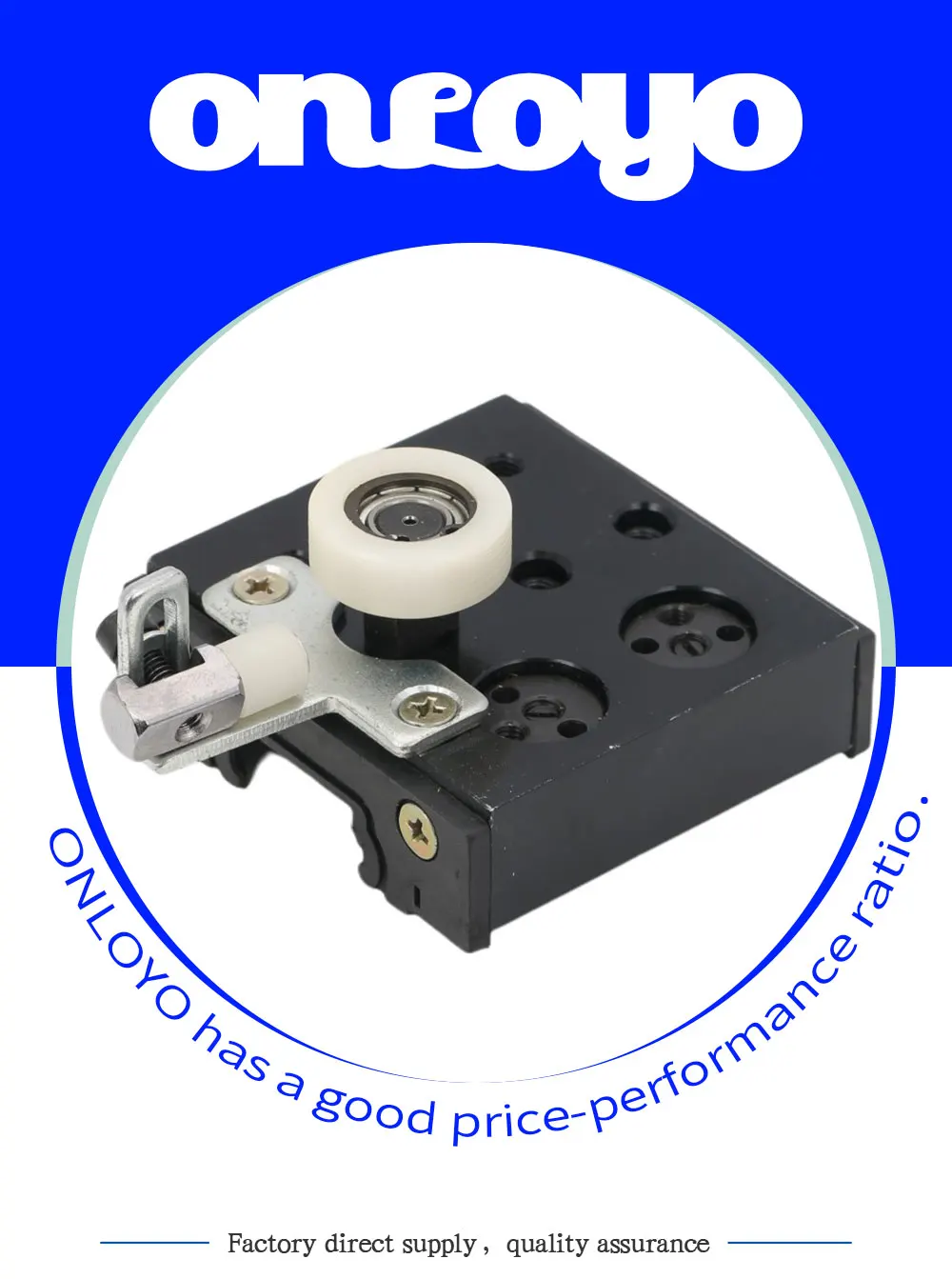

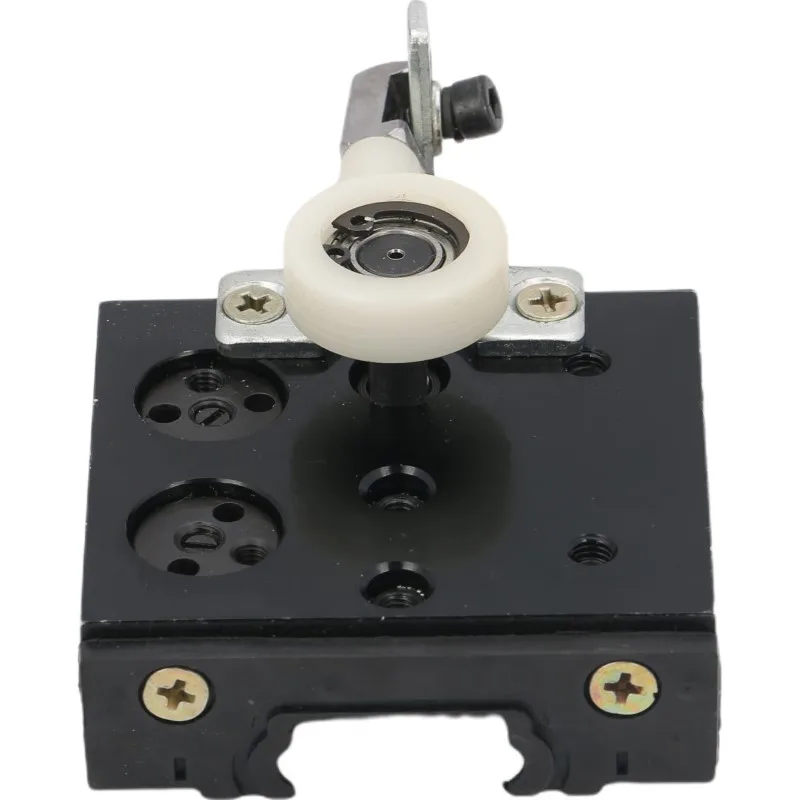

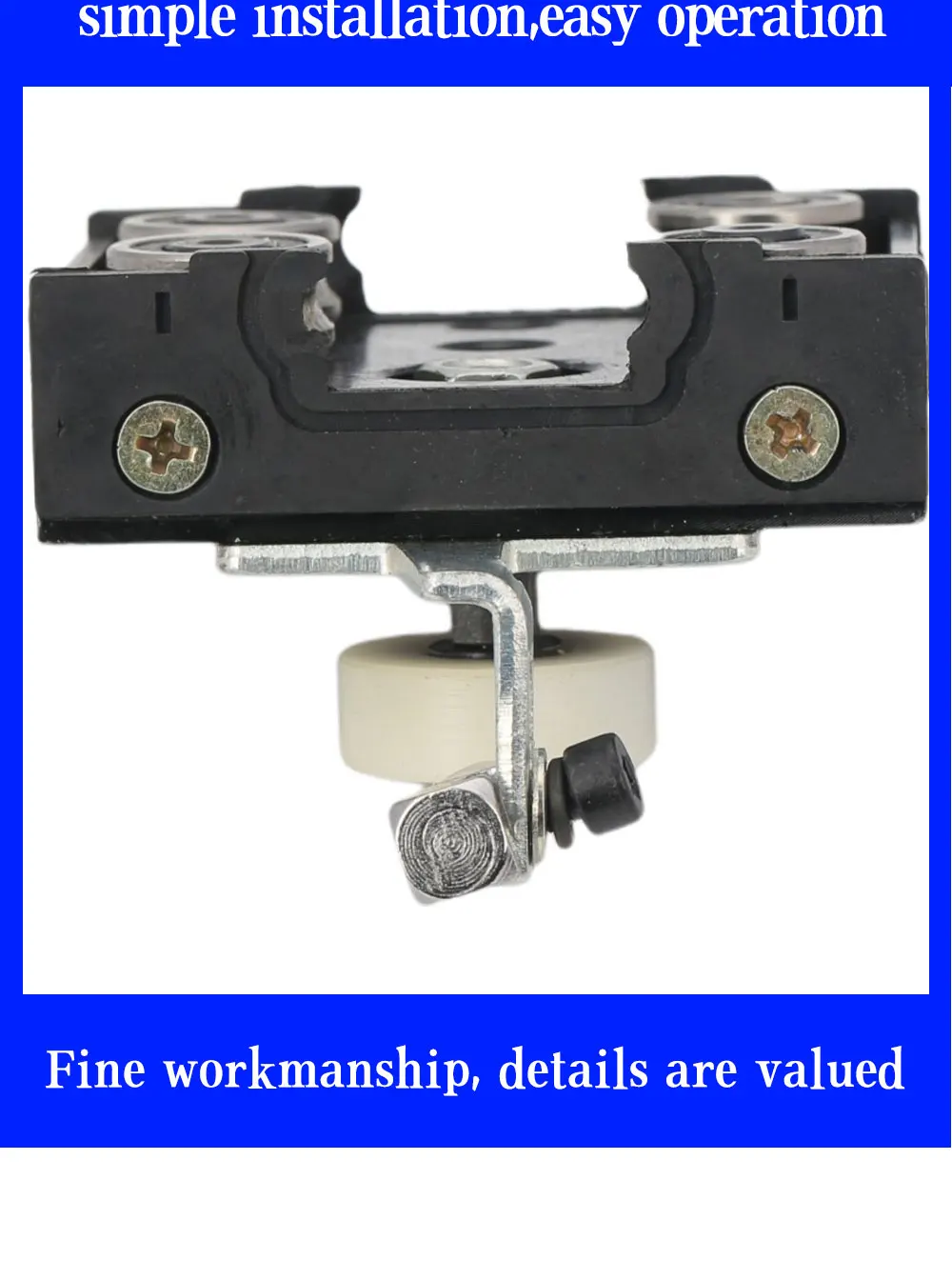

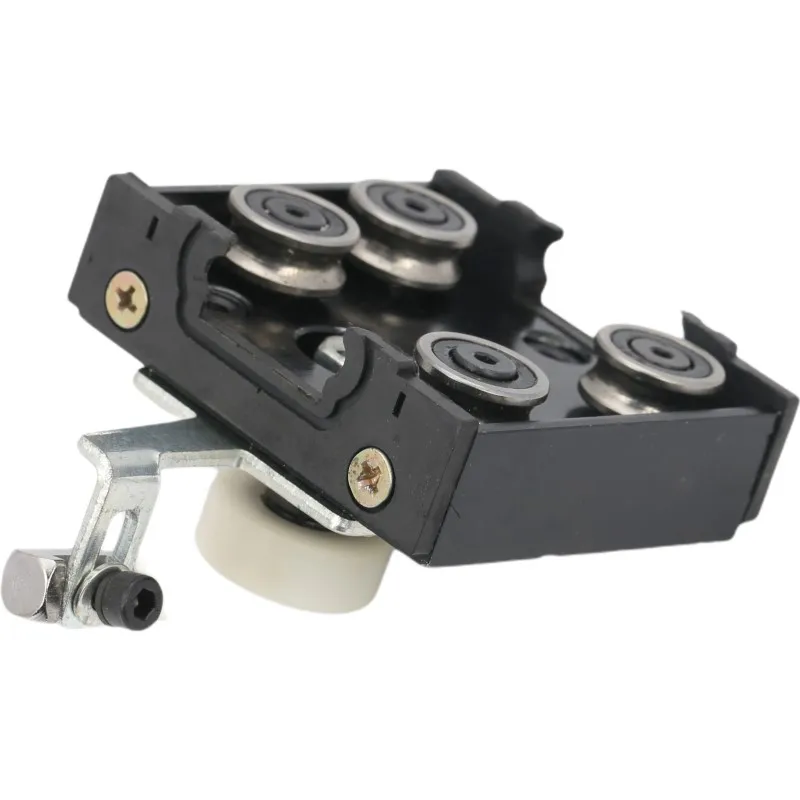

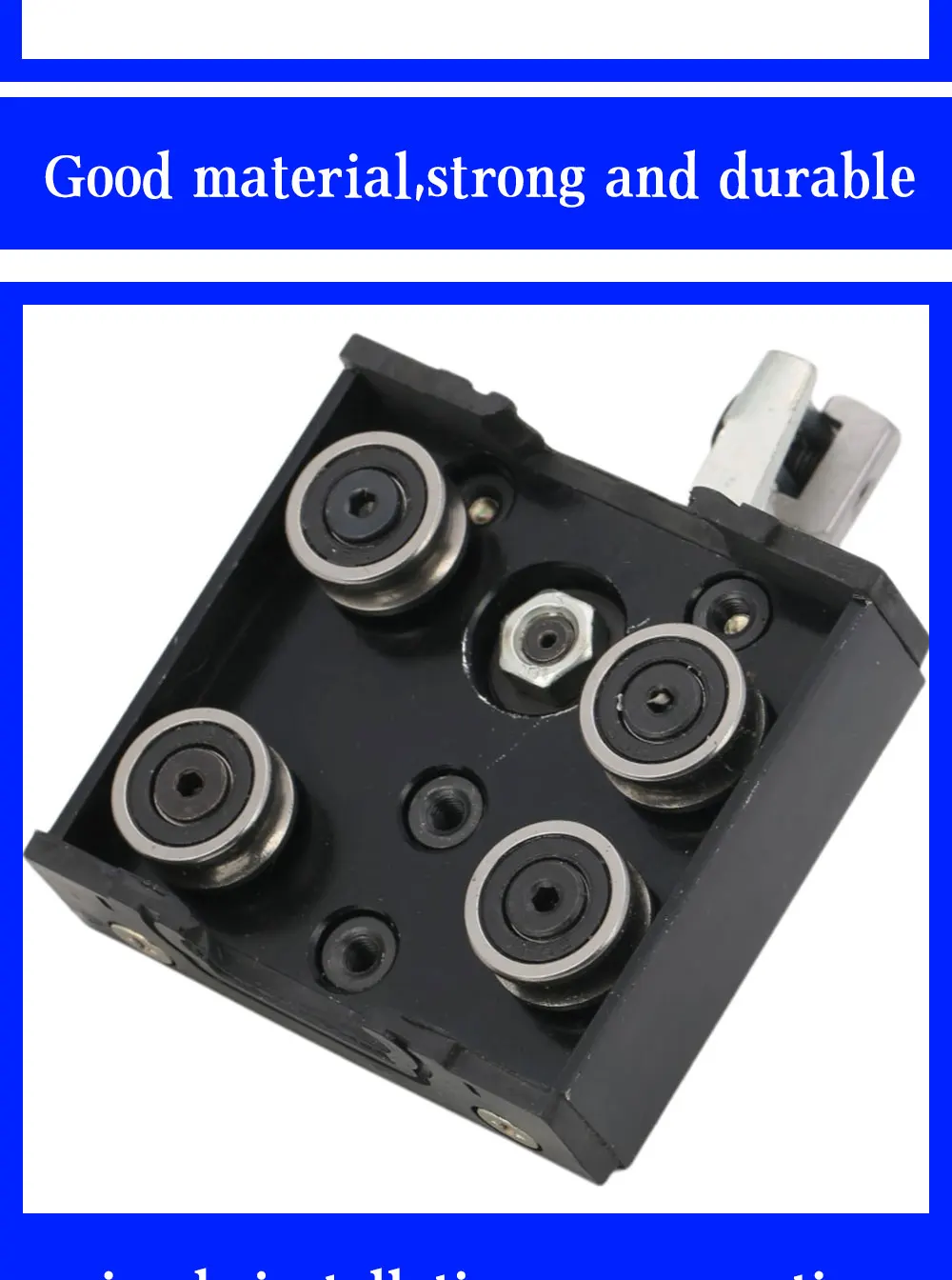

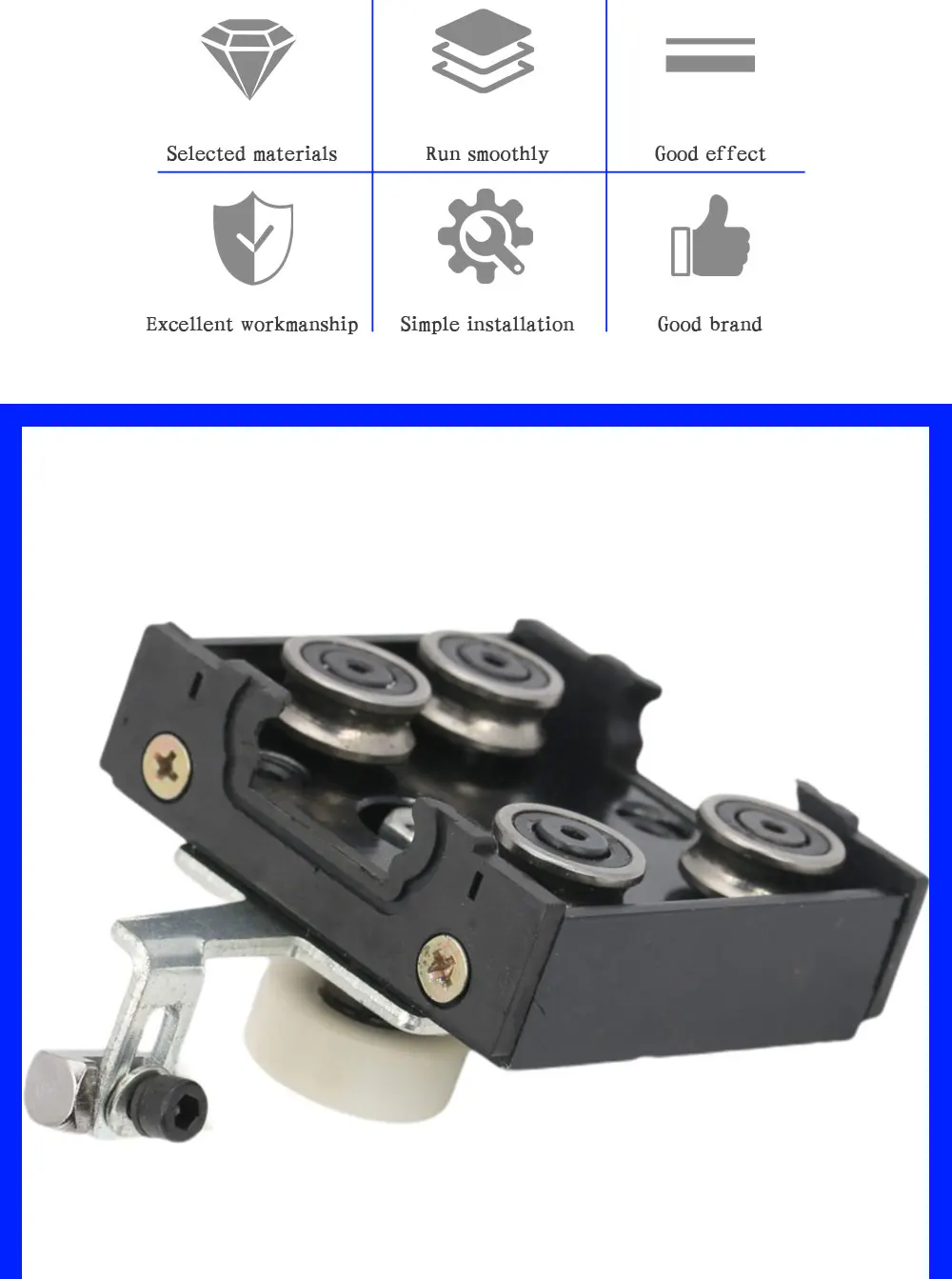

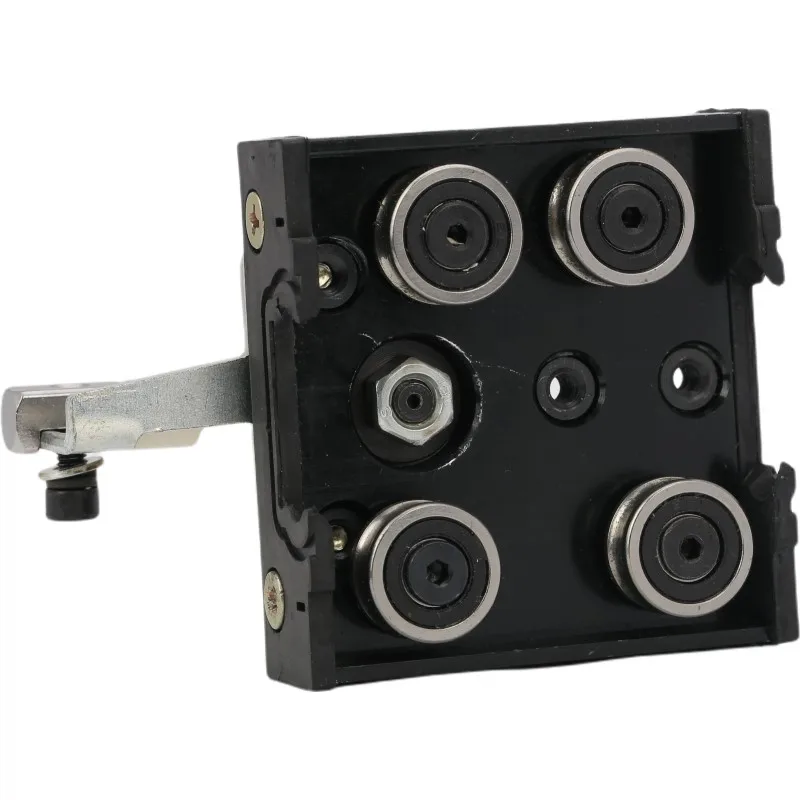

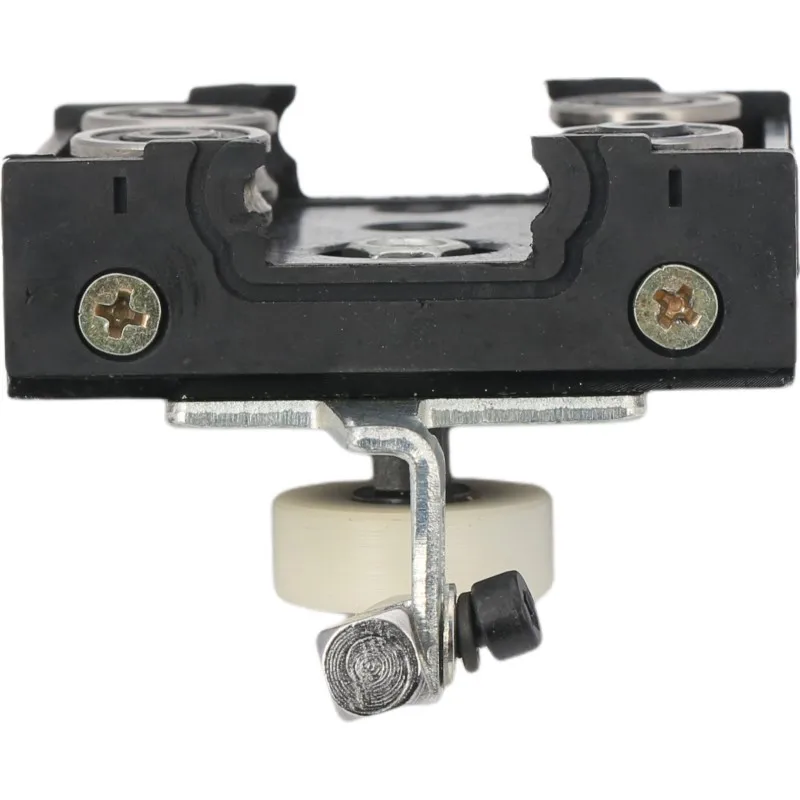

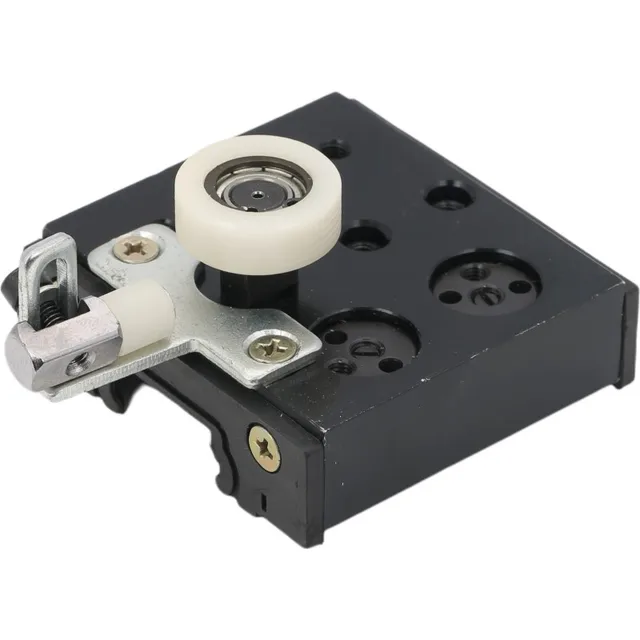

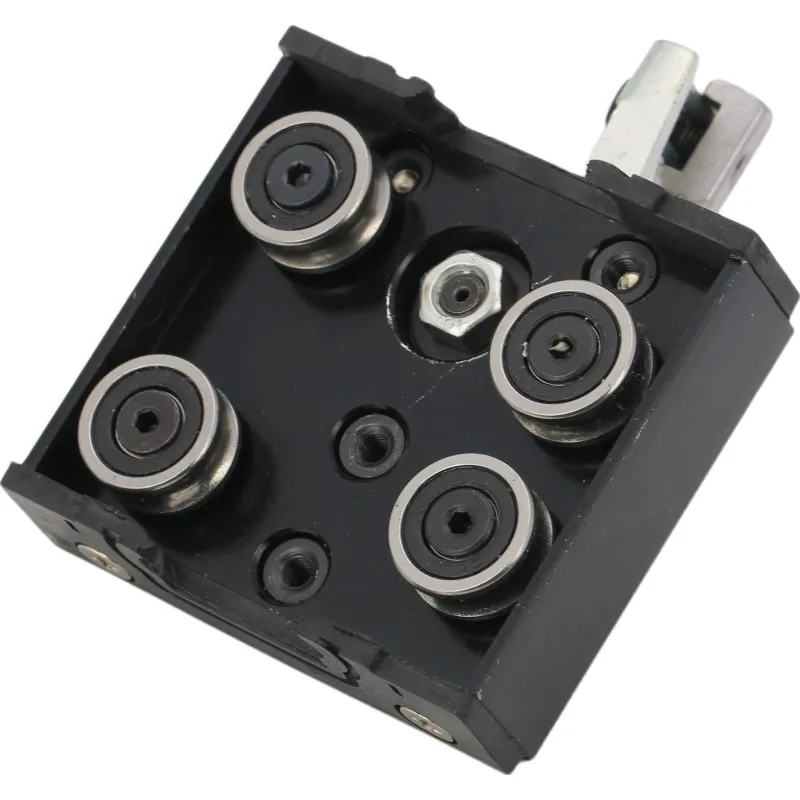

This Linear Guide Rail Car Assembly, featuring a small aircraft trolley plate, is a vital component for any industrial embroidery machine. Its primary function is to provide stable, low-friction guidance for the moving elements of your machine, such as the embroidery head or frame. Crafted from durable STEEL, this assembly is built to withstand the rigorous demands of continuous operation. The precise design minimizes play and ensures consistent linear motion, preventing vibrations and misalignments that can degrade embroidery quality. By reducing friction, it also significantly lessens wear on other machine parts, extending their lifespan and maintaining peak performance.

Enhance Performance Across Key Applications

• For Embroidery Machines: Designed for the precise movement required in industrial and commercial embroidery machines, often found in setups like Tajima machines.
• High-Precision Embroidery: Essential for maintaining accuracy in intricate designs and fine detailing.
• Multi-Head Operations: Ensures synchronized and consistent movement across multiple embroidery heads for consistent output.
• Complex Garment Types: Supports stable operation for various fabrics and garment structures, from delicate silks to heavy denim.

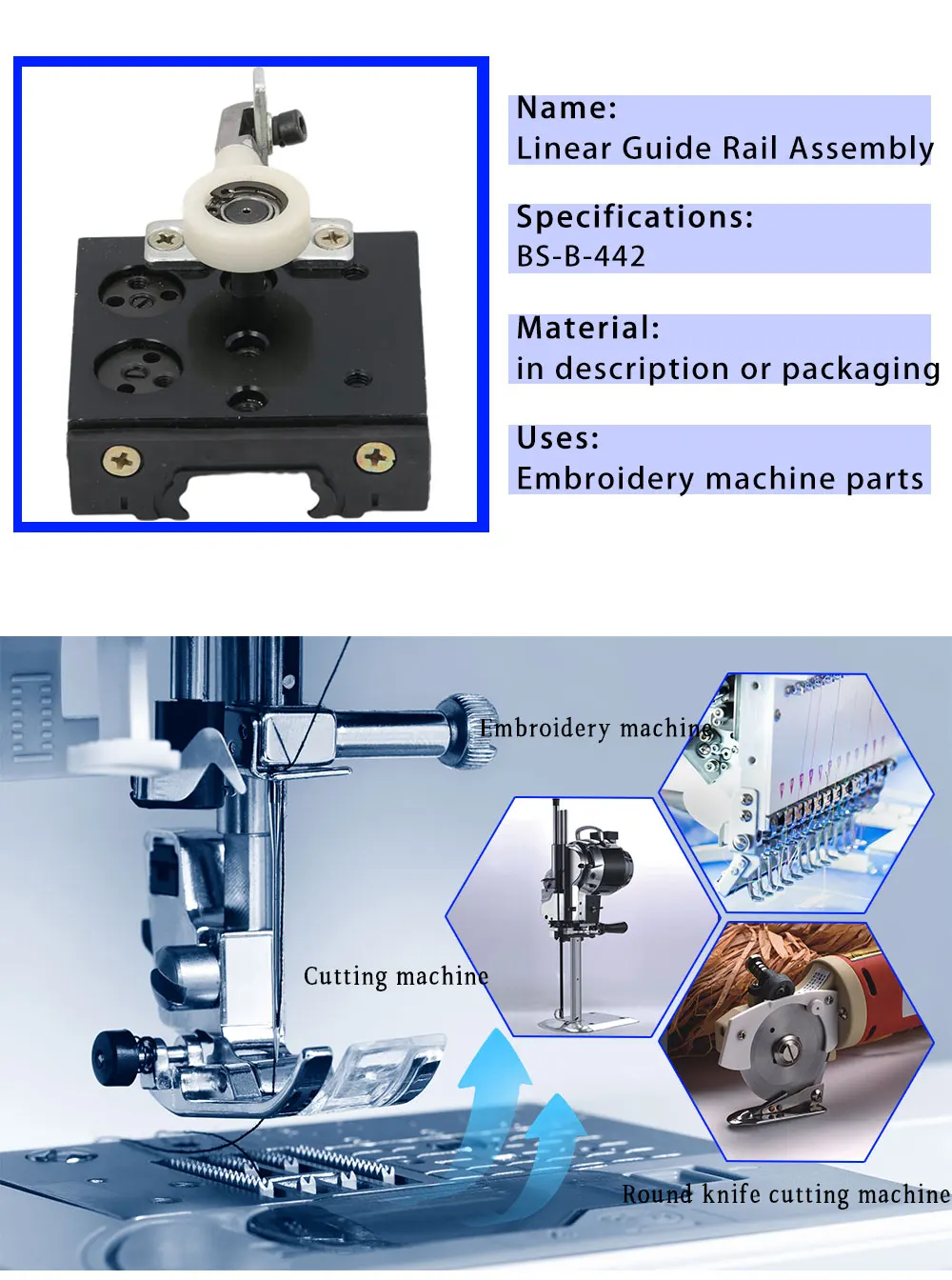

Product Specifications

• Brand: Onloyo
• Available Options: Bearing size 5-17, Bearing size 6-22
• Intended Use: Embroidery machines
• Material: STEEL

Compatibility Note: This linear guide rail car assembly is designed for a range of industrial embroidery machines. We strongly recommend confirming the exact bearing size required for your specific machine model before ordering to ensure a perfect fit. Not sure? Contact us with your machine model and we will gladly help confirm compatibility.

Shop with Confidence at 360 Digitizing Shop

At 360 Digitizing Shop, we understand the critical role each component plays in your embroidery business. That’s why every Onloyo Linear Guide Rail Car Assembly is meticulously function-tested before shipping, ensuring that defective units are never sent. In the rare event a defective item arrives, rest assured that you are protected by our buyer protection policy, guaranteeing a full refund within 4 days. Invest in reliable parts and keep your machines running smoothly with confidence.

Frequently Asked Questions

What is the primary function of this Linear Guide Rail Car Assembly?
This assembly provides stable, low-friction guidance for the moving parts of your embroidery machine, ensuring smooth, precise linear motion and accurate stitch placement.

What bearing sizes are available for this assembly?
This Onloyo Linear Guide Rail Car Assembly is available in two options: bearing size 5-17 and bearing size 6-22.

How do I ensure this part is compatible with my embroidery machine?
We recommend confirming the exact bearing size required for your specific embroidery machine model. If you are unsure, please contact us with your machine model, and we will help confirm compatibility.

What material is the Onloyo Linear Guide Rail Car Assembly made from?
This assembly is crafted from durable STEEL, designed to withstand the rigorous demands of continuous industrial embroidery operation.

What is 360 Digitizing Shop's quality assurance and return policy for this item?
Every unit is function-tested before shipping to prevent defective items. If a defective item arrives, you are protected by our buyer protection, guaranteeing a full refund within 4 days.

What types of embroidery machines is this part suitable for?
This part is designed for industrial and commercial embroidery machines, including those commonly found in Tajima setups, where precise and smooth linear movement is crucial.
