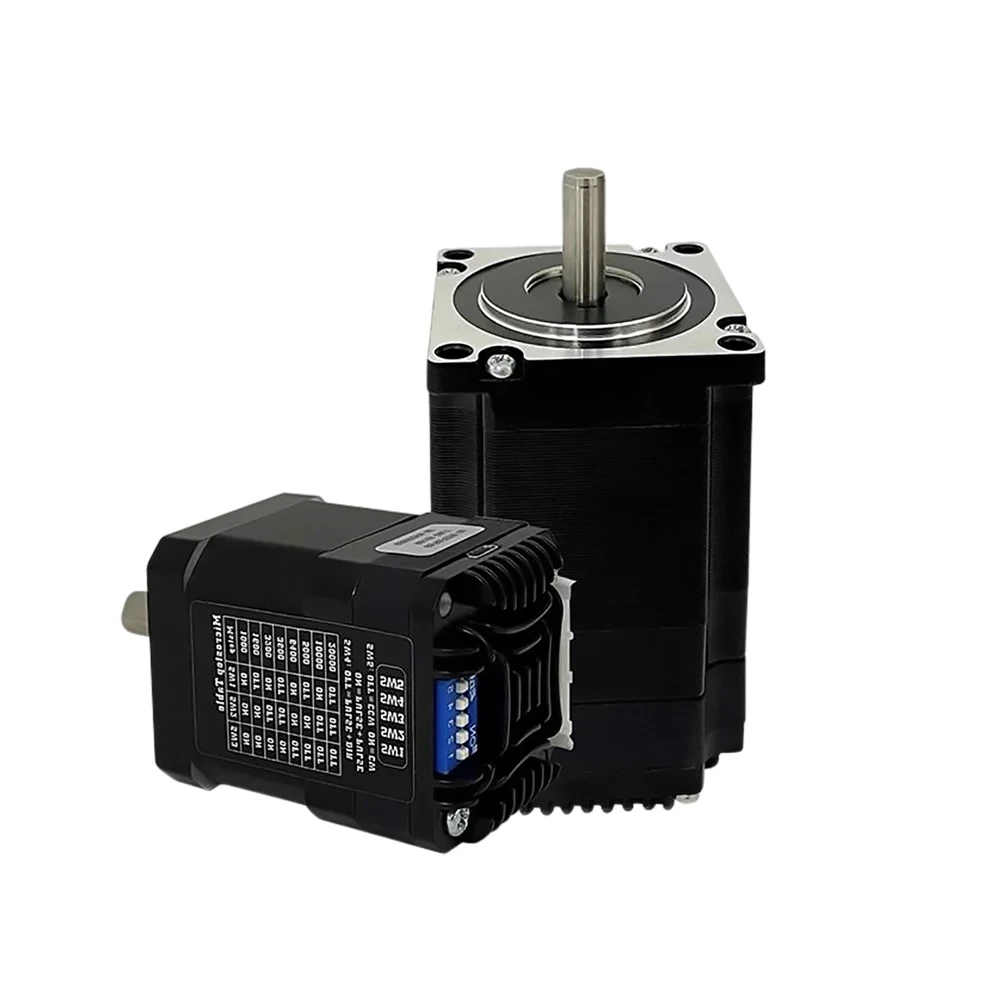

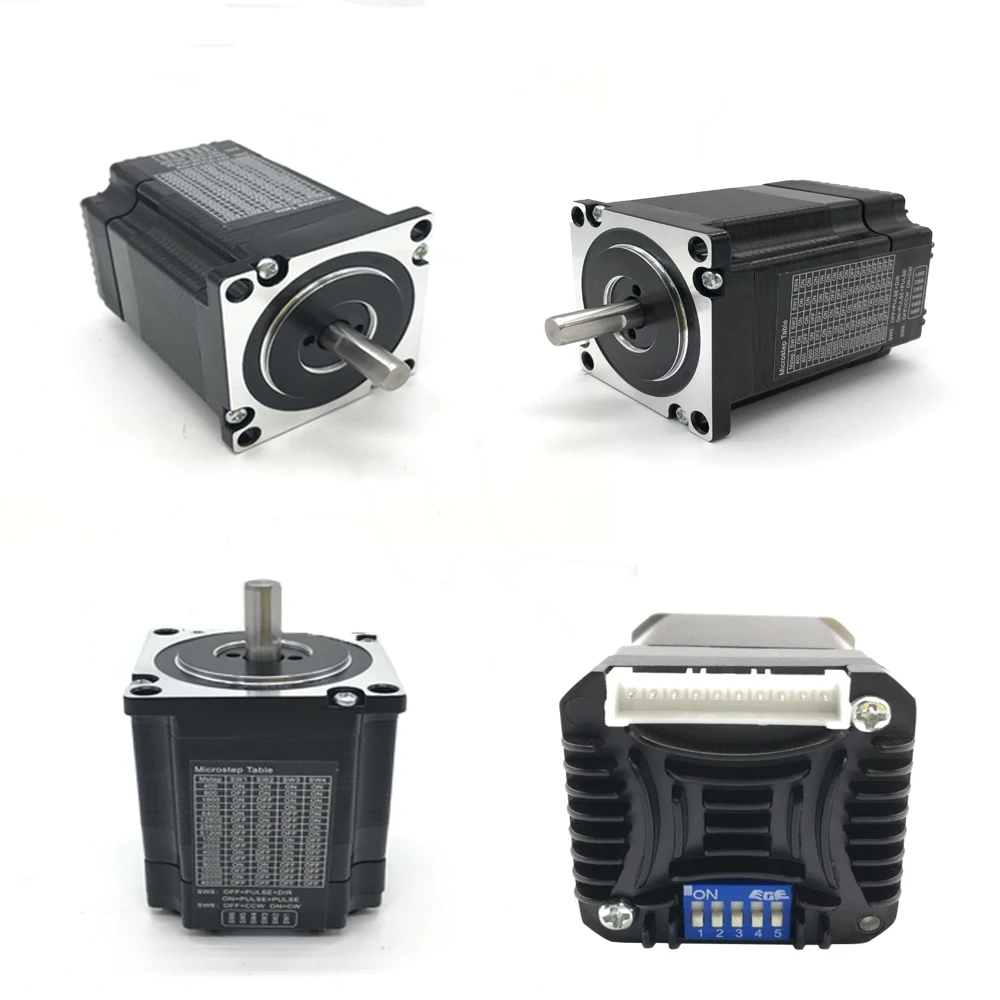

Are you tired of inconsistent stitch quality, skipped stitches, or machine stalls that cost you valuable time and materials? Open-loop stepper motors often struggle with heavy loads or high speeds, leading to lost steps, overheating, and ultimately, flawed embroidery. The 360 Digitizing Shop Closed Loop Stepper Motor Drive Hybrid Servo system is engineered to solve these critical problems, transforming your embroidery machine’s reliability and precision.

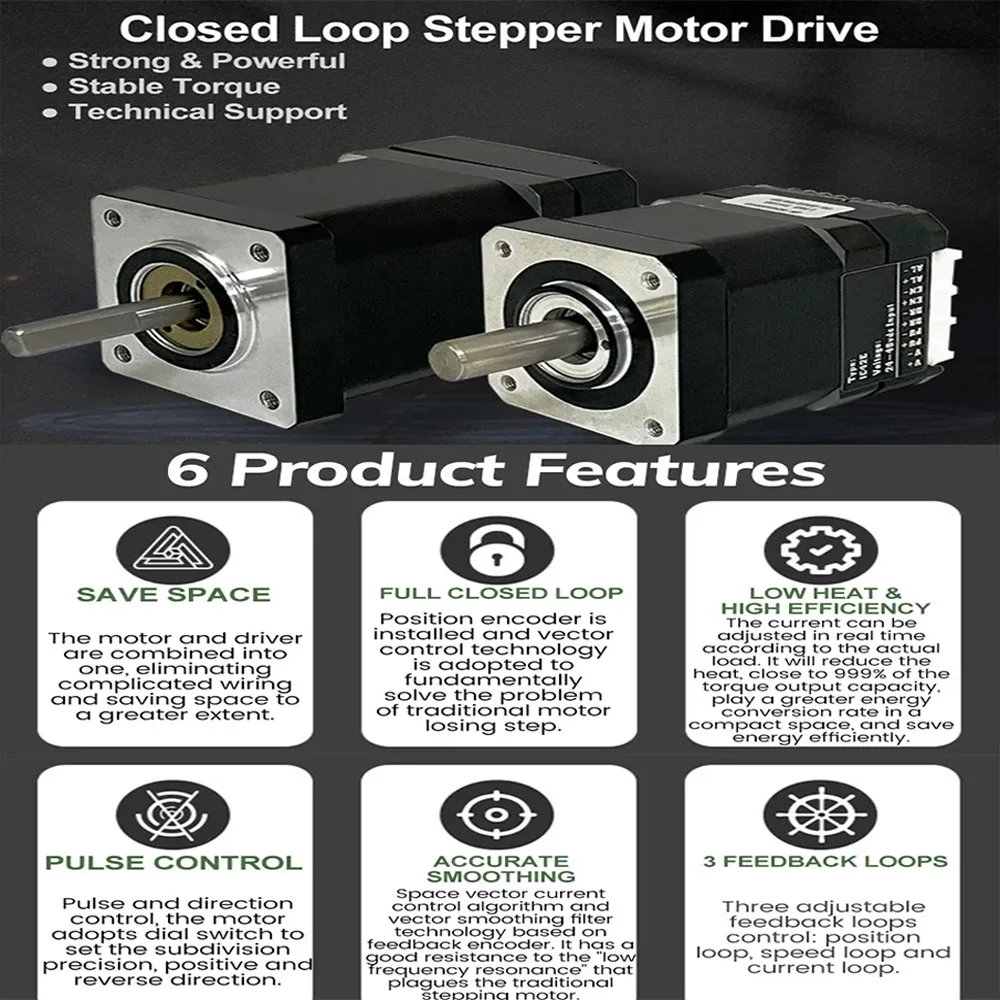

Unlike traditional open-loop systems, this hybrid servo motor integrates an advanced encoder, providing continuous feedback on the motor’s position. This closed-loop control constantly monitors and corrects any deviation, ensuring zero step loss even under demanding conditions. The result is consistently accurate motion, reduced vibration, and a significant boost in the quality and speed of your embroidery output.

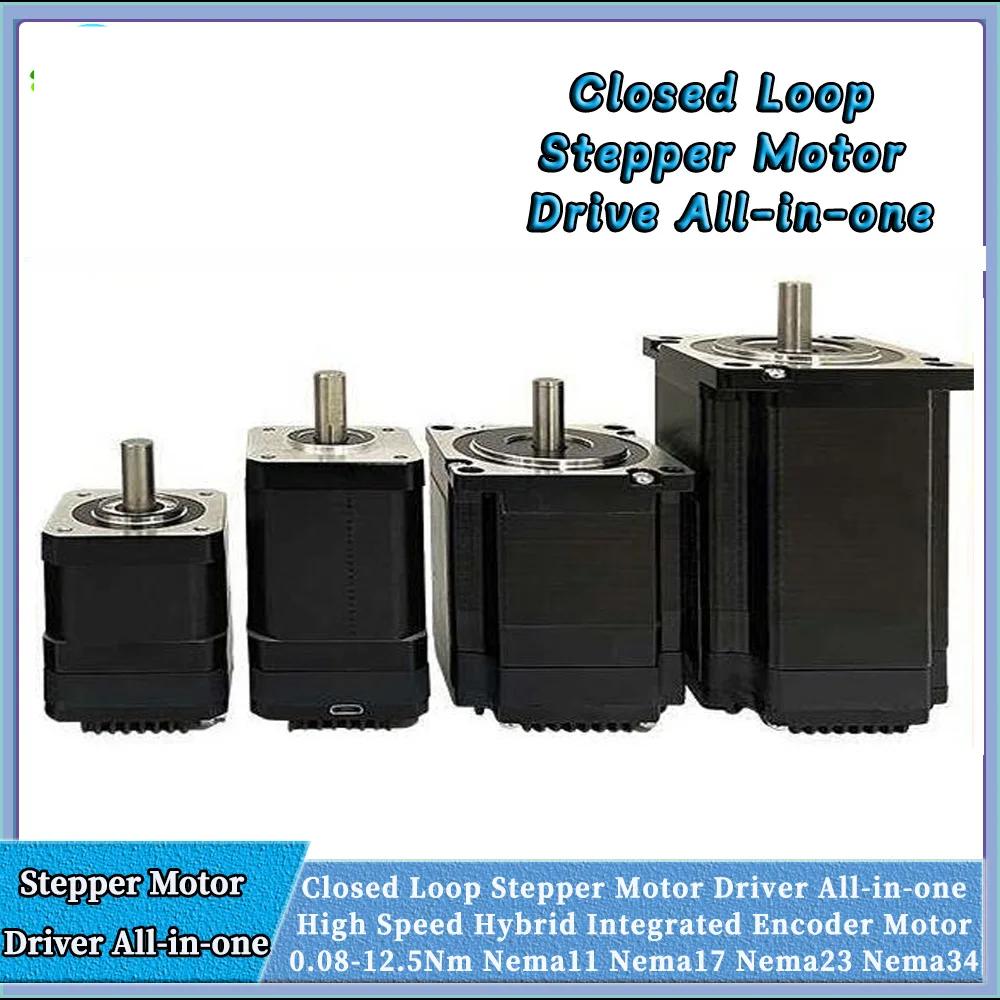

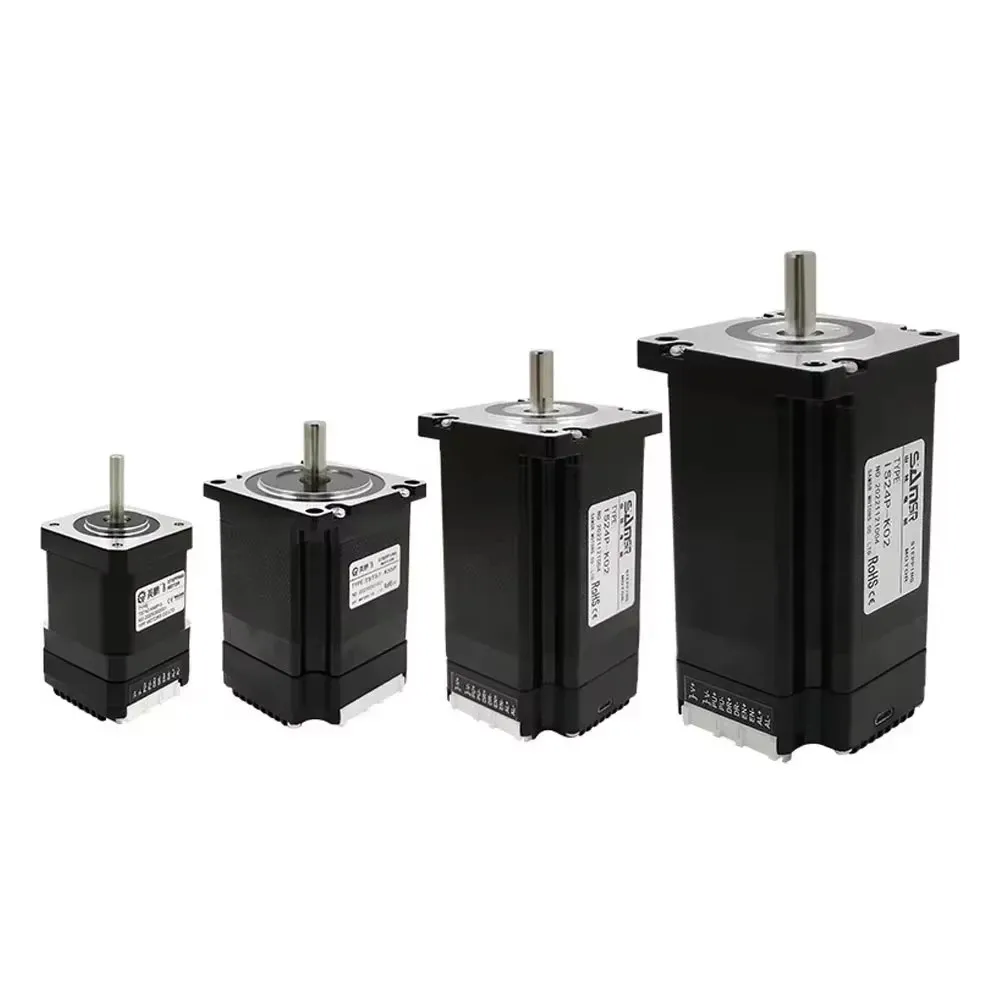

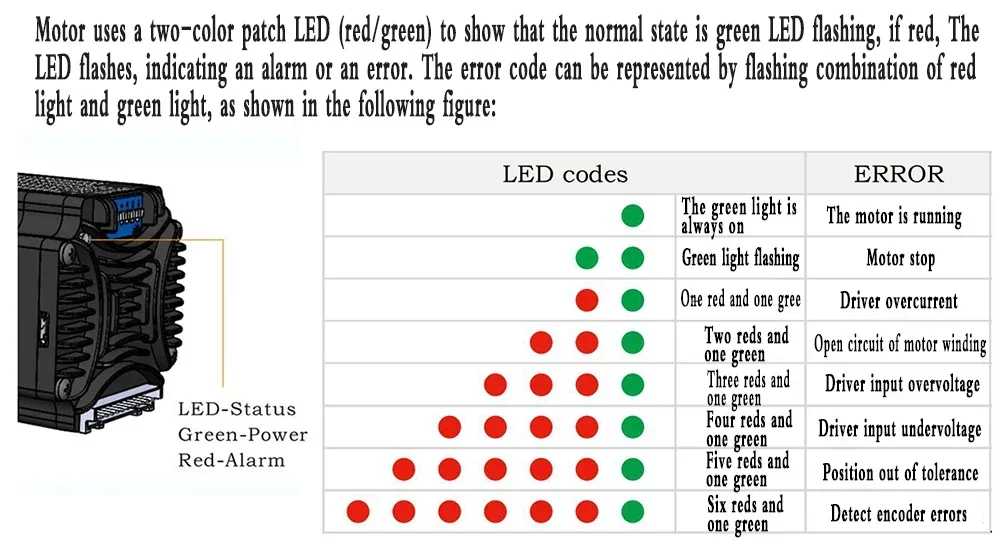

With various torque options (0.08Nm to 3.2Nm) and shaft diameters (5mm/8mm) across Nema 11, Nema 17, Nema 23, and Nema 24 configurations (models TST28, HBT42, HBT57, TST60), you can select the perfect motor to match your machine’s exact requirements. This intelligent design also prevents overheating and stalling, common issues with less sophisticated stepper motors, extending the lifespan of your equipment and ensuring uninterrupted production.

Unlock Peak Performance Across Diverse Applications

This versatile Closed Loop Stepper Motor Drive Hybrid Servo is ideal for upgrading or repairing a wide range of embroidery and motion control systems, ensuring superior performance for:

• Tajima Embroidery Machines
• Barudan Embroidery Machines
• Happy Embroidery Machines
• Brother Commercial Embroidery Machines
• SWF Embroidery Machines
• ZSK and Ricoma Embroidery Machines
• CNC motion control systems supporting Nema 11, Nema 17, Nema 23, Nema 24
• DIY custom motion control projects

Detailed Technical Specifications

Each Closed Loop Stepper Motor Drive Hybrid Servo is built to exacting standards, offering robust performance and precise control:

• Model Numbers: TST28, HBT42, HBT57, TST60
• Working Voltage Range: 22-60V (Drive), 8-60V DC (Motor dependent, see table)
• Drive Output Current: 0.5~6.5A
• Maxi Speed: 3000rpm

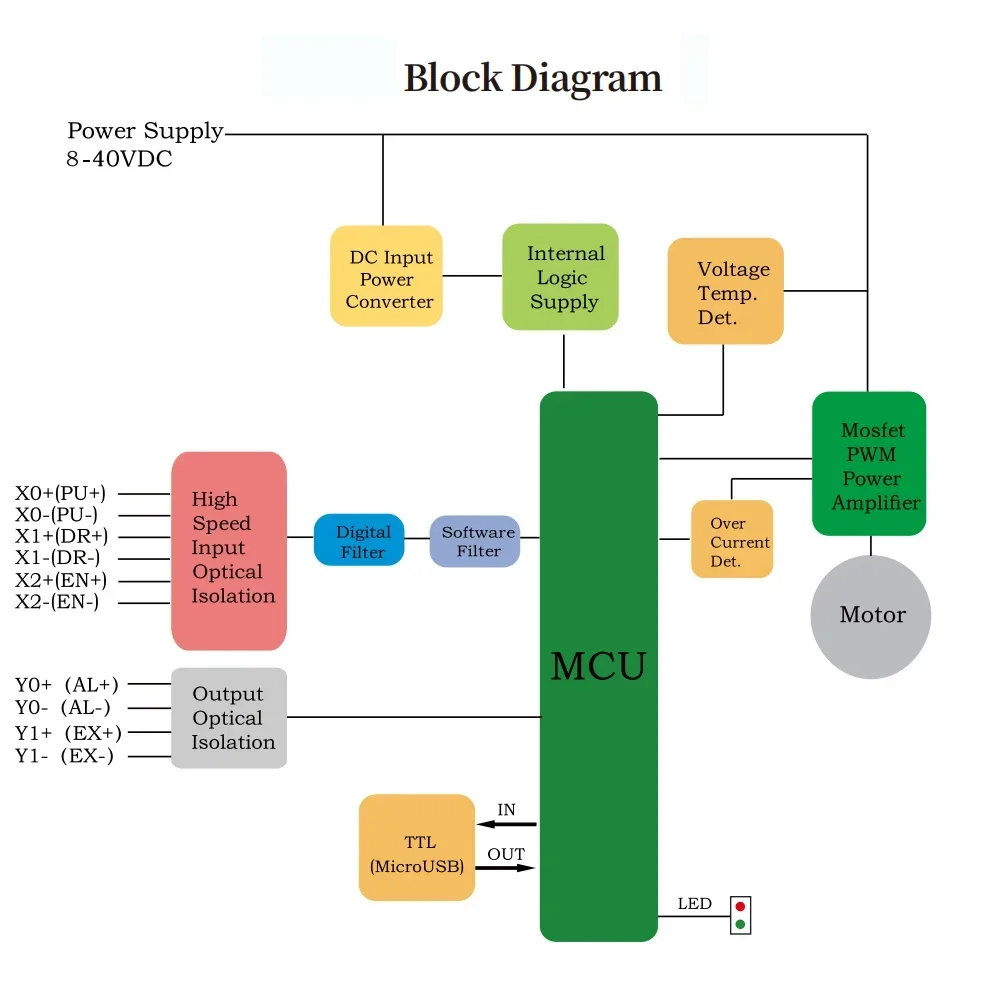

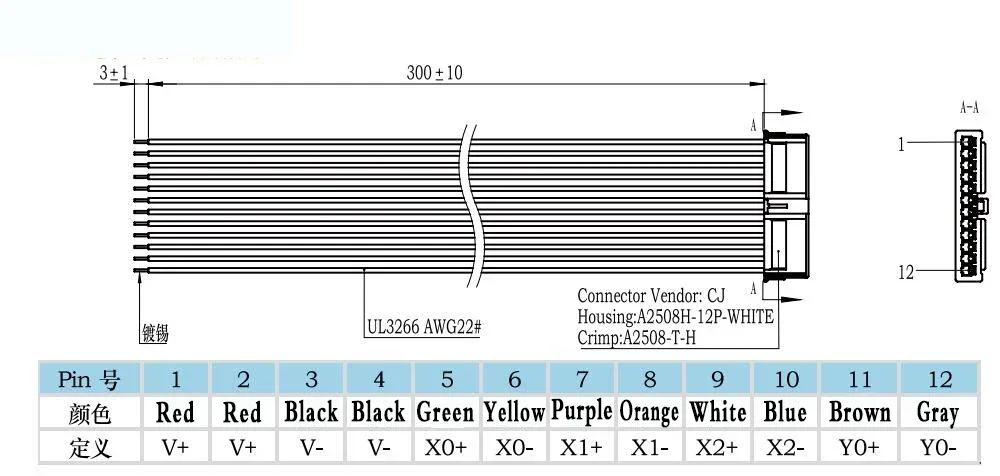

• Control Modes: Speed mode (I/O control, upper computer command), Position mode (pulse direction control, double pulse control, upper computer command)
• Communication Method: TTL

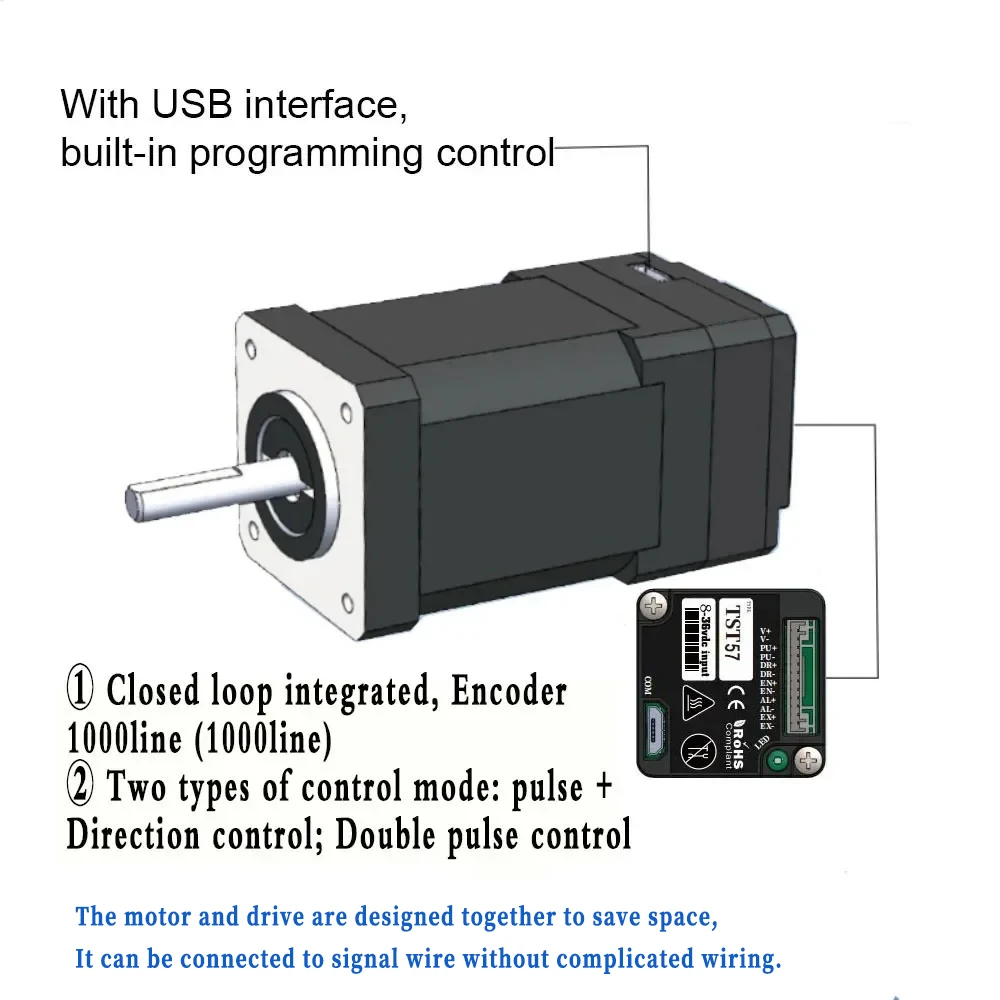

• Encoder Feedback: 1000 line
• Digital Input: 3 (high level 3.3~24V DC, default frequency 300KHZ)
• Digital Output: 1 (collector OC output, max voltage 30V, max current 50mA)

Motor Specifics (Select your model based on requirements):

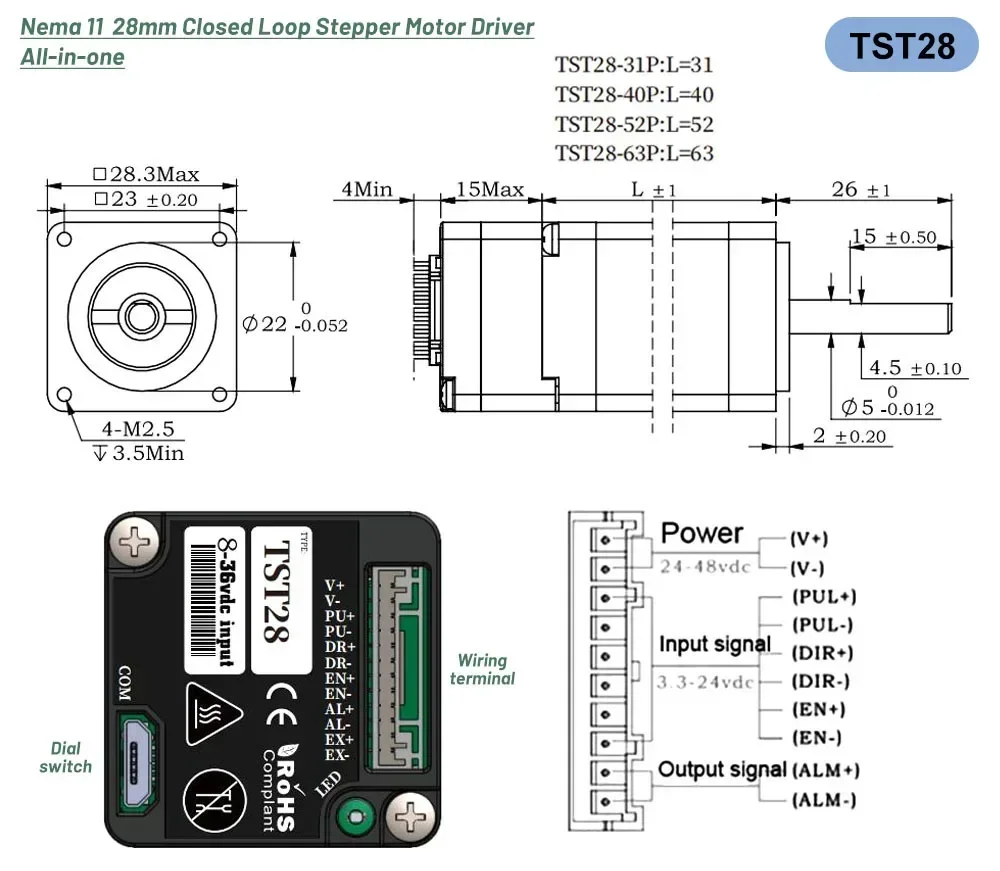

• TST28-31P: Body Length 46mm, Holding Torque 0.08N.m, 8-36V DC, Nema 11 (28mm), Shaft 26x5mm, Phase Current 1A, Phase Resistance 1.5Ω, Moment Of Inertia 9g.cm², Weight 0.115kg
• TST28-40P: Body Length 55mm, Holding Torque 0.12N.m, 8-36V DC, Nema 11 (28mm), Shaft 26x5mm, Phase Current 1A, Phase Resistance 1.9Ω, Moment Of Inertia 12g.cm², Weight 0.145kg
• TST28-52P: Body Length 67mm, Holding Torque 0.18N.m, 8-36V DC, Nema 11 (28mm), Shaft 26x5mm, Phase Current 1.3A, Phase Resistance 2.4Ω, Moment Of Inertia 18g.cm², Weight 0.205kg
• TST28-63P: Body Length 78mm, Holding Torque 0.24N.m, 8-36V DC, Nema 11 (28mm), Shaft 26x5mm, Phase Current 1.5A, Phase Resistance 1.8Ω, Moment Of Inertia 30g.cm², Weight 0.268kg

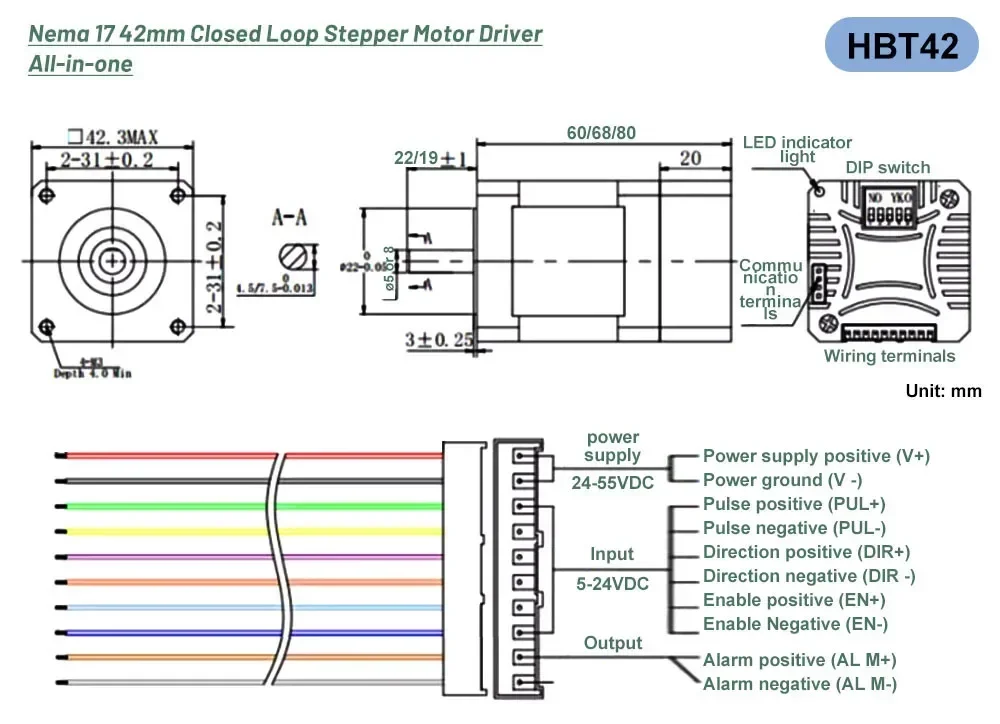

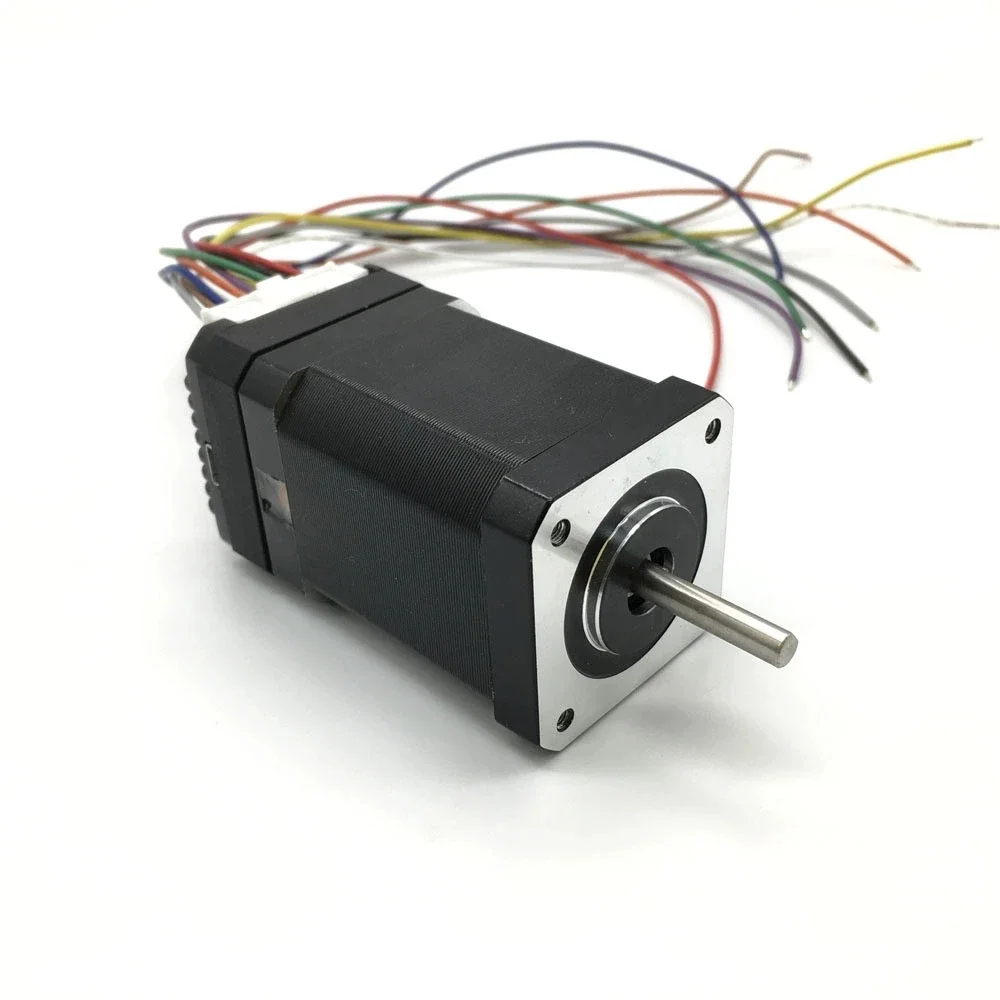

• HBT4240C: Body Length 60mm, Holding Torque 0.4N.m, 24-48V DC, Nema 17 (42mm), Shaft 22x5mm, Phase Current 1.5A, Phase Resistance 0.43Ω, Moment Of Inertia 57g.cm², Weight 0.45kg
• HBT4248C: Body Length 68mm, Holding Torque 0.48N.m, 24-48V DC, Nema 17 (42mm), Shaft 19x8mm, Phase Current 2A, Phase Resistance 0.5Ω, Moment Of Inertia 82g.cm², Weight 0.52kg
• HBT4260C: Body Length 80mm, Holding Torque 0.6N.m, 24-48V DC, Nema 17 (42mm), Shaft 19x8mm, Phase Current 2A, Phase Resistance 0.65Ω, Moment Of Inertia 110g.cm², Weight 0.68kg

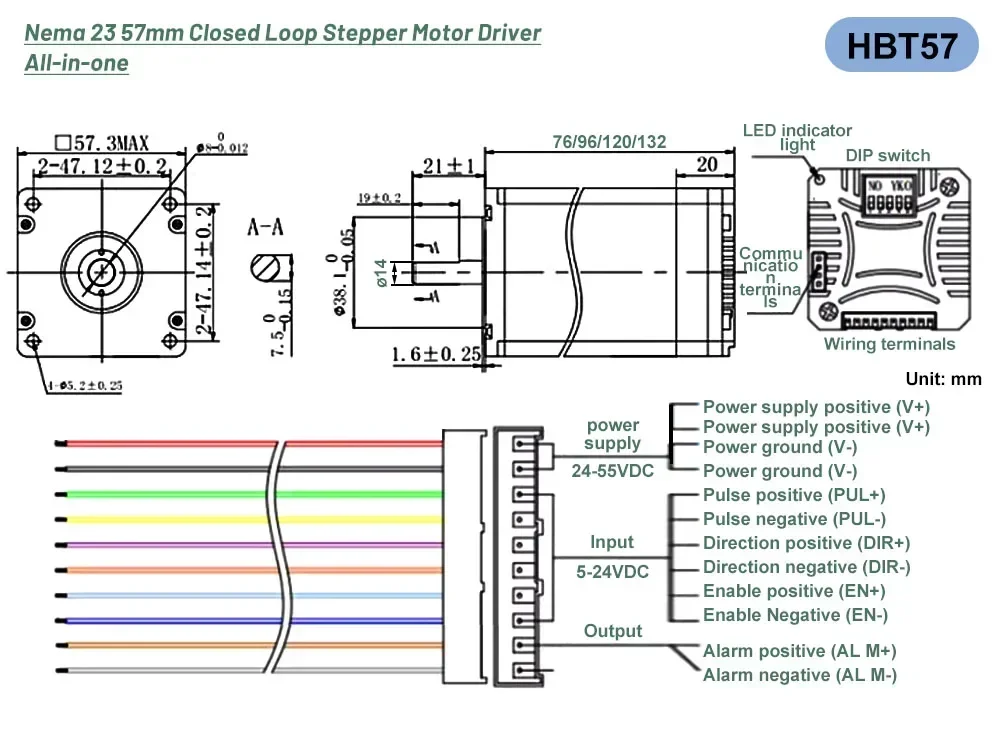

• HBT5756C: Body Length 76mm, Holding Torque 1.5N.m, 24-48V DC, Nema 23 (57mm), Shaft 21x8mm, Phase Current 3A, Phase Resistance 0.93Ω, Moment Of Inertia 300g.cm², Weight 0.75kg
• HBT5776C: Body Length 96mm, Holding Torque 2N.m, 24-48V DC, Nema 23 (57mm), Shaft 21x8mm, Phase Current 3.5A, Phase Resistance 0.4Ω, Moment Of Inertia 450g.cm², Weight 1.1kg
• HBT57100C: Body Length 120mm, Holding Torque 2.8N.m, 24-48V DC, Nema 23 (57mm), Shaft 21x8mm, Phase Current 4A, Phase Resistance 0.5Ω, Moment Of Inertia 680g.cm², Weight 1.56kg
• HBT57112C: Body Length 132mm, Holding Torque 3.2N.m, 24-48V DC, Nema 23 (57mm), Shaft 21x8mm, Phase Current 4.5A, Phase Resistance 0.78Ω, Moment Of Inertia 760g.cm², Weight 1.78kg

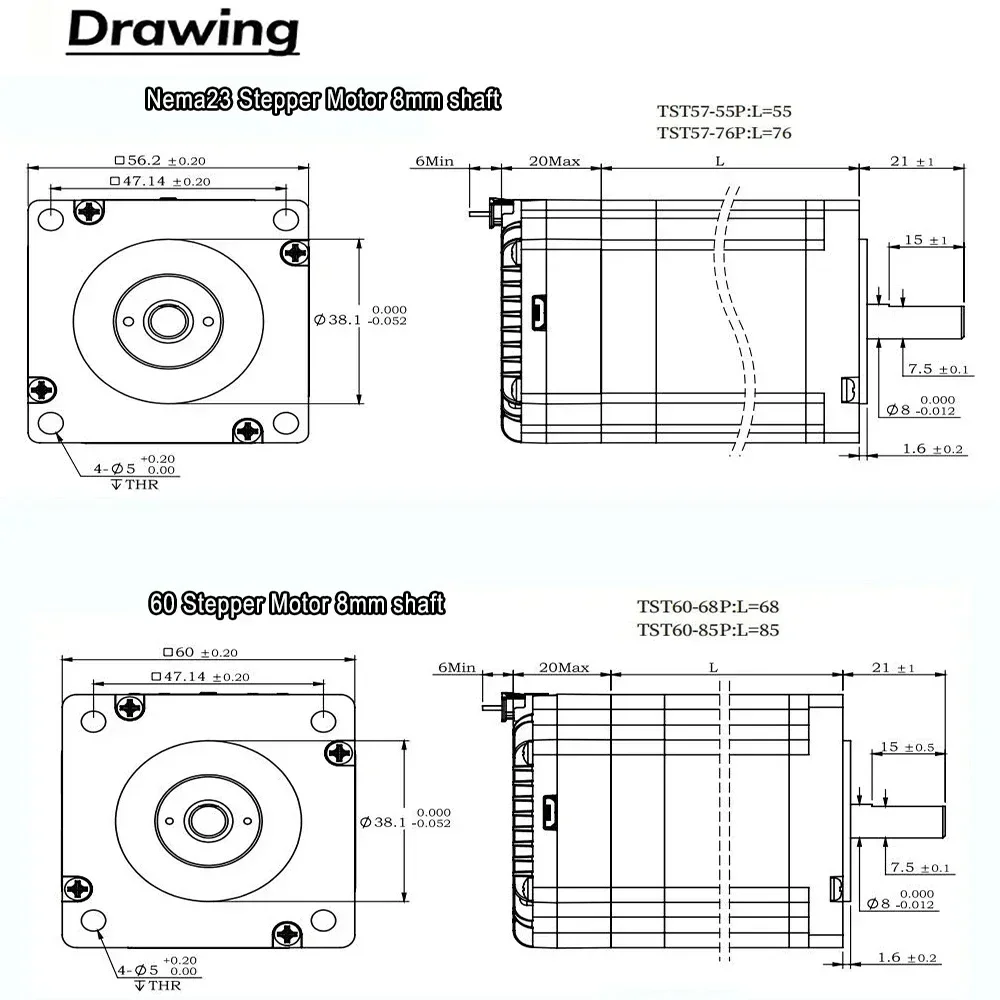

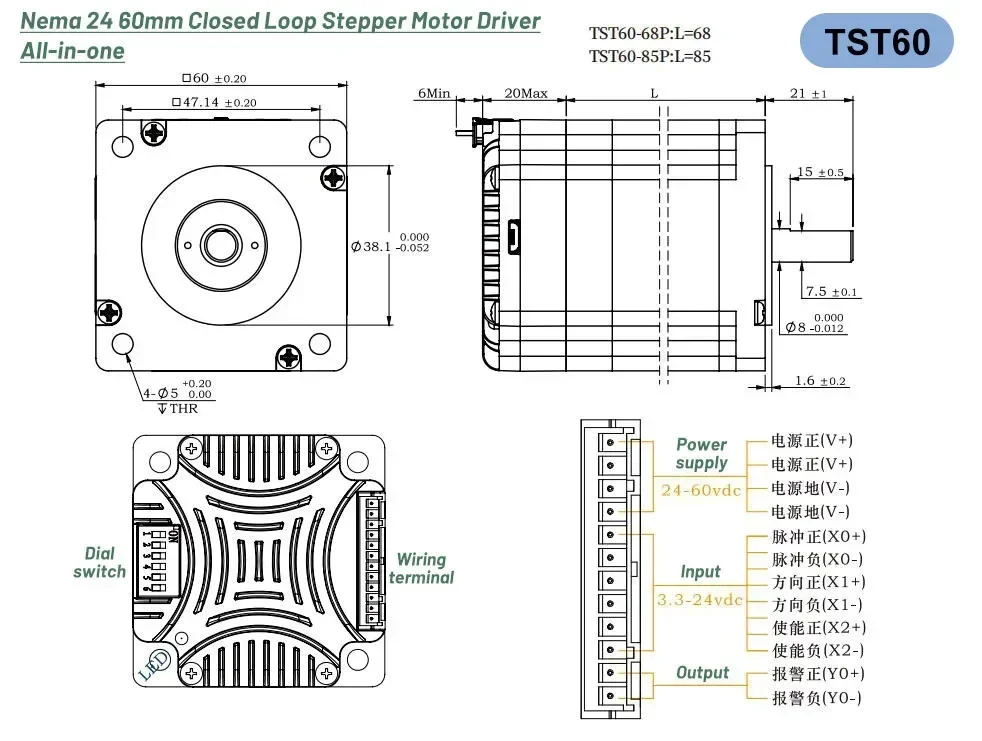

• TST60-68P: Body Length 88mm, Holding Torque 2.2N.m, 24-60V DC, Nema 24 (60mm), Shaft 21x8mm, Phase Current 5A, Phase Resistance 0.5Ω, Moment Of Inertia 490g.cm², Weight 1.1kg
• TST60-85P: Body Length 105mm, Holding Torque 3N.m, 24-60V DC, Nema 24 (60mm), Shaft 21x8mm, Phase Current 5A, Phase Resistance 0.45Ω, Moment Of Inertia 690g.cm², Weight 1.4kg

Important Compatibility Note: While designed for broad compatibility, we always recommend confirming the specific Nema size, shaft diameter, and torque requirements for your embroidery machine model before ordering. Not sure which model you need? Contact us with your machine model and we will gladly help confirm the ideal fit.

Shop with Confidence at 360 Digitizing Shop

Every Closed Loop Stepper Motor Drive Hybrid Servo is meticulously function-tested before shipping, ensuring that you receive a perfectly operating unit. We are committed to sending only top-quality, defect-free products. In the unlikely event a defective item arrives, your purchase is protected: we guarantee a full refund within 4 days, allowing you to invest in your business with complete peace of mind.

Frequently Asked Questions

What is a Closed Loop Stepper Motor and how does it benefit my embroidery machine?
A Closed Loop Stepper Motor, also known as a Hybrid Servo, integrates an encoder to provide continuous position feedback. This ensures the motor always knows its exact position, preventing “step loss” common in open-loop systems. For embroidery, this means higher precision, reduced vibration, consistent stitch quality, and the ability to operate at higher speeds without stalling or missing stitches.

Which embroidery machine brands are compatible with these motors?
These Closed Loop Stepper Motor Drive Hybrid Servos are compatible with a wide range of industrial and commercial embroidery machines, including Tajima, Barudan, Happy, Brother Commercial, SWF, ZSK, and Ricoma. They are also suitable for CNC and DIY motion control systems supporting Nema 11, Nema 17, Nema 23, and Nema 24 motor sizes.

How do I ensure I select the correct motor model for my machine?
To ensure the perfect fit, please verify the required Nema size (e.g., Nema 11, Nema 17, Nema 23, Nema 24), shaft diameter (5mm or 8mm), and desired torque (N.m) for your specific embroidery machine model. You can refer to our detailed specifications table. If you’re unsure, contact us with your machine model, and our experts will help you confirm the ideal motor.

What is included when I purchase this product?

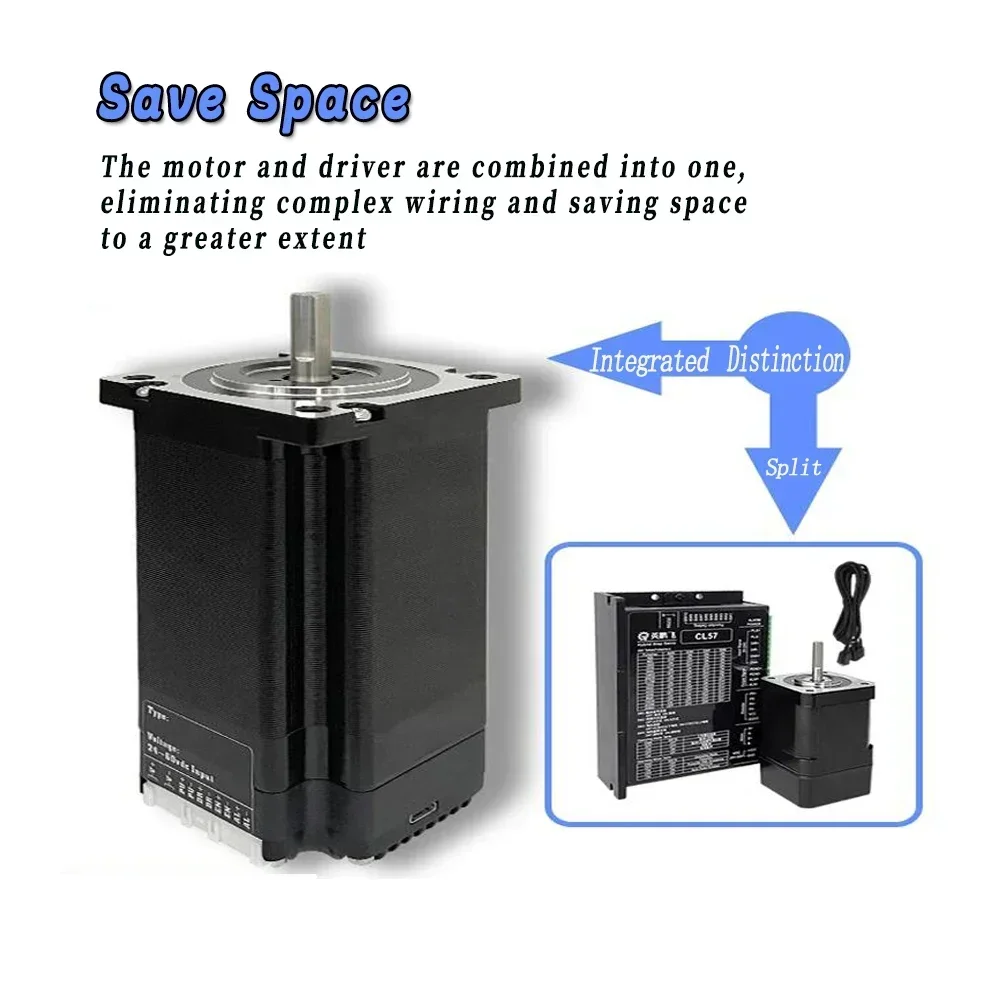

Each purchase includes one Closed Loop Stepper Motor Drive Hybrid Servo, which is an all-in-one integrated motor solution. Specific motor model (e.g., TST28, HBT42, HBT57, TST60) will vary based on your selection.

What is 360 Digitizing Shop's quality assurance and return policy for these motors?
Every motor is rigorously function-tested before shipping to ensure it is defect-free. We are committed to quality. In the rare event a defective item arrives, you are protected by our buyer protection policy, guaranteeing a full refund within 4 days.
