Eliminate Downtime and Inconsistent Stitch Quality

Are you struggling with inaccurate thread detection or frequent interruptions in your high-speed embroidery production? A failing circuit board for your bottom inspection system can lead to costly downtime, inconsistent stitch quality, and wasted materials, directly impacting your business’s efficiency and profitability. The HL919, HL921, HL923, HL924 Circuit Board is engineered to solve these critical problems, providing the precision and reliability essential for continuous, high-quality embroidery.

Precision Thread Monitoring for Flawless Production

This 9-pin circuit board is the critical component responsible for precise thread monitoring within Dahao intelligent bottom inspection systems. It accurately detects thread breaks and inconsistencies, allowing your machine to react swiftly and prevent costly errors. Designed for high-speed computer embroidery machines, its robust construction from STEEL ensures long-lasting durability and stable performance under demanding industrial conditions. The intelligent design integrates seamlessly with your existing Dahao-controlled setup, restoring optimal functionality and enhancing your machine‘s ability to produce intricate designs with confidence.

Designed For:

• Dahao Intelligent Bottom Inspection Systems
• 9-Pin High-Speed Computer Embroidery Machines

Key Specifications:

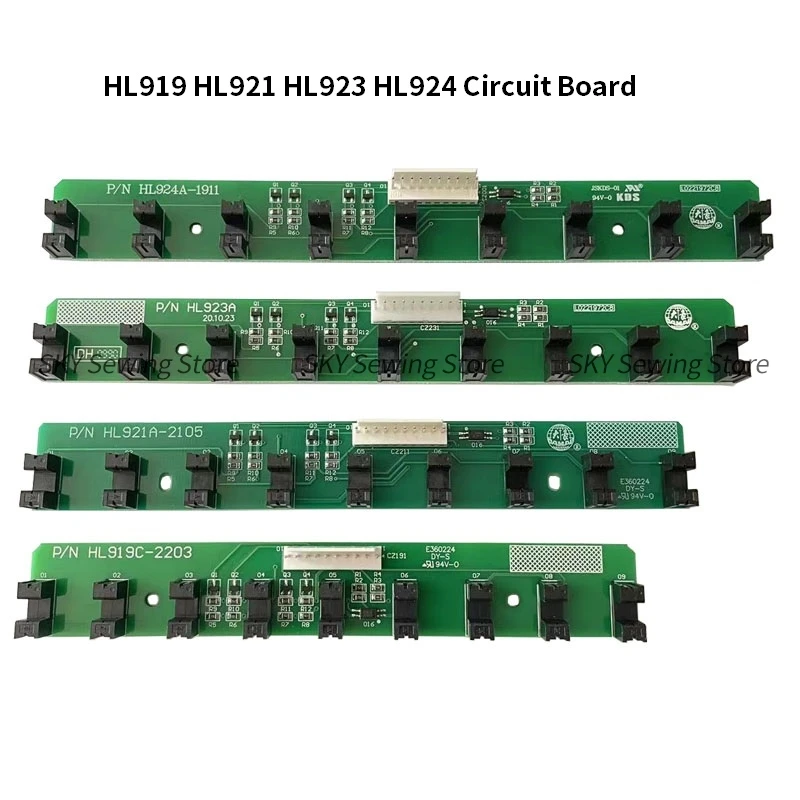

• Part Numbers: HL919, HL921, HL923, HL924
• Pin Configuration: 9-Pin
• Material: STEEL
• Function: Intelligent Bottom Inspection

Ensure Perfect Fitment

This circuit board is specifically designed for Dahao-controlled 9-pin high-speed computer embroidery machines. To ensure perfect fitment, please confirm your machine model and existing part number (HL919, HL921, HL923, HL924) before ordering. If you’re unsure, contact us with your machine model and we will gladly confirm compatibility for you.

Quality You Can Trust, Backed by Protection

At 360 Digitizing Shop, we understand the importance of reliable parts. Every HL919, HL921, HL923, HL924 Circuit Board undergoes rigorous function testing before shipping, guaranteeing that only fully operational units reach your workshop. This meticulous process ensures defective units are never sent. In the rare event a defective item arrives, your purchase is protected by our buyer protection policy, ensuring a full refund within 4 days. Invest in the precision and peace of mind that comes with our quality-tested components.

Compatible With:

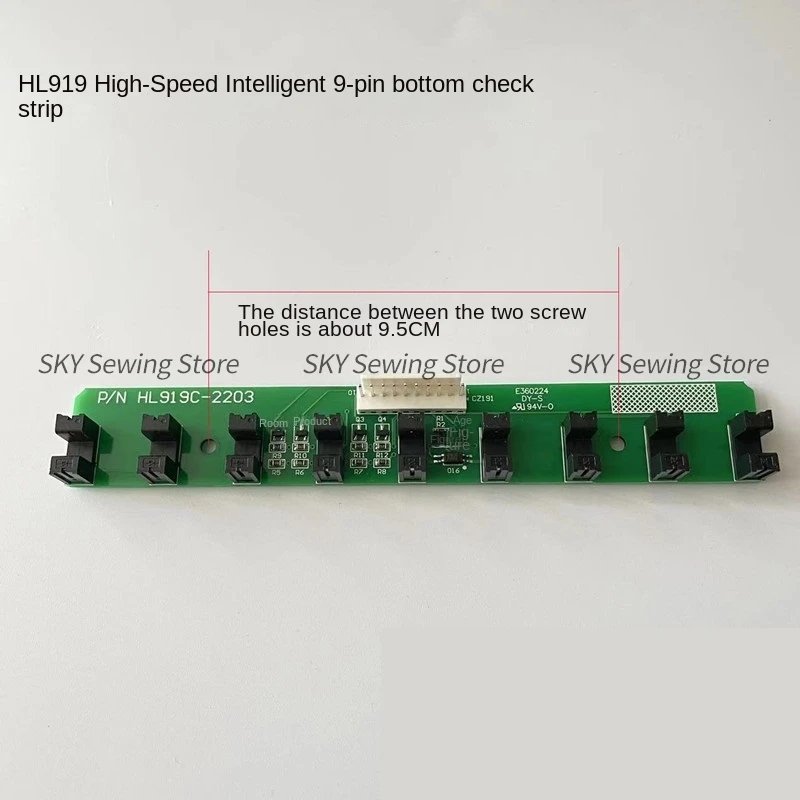

• HL919 (9-Pin)

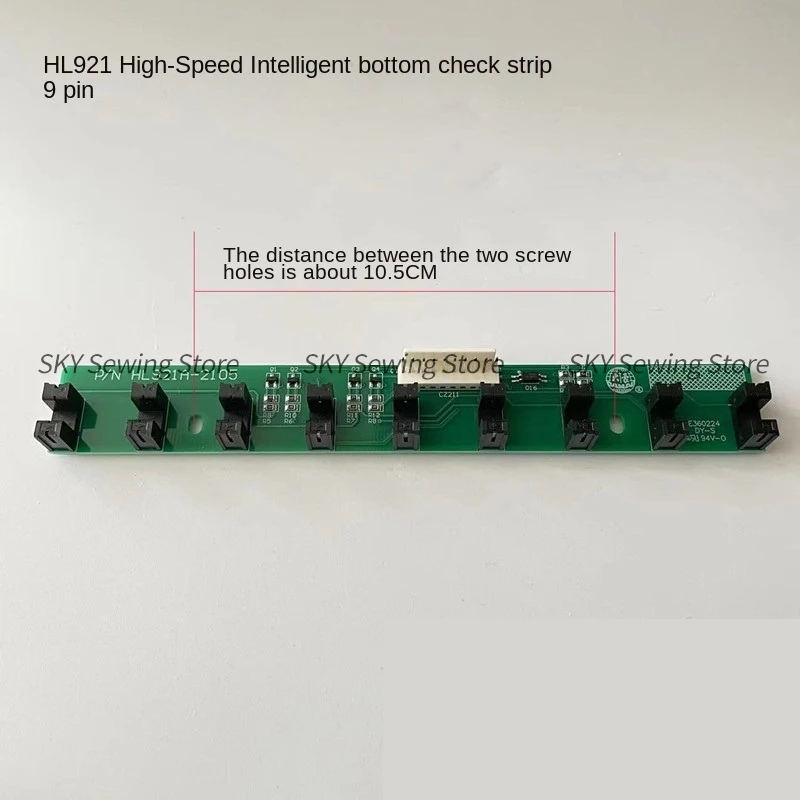

• HL921 (9-Pin)

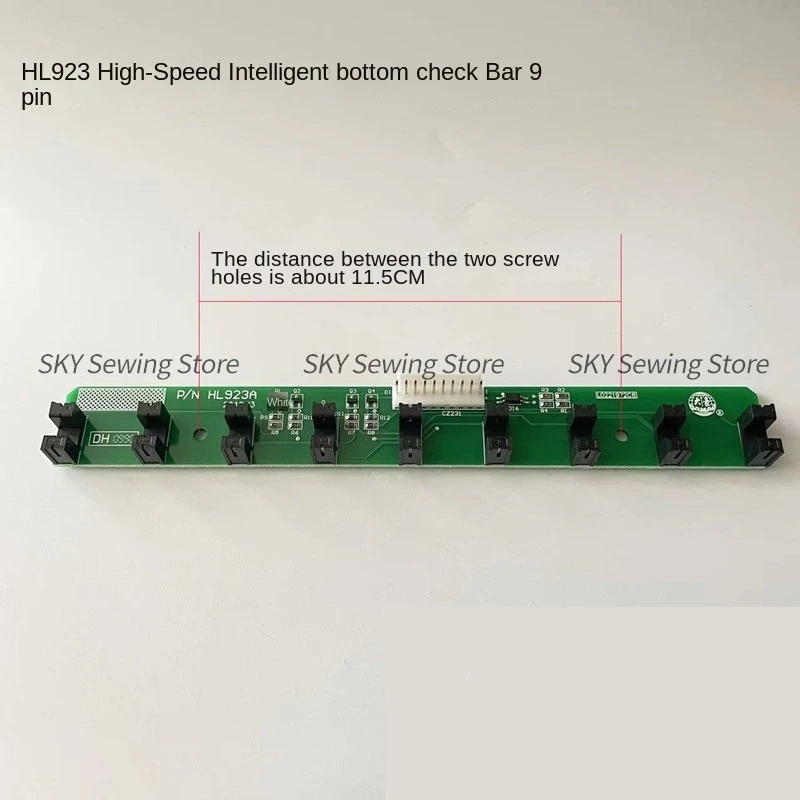

• HL923 (9-Pin)
• HL924 (9-Pin)
• Dahao Intelligent Bottom Inspection Systems
• High-Speed Computer Embroidery Machines with 9-Pin Configuration

Frequently Asked Questions

What is the primary function of the HL919 HL921 HL923 HL924 Circuit Board?
This circuit board is crucial for Dahao intelligent bottom inspection systems in high-speed computer embroidery machines. It ensures precise thread monitoring, detecting breaks and inconsistencies to maintain stitch quality and prevent production errors.

What machines are compatible with this circuit board?
This 9-pin circuit board is designed for Dahao-controlled high-speed computer embroidery machines that utilize the HL919, HL921, HL923, or HL924 intelligent bottom inspection systems.

How can I confirm if this circuit board will fit my machine?
To ensure correct fitment, please verify your machine‘s model and the specific part number (HL919, HL921, HL923, or HL924) of your current circuit board. If you are uncertain, please contact us with your machine model for expert assistance.

What material is this circuit board made from?
The HL919, HL921, HL923, HL924 Circuit Board is constructed from durable STEEL, ensuring longevity and stable performance in demanding embroidery environments.

How is the quality of the circuit board ensured before shipping?
Every HL919, HL921, HL923, HL924 Circuit Board undergoes rigorous function testing by our technical department before it is shipped, ensuring that you receive a fully operational and reliable product.

What is the policy if a defective item is received?
In the rare event that a defective item arrives, your purchase is protected by our buyer protection policy, which guarantees a refund within 4 days.
