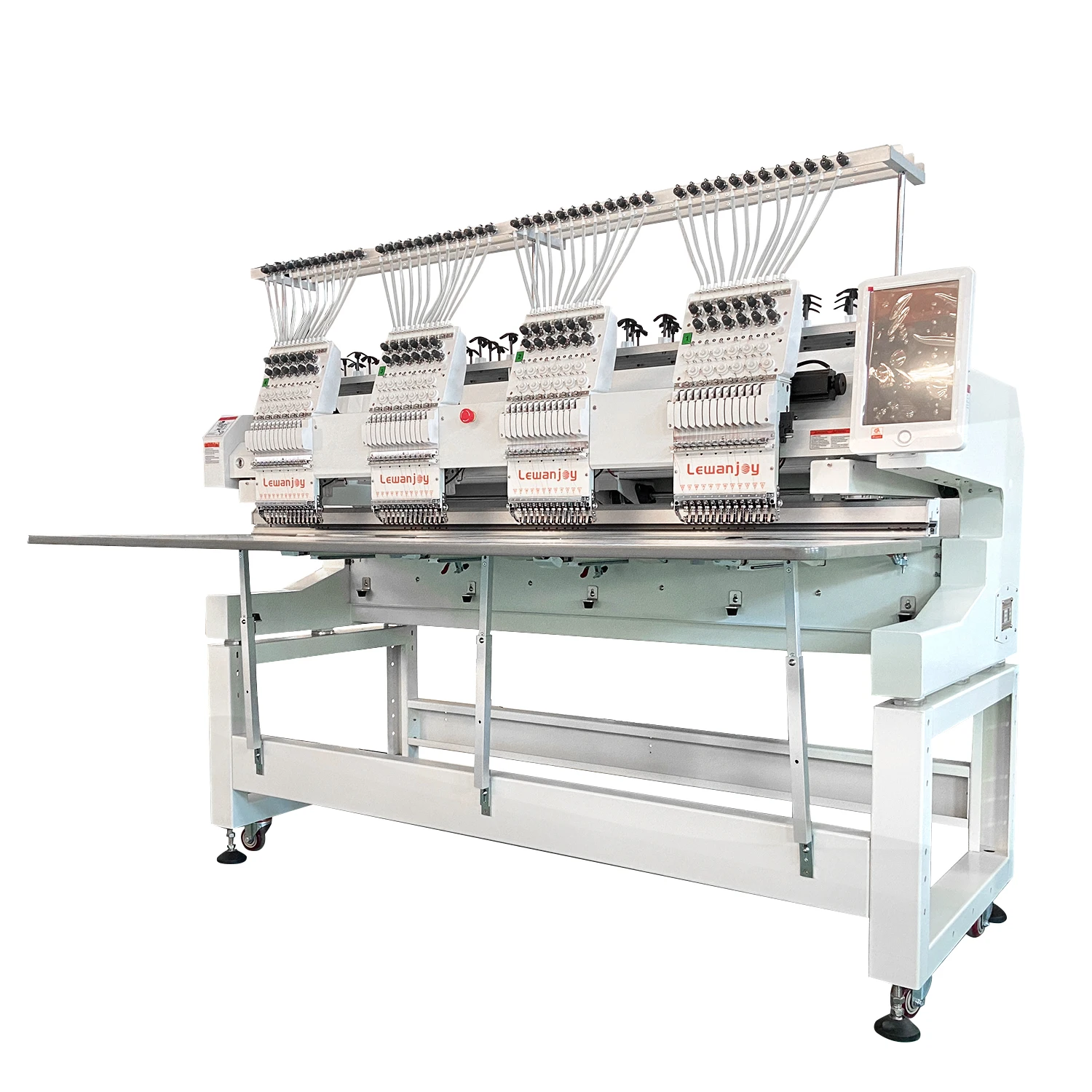

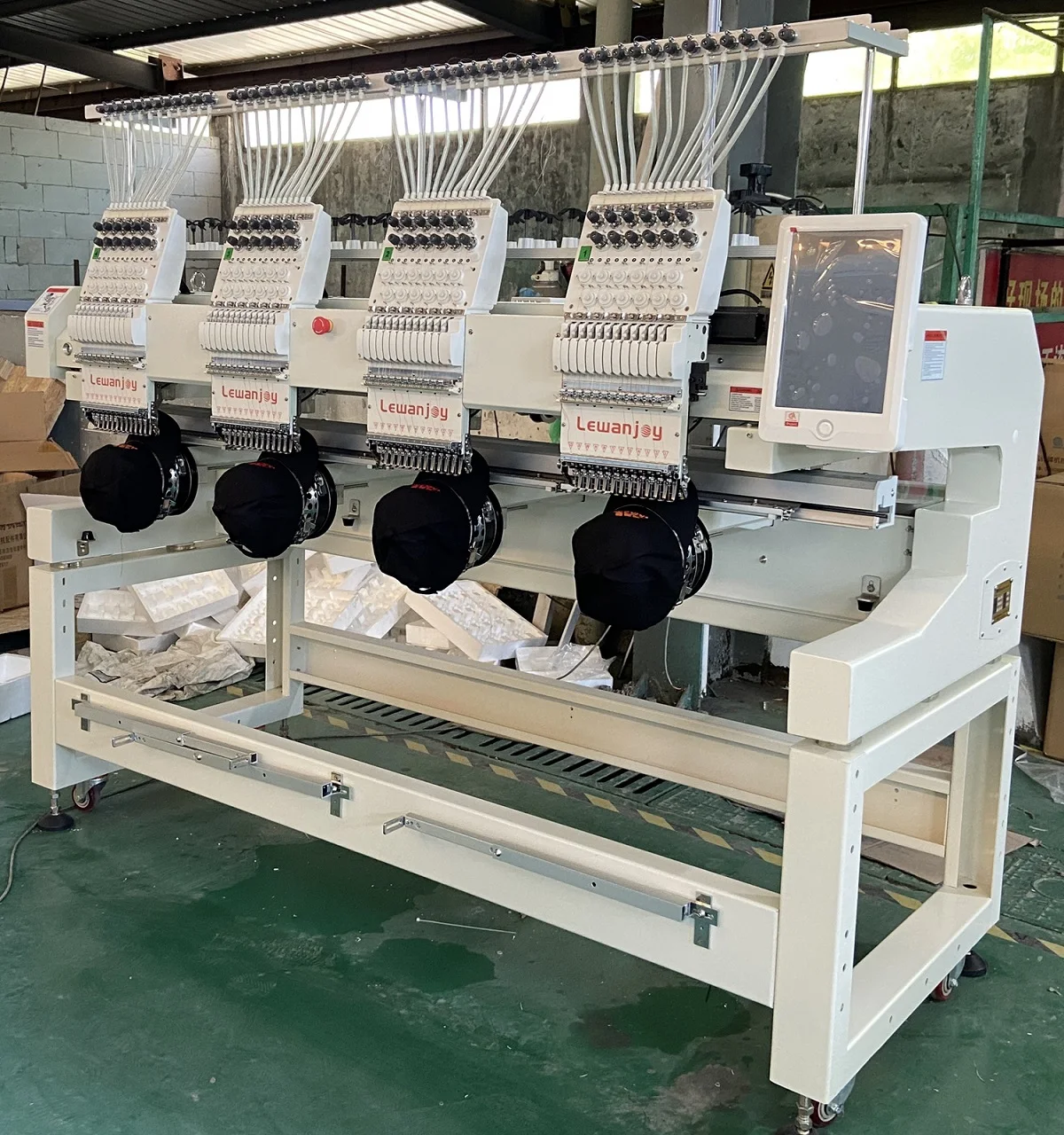

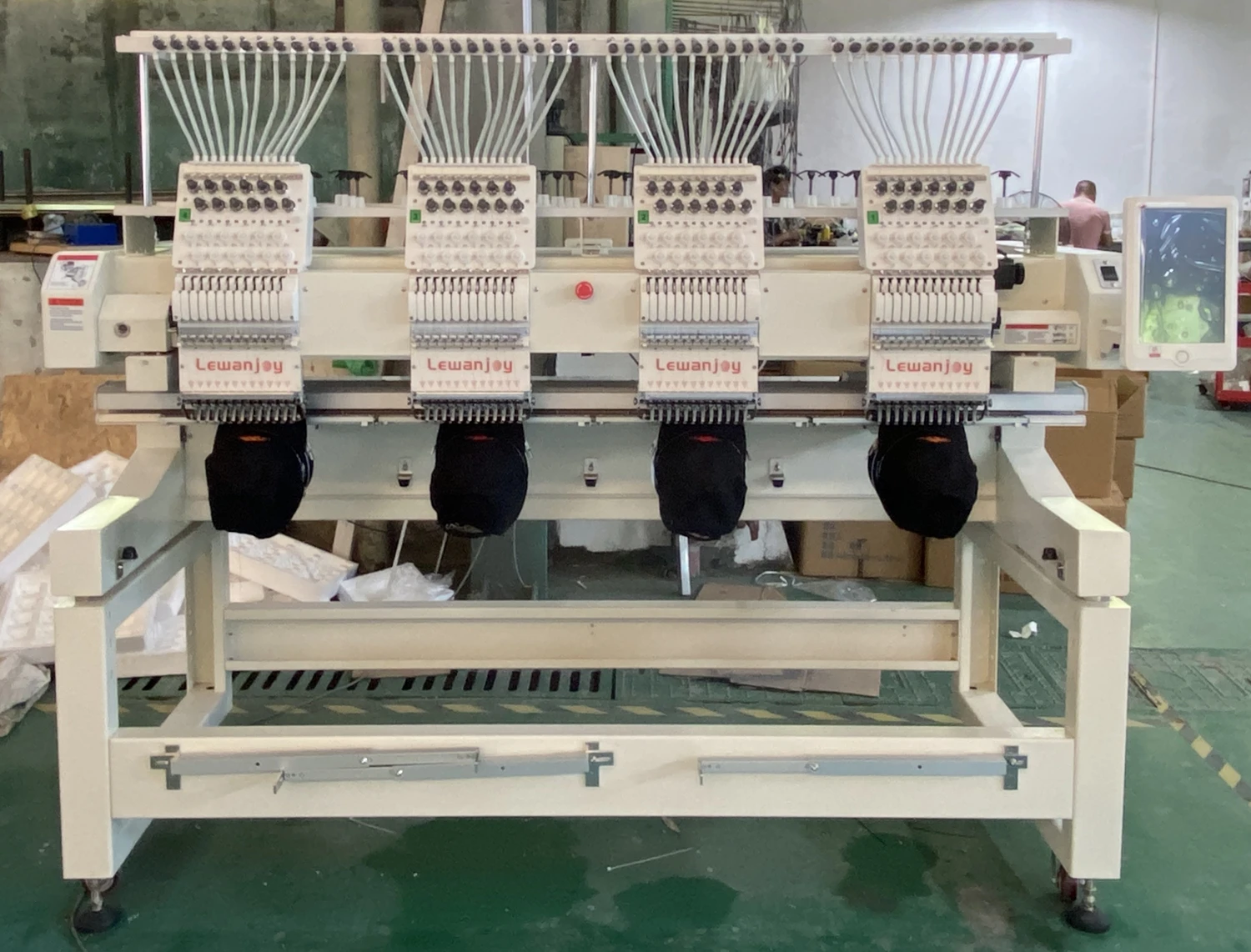

LE-04 4 Head Commercial Embroidery Machine 12 Needle Cap & Garment
Unlock significant production capacity and expand your service offerings with the 360 Digitizing Shop LE-04 4 Head Commercial Embroidery Machine. This high-speed, 12-needle system empowers your business to efficiently embroider caps, T-shirts, and flat garments, delivering professional results and boosting your revenue.
| Weight | 114 oz |
|---|---|
| Dimensions | 110 in |
| Brand Name | NoEnName_Null |
| Operation | Computerized |
| Model Number | le-04 |
| Head Number | 4 Heads |
| Needle Number | 9/12 |
| Worktable Size | 400-1200mm |
| Head Interval | 400mm |
| Embroidery Area | 400*450mm |
| Weight | 450kg |
| Overall Dimensions | 192*132*163cm |
| product name | high speed automatic commercial 4 head computerized embroidery machine |
| Function | Flat Cap Garnent Embroidery Machine |
Description
Are you struggling to meet demand with a single-head embroidery machine, or turning down profitable orders because your current setup can’t handle the volume or variety? The LE-04 4 Head Commercial Embroidery Machine is engineered to transform your production capabilities, allowing you to take on more projects, increase output, and maximize your profitability.
Boost Your Production & Profitability
Designed for the ambitious embroidery business, the LE-04 machine features four independent heads, each equipped with 12 needles. This means you can embroider four items simultaneously or create intricate multi-color designs without constant thread changes, drastically cutting down production time. With an impressive maximum speed of 1000 RPM and automatic color change functionality, your workflow becomes more efficient, reducing manual intervention and allowing you to complete orders faster and take on larger contracts. The generous 2,000,000 stitch memory size ensures you can store and execute complex designs with ease.
Versatility for Every Project

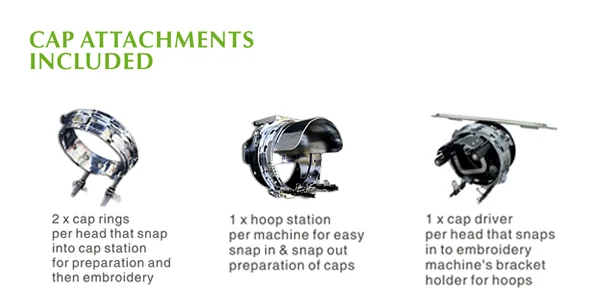

Expand your service offerings and cater to a wider client base with a machine built for versatility. The LE-04 excels at a broad spectrum of embroidery applications, from structured caps to delicate garments. Its design allows for easy manual changes of cap frames, cap hoops, and the cap hoop station, ensuring seamless transitions between different project types. The convenient USB input port makes transferring designs straightforward and quick.
- Works with:
- Caps
- T-shirts
- Flat garments
- Socks
- Gloves
- Jackets
- Sleeves
- Bags
Precision Engineering for Flawless Results
Every stitch matters in commercial embroidery. The LE-04 is a computerized, high-speed automatic machine that delivers consistent, high-quality results. It is compatible with industry-standard design formats from Wilcom and TAJIMA, ensuring your existing design library integrates effortlessly. Optional devices like sequin, bead, or rope devices can be added to further enhance your creative capabilities and offer unique embroidery options.
Technical Specifications
- Model Number: LE-04
- Operation: Computerized
- Head Number: 4 Heads
- Needle Number: 12 Needles (also supports 9-needle configurations)
- Worktable Size: 400-1200mm
- Head Interval: 400mm
- Embroidery Area: 400*450mm
- Voltage: 110V, 220V (available)
- Max Speed: 1000 RPM
- Memory Size: 2,000,000 stitches
- Type: Cap Embroidery Machine, Flat Garment Embroidery Machine
- Condition: New
- Weight: 450kg
- Overall Dimensions: 192*132*163cm
- Function: Flat Cap Garment Embroidery Machine
Compatible With
The LE-04 is designed for high-volume, versatile commercial use across a wide range of textile products. We recommend confirming your specific project requirements with us if you have unique applications in mind. Contact us with your intended garment types and we will confirm compatibility.
Why Choose 360 Digitizing Shop?
At 360 Digitizing Shop, we understand the critical role your equipment plays in your business success. That’s why every LE-04 embroidery machine is meticulously function-tested before shipping, ensuring you receive a perfectly operating unit. In the rare event a defective item arrives, your purchase is protected, and a full refund will be processed within 4 days.
Frequently Asked Questions
What types of items can the LE-04 embroidery machine embroider?
It can embroider a wide variety of items including caps, T-shirts, flat garments, socks, gloves, jackets, sleeves, and bags.
How does a 4-head, 12-needle machine benefit my business?
A 4-head machine significantly increases production capacity by allowing four items to be embroidered simultaneously. The 12 needles per head enable complex designs with multiple colors without frequent thread changes, boosting efficiency and output.
What design file formats are compatible with this machine?
The LE-04 is compatible with popular embroidery design formats, including those from Wilcom and TAJIMA software.
What is the maximum embroidery speed of the LE-04?
The machine operates at a maximum speed of 1000 RPM (revolutions per minute).
How is the quality of the LE-04 machine ensured before shipping?
Every LE-04 embroidery machine undergoes thorough function testing before shipping to ensure it operates perfectly. In the unlikely event of a defective item, a full refund is processed within 4 days under our buyer protection policy.
What are the power requirements for this machine?
The LE-04 machine is versatile, supporting both 110V and 220V electricity, making it suitable for various global power standards.
Additional information
| Weight | 114 oz |
|---|---|
| Dimensions | 110 in |
| Brand Name | NoEnName_Null |
| Operation | Computerized |
| Model Number | le-04 |
| Head Number | 4 Heads |
| Needle Number | 9/12 |
| Worktable Size | 400-1200mm |
| Head Interval | 400mm |
| Embroidery Area | 400*450mm |
| Weight | 450kg |
| Overall Dimensions | 192*132*163cm |
| product name | high speed automatic commercial 4 head computerized embroidery machine |
| Function | Flat Cap Garnent Embroidery Machine |
