What is this case study? This page documents a real completed Digitizing order produced by 360 Digitizing Solutions for a Cap Front placement on Cotton. To protect client privacy, company and brand names have been anonymized. Browse specs, before/after images, and production notes below.
Mastering Cap Front Cotton Embroidery Layouts
Discover how our expert team turned a tight 4×0.8 inch cap front design into a clean, production-ready stitch file for durable cotton fabric.

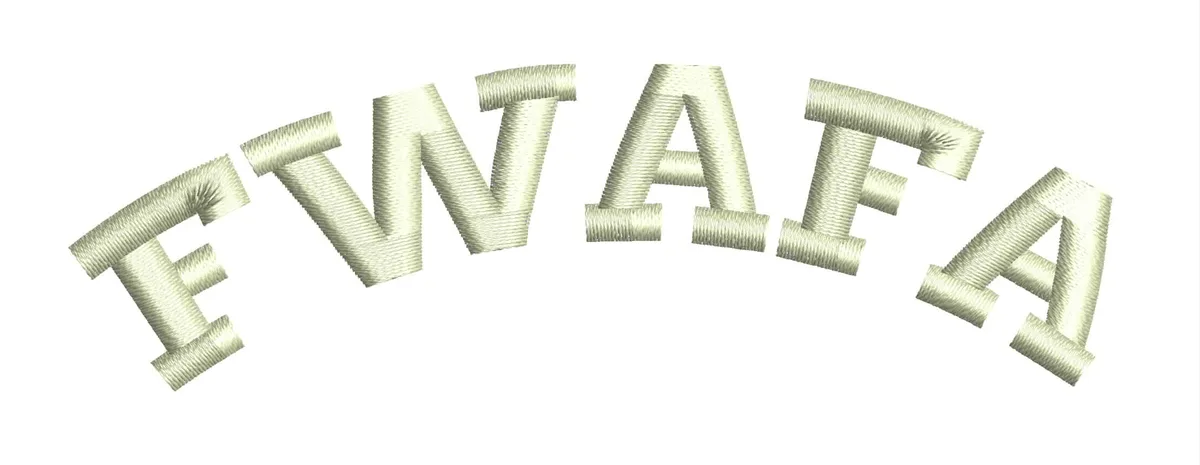

Final Digitized Proof
Order Specifications
Project Background
Caps present unique challenges compared to flat garments because the curved surface and internal buckram can distort stitches if the file is not planned out correctly from the center outward. The client needed a file that would stitch cleanly at high speeds without puckering the cotton fabric or losing definition in the narrow letterforms.
Measuring 4 inches wide by 0.8 inches tall, the proportions meant that horizontal pull compensation had to be carefully managed. If the pull compensation was too high, the text would distort; if it was too low, gaps would appear along the stitch lines once the cap was hooped tightly on the machine driver.
Our team analyzed the exact physical properties of the cotton material provided in the brief. Cotton has a stable weave, but when mounted on a cap frame, tension shifts dynamically during the embroidery process. We factored in these specific variables before drawing a single stitch path.
By focusing on proper center-out sequencing, we ensured that the finished cap front would look balanced, professional, and entirely free of distortion. This preparation guaranteed that the client could run the production batch without worrying about constant thread breaks or misaligned elements.
Technical Production Process
Because the height was restricted to just under an inch, the stitch density had to be calibrated strictly. Overlapping too many stitches in a narrow horizontal space causes thread buildup, which leads to needle deflection and frequent thread snaps on industrial multi-head machines.
We also adjusted the entry and exit points to minimize unnecessary jump stitches and trim commands. Keeping the path continuous reduces machine downtime and results in a much cleaner backside, which is critical for structured headwear.
The final stitch count was set precisely to 2,060 stitches, providing solid coverage without weighing down the cotton material. Every angle was manually optimized to follow the natural curve of the cap front frame.
- ✓ Applied balanced edge-walk underlay to stabilize the cotton cap fabric
- ✓ Optimized stitch density for a 4×0.8 inch layout to prevent thread buildup
- ✓ Configured center-out sequencing to eliminate puckering on curved surfaces
Final Outcome
Clean edges, crisp lettering, and a smooth finish proved that proper technical preparation makes all the difference in cap embroidery. The customer was fully satisfied with the outcome and immediately moved forward with additional orders.
This project highlights our commitment to delivering reliable, machine-ready files tailored specifically to the fabric and placement requirements of every single order we process.
Ready for Flawless Production?
We deliver production-ready files optimized for your exact machines and fabrics, reducing thread breaks and maximizing shop efficiency.
Frequently Asked Questions
What fabric was used for this digitizing project? +
This specific design was optimized specifically for durable structured cotton fabric.
What is the stitch count for this cap front design? +
The total stitch count for this 4×0.8 inch cap front design is 2,060 stitches.
