What is this case study? This page documents a real completed Digitizing order — Cincinnati F/R – Chest — produced by 360 Digitizing Solutions for a Left Chest placement on Cotton. Browse specs, before/after images, and production notes below.
Cincinnati F/R – Chest Digitizing Project
A detailed look at how we digitized a complex corporate emblem for perfect execution on cotton apparel.
Original Customer Artwork
High-resolution graphic supplied by the customer for digitizing.

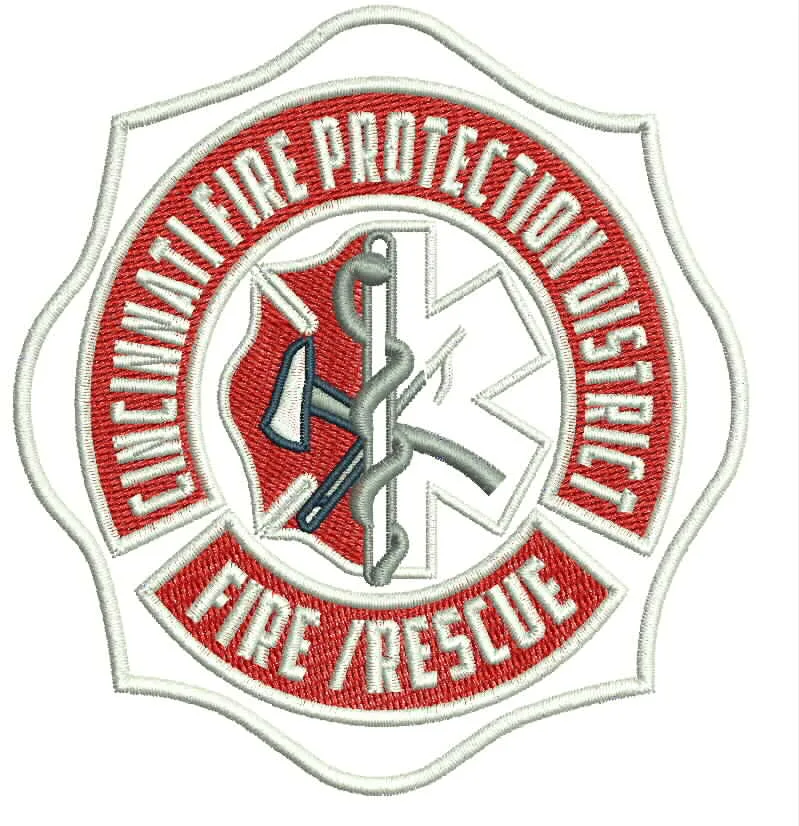

Digitized Embroidery Proof
The production-ready stitch simulation showing pathing and detail rendering.
Technical Specifications
| Design Name | Cincinnati F/R – Chest |
|---|---|
| Placement | Left-Chest |
| Target Fabric | Cotton |
| Dimensions | 3.5 x 3.5 Inches |
| Stitch Count | 18,334 |
| Service Type | Custom Embroidery Digitizing |
Key Digitizing Highlights
-
✔
Stitch Count Optimization: 18,334 precise stitches mapped to prevent over-densification on light to medium-weight cotton fabrics. -
✔
Text Legibility: Small letters rendered with careful satin stitching to ensure they remain readable even under repeated laundering. -
✔
Zero Puckering Design: Custom pull compensation settings configured specifically to handle the natural elasticity and movement of cotton. -
✔
Efficient Production Flow: Minimal jump stitches and smart trim path planning to reduce machine downtime and thread breaks.
Project Case Study: Cincinnati F/R – Chest
The Design Challenge
Creating an embroidery file for a left-chest placement requires finding a delicate balance between fine detail and physical constraints. For the Cincinnati F/R – Chest project, the target dimensions were set at 3.5 by 3.5 inches. Within this relatively compact space, the design features complex circular lettering, distinct geometric elements, and central text that demands sharp readability.
Additionally, the target fabric was cotton. Cotton is a natural, woven fiber that is comfortable to wear but offers unique challenges during embroidery. Unlike polyester blends or structured heavy canvas, cotton is prone to shifting, pulling, and minor shrinking during the high-speed stitching process. If the design is digitized with too much density, the fabric will pucker around the edges, resulting in a distorted, unprofessional finish. Conversely, if the stitch density is too light, the fabric fibers will show through the embroidery, ruining the solid fields of color. Our goal was to create a clean, dense, yet flexible file that avoids these issues entirely.
Our Digitizing Process
We began the process by carefully examining the artwork to plan the optimal pathing. Pathing refers to the sequence in which the embroidery machine lays down stitches. An optimized path is essential because it minimizes jump stitches and trims, which keeps production running smoothly and prevents thread breaks.
To combat the natural stretch of cotton, we applied a customized underlay. Underlay stitches are laid down first to anchor the fabric to the stabilizer backing. This step provides a solid foundation, ensuring the top satin and fill stitches remain perfectly registered. For the circular borders and the lettering, we utilized precise pull compensation. This technique adjusts the stitches to be slightly wider than the original graphic, knowing that the cotton fabric will pull together under tension. The result is a perfect circle when stitched out on the actual machine.
We ended up with a final stitch count of 18,334 stitches. By carefully managing the density, we ensured that the final embroidery would look vibrant and complete, with clean boundaries and sharp corners, without making the chest area of the shirt heavy or uncomfortable to wear.
The Final Outcome
The final digitized proof shows the success of our technical choices. The lettering is perfectly formed and highly legible from a distance. The circular outer ring holds its shape without distorting, and the stitch angles are mapped to reflect light beautifully, giving the finished embroidery a premium, high-quality look. When run on production machines, the file performs flawlessly with minimal trims and zero puckering, delivering consistent results across every single garment in the order.
