What is this case study? This page documents a real completed Digitizing order produced by 360 Digitizing Solutions for a Cap placement on 5 Panel Richardson 169. To protect client privacy, company and brand names have been anonymized. Browse specs, before/after images, and production notes below.
Expert Cap Digitizing Case Study: Precision on Richardson 169
This project showcases our ability to handle complex artwork on structured headwear. We achieved a clean, professional finish that meets strict production standards.
Customer Original Artwork

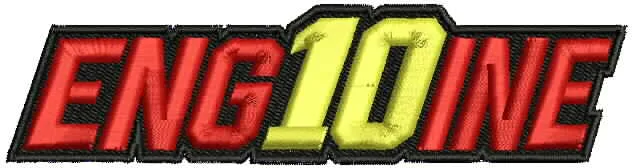

Final Digitized Proof
Order Specifications
Project Background
The core challenge here was ensuring the design remained centered and undistorted. When working with 5-panel caps, the center seam can often cause puckering or alignment issues if the digitizing is not handled with extreme care. Our team had to evaluate the logo geometry to ensure that the stitch path would not pull the fabric in a way that compromises the structural integrity of the hat.
Furthermore, the client needed the design to be crisp and readable at a size of 5×1.25 inches. With a stitch count of 15,480, we had to balance the density of the thread to ensure the logo looked solid without creating an overly bulky area that would be difficult for an industrial machine to handle.
We analyzed the customer artwork provided and identified specific areas where pull compensation was necessary. Because this was for a 5-panel cap, the digitizer focused on starting the stitch sequence from the center outward to ensure the fabric remained stable throughout the run.
Ultimately, the goal was to provide a file that would run smoothly on the client’s equipment without constant thread breaks or registration errors. By focusing on the specific tension requirements of the Richardson 169 fabric, we delivered a file that met all technical specifications perfectly.
Technical Production Process
We carefully adjusted the density of the fill stitches to ensure proper coverage while keeping the profile of the embroidery manageable. High-density areas were modified to avoid thread buildup, which is a common problem on structured caps. We also adjusted the stitch angles to counteract the natural pull of the fabric on a curved surface.
Pull compensation was applied to the entire design to account for the way embroidery thread shrinks the fabric as it is sewn. By slightly expanding the shapes in the digital file, we ensured that the final result on the cap matched the customer’s original artwork proportions perfectly.
Finally, the stitch path was optimized for efficiency. We minimized travel stitches between elements, which reduces the machine’s jump-stitch time and ensures a cleaner look on the back of the fabric, preventing bird-nesting under the embroidery.
- ✓ Strategically applied center-out stitching to maintain alignment on the 5-panel front.
- ✓ Optimized pull compensation for 15,480 stitches to guarantee crisp edges.
- ✓ Adjusted density profiles to prevent fabric puckering on structured panels.
Final Outcome
By focusing on the technical limitations of the cap and the specific fabric texture, we produced a clean, high-quality result that exceeded expectations. The design maintained its shape and clarity even after being run at high speeds, demonstrating the importance of professional digitizing in maintaining shop productivity. This project serves as a perfect example of how precision and planning result in a superior finished product.
Ready for Flawless Production?
We deliver production-ready files optimized for your exact machines and fabrics, reducing thread breaks and maximizing shop efficiency.
Frequently Asked Questions
Can you digitize logos for curved caps? +
Yes, we specialize in digitizing for various cap styles, including the structured Richardson 169, ensuring the design compensates for the curvature.
How do you handle small text in cap embroidery? +
We use specific density adjustments and pull compensation to ensure small text remains legible and sharp during the stitching process.
