Stop Skipped Stitches and Inconsistent Embroidery Quality

Are you experiencing frustrating skipped stitches, inconsistent tension, or unexpected machine downtime? A worn or damaged timing belt pulley can severely disrupt your embroidery production, leading to costly rework and lost revenue. The W20-16 Timing Belt Pulley (CX0170000000 / 501440030000 / 501430150000) is the essential replacement part designed to restore your Tajima machine‘s precision, ensuring smooth, synchronized operation and consistently high-quality embroidery.

Engineered for Flawless Synchronization and Durability

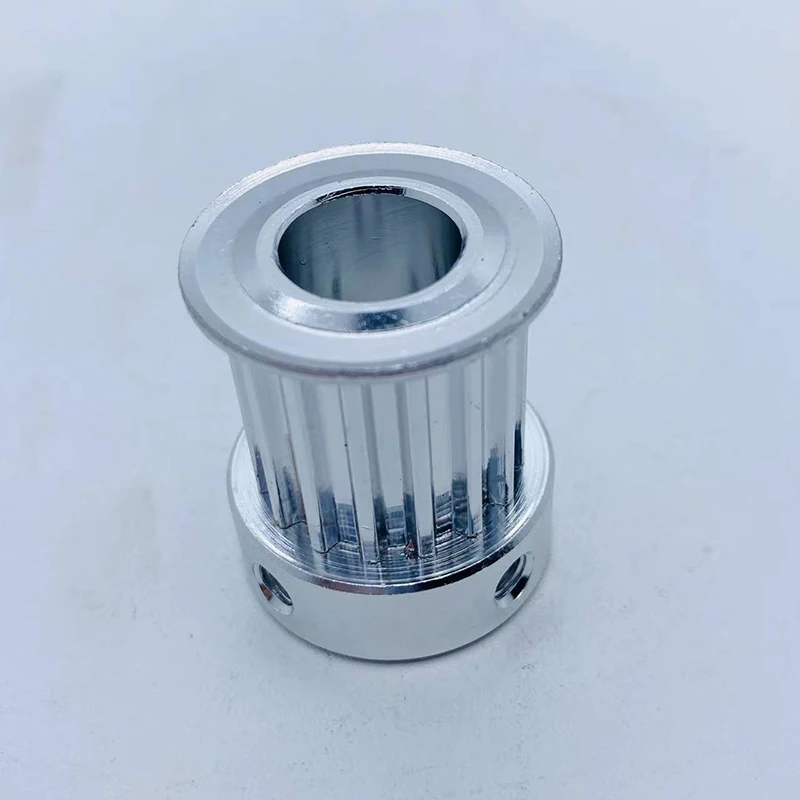

This W20-16 timing belt pulley plays a critical role in maintaining the precise synchronization between your embroidery machine‘s moving parts. Crafted from durable aluminum and featuring high-precision CNC machining, it ensures optimal tension and stable rotation for S5M 20mm belts. This meticulous design prevents belt slippage, minimizes vibration, and guarantees accurate needle positioning, which is vital for intricate designs and high-speed production. By ensuring every stitch is perfectly placed, this pulley helps you deliver professional-grade results without interruption.

Compatible With Your Essential Tajima Machines

Designed for seamless integration, this timing belt pulley is compatible with a wide range of Tajima embroidery machines that utilize S5M 20mm timing belts. We recommend confirming your machine model or existing part number before ordering to ensure a perfect fit. If you’re unsure, contact us with your machine model, and we will gladly confirm compatibility.

• Tajima TMFX Series
• Tajima TFMX Series
• Tajima TFMX-C Series
• Tajima TMAR Series
• Tajima TMBP Series
• Tajima TEJT Series
• Tajima TFMX-II Series
• Compatible with other Tajima models that use S5M 20mm timing belts.
• Also compatible with many Tajima-compatible Chinese embroidery machines that follow the same belt and pulley configuration.

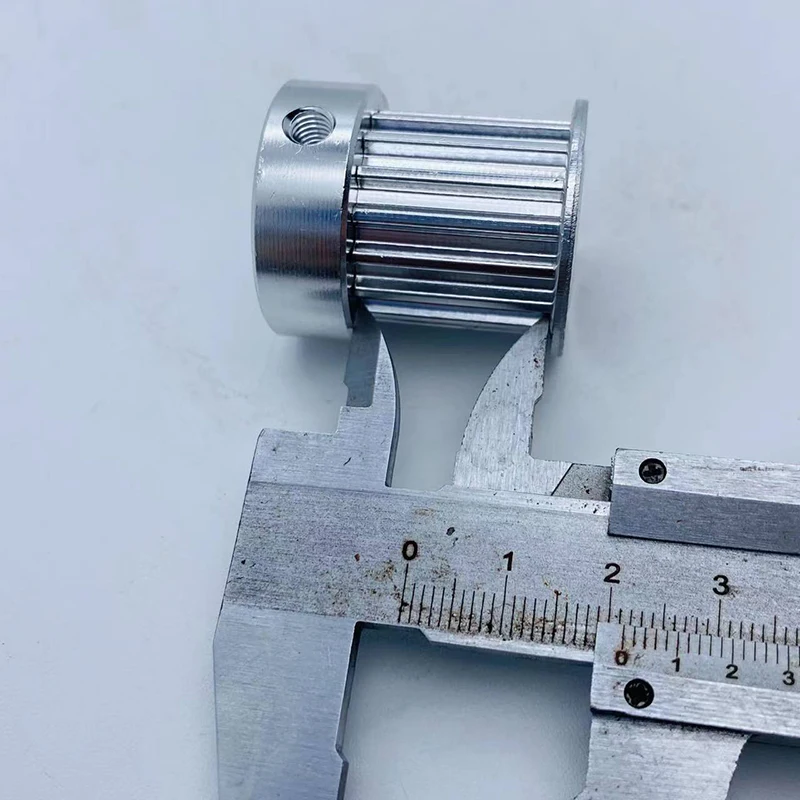

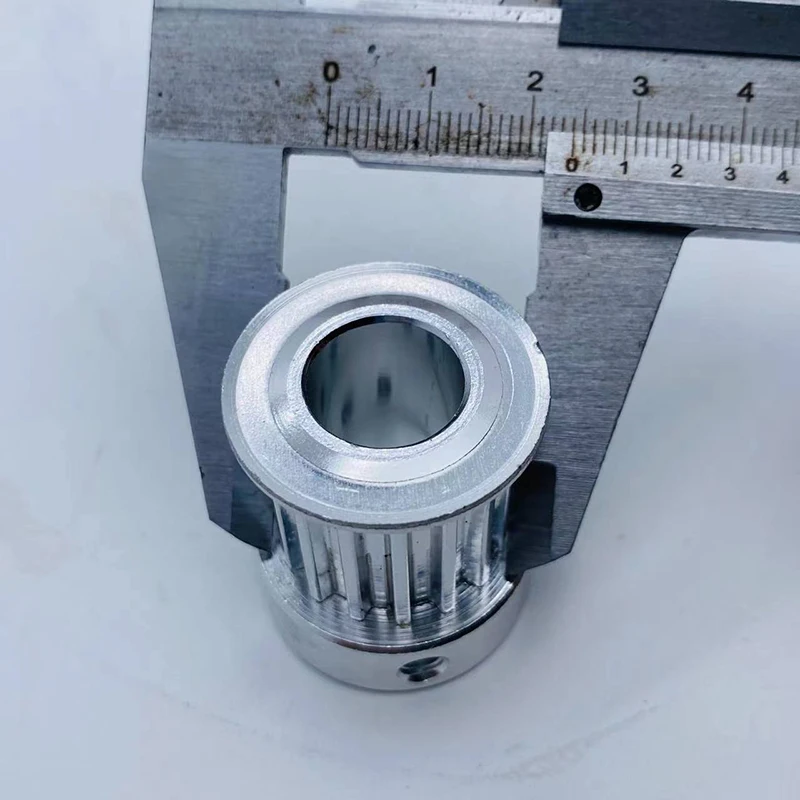

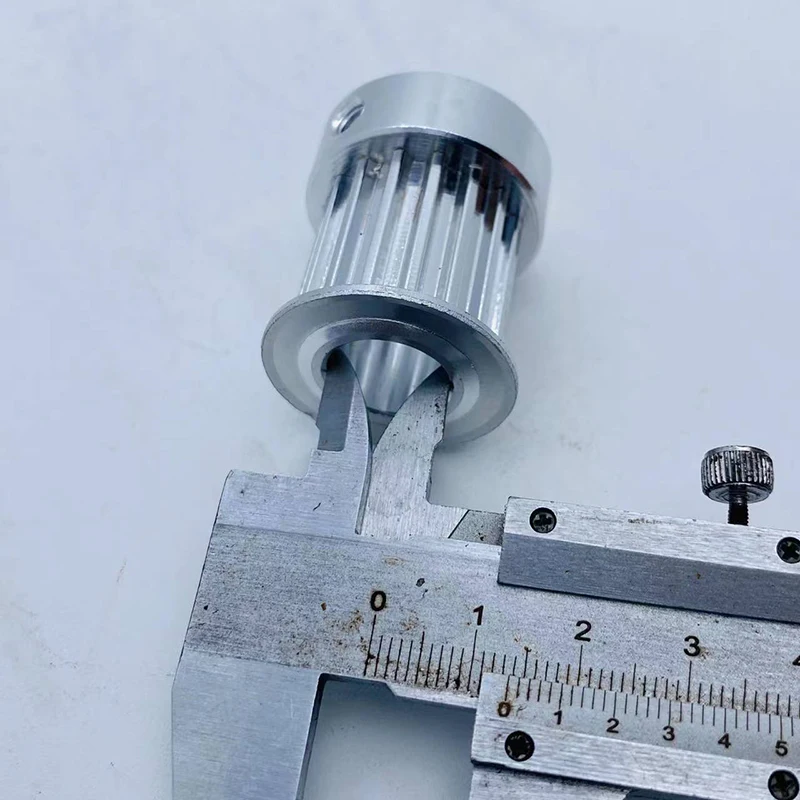

Key Specifications for Easy Replacement

• Model: W20-16
• Belt Type: S5M
• Belt Width: 20mm
• Material: Aluminum
• OEM Codes: CX0170000000, 501440030000, 501430150000

Reliable Performance, Guaranteed

Every W20-16 Timing Belt Pulley is rigorously function-tested before shipping to ensure you receive a perfect, ready-to-install component. We are committed to preventing defective units from ever reaching your workshop. In the rare event a defective item arrives, rest assured that under our buyer protection policy, you will receive a full refund within 4 days, minimizing any disruption to your business.

Frequently Asked Questions

What is the primary function of the W20-16 Timing Belt Pulley?
Its primary function is to maintain precise synchronization between your embroidery machine‘s moving parts, ensuring consistent tension for S5M 20mm belts and accurate needle positioning to prevent skipped stitches and misalignment.

What Tajima machine models is this pulley compatible with?
This pulley is compatible with Tajima TMFX Series, TFMX Series, TFMX-C Series, TMAR Series, TMBP Series, TEJT Series, and TFMX-II Series, as well as other Tajima models and many Tajima-compatible Chinese machines using S5M 20mm timing belts.

How can I confirm if this W20-16 pulley will fit my specific machine?
We recommend checking your machine‘s manual for the required part number (CX0170000000, 501440030000, or 501430150000) or confirming it uses an S5M 20mm timing belt. You can also contact us with your machine model, and we will help confirm compatibility.

What material is the W20-16 Timing Belt Pulley made from?
The W20-16 Timing Belt Pulley is crafted from durable aluminum, ensuring longevity and stable performance.

What is 360 Digitizing Shop's quality assurance and refund policy for this item?
Every pulley is function-tested before shipping. If a defective item arrives, you are protected by our buyer protection policy and will receive a full refund within 4 days.
