Is inconsistent stitching, frequent thread breaks, or inaccurate needle positioning slowing down your embroidery business? A worn or damaged Needle Bar Guide can severely impact your machine‘s performance, leading to frustrating errors and lost revenue. Upgrade to a precision-engineered Needle Bar Guide to restore the smooth, reliable operation your Tajima, Shenzhou Tajima, or II P T embroidery machine was built for, ensuring every stitch is perfect and every project is profitable.

The Needle Bar Guide is a critical component that ensures the needle bar moves precisely up and down, maintaining perfect alignment with the rotating hook and presser foot. A high-quality guide minimizes lateral movement and vibration, which is essential for consistent stitch formation, preventing needle deflection, and reducing wear on other vital machine parts. Its robust design is crucial for enduring the high-speed demands of commercial embroidery, directly impacting the quality and efficiency of your output.

Eliminate Skipped Stitches and Thread Breaks

A worn needle bar guide leads to erratic needle movement, causing needles to miss the bobbin thread or strike the presser foot. This replacement guide ensures stable needle travel, drastically reducing frustrating skipped stitches and thread breaks, so your machine runs smoothly without constant supervision.

Restore Precision and Quality to Your Embroidery

Achieve crisp, clean embroidery every time. With accurate needle positioning, your designs will exhibit superior detail and consistency, enhancing the professional finish of your apparel, patches, and other embroidered items. This precision is vital for meeting client expectations and maintaining your reputation for quality.

Minimize Downtime and Maximize Productivity

Frequent machine stops for thread breaks or error correction eat into your valuable production time. By replacing a faulty needle bar guide, you proactively prevent common embroidery issues, ensuring longer, uninterrupted runs and maximizing your machine‘s uptime and overall productivity. Keep your business moving forward without costly delays.

Compatible With:

• Tajima Computerized Embroidery Machines
• Shenzhou Tajima Computerized Embroidery Machines
• II P T Computerized Embroidery Machines
• Specifically designed for machine models: TMEG, TMFD, STNE, TFKN, STKN, TFGN, TCMX, TLMX
• Available for 6-needle, 9-needle, and 12-needle machine configurations.

Product Specifications:

• Part Type: Needle Bar Guide / Needle Rod Guide
• Primary Part Numbers: 090450036011, 090450049011, 09045005Y011
• Other General Part Numbers: 090450036000, 090450096000, FX0644000600, FX0642000600, FX0613020600, FX0613000600, FN0644000600, 090450049000, 090450099000, 090450079000, EC0B32000900, FN0644000900, FX06130009000, 80280039022, FX0613000900, FX0613020900, 09045005Y000, 09045001Y011, 09045007Y000, 09045009Y000, EC0B32001200, FX0642001200, FN0621011200, FN0644001200, FX0613001200, FX061302120008028003Y022

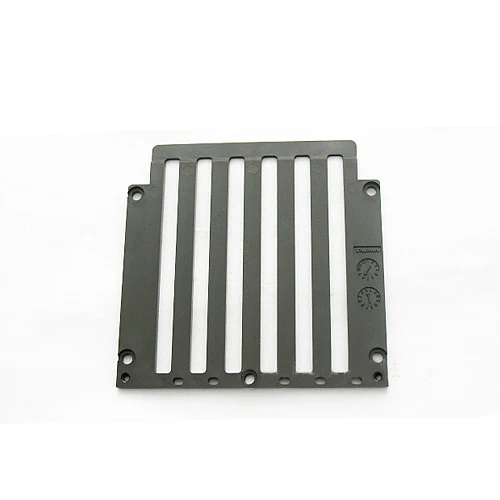

• For 6-Needle Machines (Part 090450036011): Length 115mm X Height 115mm
• For 9-Needle Machines (Part 090450049011): Length 160mm X Height 115mm
• For 12-Needle Machines (Part 09045005Y011): Designed for 12-needle setups

We strongly recommend confirming your machine model and current part number before ordering. Not sure which Needle Bar Guide is right for your machine? Contact us with your machine model and we will gladly help you confirm the correct part.

Every Needle Bar Guide we ship is meticulously function-tested to ensure it meets our rigorous quality standards, meaning defective units are never sent. In the rare event a defective item arrives, rest assured that under our buyer protection policy, you will receive a full refund within 4 days, allowing you to purchase with complete confidence.

Frequently Asked Questions

What is the primary function of a Needle Bar Guide?
The Needle Bar Guide ensures the needle bar moves precisely, maintaining correct alignment for consistent stitch formation, reducing vibration, and preventing needle deflection during high-speed embroidery.

How do I know which Needle Bar Guide option (6, 9, or 12 needle) is correct for my machine?
The correct guide depends on the number of needles your specific Tajima, Shenzhou Tajima, or II P T embroidery machine is configured for. Please check your machine‘s specifications or existing part.

Is this Needle Bar Guide compatible with my specific Tajima machine model?
This Needle Bar Guide is compatible with Tajima, Shenzhou Tajima, and II P T machines, specifically models TMEG, TMFD, STNE, TFKN, STKN, TFGN, TCMX, TLMX. We recommend comparing the part number and dimensions with your existing part or machine manual.

What should I do if I am unsure about the correct part number or fitment?
If you are unsure, please contact us with your embroidery machine‘s model number and the part number you are replacing. Our experts will help you confirm the correct Needle Bar Guide for your needs.

What quality assurance measures are in place for this product?
Every Needle Bar Guide is function-tested before shipping to ensure it meets quality standards. If a defective item arrives, you are protected by our buyer protection policy and will receive a refund within 4 days.
