Solve Critical Machine Downtime and Communication Errors

Is your Barudan N-Series embroidery machine experiencing frustrating D31 communication errors, unresponsive controls, or a failing floppy disk drive? A malfunctioning control panel can bring your entire operation to a halt, costing valuable production time and revenue. This replacement Barudan Automat Control Panel is engineered to resolve these critical issues, restoring the precise control and data handling capabilities your multi-head machine needs to run smoothly and efficiently.

This unit serves as the central processing hub for your N-Series hardware, translating your design data and commands into precise machine movements. Its robust design ensures reliable communication between the user interface, internal logic, and the mechanical driver box, preventing costly interruptions and ensuring consistent embroidery quality.

Designed for Seamless Integration and Performance

This control panel is an exact, factory-spec replacement, built to integrate perfectly with your existing Barudan N-Series ecosystem. Every component is designed to meet the rigorous demands of commercial embroidery operations, providing the stability and accuracy you depend on.

• Fixes D31 Communication Errors: The mandatory high-density 25-pin D-sub “DRIVER” port is crucial for stable communication with the lower mechanical driver box, directly addressing and preventing D31 errors that can paralyze your machine.
• Reliable Data Ingestion: Features the factory-standard 9-pin “COM” port for robust RS-232C serial communication and networking, alongside a legacy blue “TAPE” port for seamless integration with peripheral Barudan tape readers, ensuring your designs load without issue.

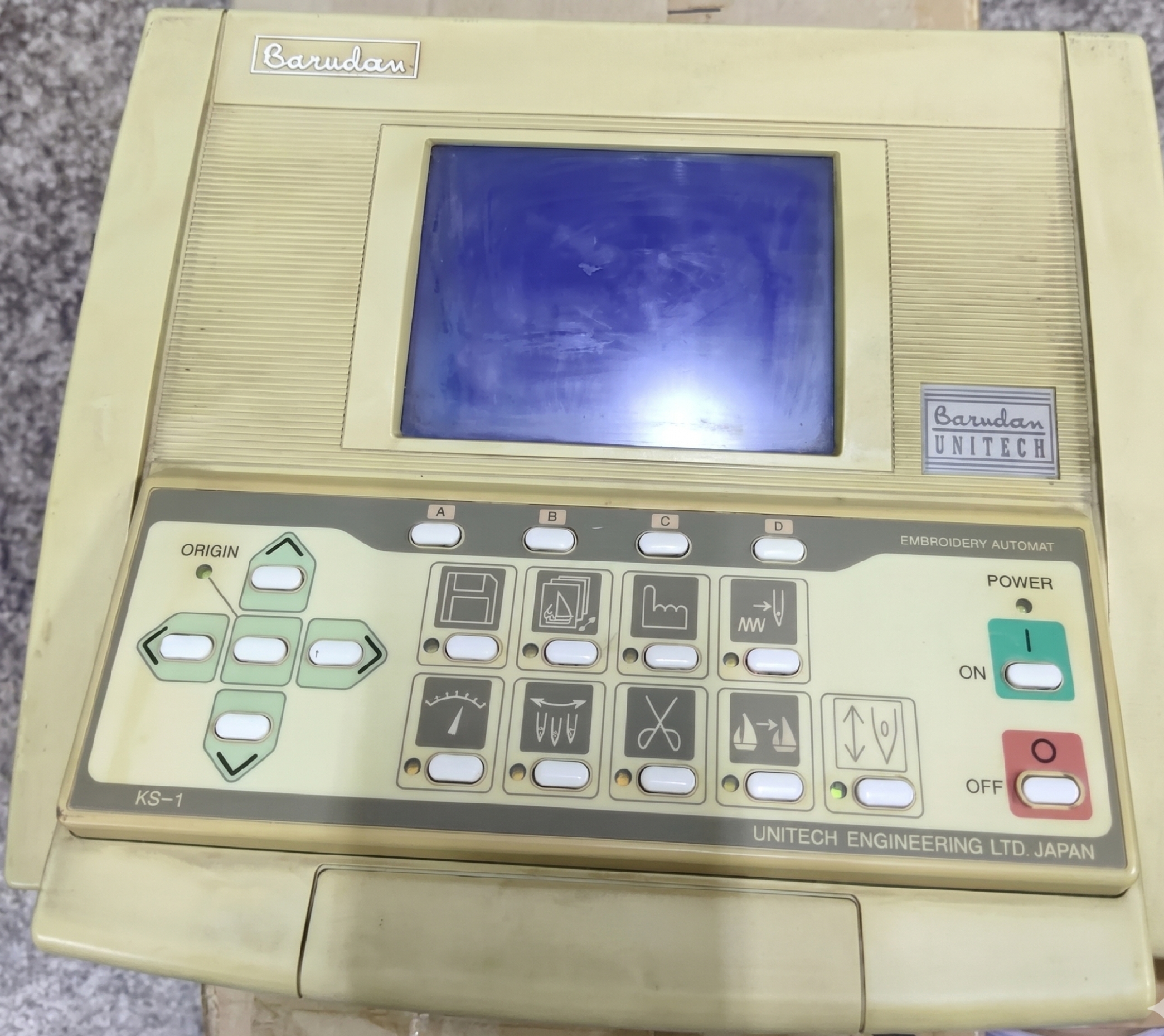

• Intuitive User Interface: Boasts the classic Barudan Unitech membrane keypad with dedicated origin, jog, and manual trim keys, paired with a clear LCD display matrix and a built-in floppy disk drive bay for familiar and efficient operation.

Technical Specifications

• Power Requirements: Rated strictly for AC 100V input with a 0.2A consumption, perfectly matching the 100V-120V output supplied by standard Barudan N-Series main transformer boxes.
• Driver Communication: Equipped with the mandatory high-density 25-pin D-sub “DRIVER” port.
• Data Ingestion Ports: Includes a 9-pin “COM” port for RS-232C serial communication/networking and a legacy blue “TAPE” port.
• User Interface: Classic Barudan Unitech membrane keypad, LCD display matrix, and a built-in floppy disk drive bay.

Compatible With:

• Barudan N-Series multi-head commercial embroidery machines
• BENYHE chassis models
• NYHE chassis models
• BENS chassis models
• Specifically compatible with the 2001 NYHE-ZQ-B04

This unit is designed and built for Barudan N-Series machines. To ensure perfect fitment, we recommend confirming your specific machine model or size before ordering. Not sure? Contact us with your machine model and we will confirm compatibility.

Why Choose 360 Digitizing Shop?

We understand the urgency of getting your machines back to peak performance. Every Automat Control Panel is rigorously function-tested before shipping, ensuring that defective units are never sent. In the rare event a defective item arrives, your purchase is protected: a full refund will be processed within 4 days, minimizing your downtime and risk. Invest in reliable parts and keep your embroidery business thriving.

Important Note: This listing includes the bare Automat Control Panel box only. It does not include the 3-prong AC power cord or the 25-pin communication cable. If your original cables were cut or stolen, you will need to source replacements separately.

Frequently Asked Questions

What specific problems does this Barudan Automat Control Panel solve?
This control panel is designed to resolve issues such as D31 communication errors, unresponsive user interface controls, and failures related to the floppy disk drive or overall machine logic, restoring full operational control to your Barudan N-Series embroidery machine.

Which Barudan embroidery machines are compatible with this control panel?
This Automat Control Panel is compatible with Barudan N-Series multi-head commercial embroidery machines, including BENYHE, NYHE, and BENS chassis models, and is an exact replacement for the 2001 NYHE-ZQ-B04.

What is included when I purchase this control panel?
This listing includes the bare Automat Control Panel box only. It does not come with the 3-prong AC power cord or the 25-pin communication cable, which must be sourced separately if needed.

How can I confirm this control panel will fit my specific Barudan machine?
While designed for N-Series machines and specific models like BENYHE-ZQ-B04, we recommend you contact us with your exact Barudan machine model. Our experts can confirm compatibility to ensure a perfect fit for your setup.

How is the quality of this control panel assured, and what is the return policy?
Every control panel is rigorously function-tested before shipping to ensure it is in perfect working condition. If, in the rare instance, a defective item arrives, you are protected under our buyer protection policy, and a full refund will be processed within 4 days.
