Solve Your Embroidery Production Headaches with Reliable Stitching

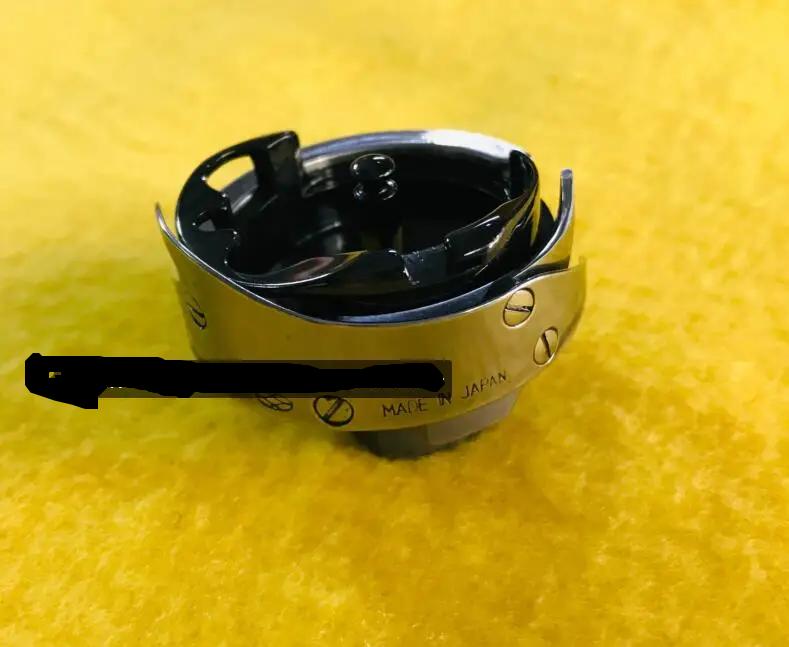

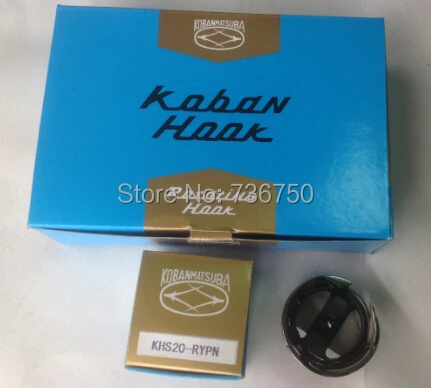

Are you experiencing inconsistent stitch quality, frequent thread breaks, or frustrating machine downtime that eats into your profits and production schedule? A worn-out or inferior rotary hook is often the culprit, leading to costly reworks and missed deadlines. The Koban MEC05050100TS SA1648001 KHS20-RYPN Jumbo Rotary Hook is your solution, engineered to restore precision, speed, and reliability to your industrial embroidery operations. This critical component ensures every stitch is perfectly formed, allowing you to tackle demanding projects with confidence and deliver exceptional results.

Precision Engineering for Flawless Stitch Formation

The rotary hook is the heart of your embroidery machine‘s stitching mechanism, working in perfect synchronization with the needle and bobbin to create each loop that forms a stitch. This Koban KHS20-RYPN model, identified by part numbers MEC05050100TS, SA1648001, 9913697191, SA3669001, and 05022010J001, is a jumbo-sized, industrial-grade rotary hook designed for heavy-duty performance. Its “with under trimmer” feature is crucial for machines that automatically cut the bobbin thread, ensuring clean, efficient thread management and contributing to a smoother, faster embroidery process. Manufactured from durable stainless steel, it offers exceptional resistance to wear and friction, extending the life of the component and maintaining optimal stitch quality even under continuous, high-speed operation. By ensuring precise thread capture and loop formation, this hook drastically reduces common issues like skipped stitches, thread fraying, and needle breaks, maximizing your machine‘s uptime and output.

Applications and Compatibility

This Koban Jumbo Rotary Hook is designed to elevate the performance of a wide range of industrial embroidery machines and applications:

• Compatible with: Tajima, Brother, and Pfaff-KSM embroidery machines.
• Model References: KHS20-RYPN = HSM-ATR(MTQTS)
• Ideal for:
  • Industrial embroidery production environments
  • Textile and garment factories
  • Embroidery machine repair and routine maintenance
  • High-speed, large-scale production runs
  • Replacement of worn or damaged rotary hook systems

Key Specifications

• Part Numbers: MEC05050100TS, SA1648001, KHS20-RYPN, 9913697191, SA3669001, 05022010J001
• Compatible Machine Models: Tajima, Brother, Pfaff-KSM
• Model Reference: KHS20-RYPN = HSM-ATR(MTQTS)
• Material: Stainless steel
• Size: M Size (Jumbo)
• Type: With under trimmer
• Use: Embroidery

Confidence in Every Purchase

We understand the importance of reliable parts for your business. That’s why every Koban MEC05050100TS SA1648001 KHS20-RYPN Jumbo Rotary Hook is meticulously function-tested before shipping, guaranteeing that you receive a perfectly operating unit. In the rare event a defective item arrives, rest assured that under our buyer protection, you will be refunded within 4 days. Invest in the quality and performance your embroidery business deserves.

Not sure if this is the right part for your machine? Contact us with your machine model, and our experts will gladly help confirm compatibility.

Frequently Asked Questions

What is the primary function of this Koban Jumbo Rotary Hook?
The Koban MEC05050100TS SA1648001 KHS20-RYPN Jumbo Rotary Hook is designed to capture the needle thread and form consistent loops, working with the bobbin to create high-quality stitches in industrial embroidery machines.

Which embroidery machine brands and models is this rotary hook compatible with?
This rotary hook is compatible with Tajima, Brother, and Pfaff-KSM embroidery machines. It is referenced by model KHS20-RYPN = HSM-ATR(MTQTS).

How does this "jumbo" rotary hook with an under trimmer improve embroidery quality?
The “jumbo” design is built for heavy-duty industrial workloads, ensuring durability and stable performance. The “with under trimmer” feature facilitates efficient bobbin thread cutting, leading to cleaner finishes, reduced manual intervention, and smoother high-speed operation.

What material is the Koban KHS20-RYPN rotary hook made from?
This Koban Jumbo Rotary Hook is manufactured from high-grade stainless steel, ensuring excellent durability and resistance to wear and friction.

How can I confirm if this rotary hook will fit my specific machine model?
To ensure correct fitment, please compare the part numbers (MEC05050100TS, SA1648001, KHS20-RYPN, 9913697191, SA3669001, 05022010J001) and model references with your machine‘s requirements. If you’re unsure, contact us with your machine model, and we’ll help confirm compatibility.

What is 360 Digitizing Shop's quality assurance and return policy for this part?
Every rotary hook is function-tested before shipping to ensure it’s in perfect working order. If a defective item arrives, you are protected by our buyer protection policy and will receive a refund within 4 days.
