Restore Precision and Prevent Costly Downtime

Is your Tajima embroidery machine experiencing inconsistent stitching, unusual noises, or even complete jams? A worn or damaged bevel gear is often the culprit, leading to frustrating downtime and compromised project quality. The onloyo 506514020047 Plastic Small Bevel Gear Pinion is engineered to directly address these issues, bringing your machine back to its optimal performance. By replacing this critical component, you unlock consistent stitch formation, reliable machine operation, and the ability to confidently take on demanding embroidery jobs without interruption.

Engineered for Reliable Power Transmission

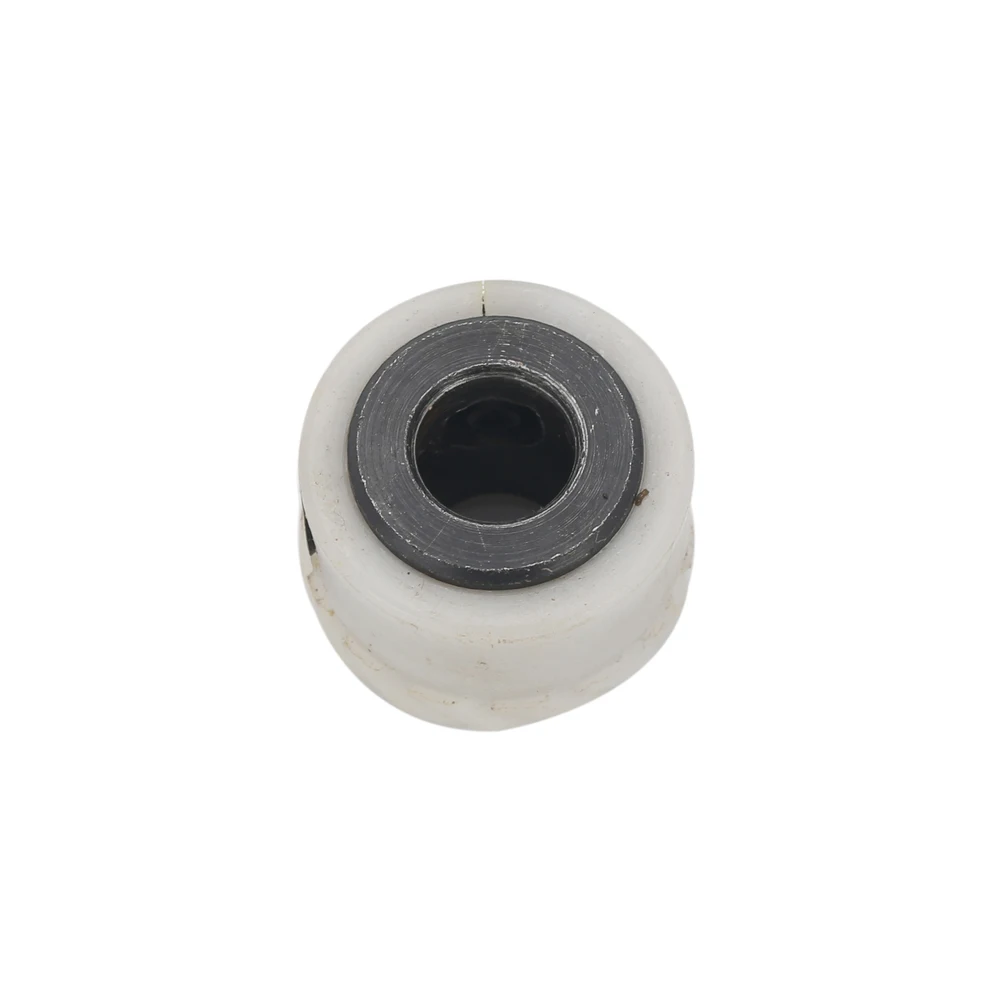

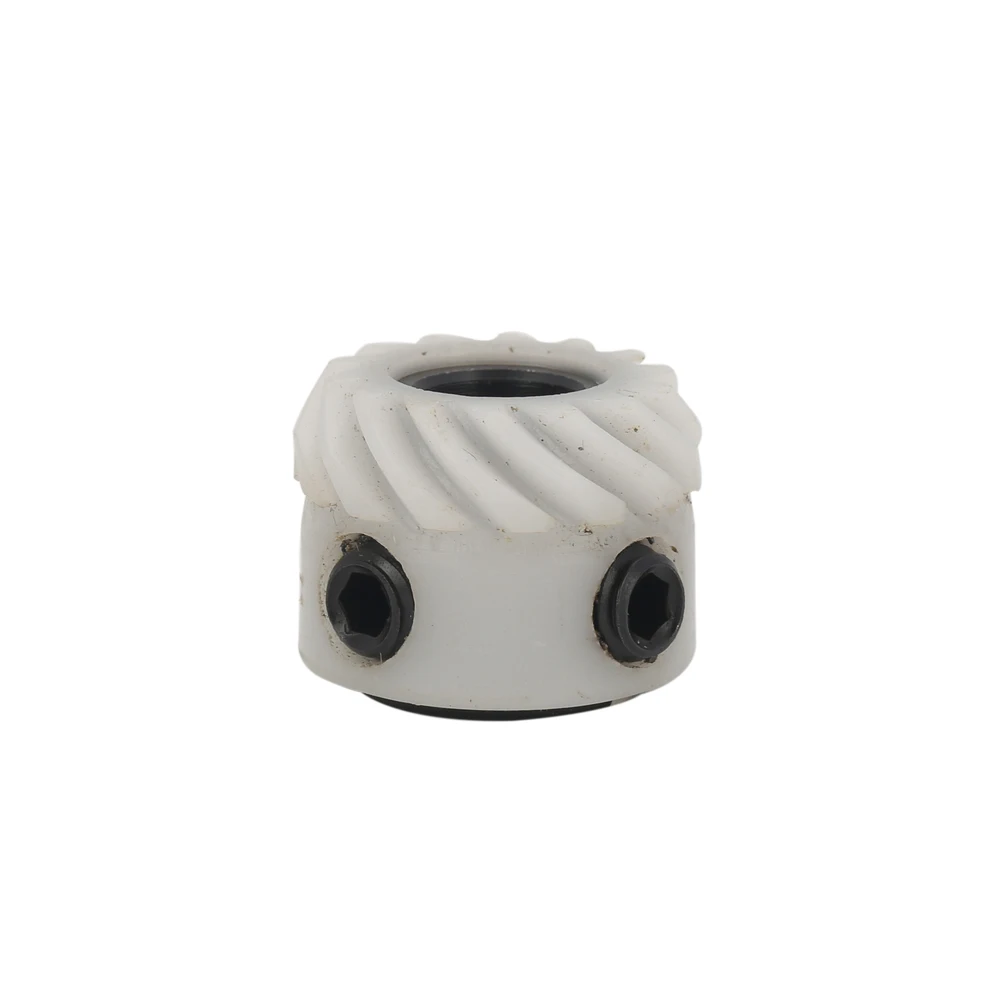

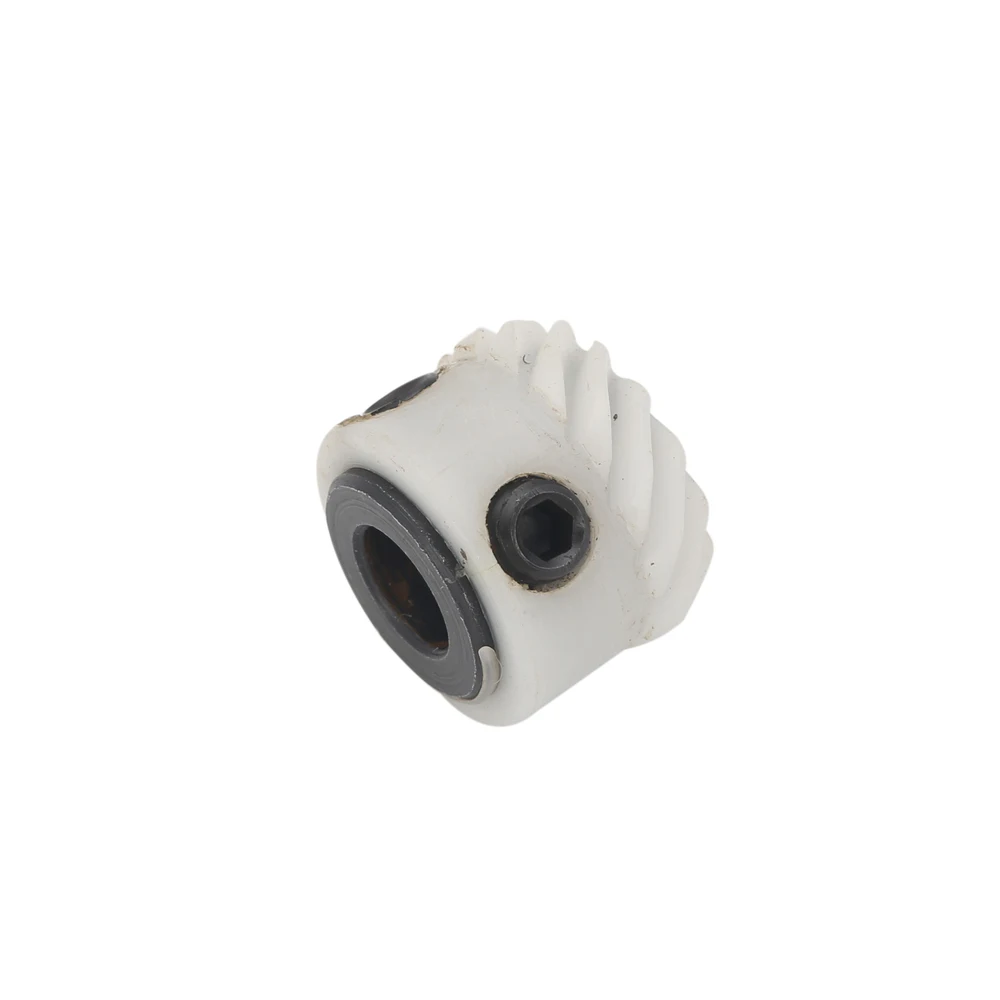

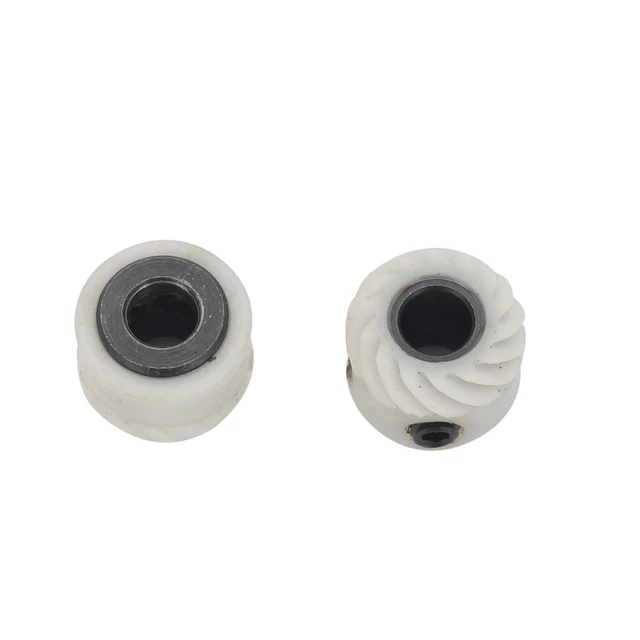

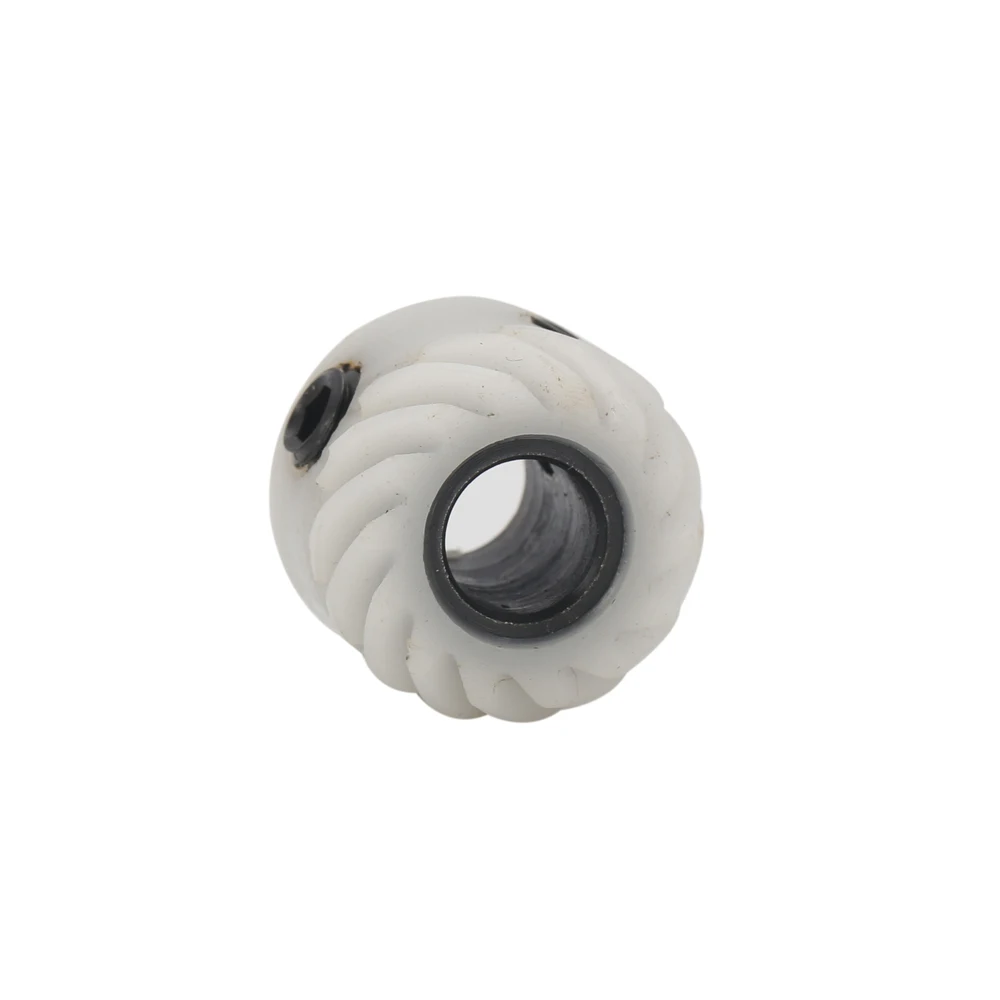

This 14-tooth bevel gear is a vital component in your embroidery machine‘s drive system, responsible for transmitting rotational power between intersecting shafts, typically at a 90-degree angle. The precise tooth count (14 teeth) ensures the correct gear ratio for accurate timing and movement within the machine. Constructed from durable plastic and reinforced with an iron core, this pinion offers a balance of smooth, quiet operation and enhanced wear resistance, crucial for the continuous demands of commercial embroidery. Its robust design is essential for maintaining the intricate synchronization required for perfect stitch registration and overall machine longevity.

Compatible With:

• Tajima Embroidery Machines

Solve These Common Painpoints:

• Inconsistent or skipped stitches
• Unusual grinding or clicking noises from the machine head
• Machine jams or erratic movement
• Reduced embroidery quality and precision
• Unscheduled downtime and lost production

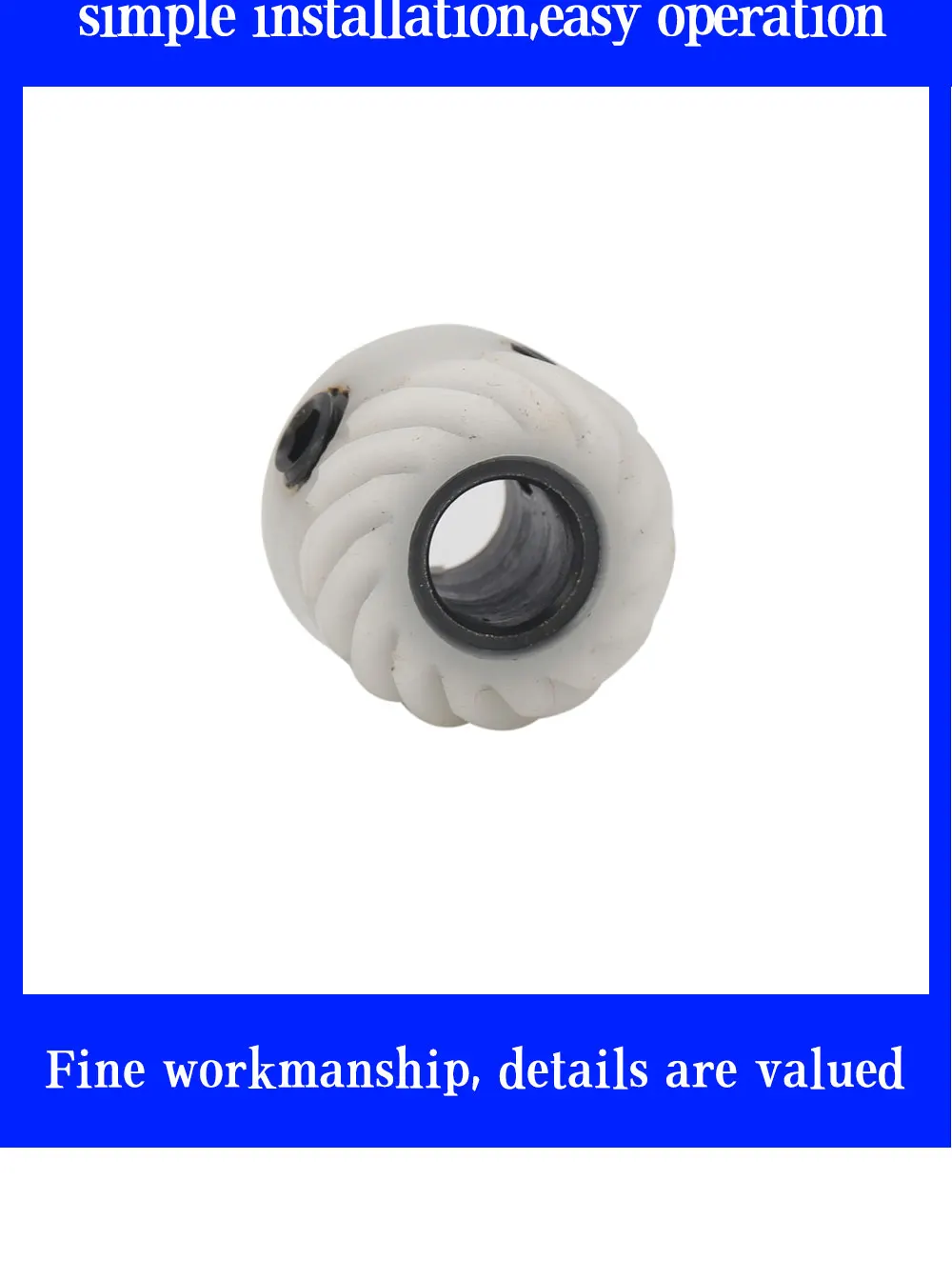

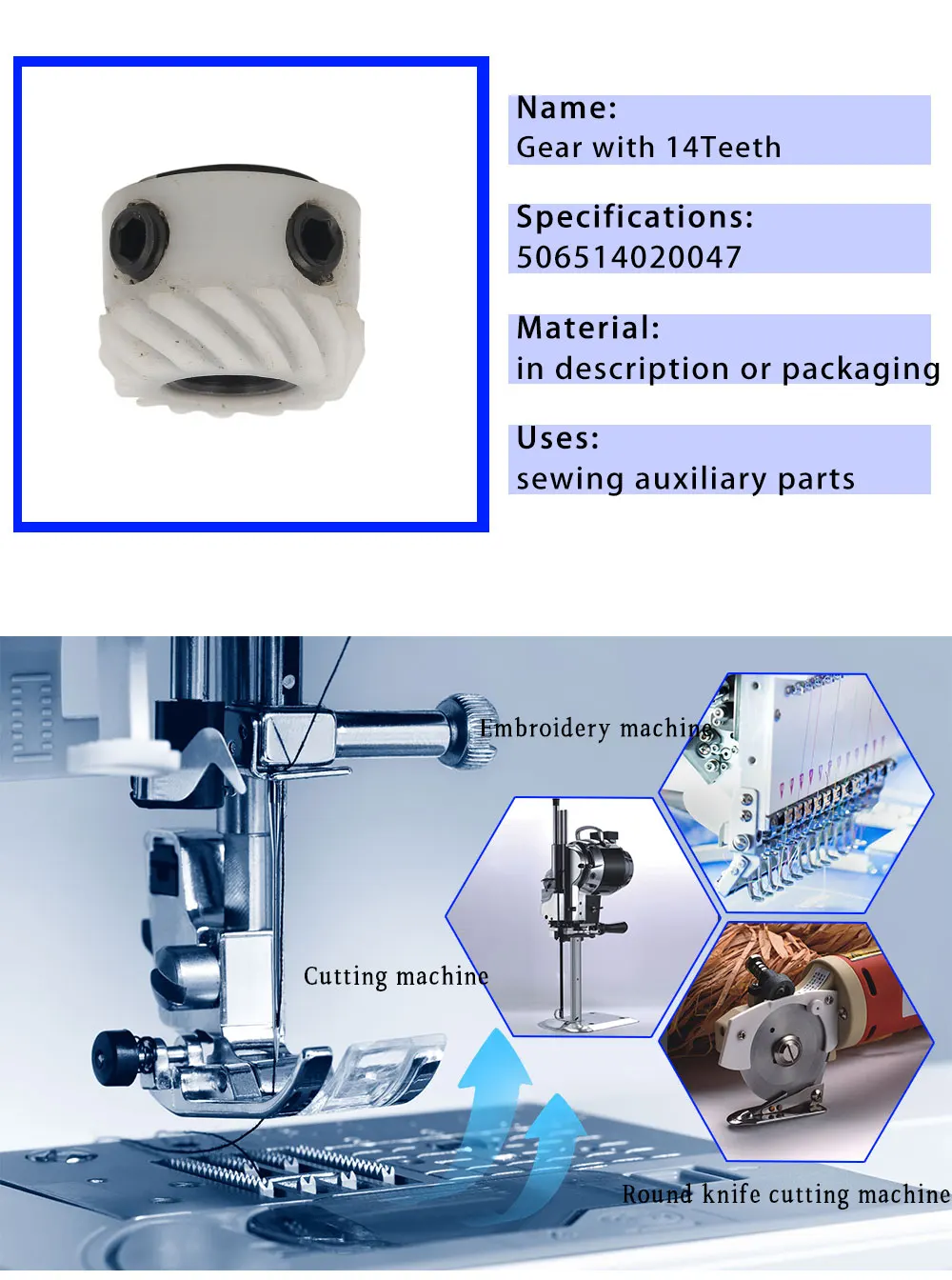

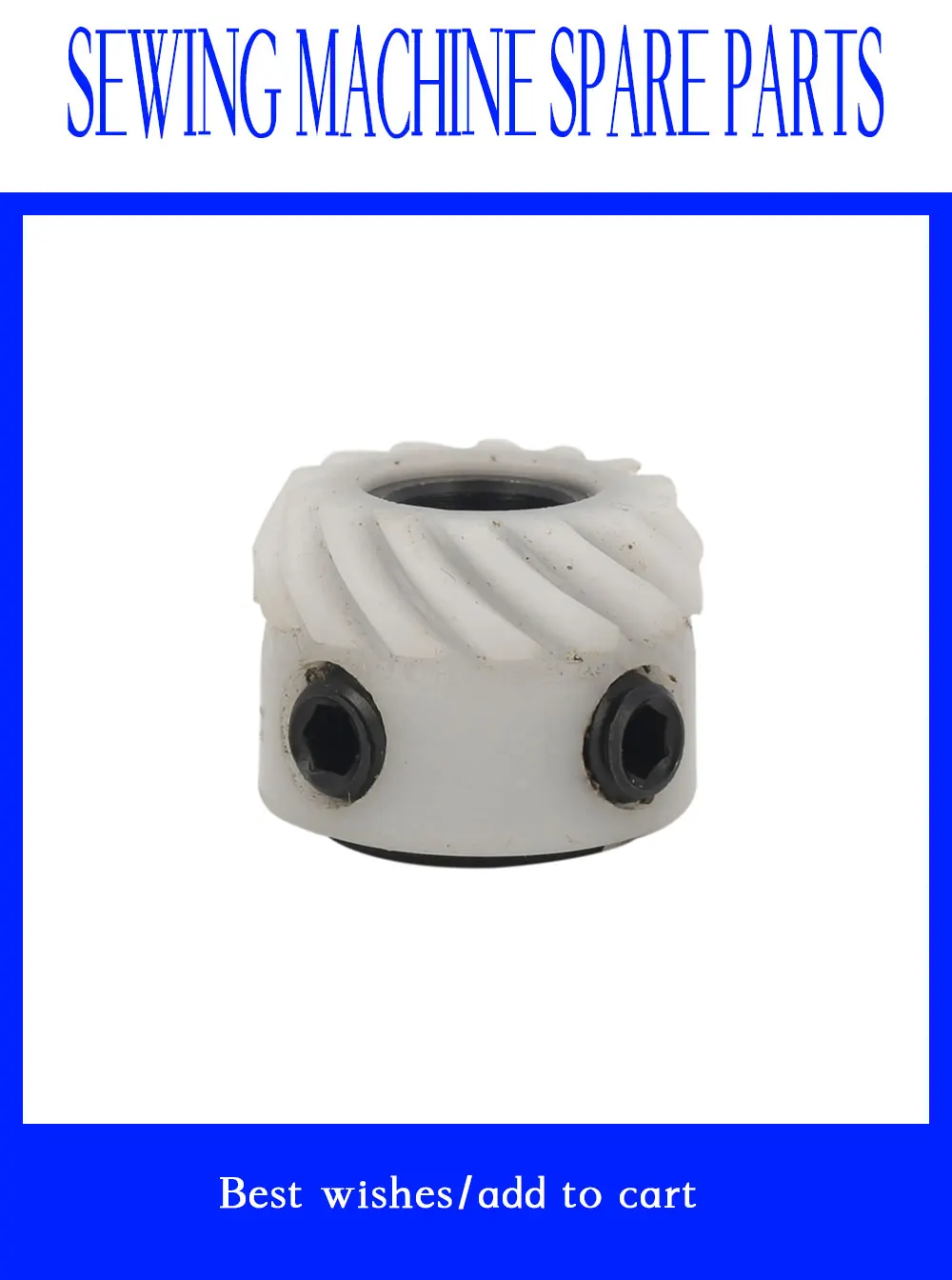

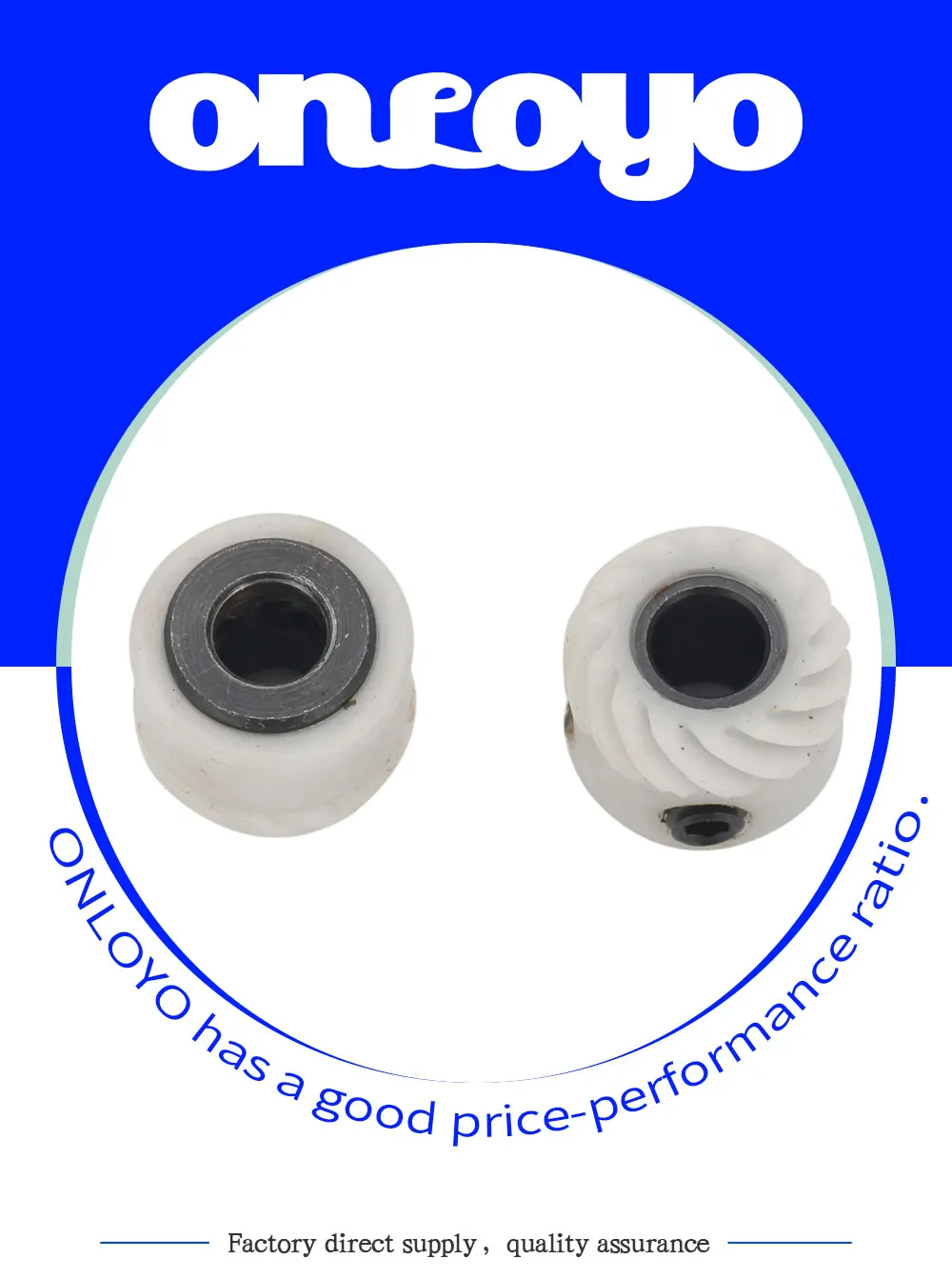

Specifications:

• Brand: onloyo
• Model Number: 506514020047
• Part Type: Small Bevel Gear Pinion
• Material: Plastic with Iron Core
• Teeth Count: 14
• Operation: Computerized Embroidery Machine

Important Compatibility Note: This gear is designed for Tajima embroidery machines. We recommend confirming your machine‘s specific model or the existing gear’s part number before ordering. If you’re unsure, contact us with your machine model, and we will help confirm compatibility.

Why Choose 360 Digitizing Shop?

We understand the importance of reliable parts for your business. Every onloyo 506514020047 Plastic Small Bevel Gear Pinion is rigorously function-tested before shipping to ensure you receive a perfectly working unit. We are committed to preventing defective units from ever reaching your workshop. In the rare event a defective item arrives, your purchase is protected: we guarantee a full refund within 4 days under our buyer protection policy, so you can order with complete confidence.

Frequently Asked Questions

What is the primary function of this bevel gear?
This bevel gear is crucial for transmitting power and motion between intersecting shafts within your Tajima embroidery machine, ensuring precise timing and movement for consistent stitching.

Which machine models is this gear compatible with?
This onloyo 506514020047 bevel gear is designed for use with Tajima embroidery machines.

How can I confirm this gear will fit my specific machine?
We recommend comparing the part number 506514020047 with your existing gear or consulting your machine‘s manual. You can also contact us with your Tajima machine model, and we’ll help confirm compatibility.

What are the key features of this gear's construction?
It is a 14-tooth plastic small bevel gear pinion, featuring an internal iron core for enhanced durability and strength, ensuring reliable performance.

What is 360 Digitizing Shop's policy on defective items?
Every gear is function-tested before shipping. If a defective item does arrive, you are protected by our buyer protection policy, guaranteeing a full refund within 4 days.
