Showing 1–10 of 15 resultsSorted by latest

Show sidebar

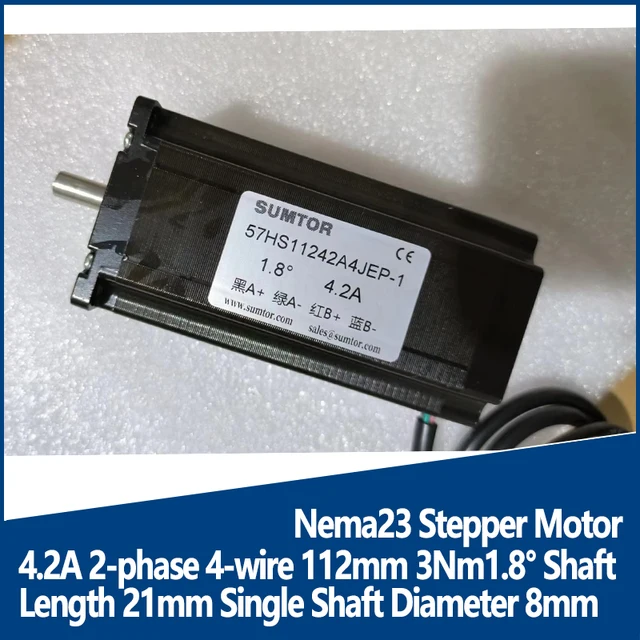

NEMA23 4-Wire Stepper Motor 3.2N.m 112mm 1.8°

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Add to Cart

Weight	15 oz
Dimensions	12 in
Hign-concerned Chemical	None
Certification	ROHS
Step Angle(degrees)	1.8
Phase	2
Model Number	57HS11242A4JEP-1
Holding Torque	3.2Nm
Current / Phase	4.2A
Type	HYBRID
Length of body	112mm
Frame size	NEMA 23, 57mm
Application	CNC Industrial Machinery
Shaft diameter	8mm with keyway

Embroidery Machine Color Changing Motor (High & Low Speed)

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Options

Clear

Select

Weight	20 oz
Dimensions	10 in
Set Type	No
Use	Embroidery
Type	Sewing Machine Parts
Hign-concerned Chemical	None
Material	Rubber
Type of Wholesale	No

Nema23 Stepper Motor 57BYG250C for CNC, 3D Printer & Engraving Machines

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Shaft Diameter

Clear

Select

Weight	15 oz
Dimensions	10 in
Hign-concerned Chemical	None
Step Angle(degrees)	1.8
Phase	2
Model Number	57BYG250C
Holding Torque	1.8N
Current / Phase	3A
Type	HYBRID
Certification	CE
Feature 1	High Torque
Feature 2	Nema 23 Stepper Motor
Feature 3	4-Lead 57 Motors
Feature 4	1.8N.m
Feature 5	3D Printer CNC Milling Engraving Machine Accessories

K35 35mm Gear Stepper Motor for Embroidery Machines

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Options

Ships From

Shaft Diameter

Clear

Select

Weight	20 oz
Dimensions	10 in
Hign-concerned Chemical	None
Step Angle(degrees)	18
Phase	2
Model Number	K35
Holding Torque	1.2N.m
Gear Ratio	100:1
Type	HYBRID
Certification	CCC
rated power	30W
rated voltage	2.66V
no-load speed	800
number of poles	2

JKM Nema 14 Stepper Motor 0.9° 0.425A 4-Wire for Embroidery & 3D Printers

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Shaft Diameter

Clear

Select

Weight	30 oz
Dimensions	30 in
Step Angle(degrees)	0.9 degree
Phase	2
Model Number	JK36HM21-0404-01
Holding Torque	7.94N.cm
Current / Phase	0.425A
Cable length	3m
Certification	CE
Type	Nema 14 36mm round stepper motor

Nema 23 Stepper Motor 57BYG250B 1.2N for CNC & 3D Printer Machines

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Shaft Diameter

Clear

Select

Weight	15 oz
Dimensions	10 in
Hign-concerned Chemical	None
Step Angle(degrees)	1.8
Phase	2
Model Number	57BYG250B
Holding Torque	1.2N
Current / Phase	3A
Type	HYBRID
Certification	CE
Feature 1	High Torque
Feature 2	Nema 23 Stepper Motor
Feature 3	4-Lead 57 Motors
Feature 4	1.2N.m
Feature 5	3D Printer CNC Milling Engraving Machine Accessories
Choice	yes
semi_Choice	yes

NEMA 8 Stepper Motor 1.8° 4-Lead 0.6A for CNC, 3D Printer & Robots

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Shaft Diameter

Clear

Select

Weight	10 oz
Dimensions	10 in
Step Angle(degrees)	1.8degree
Phase	2
Model Number	JK20HS30/33/38-0604
Holding Torque	1.8Ncm; 2Ncm; 3Ncm
Current / Phase	0.6A
Type	HYBRID
Certification	CE
Motor Length	30mm &33mm &38mm
# of Leads	4leads

NEMA 17 Stepper Motor 17HS5424-06 | 2.5A 85oz.in 4-Lead Motor

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Ships From

Clear

Select

Weight	10 oz
Dimensions	7 in
Hign-concerned Chemical	None
Step Angle(degrees)	1.8°
Phase	2
Model Number	17HS4415-04
Holding Torque	71OZ.IN
Current / Phase	1.5A
Type	HYBRID
Certification	CE
condition	new

Nema 17 Stepper Motor 39mm 1.5A 45Ncm with Cable & Connector

Motors & Drivers

Rated 0 out of 5

(0)

In stock

Ships From

Shaft Diameter

Clear

Select

Weight	12 oz
Dimensions	8 in
Hign-concerned Chemical	None
Certification	ROHS
Step Angle(degrees)	1.8 deg
Phase	2
Model Number	17HS15-1504S-X1
Holding Torque	45Ncm (63.74oz.in)
Current / Phase	1.5A
Type	Hybrid
Size	42 x 42x 39mm
Shaft shape	D-cut
Shaft Diameter	5mm
Phase Resistance	2.3ohms
Inductance	4.4mH ± 20%(1KHz)
Number of Lead	4
Cable	1m 4 wires w/ connector
Application	3D printers,CNC and robotics applications
Rotor Inertia	54g-cm2
