Is your embroidery machine experiencing jerky movements, inconsistent stitching, or frequent thread breaks? A worn or damaged linear guide rail car tooth assembly is often the culprit, leading to frustrating downtime and compromised project quality. Don’t let precision issues hold back your business or creativity.

The Onloyo S-6510 Linear Guide Rail Car Tooth Assembly is engineered to restore the smooth, accurate motion essential for high-quality embroidery. Replace your failing component and bring back the reliability and precision your machine needs to produce flawless designs.

Restore Precision and Prevent Costly Errors

When the linear guide system on your embroidery machine isn’t performing optimally, the entire embroidery process suffers. This assembly directly impacts the precise positioning of your embroidery head or frame, ensuring every stitch lands exactly where it should. Replacing a worn linear guide rail car tooth assembly eliminates:

• Inaccurate or misaligned embroidery designs
• Skipped stitches and thread breaks due to erratic movement
• Excessive wear and tear on other machine components
• Unnecessary downtime and lost production
• Frustration from inconsistent results

How the Linear Guide Rail Car Tooth Assembly Works

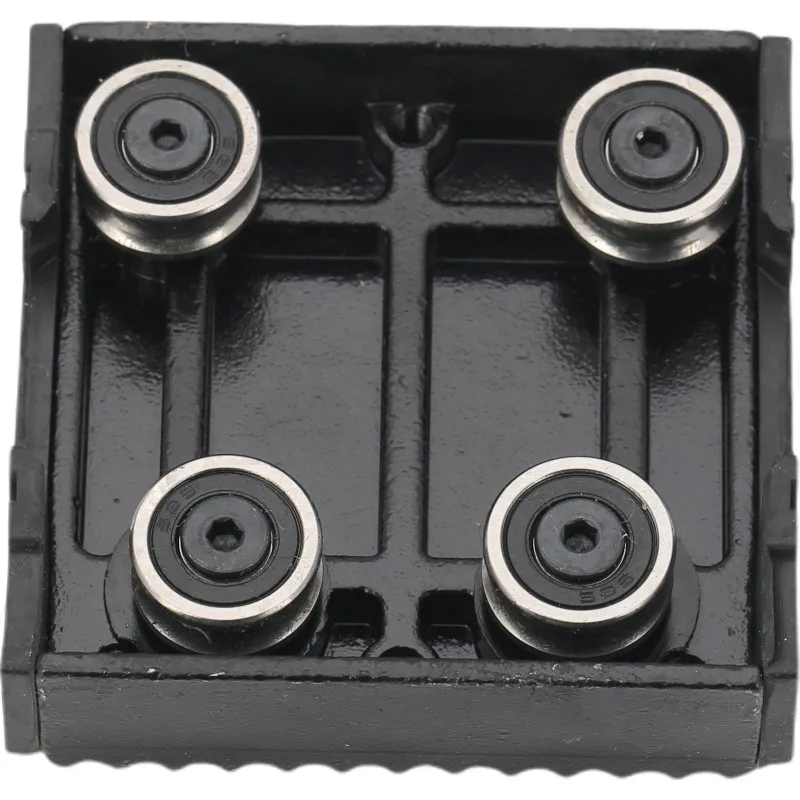

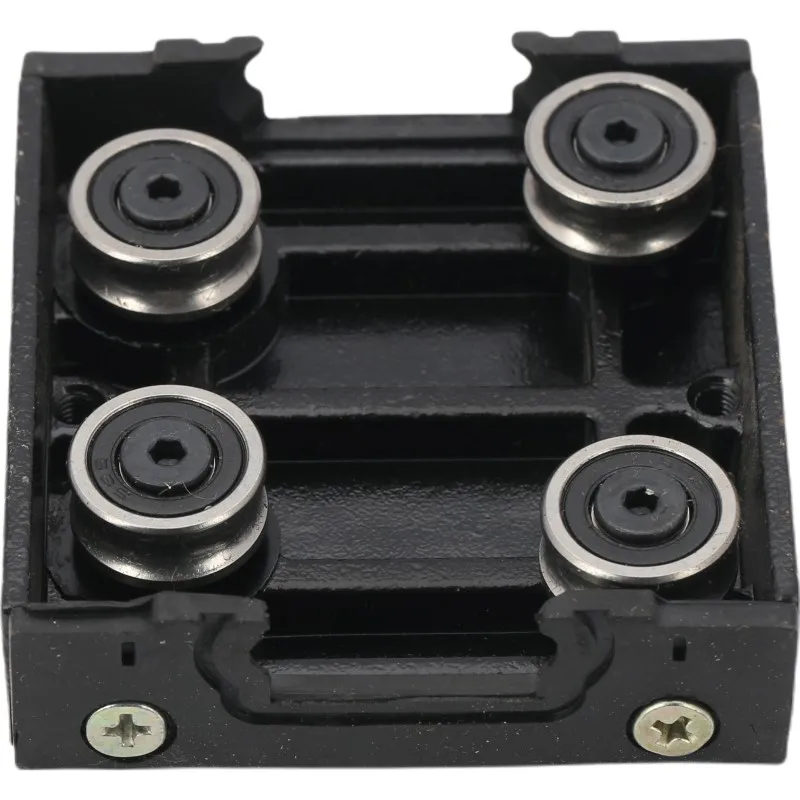

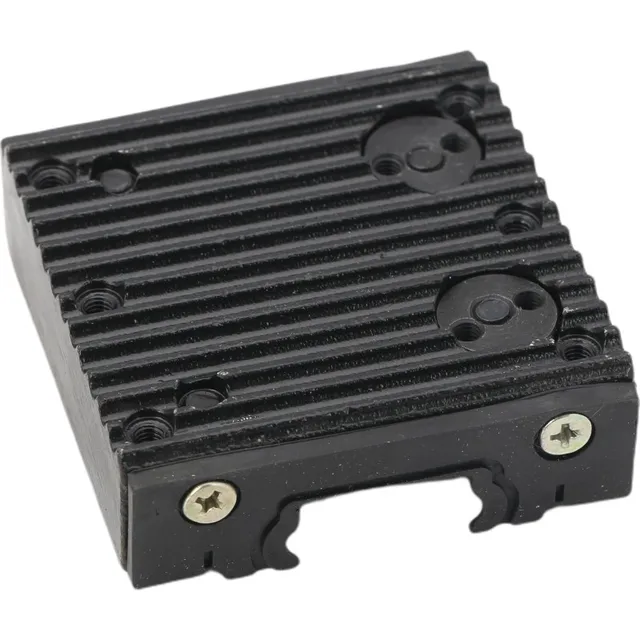

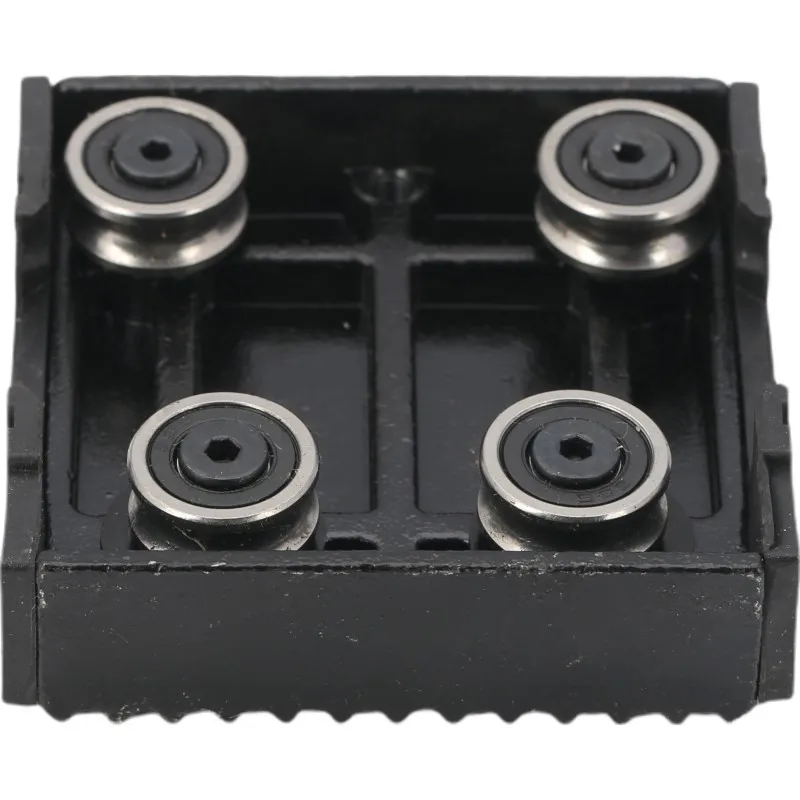

The linear guide rail car tooth assembly is a vital component within your embroidery machine‘s motion system. It consists of a carriage (the “car”) that slides along a linear rail, driven by a “tooth” mechanism, often engaging with a timing belt or rack. This precise interaction ensures the smooth, controlled movement of the embroidery head or frame across the fabric. A well-functioning assembly guarantees consistent speed and position, which is critical for achieving sharp details and perfectly registered designs, especially on intricate patterns.

Designed for Reliable Performance

This Onloyo S-6510 assembly is built to meet the rigorous demands of continuous embroidery operation. Its design focuses on durability and precision, providing a stable and consistent platform for your machine‘s movements. Investing in a quality replacement component like this helps extend the lifespan of your machine and maintains the high standard of work your clients expect.

Compatible With

This Onloyo S-6510 Linear Guide Rail Car Tooth Assembly is designed for use with:

• Flat Embroidery Machines
• Computerized Embroidery Machines
• Various industrial embroidery machine models (please confirm fitment)

We recommend confirming compatibility with your specific machine model before ordering. Not sure? Contact us with your machine model, and we will gladly confirm compatibility for you.

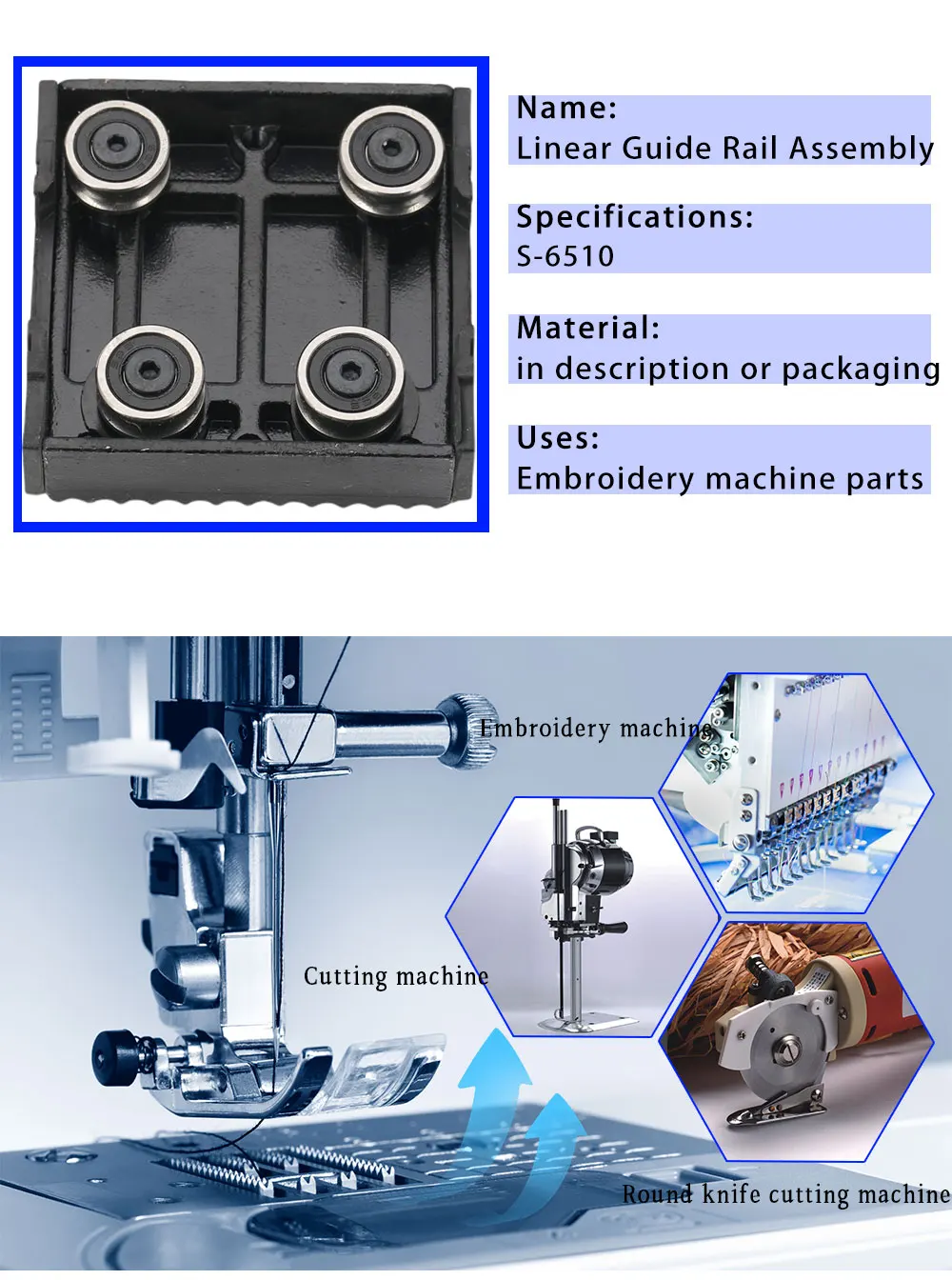

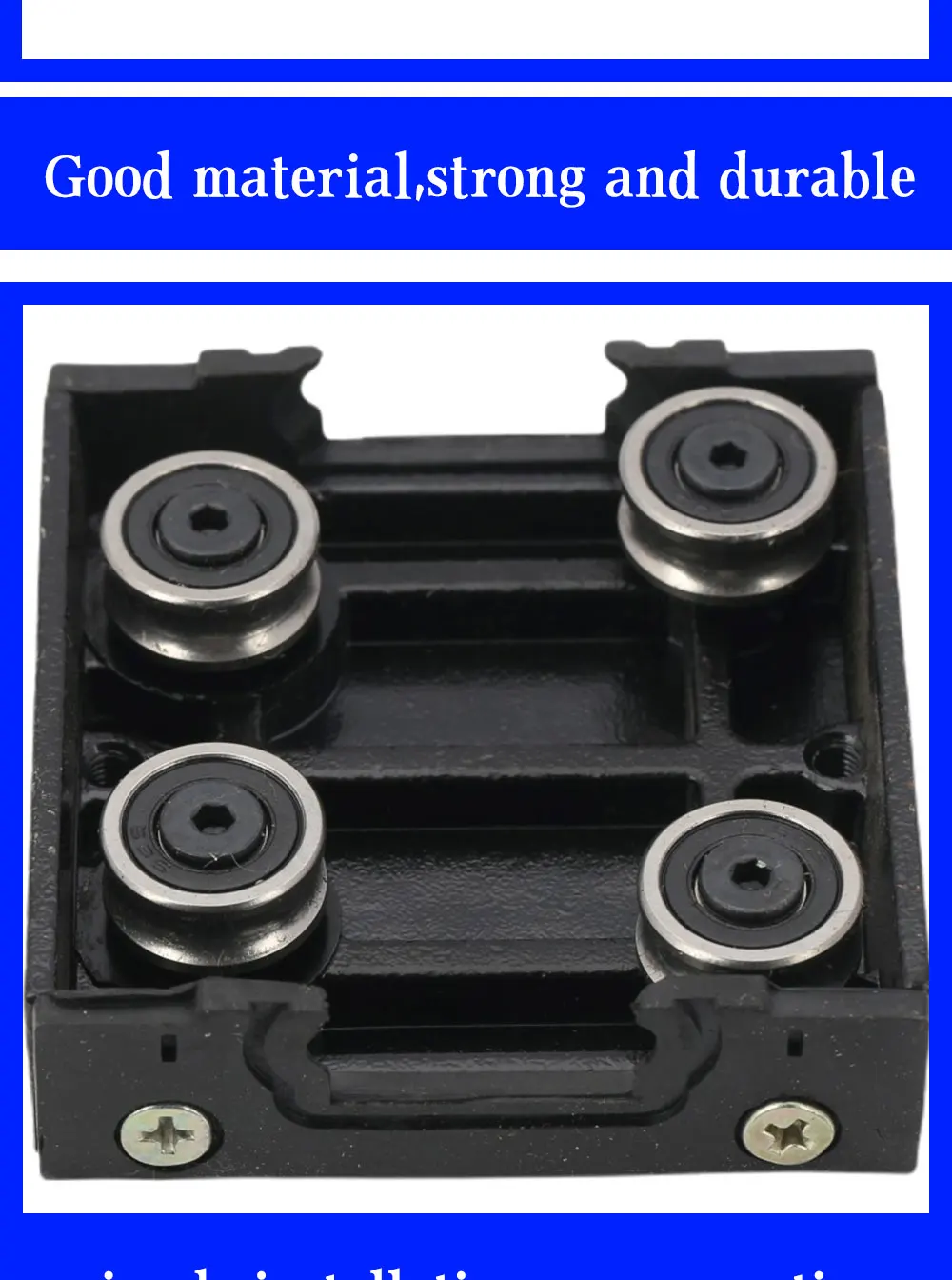

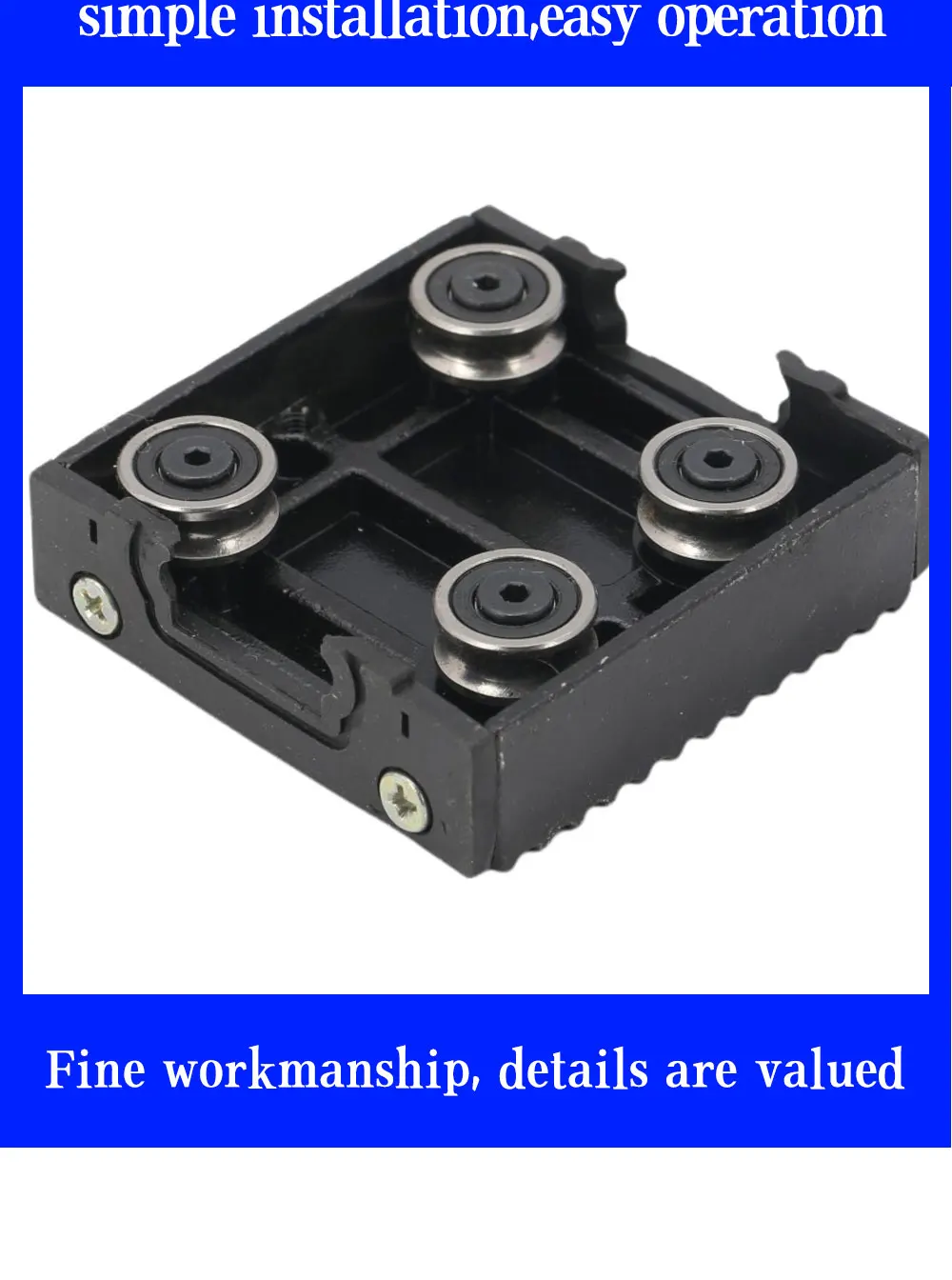

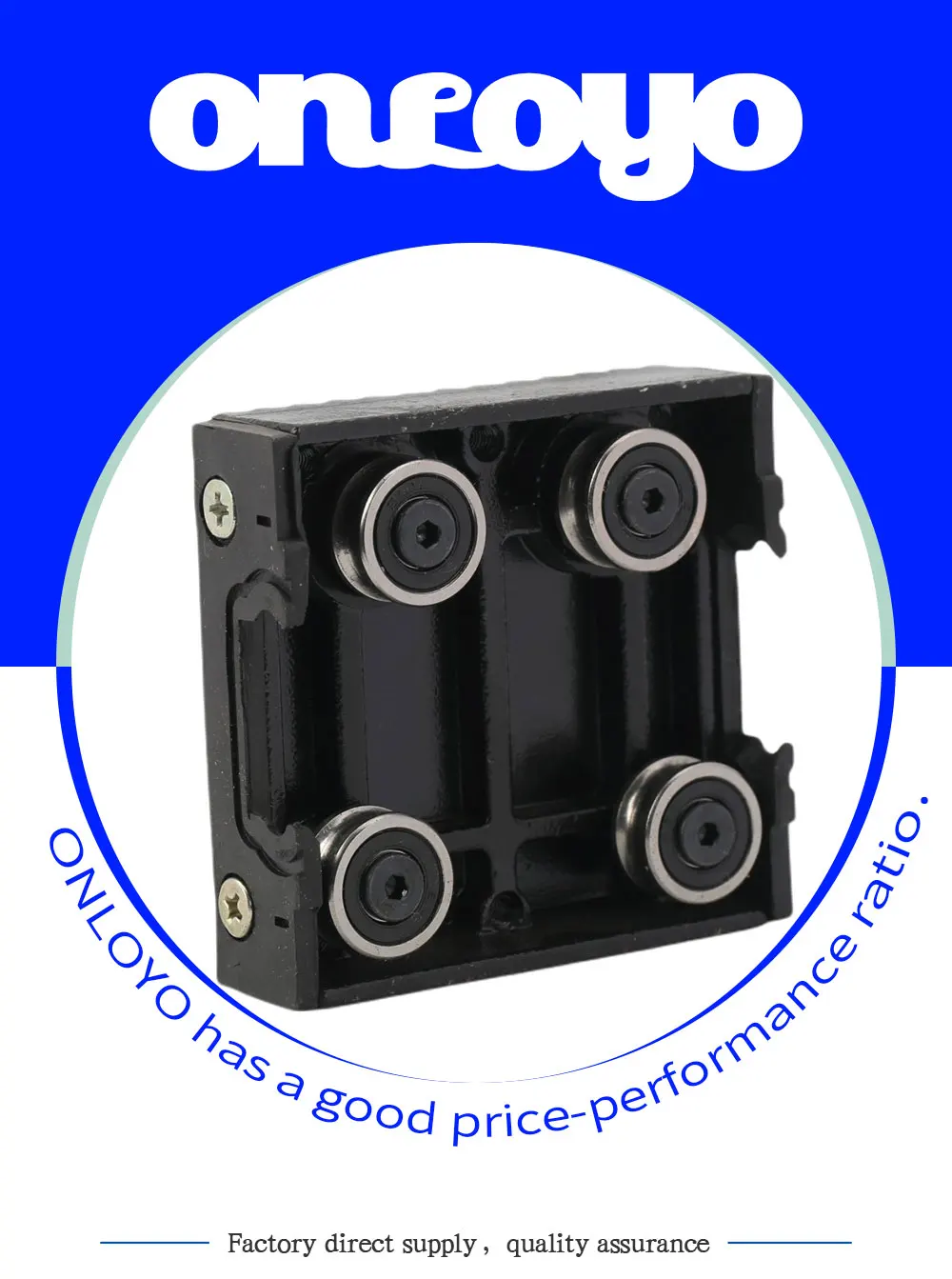

Product Specifications

• Brand: Onloyo
• Model Number: S-6510
• Part Type: Linear Guide Rail Car Tooth Assembly
• Machine Type Compatibility: Flat Embroidery Machine
• Operation Type: Computerized
• Condition: New

Why Choose 360 Digitizing Shop?

At 360 Digitizing Shop, we understand that reliable parts are the backbone of your embroidery business. Every Onloyo S-6510 Linear Guide Rail Car Tooth Assembly is rigorously function-tested before shipping, ensuring that you receive a perfectly working unit ready for installation. We never send defective items. In the unlikely event a defective item arrives, you are fully protected by our buyer protection policy, guaranteeing a refund within 4 days. Trust us for quality parts and peace of mind, keeping your machines running smoothly and profitably.

Frequently Asked Questions

What is the Onloyo S-6510 Linear Guide Rail Car Tooth Assembly used for?
This assembly is a critical component for embroidery machines, responsible for guiding the embroidery head or frame with precision and smoothness, ensuring accurate stitch placement and high-quality designs.

What problems does replacing this part solve?
Replacing a worn or damaged linear guide rail car tooth assembly can resolve issues such as jerky machine movements, inconsistent stitching, misaligned embroidery, skipped stitches, and overall poor design quality.

How do I ensure this Onloyo S-6510 part fits my embroidery machine?
This assembly is designed for Flat and Computerized Embroidery Machines. We recommend comparing the part number S-6510 with your machine‘s specifications or existing part. If you’re unsure, please contact us with your machine‘s model number, and we’ll help confirm compatibility.

What is included with my purchase of the Onloyo S-6510 Linear Guide Rail Car Tooth Assembly?
Your purchase includes one (1) Onloyo S-6510 Linear Guide Rail Car Tooth Assembly, ready for installation.

What is 360 Digitizing Shop's quality assurance and return policy for this item?
Every Onloyo S-6510 assembly is function-tested before shipping. If a defective item arrives, you are covered by our buyer protection, guaranteeing a refund within 4 days.
